vtkHyperStreamline Class Reference

#include <vtkHyperStreamline.h>

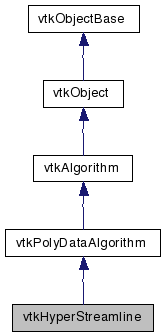

Inheritance diagram for vtkHyperStreamline:

Inheritance graph
[legend]
Collaboration diagram for vtkHyperStreamline:

Collaboration graph
[legend]

List of all members.


Detailed Description

generate hyperstreamline in arbitrary dataset

vtkHyperStreamline is a filter that integrates through a tensor field to generate a hyperstreamline. The integration is along the maximum eigenvector and the cross section of the hyperstreamline is defined by the two other eigenvectors. Thus the shape of the hyperstreamline is "tube-like", with the cross section being elliptical. Hyperstreamlines are used to visualize tensor fields.

The starting point of a hyperstreamline can be defined in one of two ways. First, you may specify an initial position. This is a x-y-z global coordinate. The second option is to specify a starting location. This is cellId, subId, and cell parametric coordinates.

The integration of the hyperstreamline occurs through the major eigenvector field. IntegrationStepLength controls the step length within each cell (i.e., this is the fraction of the cell length). The length of the hyperstreamline is controlled by MaximumPropagationDistance. This parameter is the length of the hyperstreamline in units of distance. The tube itself is composed of many small sub-tubes - NumberOfSides controls the number of sides in the tube, and StepLength controls the length of the sub-tubes.

Because hyperstreamlines are often created near regions of singularities, it is possible to control the scaling of the tube cross section by using a logarithmic scale. Use LogScalingOn to turn this capability on. The Radius value controls the initial radius of the tube.

See also:
vtkTensorGlyph vtkStreamer
Tests:
vtkHyperStreamline (Tests)

Definition at line 66 of file vtkHyperStreamline.h.


Public Types

typedef vtkPolyDataAlgorithm Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
void SetStartLocation (vtkIdType cellId, int subId, double pcoords[3])
vtkIdType GetStartLocation (int &subId, double pcoords[3])
void SetStartPosition (double x[3])
void SetStartPosition (double x, double y, double z)
double * GetStartPosition ()
void SetStartLocation (vtkIdType cellId, int subId, double r, double s, double t)
virtual void SetMaximumPropagationDistance (double)
virtual double GetMaximumPropagationDistance ()
virtual void SetIntegrationEigenvector (int)
virtual int GetIntegrationEigenvector ()
void SetIntegrationEigenvectorToMajor ()
void SetIntegrationEigenvectorToMedium ()
void SetIntegrationEigenvectorToMinor ()
void IntegrateMajorEigenvector ()
void IntegrateMediumEigenvector ()
void IntegrateMinorEigenvector ()
virtual void SetIntegrationStepLength (double)
virtual double GetIntegrationStepLength ()
virtual void SetStepLength (double)
virtual double GetStepLength ()
virtual void SetIntegrationDirection (int)
virtual int GetIntegrationDirection ()
void SetIntegrationDirectionToForward ()
void SetIntegrationDirectionToBackward ()
void SetIntegrationDirectionToIntegrateBothDirections ()
virtual void SetTerminalEigenvalue (double)
virtual double GetTerminalEigenvalue ()
virtual void SetNumberOfSides (int)
virtual int GetNumberOfSides ()
virtual void SetRadius (double)
virtual double GetRadius ()
virtual void SetLogScaling (int)
virtual int GetLogScaling ()
virtual void LogScalingOn ()
virtual void LogScalingOff ()

Static Public Member Functions

static int IsTypeOf (const char *type)
static vtkHyperStreamlineSafeDownCast (vtkObject *o)
static vtkHyperStreamlineNew ()

Protected Member Functions

 vtkHyperStreamline ()
 ~vtkHyperStreamline ()
virtual int RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
int BuildTube (vtkDataSet *input, vtkPolyData *output)
virtual int FillInputPortInformation (int port, vtkInformation *info)

Protected Attributes

int StartFrom
vtkIdType StartCell
int StartSubId
double StartPCoords [3]
double StartPosition [3]
vtkHyperArray * Streamers
int NumberOfStreamers
double MaximumPropagationDistance
int IntegrationDirection
double IntegrationStepLength
double StepLength
double TerminalEigenvalue
int NumberOfSides
double Radius
int LogScaling
int IntegrationEigenvector

Member Typedef Documentation

Reimplemented from vtkPolyDataAlgorithm.

Definition at line 69 of file vtkHyperStreamline.h.


Constructor & Destructor Documentation

vtkHyperStreamline::vtkHyperStreamline (  )  [protected]

vtkHyperStreamline::~vtkHyperStreamline (  )  [protected]


Member Function Documentation

virtual const char* vtkHyperStreamline::GetClassName (  )  [virtual]

Reimplemented from vtkPolyDataAlgorithm.

static int vtkHyperStreamline::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataAlgorithm.

virtual int vtkHyperStreamline::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataAlgorithm.

static vtkHyperStreamline* vtkHyperStreamline::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkPolyDataAlgorithm.

void vtkHyperStreamline::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkPolyDataAlgorithm.

static vtkHyperStreamline* vtkHyperStreamline::New (  )  [static]

Construct object with initial starting position (0,0,0); integration step length 0.2; step length 0.01; forward integration; terminal eigenvalue 0.0; number of sides 6; radius 0.5; and logarithmic scaling off.

Reimplemented from vtkPolyDataAlgorithm.

void vtkHyperStreamline::SetStartLocation ( vtkIdType  cellId,
int  subId,
double  pcoords[3]
)

Specify the start of the hyperstreamline in the cell coordinate system. That is, cellId and subId (if composite cell), and parametric coordinates.

void vtkHyperStreamline::SetStartLocation ( vtkIdType  cellId,
int  subId,
double  r,
double  s,
double  t
)

Specify the start of the hyperstreamline in the cell coordinate system. That is, cellId and subId (if composite cell), and parametric coordinates.

vtkIdType vtkHyperStreamline::GetStartLocation ( int &  subId,
double  pcoords[3]
)

Get the starting location of the hyperstreamline in the cell coordinate system. Returns the cell that the starting point is in.

void vtkHyperStreamline::SetStartPosition ( double  x[3]  )

Specify the start of the hyperstreamline in the global coordinate system. Starting from position implies that a search must be performed to find initial cell to start integration from.

void vtkHyperStreamline::SetStartPosition ( double  x,
double  y,
double  z
)

Specify the start of the hyperstreamline in the global coordinate system. Starting from position implies that a search must be performed to find initial cell to start integration from.

double* vtkHyperStreamline::GetStartPosition (  )

Get the start position of the hyperstreamline in global x-y-z coordinates.

virtual void vtkHyperStreamline::SetMaximumPropagationDistance ( double   )  [virtual]

Set / get the maximum length of the hyperstreamline expressed as absolute distance (i.e., arc length) value.

virtual double vtkHyperStreamline::GetMaximumPropagationDistance (  )  [virtual]

Set / get the maximum length of the hyperstreamline expressed as absolute distance (i.e., arc length) value.

virtual void vtkHyperStreamline::SetIntegrationEigenvector ( int   )  [virtual]

Set / get the eigenvector field through which to ingrate. It is possible to integrate using the major, medium or minor eigenvector field. The major eigenvector is the eigenvector whose corresponding eigenvalue is closest to positive infinity. The minor eigenvector is the eigenvector whose corresponding eigenvalue is closest to negative infinity. The medium eigenvector is the eigenvector whose corresponding eigenvalue is between the major and minor eigenvalues.

virtual int vtkHyperStreamline::GetIntegrationEigenvector (  )  [virtual]

Set / get the eigenvector field through which to ingrate. It is possible to integrate using the major, medium or minor eigenvector field. The major eigenvector is the eigenvector whose corresponding eigenvalue is closest to positive infinity. The minor eigenvector is the eigenvector whose corresponding eigenvalue is closest to negative infinity. The medium eigenvector is the eigenvector whose corresponding eigenvalue is between the major and minor eigenvalues.

void vtkHyperStreamline::SetIntegrationEigenvectorToMajor (  )  [inline]

Set / get the eigenvector field through which to ingrate. It is possible to integrate using the major, medium or minor eigenvector field. The major eigenvector is the eigenvector whose corresponding eigenvalue is closest to positive infinity. The minor eigenvector is the eigenvector whose corresponding eigenvalue is closest to negative infinity. The medium eigenvector is the eigenvector whose corresponding eigenvalue is between the major and minor eigenvalues.

Definition at line 128 of file vtkHyperStreamline.h.

void vtkHyperStreamline::SetIntegrationEigenvectorToMedium (  )  [inline]

Set / get the eigenvector field through which to ingrate. It is possible to integrate using the major, medium or minor eigenvector field. The major eigenvector is the eigenvector whose corresponding eigenvalue is closest to positive infinity. The minor eigenvector is the eigenvector whose corresponding eigenvalue is closest to negative infinity. The medium eigenvector is the eigenvector whose corresponding eigenvalue is between the major and minor eigenvalues.

Definition at line 130 of file vtkHyperStreamline.h.

void vtkHyperStreamline::SetIntegrationEigenvectorToMinor (  )  [inline]

Set / get the eigenvector field through which to ingrate. It is possible to integrate using the major, medium or minor eigenvector field. The major eigenvector is the eigenvector whose corresponding eigenvalue is closest to positive infinity. The minor eigenvector is the eigenvector whose corresponding eigenvalue is closest to negative infinity. The medium eigenvector is the eigenvector whose corresponding eigenvalue is between the major and minor eigenvalues.

Definition at line 132 of file vtkHyperStreamline.h.

void vtkHyperStreamline::IntegrateMajorEigenvector (  )  [inline]

Use the major eigenvector field as the vector field through which to integrate. The major eigenvector is the eigenvector whose corresponding eigenvalue is closest to positive infinity.

Definition at line 140 of file vtkHyperStreamline.h.

void vtkHyperStreamline::IntegrateMediumEigenvector (  )  [inline]

Use the medium eigenvector field as the vector field through which to integrate. The medium eigenvector is the eigenvector whose corresponding eigenvalue is between the major and minor eigenvalues.

Definition at line 148 of file vtkHyperStreamline.h.

void vtkHyperStreamline::IntegrateMinorEigenvector (  )  [inline]

Use the minor eigenvector field as the vector field through which to integrate. The minor eigenvector is the eigenvector whose corresponding eigenvalue is closest to negative infinity.

Definition at line 156 of file vtkHyperStreamline.h.

virtual void vtkHyperStreamline::SetIntegrationStepLength ( double   )  [virtual]

Set / get a nominal integration step size (expressed as a fraction of the size of each cell).

virtual double vtkHyperStreamline::GetIntegrationStepLength (  )  [virtual]

Set / get a nominal integration step size (expressed as a fraction of the size of each cell).

virtual void vtkHyperStreamline::SetStepLength ( double   )  [virtual]

Set / get the length of a tube segment composing the hyperstreamline. The length is specified as a fraction of the diagonal length of the input bounding box.

virtual double vtkHyperStreamline::GetStepLength (  )  [virtual]

Set / get the length of a tube segment composing the hyperstreamline. The length is specified as a fraction of the diagonal length of the input bounding box.

virtual void vtkHyperStreamline::SetIntegrationDirection ( int   )  [virtual]

Specify the direction in which to integrate the hyperstreamline.

virtual int vtkHyperStreamline::GetIntegrationDirection (  )  [virtual]

Specify the direction in which to integrate the hyperstreamline.

void vtkHyperStreamline::SetIntegrationDirectionToForward (  )  [inline]

Specify the direction in which to integrate the hyperstreamline.

Definition at line 180 of file vtkHyperStreamline.h.

void vtkHyperStreamline::SetIntegrationDirectionToBackward (  )  [inline]

Specify the direction in which to integrate the hyperstreamline.

Definition at line 182 of file vtkHyperStreamline.h.

void vtkHyperStreamline::SetIntegrationDirectionToIntegrateBothDirections (  )  [inline]

Specify the direction in which to integrate the hyperstreamline.

Definition at line 184 of file vtkHyperStreamline.h.

virtual void vtkHyperStreamline::SetTerminalEigenvalue ( double   )  [virtual]

Set/get terminal eigenvalue. If major eigenvalue falls below this value, hyperstreamline terminates propagation.

virtual double vtkHyperStreamline::GetTerminalEigenvalue (  )  [virtual]

Set/get terminal eigenvalue. If major eigenvalue falls below this value, hyperstreamline terminates propagation.

virtual void vtkHyperStreamline::SetNumberOfSides ( int   )  [virtual]

Set / get the number of sides for the hyperstreamlines. At a minimum, number of sides is 3.

virtual int vtkHyperStreamline::GetNumberOfSides (  )  [virtual]

Set / get the number of sides for the hyperstreamlines. At a minimum, number of sides is 3.

virtual void vtkHyperStreamline::SetRadius ( double   )  [virtual]

Set / get the initial tube radius. This is the maximum "elliptical" radius at the beginning of the tube. Radius varies based on ratio of eigenvalues. Note that tube section is actually elliptical and may become a point or line in cross section in some cases.

virtual double vtkHyperStreamline::GetRadius (  )  [virtual]

Set / get the initial tube radius. This is the maximum "elliptical" radius at the beginning of the tube. Radius varies based on ratio of eigenvalues. Note that tube section is actually elliptical and may become a point or line in cross section in some cases.

virtual void vtkHyperStreamline::SetLogScaling ( int   )  [virtual]

Turn on/off logarithmic scaling. If scaling is on, the log base 10 of the computed eigenvalues are used to scale the cross section radii.

virtual int vtkHyperStreamline::GetLogScaling (  )  [virtual]

Turn on/off logarithmic scaling. If scaling is on, the log base 10 of the computed eigenvalues are used to scale the cross section radii.

virtual void vtkHyperStreamline::LogScalingOn (  )  [virtual]

Turn on/off logarithmic scaling. If scaling is on, the log base 10 of the computed eigenvalues are used to scale the cross section radii.

virtual void vtkHyperStreamline::LogScalingOff (  )  [virtual]

Turn on/off logarithmic scaling. If scaling is on, the log base 10 of the computed eigenvalues are used to scale the cross section radii.

virtual int vtkHyperStreamline::RequestData ( vtkInformation request,
vtkInformationVector **  inputVector,
vtkInformationVector outputVector
) [protected, virtual]

This is called by the superclass. This is the method you should override.

Reimplemented from vtkPolyDataAlgorithm.

int vtkHyperStreamline::BuildTube ( vtkDataSet input,
vtkPolyData output
) [protected]

virtual int vtkHyperStreamline::FillInputPortInformation ( int  port,
vtkInformation info
) [protected, virtual]

Fill the input port information objects for this algorithm. This is invoked by the first call to GetInputPortInformation for each port so subclasses can specify what they can handle.

Reimplemented from vtkPolyDataAlgorithm.


Member Data Documentation

Definition at line 230 of file vtkHyperStreamline.h.

Definition at line 233 of file vtkHyperStreamline.h.

Definition at line 234 of file vtkHyperStreamline.h.

double vtkHyperStreamline::StartPCoords[3] [protected]

Definition at line 235 of file vtkHyperStreamline.h.

double vtkHyperStreamline::StartPosition[3] [protected]

Definition at line 238 of file vtkHyperStreamline.h.

vtkHyperArray* vtkHyperStreamline::Streamers [protected]

Definition at line 241 of file vtkHyperStreamline.h.

Definition at line 242 of file vtkHyperStreamline.h.

Definition at line 245 of file vtkHyperStreamline.h.

Definition at line 248 of file vtkHyperStreamline.h.

Definition at line 251 of file vtkHyperStreamline.h.

double vtkHyperStreamline::StepLength [protected]

Definition at line 254 of file vtkHyperStreamline.h.

Definition at line 257 of file vtkHyperStreamline.h.

Definition at line 260 of file vtkHyperStreamline.h.

double vtkHyperStreamline::Radius [protected]

Definition at line 263 of file vtkHyperStreamline.h.

Definition at line 266 of file vtkHyperStreamline.h.

Definition at line 269 of file vtkHyperStreamline.h.


The documentation for this class was generated from the following file:

Generated on Sat Dec 27 13:28:37 2008 for VTK by  doxygen 1.5.6
