vtkImageGaussianSource Class Reference

#include <vtkImageGaussianSource.h>

Inheritance diagram for vtkImageGaussianSource:

Inheritance graph
[legend]

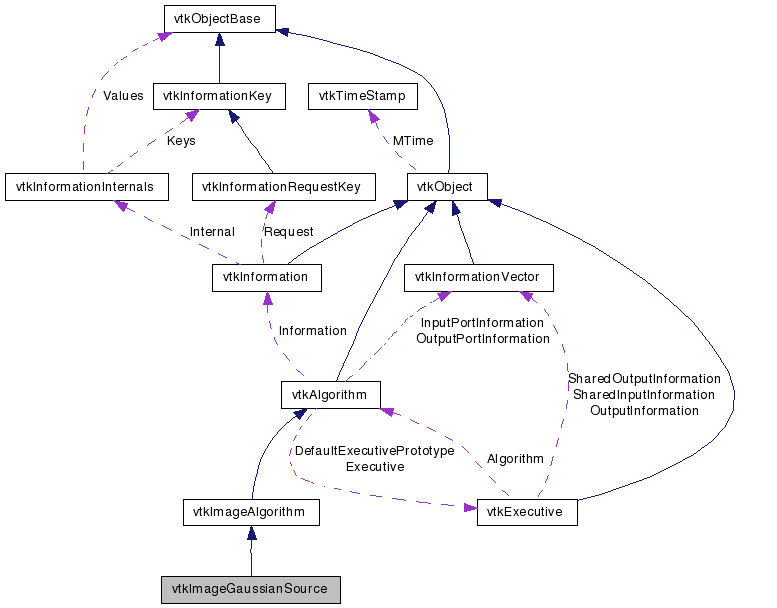

Collaboration diagram for vtkImageGaussianSource:

Collaboration graph
[legend]

List of all members.


Detailed Description

Create an image with Gaussian pixel values.

vtkImageGaussianSource just produces images with pixel values determined by a Gaussian.

Tests:
vtkImageGaussianSource (Tests)

Definition at line 30 of file vtkImageGaussianSource.h.


Public Types

typedef vtkImageAlgorithm Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
void SetWholeExtent (int xMinx, int xMax, int yMin, int yMax, int zMin, int zMax)
virtual void SetCenter (double, double, double)
virtual void SetCenter (double[3])
virtual double * GetCenter ()
virtual void GetCenter (double &, double &, double &)
virtual void GetCenter (double[3])
virtual void SetMaximum (double)
virtual double GetMaximum ()
virtual void SetStandardDeviation (double)
virtual double GetStandardDeviation ()

Static Public Member Functions

static vtkImageGaussianSourceNew ()
static int IsTypeOf (const char *type)
static vtkImageGaussianSourceSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkImageGaussianSource ()
 ~vtkImageGaussianSource ()
virtual int RequestInformation (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)

Protected Attributes

double StandardDeviation
int WholeExtent [6]
double Center [3]
double Maximum

Member Typedef Documentation

Reimplemented from vtkImageAlgorithm.

Definition at line 34 of file vtkImageGaussianSource.h.


Constructor & Destructor Documentation

vtkImageGaussianSource::vtkImageGaussianSource (  )  [protected]

vtkImageGaussianSource::~vtkImageGaussianSource (  )  [inline, protected]

Definition at line 63 of file vtkImageGaussianSource.h.


Member Function Documentation

static vtkImageGaussianSource* vtkImageGaussianSource::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkAlgorithm.

virtual const char* vtkImageGaussianSource::GetClassName (  )  [virtual]

Reimplemented from vtkImageAlgorithm.

static int vtkImageGaussianSource::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkImageAlgorithm.

virtual int vtkImageGaussianSource::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkImageAlgorithm.

static vtkImageGaussianSource* vtkImageGaussianSource::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkImageAlgorithm.

void vtkImageGaussianSource::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkImageAlgorithm.

void vtkImageGaussianSource::SetWholeExtent ( int  xMinx,
int  xMax,
int  yMin,
int  yMax,
int  zMin,
int  zMax
)

Set/Get the extent of the whole output image.

virtual void vtkImageGaussianSource::SetCenter ( double  ,
double  ,
double
) [virtual]

Set/Get the center of the Gaussian.

virtual void vtkImageGaussianSource::SetCenter ( double  [3]  )  [virtual]

Set/Get the center of the Gaussian.

virtual double* vtkImageGaussianSource::GetCenter (  )  [virtual]

Set/Get the center of the Gaussian.

virtual void vtkImageGaussianSource::GetCenter ( double &  ,
double &  ,
double &
) [virtual]

Set/Get the center of the Gaussian.

virtual void vtkImageGaussianSource::GetCenter ( double  [3]  )  [virtual]

Set/Get the center of the Gaussian.

virtual void vtkImageGaussianSource::SetMaximum ( double   )  [virtual]

Set/Get the Maximum value of the gaussian

virtual double vtkImageGaussianSource::GetMaximum (  )  [virtual]

Set/Get the Maximum value of the gaussian

virtual void vtkImageGaussianSource::SetStandardDeviation ( double   )  [virtual]

Set/Get the standard deviation of the gaussian

virtual double vtkImageGaussianSource::GetStandardDeviation (  )  [virtual]

Set/Get the standard deviation of the gaussian

virtual int vtkImageGaussianSource::RequestInformation ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [protected, virtual]

Reimplemented from vtkImageAlgorithm.

virtual int vtkImageGaussianSource::RequestData ( vtkInformation request,
vtkInformationVector **  inputVector,
vtkInformationVector outputVector
) [protected, virtual]

This is called by the superclass. This is the method you should override.

Reimplemented from vtkImageAlgorithm.


Member Data Documentation

Definition at line 63 of file vtkImageGaussianSource.h.

Definition at line 66 of file vtkImageGaussianSource.h.

double vtkImageGaussianSource::Center[3] [protected]

Definition at line 67 of file vtkImageGaussianSource.h.

double vtkImageGaussianSource::Maximum [protected]

Definition at line 68 of file vtkImageGaussianSource.h.


The documentation for this class was generated from the following file:
