vtkImageMultipleInputOutputFilter Class Reference

#include <vtkImageMultipleInputOutputFilter.h>

Inheritance diagram for vtkImageMultipleInputOutputFilter:

Inheritance graph
[legend]

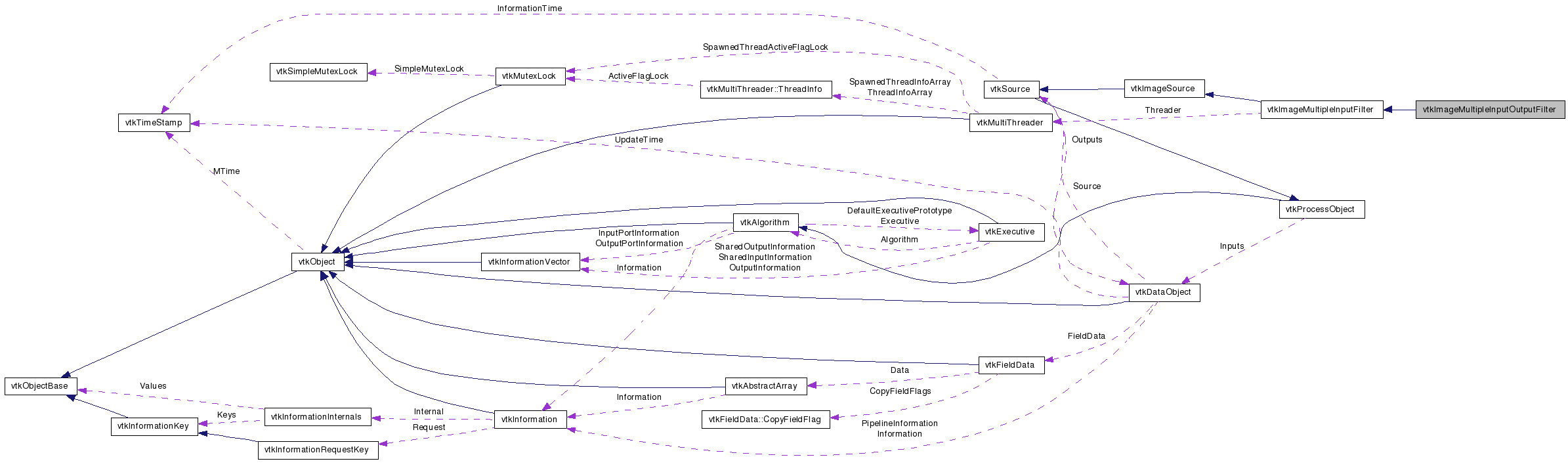

Collaboration diagram for vtkImageMultipleInputOutputFilter:

Collaboration graph
[legend]

List of all members.


Detailed Description

Generic filter that has N inputs.

vtkImageMultipleInputOutputFilter is a super class for filters that have any number of inputs. Streaming is not available in this class yet.

See also:
vtkImageToImageFilter vtkImageInPlaceFilter vtkImageTwoInputFilter

Definition at line 32 of file vtkImageMultipleInputOutputFilter.h.


Public Types

typedef vtkImageMultipleInputFilter Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
vtkImageDataGetOutput (int num)
vtkImageDataGetOutput ()
virtual void ThreadedExecute (vtkImageData **inDatas, vtkImageData **outDatas, int extent[6], int threadId)

Static Public Member Functions

static int IsTypeOf (const char *type)
static
vtkImageMultipleInputOutputFilter
SafeDownCast (vtkObject *o)

Protected Member Functions

 vtkImageMultipleInputOutputFilter ()
 ~vtkImageMultipleInputOutputFilter ()
void ComputeInputUpdateExtents (vtkDataObject *output)
virtual void ComputeInputUpdateExtent (int inExt[6], int outExt[6], int whichInput)
void ExecuteData (vtkDataObject *out)
virtual void ThreadedExecute (vtkImageData **inDatas, vtkImageData *outData, int extent[6], int threadId)
virtual void ExecuteInformation (vtkImageData **, vtkImageData *)
void ExecuteInformation ()
virtual void ExecuteInformation (vtkImageData **, vtkImageData **)

Member Typedef Documentation

Reimplemented from vtkImageMultipleInputFilter.

Definition at line 35 of file vtkImageMultipleInputOutputFilter.h.


Constructor & Destructor Documentation

vtkImageMultipleInputOutputFilter::vtkImageMultipleInputOutputFilter (  )  [protected]

vtkImageMultipleInputOutputFilter::~vtkImageMultipleInputOutputFilter (  )  [protected]


Member Function Documentation

virtual const char* vtkImageMultipleInputOutputFilter::GetClassName (  )  [virtual]

Reimplemented from vtkImageMultipleInputFilter.

static int vtkImageMultipleInputOutputFilter::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkImageMultipleInputFilter.

virtual int vtkImageMultipleInputOutputFilter::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkImageMultipleInputFilter.

static vtkImageMultipleInputOutputFilter* vtkImageMultipleInputOutputFilter::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkImageMultipleInputFilter.

void vtkImageMultipleInputOutputFilter::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkImageMultipleInputFilter.

vtkImageData* vtkImageMultipleInputOutputFilter::GetOutput ( int  num  )

Get one input to this filter.

Reimplemented from vtkImageSource.

vtkImageData* vtkImageMultipleInputOutputFilter::GetOutput (  )

Get one input to this filter.

Reimplemented from vtkImageSource.

virtual void vtkImageMultipleInputOutputFilter::ThreadedExecute ( vtkImageData **  inDatas,
vtkImageData **  outDatas,
int  extent[6],
int  threadId
) [virtual]

The execute method created by the subclass. This is kept public instead of protected since it is called from a non-member thread function.

void vtkImageMultipleInputOutputFilter::ComputeInputUpdateExtents ( vtkDataObject output  )  [protected, virtual]

What is the input update extent that is required to produce the desired output? By default, the whole input is always required but this is overridden in many subclasses.

Reimplemented from vtkImageMultipleInputFilter.

virtual void vtkImageMultipleInputOutputFilter::ComputeInputUpdateExtent ( int  inExt[6],
int  outExt[6],
int  whichInput
) [protected, virtual]

Reimplemented from vtkImageMultipleInputFilter.

void vtkImageMultipleInputOutputFilter::ExecuteData ( vtkDataObject output  )  [protected, virtual]

This method is the one that should be used by subclasses, right now the default implementation is to call the backwards compatibility method

Reimplemented from vtkImageMultipleInputFilter.

virtual void vtkImageMultipleInputOutputFilter::ThreadedExecute ( vtkImageData **  inDatas,
vtkImageData outData,
int  extent[6],
int  threadId
) [protected, virtual]

The execute method created by the subclass. This is kept public instead of protected since it is called from a non-member thread function.

Reimplemented from vtkImageMultipleInputFilter.

virtual void vtkImageMultipleInputOutputFilter::ExecuteInformation ( vtkImageData **  ,
vtkImageData
) [inline, protected, virtual]

Reimplemented from vtkImageMultipleInputFilter.

Definition at line 70 of file vtkImageMultipleInputOutputFilter.h.

void vtkImageMultipleInputOutputFilter::ExecuteInformation (  )  [protected, virtual]

Reimplemented from vtkImageMultipleInputFilter.

virtual void vtkImageMultipleInputOutputFilter::ExecuteInformation ( vtkImageData **  ,
vtkImageData **
) [inline, protected, virtual]

Definition at line 75 of file vtkImageMultipleInputOutputFilter.h.


The documentation for this class was generated from the following file:
