vtkImageTranslateExtent Class Reference

#include <vtkImageTranslateExtent.h>

Inheritance diagram for vtkImageTranslateExtent:

Inheritance graph
[legend]

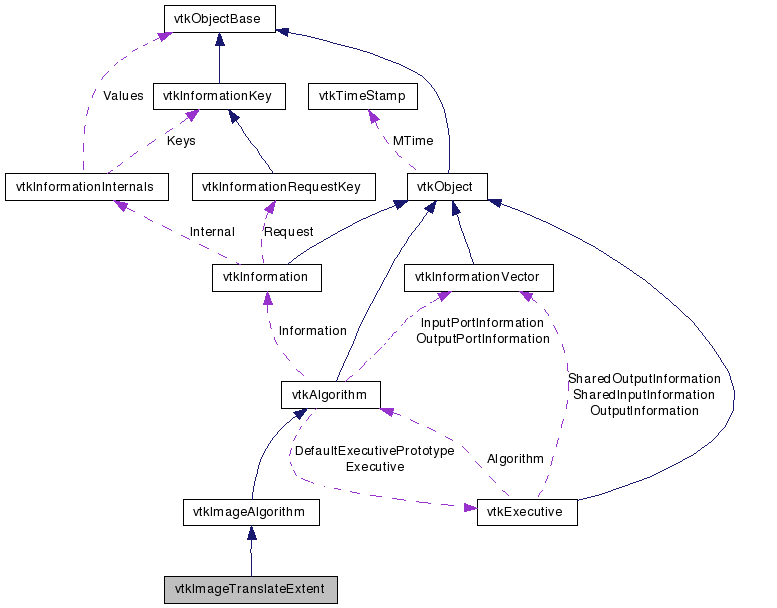

Collaboration diagram for vtkImageTranslateExtent:

Collaboration graph
[legend]

List of all members.


Detailed Description

Changes extent, nothing else.

vtkImageTranslateExtent shift the whole extent, but does not change the data.

Tests:
vtkImageTranslateExtent (Tests)

Definition at line 30 of file vtkImageTranslateExtent.h.


Public Types

typedef vtkImageAlgorithm Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void SetTranslation (int, int, int)
virtual void SetTranslation (int[3])
virtual int * GetTranslation ()
virtual void GetTranslation (int &, int &, int &)
virtual void GetTranslation (int[3])

Static Public Member Functions

static vtkImageTranslateExtentNew ()
static int IsTypeOf (const char *type)
static vtkImageTranslateExtentSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkImageTranslateExtent ()
 ~vtkImageTranslateExtent ()
virtual int RequestUpdateExtent (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int RequestInformation (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)

Protected Attributes

int Translation [3]

Member Typedef Documentation

Reimplemented from vtkImageAlgorithm.

Definition at line 34 of file vtkImageTranslateExtent.h.


Constructor & Destructor Documentation

vtkImageTranslateExtent::vtkImageTranslateExtent (  )  [protected]

vtkImageTranslateExtent::~vtkImageTranslateExtent (  )  [inline, protected]

Definition at line 45 of file vtkImageTranslateExtent.h.


Member Function Documentation

static vtkImageTranslateExtent* vtkImageTranslateExtent::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkAlgorithm.

virtual const char* vtkImageTranslateExtent::GetClassName (  )  [virtual]

Reimplemented from vtkImageAlgorithm.

static int vtkImageTranslateExtent::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkImageAlgorithm.

virtual int vtkImageTranslateExtent::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkImageAlgorithm.

static vtkImageTranslateExtent* vtkImageTranslateExtent::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkImageAlgorithm.

void vtkImageTranslateExtent::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkImageAlgorithm.

virtual void vtkImageTranslateExtent::SetTranslation ( int  ,
int  ,
int
) [virtual]

Delta to change "WholeExtent". -1 changes 0->10 to -1->9.

virtual void vtkImageTranslateExtent::SetTranslation ( int  [3]  )  [virtual]

Delta to change "WholeExtent". -1 changes 0->10 to -1->9.

virtual int* vtkImageTranslateExtent::GetTranslation (  )  [virtual]

Delta to change "WholeExtent". -1 changes 0->10 to -1->9.

virtual void vtkImageTranslateExtent::GetTranslation ( int &  ,
int &  ,
int &
) [virtual]

Delta to change "WholeExtent". -1 changes 0->10 to -1->9.

virtual void vtkImageTranslateExtent::GetTranslation ( int  [3]  )  [virtual]

Delta to change "WholeExtent". -1 changes 0->10 to -1->9.

virtual int vtkImageTranslateExtent::RequestUpdateExtent ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [protected, virtual]

Reimplemented from vtkImageAlgorithm.

virtual int vtkImageTranslateExtent::RequestInformation ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [protected, virtual]

Reimplemented from vtkImageAlgorithm.

virtual int vtkImageTranslateExtent::RequestData ( vtkInformation request,
vtkInformationVector **  inputVector,
vtkInformationVector outputVector
) [protected, virtual]

This is called by the superclass. This is the method you should override.

Reimplemented from vtkImageAlgorithm.


Member Data Documentation

Definition at line 45 of file vtkImageTranslateExtent.h.


The documentation for this class was generated from the following file:
