vtkInterpolateDataSetAttributes Class Reference

#include <vtkInterpolateDataSetAttributes.h>

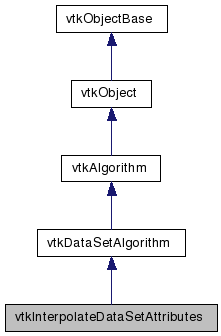

Inheritance diagram for vtkInterpolateDataSetAttributes:

Inheritance graph

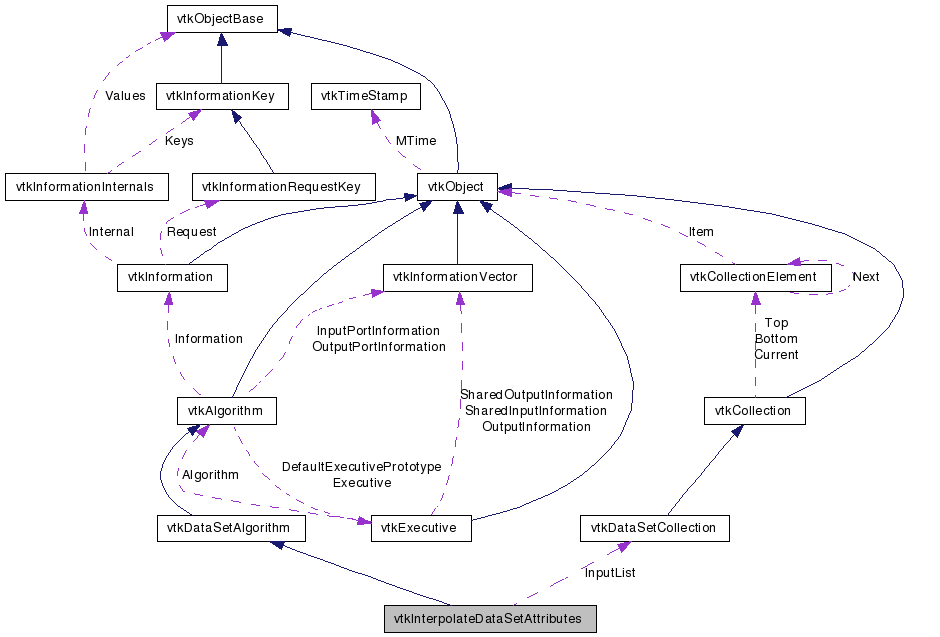

Collaboration diagram for vtkInterpolateDataSetAttributes:

Collaboration graph

List of all members.

Detailed Description

interpolate scalars, vectors, etc. and other dataset attributes

vtkInterpolateDataSetAttributes is a filter that interpolates data set attribute values between input data sets. The input to the filter must be datasets of the same type, same number of cells, and same number of points. The output of the filter is a data set of the same type as the input dataset and whose attribute values have been interpolated at the parametric value specified.

The filter is used by specifying two or more input data sets (total of N), and a parametric value t (0 <= t <= N-1). The output will contain interpolated data set attributes common to all input data sets. (For example, if one input has scalars and vectors, and another has just scalars, then only scalars will be interpolated and output.)

vtkInterpolateDataSetAttributes (Tests)

Definition at line 42 of file vtkInterpolateDataSetAttributes.h.

Public Types

typedef vtkDataSetAlgorithm Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
vtkDataSetCollectionGetInputList ()
virtual void SetT (double)
virtual double GetT ()

Static Public Member Functions

New ()
static int IsTypeOf (const char *type)
SafeDownCast (vtkObject *o)

Protected Member Functions

 vtkInterpolateDataSetAttributes ()
 ~vtkInterpolateDataSetAttributes ()
virtual void ReportReferences (vtkGarbageCollector *)
int RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
int FillInputPortInformation (int port, vtkInformation *info)

Protected Attributes

double T

Member Typedef Documentation

Reimplemented from vtkDataSetAlgorithm.

Definition at line 46 of file vtkInterpolateDataSetAttributes.h.

Constructor & Destructor Documentation

vtkInterpolateDataSetAttributes::vtkInterpolateDataSetAttributes (  )  [protected]

vtkInterpolateDataSetAttributes::~vtkInterpolateDataSetAttributes (  )  [protected]

Member Function Documentation

static vtkInterpolateDataSetAttributes* vtkInterpolateDataSetAttributes::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkDataSetAlgorithm.

virtual const char* vtkInterpolateDataSetAttributes::GetClassName (  )  [virtual]

Reimplemented from vtkDataSetAlgorithm.

static int vtkInterpolateDataSetAttributes::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkDataSetAlgorithm.

virtual int vtkInterpolateDataSetAttributes::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkDataSetAlgorithm.

static vtkInterpolateDataSetAttributes* vtkInterpolateDataSetAttributes::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkDataSetAlgorithm.

void vtkInterpolateDataSetAttributes::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkDataSetAlgorithm.

vtkDataSetCollection* vtkInterpolateDataSetAttributes::GetInputList (  )

Return the list of inputs to this filter.

virtual void vtkInterpolateDataSetAttributes::SetT ( double   )  [virtual]

Specify interpolation parameter t.

virtual double vtkInterpolateDataSetAttributes::GetT (  )  [virtual]

Specify interpolation parameter t.

virtual void vtkInterpolateDataSetAttributes::ReportReferences ( vtkGarbageCollector  )  [protected, virtual]

Reimplemented from vtkAlgorithm.

int vtkInterpolateDataSetAttributes::RequestData ( vtkInformation ,
vtkInformationVector **  ,
) [protected, virtual]

This is called within ProcessRequest when a request asks the algorithm to do its work. This is the method you should override to do whatever the algorithm is designed to do. This happens during the fourth pass in the pipeline execution process.

Reimplemented from vtkDataSetAlgorithm.

int vtkInterpolateDataSetAttributes::FillInputPortInformation ( int  port,
vtkInformation info
) [protected, virtual]

Fill the input port information objects for this algorithm. This is invoked by the first call to GetInputPortInformation for each port so subclasses can specify what they can handle.

Reimplemented from vtkDataSetAlgorithm.

Member Data Documentation

Definition at line 67 of file vtkInterpolateDataSetAttributes.h.

Definition at line 68 of file vtkInterpolateDataSetAttributes.h.

The documentation for this class was generated from the following file:
