vtkMaskFields Class Reference

#include <vtkMaskFields.h>

Inheritance diagram for vtkMaskFields:

[legend]

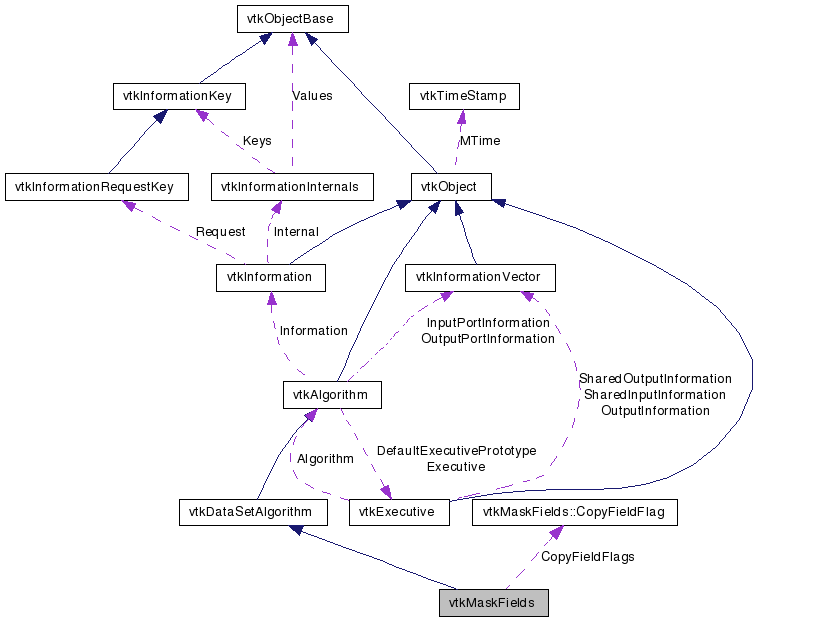

Collaboration diagram for vtkMaskFields:

[legend]

List of all members.

Detailed Description

Allow control of which fields get passed to the output.

vtkMaskFields is used to mark which fields in the input dataset get copied to the output. The output will contain only those fields marked as on by the filter.

See also:: vtkFieldData vtkDataSet vtkDataObjectToDataSetFilter vtkDataSetAttributes vtkDataArray vtkRearrangeFields vtkSplitField vtkMergeFields vtkAssignAttribute

Definition at line 38 of file vtkMaskFields.h.


Public Types
enum	FieldLocation { OBJECT_DATA = 0, POINT_DATA = 1, CELL_DATA = 2 }
typedef vtkDataSetAlgorithm	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
void	CopyFieldsOn ()
void	CopyAttributesOn ()
virtual void	CopyAllOn ()
virtual void	CopyAllOff ()

void	CopyFieldOn (int fieldLocation, const char *name)
void	CopyFieldOff (int fieldLocation, const char *name)

void	CopyAttributeOn (int attributeLocation, int attributeType)
void	CopyAttributeOff (int attributeLocation, int attributeType)

void	CopyFieldsOff ()
void	CopyAttributesOff ()

void	CopyAttributeOn (const char attributeLoc, const char attributeType)
void	CopyAttributeOff (const char attributeLoc, const char attributeType)
void	CopyFieldOn (const char fieldLoc, const char name)
void	CopyFieldOff (const char fieldLoc, const char name)
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkMaskFields *	SafeDownCast (vtkObject *o)
static vtkMaskFields *	New ()
Protected Member Functions
	vtkMaskFields ()
virtual	~vtkMaskFields ()
virtual int	RequestData (vtkInformation , vtkInformationVector , vtkInformationVector )
void	CopyFieldOnOff (int fieldLocation, const char *name, int onOff)
void	CopyAttributeOnOff (int attributeLocation, int attributeType, int onOff)
void	ClearFieldFlags ()
int	FindFlag (const char *field, int location)
int	FindFlag (int arrayType, int location)
int	GetFlag (const char *field, int location)
int	GetFlag (int arrayType, int location)
int	GetAttributeLocation (const char *loc)
int	GetAttributeType (const char *type)
Protected Attributes
CopyFieldFlag *	CopyFieldFlags
int	NumberOfFieldFlags
int	CopyFields
int	CopyAttributes
Static Protected Attributes
static char	FieldLocationNames [3][12]
static char	AttributeNames [vtkDataSetAttributes::NUM_ATTRIBUTES][10]
Classes
struct	CopyFieldFlag

Member Typedef Documentation

typedef vtkDataSetAlgorithm vtkMaskFields::Superclass

Reimplemented from vtkDataSetAlgorithm.

Definition at line 41 of file vtkMaskFields.h.

Member Enumeration Documentation

enum vtkMaskFields::FieldLocation

Enumerator:

OBJECT_DATA
POINT_DATA
CELL_DATA

Definition at line 115 of file vtkMaskFields.h.

Constructor & Destructor Documentation

vtkMaskFields::vtkMaskFields ( ) [protected]

virtual vtkMaskFields::~vtkMaskFields ( ) [protected, virtual]

Member Function Documentation

virtual const char* vtkMaskFields::GetClassName ( ) [virtual]

Reimplemented from vtkDataSetAlgorithm.

static int vtkMaskFields::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkDataSetAlgorithm.

virtual int vtkMaskFields::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkDataSetAlgorithm.

static vtkMaskFields* vtkMaskFields::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkDataSetAlgorithm.

void vtkMaskFields::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkDataSetAlgorithm.

static vtkMaskFields* vtkMaskFields::New ( ) [static]

Create a new vtkMaskFields.

Reimplemented from vtkDataSetAlgorithm.

void vtkMaskFields::CopyFieldOn	(	int	fieldLocation,
		const char *	name
	)			`[inline]`

Turn on/off the copying of the field or specified by name. During the copying/passing, the following rules are followed for each array: 1. If the copy flag for an array is set (on or off), it is applied This overrides rule 2. 2. If CopyAllOn is set, copy the array. If CopyAllOff is set, do not copy the array A field name and a location must be specified. For example:

      maskFields->CopyFieldOff(vtkMaskFields::CELL_DATA, "foo");

causes the field "foo" on the input cell data to not get copied to the output.

Definition at line 57 of file vtkMaskFields.h.

void vtkMaskFields::CopyFieldOff	(	int	fieldLocation,
		const char *	name
	)			`[inline]`

Turn on/off the copying of the field or specified by name. During the copying/passing, the following rules are followed for each array: 1. If the copy flag for an array is set (on or off), it is applied This overrides rule 2. 2. If CopyAllOn is set, copy the array. If CopyAllOff is set, do not copy the array A field name and a location must be specified. For example:

      maskFields->CopyFieldOff(vtkMaskFields::CELL_DATA, "foo");

causes the field "foo" on the input cell data to not get copied to the output.

Definition at line 58 of file vtkMaskFields.h.

void vtkMaskFields::CopyAttributeOn	(	int	attributeLocation,
		int	attributeType
	)			`[inline]`

Turn on/off the copying of the attribute or specified by vtkDataSetAttributes:AttributeTypes. During the copying/passing, the following rules are followed for each array: 1. If the copy flag for an array is set (on or off), it is applied This overrides rule 2. 2. If CopyAllOn is set, copy the array. If CopyAllOff is set, do not copy the array An attribute type and a location must be specified. For example:

      maskFields->CopyAttributeOff(vtkMaskFields::POINT_DATA,
      vtkDataSetAttributes::SCALARS);

causes the scalars on the input point data to not get copied to the output.

Definition at line 73 of file vtkMaskFields.h.

void vtkMaskFields::CopyAttributeOff	(	int	attributeLocation,
		int	attributeType
	)			`[inline]`

Turn on/off the copying of the attribute or specified by vtkDataSetAttributes:AttributeTypes. During the copying/passing, the following rules are followed for each array: 1. If the copy flag for an array is set (on or off), it is applied This overrides rule 2. 2. If CopyAllOn is set, copy the array. If CopyAllOff is set, do not copy the array An attribute type and a location must be specified. For example:

      maskFields->CopyAttributeOff(vtkMaskFields::POINT_DATA,
      vtkDataSetAttributes::SCALARS);

causes the scalars on the input point data to not get copied to the output.

Definition at line 74 of file vtkMaskFields.h.

void vtkMaskFields::CopyFieldsOff ( ) [inline]

Convenience methods which operate on all field data or attribute data. More specific than CopyAllOn or CopyAllOff

Definition at line 80 of file vtkMaskFields.h.

void vtkMaskFields::CopyAttributesOff ( ) [inline]

Convenience methods which operate on all field data or attribute data. More specific than CopyAllOn or CopyAllOff

Definition at line 81 of file vtkMaskFields.h.

void vtkMaskFields::CopyFieldsOn ( ) [inline]

Definition at line 84 of file vtkMaskFields.h.

void vtkMaskFields::CopyAttributesOn ( ) [inline]

Definition at line 85 of file vtkMaskFields.h.

void vtkMaskFields::CopyAttributeOn	(	const char *	attributeLoc,
		const char *	attributeType
	)

Helper methods used by other language bindings. Allows the caller to specify arguments as strings instead of enums.

void vtkMaskFields::CopyAttributeOff	(	const char *	attributeLoc,
		const char *	attributeType
	)

Helper methods used by other language bindings. Allows the caller to specify arguments as strings instead of enums.

void vtkMaskFields::CopyFieldOn	(	const char *	fieldLoc,
		const char *	name
	)

Helper methods used by other language bindings. Allows the caller to specify arguments as strings instead of enums.

void vtkMaskFields::CopyFieldOff	(	const char *	fieldLoc,
		const char *	name
	)

Helper methods used by other language bindings. Allows the caller to specify arguments as strings instead of enums.

virtual void vtkMaskFields::CopyAllOn ( ) [virtual]

Turn on copying of all data. During the copying/passing, the following rules are followed for each array: 1. If the copy flag for an array is set (on or off), it is applied This overrides rule 2. 2. If CopyAllOn is set, copy the array. If CopyAllOff is set, do not copy the array

virtual void vtkMaskFields::CopyAllOff ( ) [virtual]

Turn off copying of all data. During the copying/passing, the following rules are followed for each array: 1. If the copy flag for an array is set (on or off), it is applied This overrides rule 2. 2. If CopyAllOn is set, copy the array. If CopyAllOff is set, do not copy the array

virtual int vtkMaskFields::RequestData	(	vtkInformation *	,
		vtkInformationVector **	,
		vtkInformationVector *
	)			`[protected, virtual]`

This is called within ProcessRequest when a request asks the algorithm to do its work. This is the method you should override to do whatever the algorithm is designed to do. This happens during the fourth pass in the pipeline execution process.

Reimplemented from vtkDataSetAlgorithm.

void vtkMaskFields::CopyFieldOnOff	(	int	fieldLocation,
		const char *	name,
		int	onOff
	)			`[protected]`

void vtkMaskFields::CopyAttributeOnOff	(	int	attributeLocation,
		int	attributeType,
		int	onOff
	)			`[protected]`

void vtkMaskFields::ClearFieldFlags ( ) [protected]

int vtkMaskFields::FindFlag	(	const char *	field,
		int	location
	)			`[protected]`

int vtkMaskFields::FindFlag	(	int	arrayType,
		int	location
	)			`[protected]`

int vtkMaskFields::GetFlag	(	const char *	field,
		int	location
	)			`[protected]`

int vtkMaskFields::GetFlag	(	int	arrayType,
		int	location
	)			`[protected]`

int vtkMaskFields::GetAttributeLocation ( const char * loc ) [protected]

int vtkMaskFields::GetAttributeType ( const char * type ) [protected]

Member Data Documentation

CopyFieldFlag* vtkMaskFields::CopyFieldFlags [protected]

Definition at line 139 of file vtkMaskFields.h.

int vtkMaskFields::NumberOfFieldFlags [protected]

Definition at line 140 of file vtkMaskFields.h.

int vtkMaskFields::CopyFields [protected]

Definition at line 151 of file vtkMaskFields.h.

int vtkMaskFields::CopyAttributes [protected]

Definition at line 152 of file vtkMaskFields.h.

char vtkMaskFields::FieldLocationNames[3][12] [static, protected]

Definition at line 154 of file vtkMaskFields.h.

char vtkMaskFields::AttributeNames[vtkDataSetAttributes::NUM_ATTRIBUTES][10] [static, protected]

Definition at line 155 of file vtkMaskFields.h.

The documentation for this class was generated from the following file:

dox/Graphics/vtkMaskFields.h
