vtkMCubesReader Class Reference

#include <vtkMCubesReader.h>

Inheritance diagram for vtkMCubesReader:

Inheritance graph
[legend]

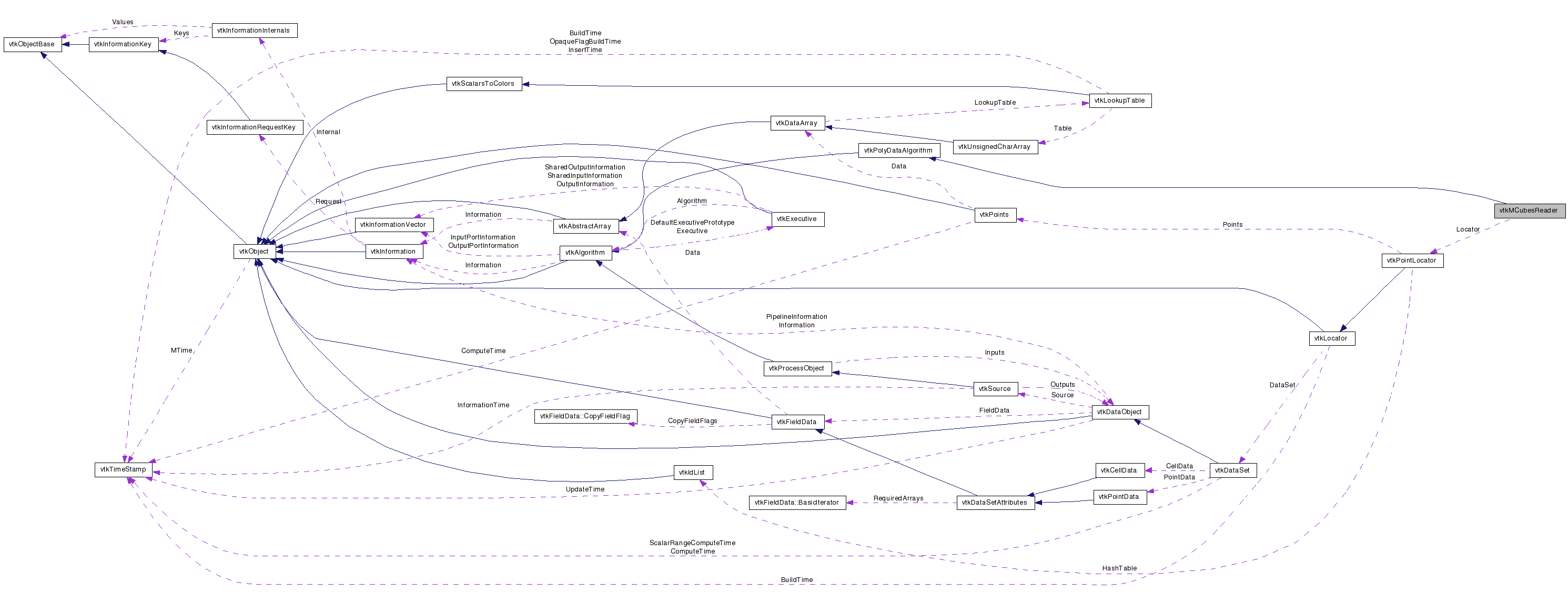

Collaboration diagram for vtkMCubesReader:

Collaboration graph
[legend]

List of all members.


Detailed Description

read binary marching cubes file

vtkMCubesReader is a source object that reads binary marching cubes files. (Marching cubes is an isosurfacing technique that generates many triangles.) The binary format is supported by W. Lorensen's marching cubes program (and the vtkSliceCubes object). The format repeats point coordinates, so this object will merge the points with a vtkLocator object. You can choose to supply the vtkLocator or use the default.

Warning:
Binary files assumed written in sun/hp/sgi (i.e., Big Endian) form.

Because points are merged when read, degenerate triangles may be removed. Thus the number of triangles read may be fewer than the number of triangles actually created.

The point merging does not take into account that the same point may have different normals. For example, running vtkPolyDataNormals after vtkContourFilter may split triangles because of the FeatureAngle ivar. Subsequent reading with vtkMCubesReader will merge the points and use the first point's normal. For the most part, this is undesirable.

Normals are generated from the gradient of the data scalar values. Hence the normals may on occasion point in a direction inconsistent with the ordering of the triangle vertices. If this happens, the resulting surface may be "black". Reverse the sense of the FlipNormals boolean flag to correct this.

See also:
vtkContourFilter vtkMarchingCubes vtkSliceCubes vtkLocator
Tests:
vtkMCubesReader (Tests)

Definition at line 65 of file vtkMCubesReader.h.


Public Types

typedef vtkPolyDataAlgorithm Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
void CreateDefaultLocator ()
unsigned long GetMTime ()
virtual void SetFileName (const char *)
virtual char * GetFileName ()
virtual void SetLimitsFileName (const char *)
virtual char * GetLimitsFileName ()
virtual void SetHeaderSize (int)
virtual int GetHeaderSize ()
virtual void SetFlipNormals (int)
virtual int GetFlipNormals ()
virtual void FlipNormalsOn ()
virtual void FlipNormalsOff ()
virtual void SetNormals (int)
virtual int GetNormals ()
virtual void NormalsOn ()
virtual void NormalsOff ()
void SetDataByteOrderToBigEndian ()
void SetDataByteOrderToLittleEndian ()
int GetDataByteOrder ()
void SetDataByteOrder (int)
const char * GetDataByteOrderAsString ()
virtual void SetSwapBytes (int)
virtual int GetSwapBytes ()
virtual void SwapBytesOn ()
virtual void SwapBytesOff ()
void SetLocator (vtkPointLocator *locator)
virtual vtkPointLocatorGetLocator ()

Static Public Member Functions

static int IsTypeOf (const char *type)
static vtkMCubesReaderSafeDownCast (vtkObject *o)
static vtkMCubesReaderNew ()

Protected Member Functions

 vtkMCubesReader ()
 ~vtkMCubesReader ()
int RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)

Protected Attributes

char * FileName
char * LimitsFileName
vtkPointLocatorLocator
int SwapBytes
int HeaderSize
int FlipNormals
int Normals

Member Typedef Documentation

Reimplemented from vtkPolyDataAlgorithm.

Definition at line 68 of file vtkMCubesReader.h.


Constructor & Destructor Documentation

vtkMCubesReader::vtkMCubesReader (  )  [protected]

vtkMCubesReader::~vtkMCubesReader (  )  [protected]


Member Function Documentation

virtual const char* vtkMCubesReader::GetClassName (  )  [virtual]

Reimplemented from vtkPolyDataAlgorithm.

static int vtkMCubesReader::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataAlgorithm.

virtual int vtkMCubesReader::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataAlgorithm.

static vtkMCubesReader* vtkMCubesReader::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkPolyDataAlgorithm.

void vtkMCubesReader::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkPolyDataAlgorithm.

static vtkMCubesReader* vtkMCubesReader::New (  )  [static]

Construct object with FlipNormals turned off and Normals set to true.

Reimplemented from vtkPolyDataAlgorithm.

virtual void vtkMCubesReader::SetFileName ( const char *   )  [virtual]

Specify file name of marching cubes file.

virtual char* vtkMCubesReader::GetFileName (  )  [virtual]

Specify file name of marching cubes file.

virtual void vtkMCubesReader::SetLimitsFileName ( const char *   )  [virtual]

Set / get the file name of the marching cubes limits file.

virtual char* vtkMCubesReader::GetLimitsFileName (  )  [virtual]

Set / get the file name of the marching cubes limits file.

virtual void vtkMCubesReader::SetHeaderSize ( int   )  [virtual]

Specify a header size if one exists. The header is skipped and not used at this time.

virtual int vtkMCubesReader::GetHeaderSize (  )  [virtual]

Specify a header size if one exists. The header is skipped and not used at this time.

virtual void vtkMCubesReader::SetFlipNormals ( int   )  [virtual]

Specify whether to flip normals in opposite direction. Flipping ONLY changes the direction of the normal vector. Contrast this with flipping in vtkPolyDataNormals which flips both the normal and the cell point order.

virtual int vtkMCubesReader::GetFlipNormals (  )  [virtual]

Specify whether to flip normals in opposite direction. Flipping ONLY changes the direction of the normal vector. Contrast this with flipping in vtkPolyDataNormals which flips both the normal and the cell point order.

virtual void vtkMCubesReader::FlipNormalsOn (  )  [virtual]

Specify whether to flip normals in opposite direction. Flipping ONLY changes the direction of the normal vector. Contrast this with flipping in vtkPolyDataNormals which flips both the normal and the cell point order.

virtual void vtkMCubesReader::FlipNormalsOff (  )  [virtual]

Specify whether to flip normals in opposite direction. Flipping ONLY changes the direction of the normal vector. Contrast this with flipping in vtkPolyDataNormals which flips both the normal and the cell point order.

virtual void vtkMCubesReader::SetNormals ( int   )  [virtual]

Specify whether to read normals.

virtual int vtkMCubesReader::GetNormals (  )  [virtual]

Specify whether to read normals.

virtual void vtkMCubesReader::NormalsOn (  )  [virtual]

Specify whether to read normals.

virtual void vtkMCubesReader::NormalsOff (  )  [virtual]

Specify whether to read normals.

void vtkMCubesReader::SetDataByteOrderToBigEndian (  )

These methods should be used instead of the SwapBytes methods. They indicate the byte ordering of the file you are trying to read in. These methods will then either swap or not swap the bytes depending on the byte ordering of the machine it is being run on. For example, reading in a BigEndian file on a BigEndian machine will result in no swapping. Trying to read the same file on a LittleEndian machine will result in swapping. As a quick note most UNIX machines are BigEndian while PC's and VAX tend to be LittleEndian. So if the file you are reading in was generated on a VAX or PC, SetDataByteOrderToLittleEndian otherwise SetDataByteOrderToBigEndian.

void vtkMCubesReader::SetDataByteOrderToLittleEndian (  )

These methods should be used instead of the SwapBytes methods. They indicate the byte ordering of the file you are trying to read in. These methods will then either swap or not swap the bytes depending on the byte ordering of the machine it is being run on. For example, reading in a BigEndian file on a BigEndian machine will result in no swapping. Trying to read the same file on a LittleEndian machine will result in swapping. As a quick note most UNIX machines are BigEndian while PC's and VAX tend to be LittleEndian. So if the file you are reading in was generated on a VAX or PC, SetDataByteOrderToLittleEndian otherwise SetDataByteOrderToBigEndian.

int vtkMCubesReader::GetDataByteOrder (  )

These methods should be used instead of the SwapBytes methods. They indicate the byte ordering of the file you are trying to read in. These methods will then either swap or not swap the bytes depending on the byte ordering of the machine it is being run on. For example, reading in a BigEndian file on a BigEndian machine will result in no swapping. Trying to read the same file on a LittleEndian machine will result in swapping. As a quick note most UNIX machines are BigEndian while PC's and VAX tend to be LittleEndian. So if the file you are reading in was generated on a VAX or PC, SetDataByteOrderToLittleEndian otherwise SetDataByteOrderToBigEndian.

void vtkMCubesReader::SetDataByteOrder ( int   )

These methods should be used instead of the SwapBytes methods. They indicate the byte ordering of the file you are trying to read in. These methods will then either swap or not swap the bytes depending on the byte ordering of the machine it is being run on. For example, reading in a BigEndian file on a BigEndian machine will result in no swapping. Trying to read the same file on a LittleEndian machine will result in swapping. As a quick note most UNIX machines are BigEndian while PC's and VAX tend to be LittleEndian. So if the file you are reading in was generated on a VAX or PC, SetDataByteOrderToLittleEndian otherwise SetDataByteOrderToBigEndian.

const char* vtkMCubesReader::GetDataByteOrderAsString (  )

These methods should be used instead of the SwapBytes methods. They indicate the byte ordering of the file you are trying to read in. These methods will then either swap or not swap the bytes depending on the byte ordering of the machine it is being run on. For example, reading in a BigEndian file on a BigEndian machine will result in no swapping. Trying to read the same file on a LittleEndian machine will result in swapping. As a quick note most UNIX machines are BigEndian while PC's and VAX tend to be LittleEndian. So if the file you are reading in was generated on a VAX or PC, SetDataByteOrderToLittleEndian otherwise SetDataByteOrderToBigEndian.

virtual void vtkMCubesReader::SetSwapBytes ( int   )  [virtual]

Turn on/off byte swapping.

virtual int vtkMCubesReader::GetSwapBytes (  )  [virtual]

Turn on/off byte swapping.

virtual void vtkMCubesReader::SwapBytesOn (  )  [virtual]

Turn on/off byte swapping.

virtual void vtkMCubesReader::SwapBytesOff (  )  [virtual]

Turn on/off byte swapping.

void vtkMCubesReader::SetLocator ( vtkPointLocator locator  )

Set / get a spatial locator for merging points. By default, an instance of vtkMergePoints is used.

virtual vtkPointLocator* vtkMCubesReader::GetLocator (  )  [virtual]

Set / get a spatial locator for merging points. By default, an instance of vtkMergePoints is used.

void vtkMCubesReader::CreateDefaultLocator (  )

Create default locator. Used to create one when none is specified.

unsigned long vtkMCubesReader::GetMTime (  )  [virtual]

Return the mtime also considering the locator.

Reimplemented from vtkObject.

int vtkMCubesReader::RequestData ( vtkInformation request,
vtkInformationVector **  inputVector,
vtkInformationVector outputVector
) [protected, virtual]

This is called by the superclass. This is the method you should override.

Reimplemented from vtkPolyDataAlgorithm.


Member Data Documentation

char* vtkMCubesReader::FileName [protected]

Definition at line 154 of file vtkMCubesReader.h.

Definition at line 155 of file vtkMCubesReader.h.

Definition at line 156 of file vtkMCubesReader.h.

int vtkMCubesReader::SwapBytes [protected]

Definition at line 157 of file vtkMCubesReader.h.

int vtkMCubesReader::HeaderSize [protected]

Definition at line 158 of file vtkMCubesReader.h.

Definition at line 159 of file vtkMCubesReader.h.

int vtkMCubesReader::Normals [protected]

Definition at line 160 of file vtkMCubesReader.h.


The documentation for this class was generated from the following file:
