vtkMesaClipPlanesPainter Class Reference

#include <vtkMesaClipPlanesPainter.h>

Inheritance diagram for vtkMesaClipPlanesPainter:

[legend]

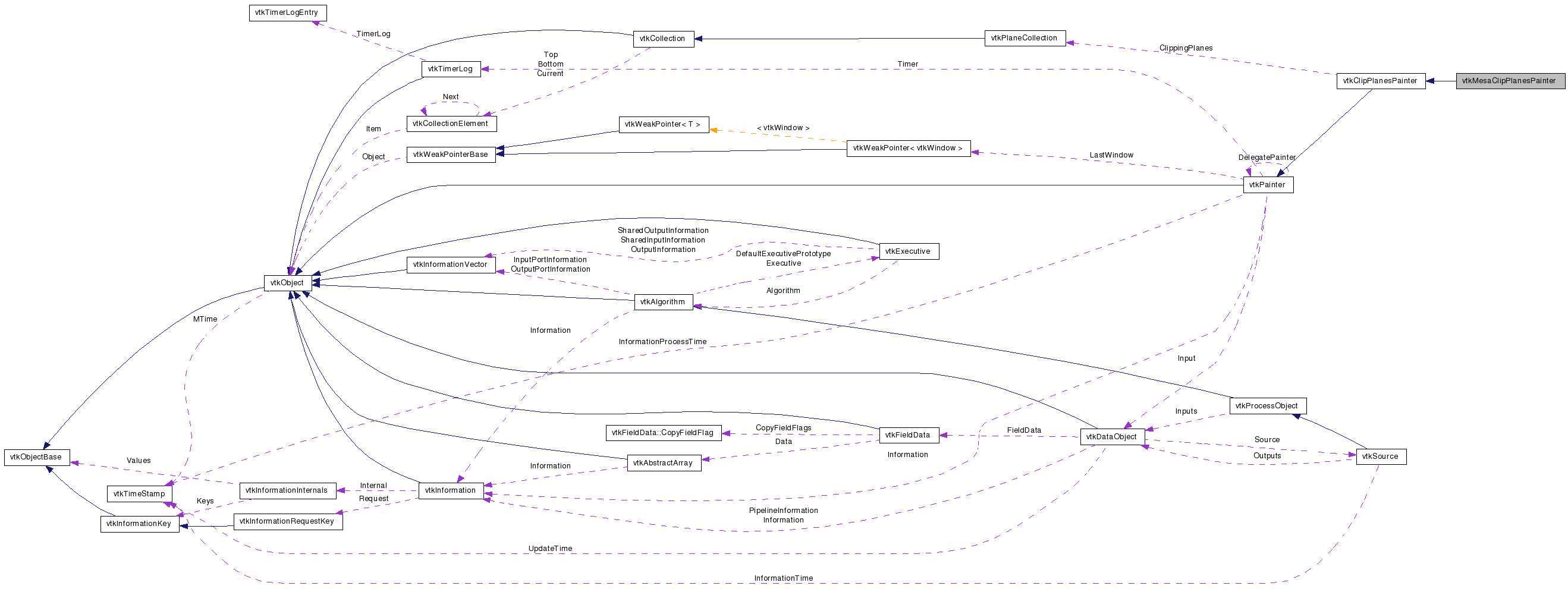

Collaboration diagram for vtkMesaClipPlanesPainter:

[legend]

List of all members.

---

Detailed Description

painter that manages clipping

This painter is an openGL specific painter which handles clipplanes. This painter must typically be placed before the painter that do the primitive rendering.

Definition at line 30 of file vtkMesaClipPlanesPainter.h.

Public Types
typedef vtkClipPlanesPainter	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
Static Public Member Functions
static vtkMesaClipPlanesPainter *	New ()
static int	IsTypeOf (const char *type)
static vtkMesaClipPlanesPainter *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkMesaClipPlanesPainter ()
	~vtkMesaClipPlanesPainter ()
virtual void	RenderInternal (vtkRenderer *renderer, vtkActor *actor, unsigned long typeflags)

---

Member Typedef Documentation

typedef vtkClipPlanesPainter vtkMesaClipPlanesPainter::Superclass

Reimplemented from vtkClipPlanesPainter.

Definition at line 34 of file vtkMesaClipPlanesPainter.h.

---

Constructor & Destructor Documentation

vtkMesaClipPlanesPainter::vtkMesaClipPlanesPainter

(

)

[protected]

vtkMesaClipPlanesPainter::~vtkMesaClipPlanesPainter

(

)

[protected]

---

Member Function Documentation

static vtkMesaClipPlanesPainter* vtkMesaClipPlanesPainter::New

(

)

[static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkClipPlanesPainter.

virtual const char* vtkMesaClipPlanesPainter::GetClassName

(

)

[virtual]

Reimplemented from vtkClipPlanesPainter.

static int vtkMesaClipPlanesPainter::IsTypeOf

(

const char *

name

)

[static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkClipPlanesPainter.

virtual int vtkMesaClipPlanesPainter::IsA

(

const char *

name

)

[virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkClipPlanesPainter.

static vtkMesaClipPlanesPainter* vtkMesaClipPlanesPainter::SafeDownCast

(

vtkObject *

o

)

[static]

Reimplemented from vtkClipPlanesPainter.

void vtkMesaClipPlanesPainter::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			[virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkClipPlanesPainter.

virtual void vtkMesaClipPlanesPainter::RenderInternal	(	vtkRenderer *	renderer,
		vtkActor *	actor,
		unsigned long	typeflags
	)			[protected, virtual]

Generates rendering primitives of appropriate type(s). Uses the clipping planes to set up clipping regions. typeflags are ignored by this painter.

Reimplemented from vtkPainter.

---

The documentation for this class was generated from the following file:

• dox/Rendering/vtkMesaClipPlanesPainter.h
