vtkMesaImageActor Class Reference

#include <vtkMesaImageActor.h>

Inheritance diagram for vtkMesaImageActor:

Inheritance graph

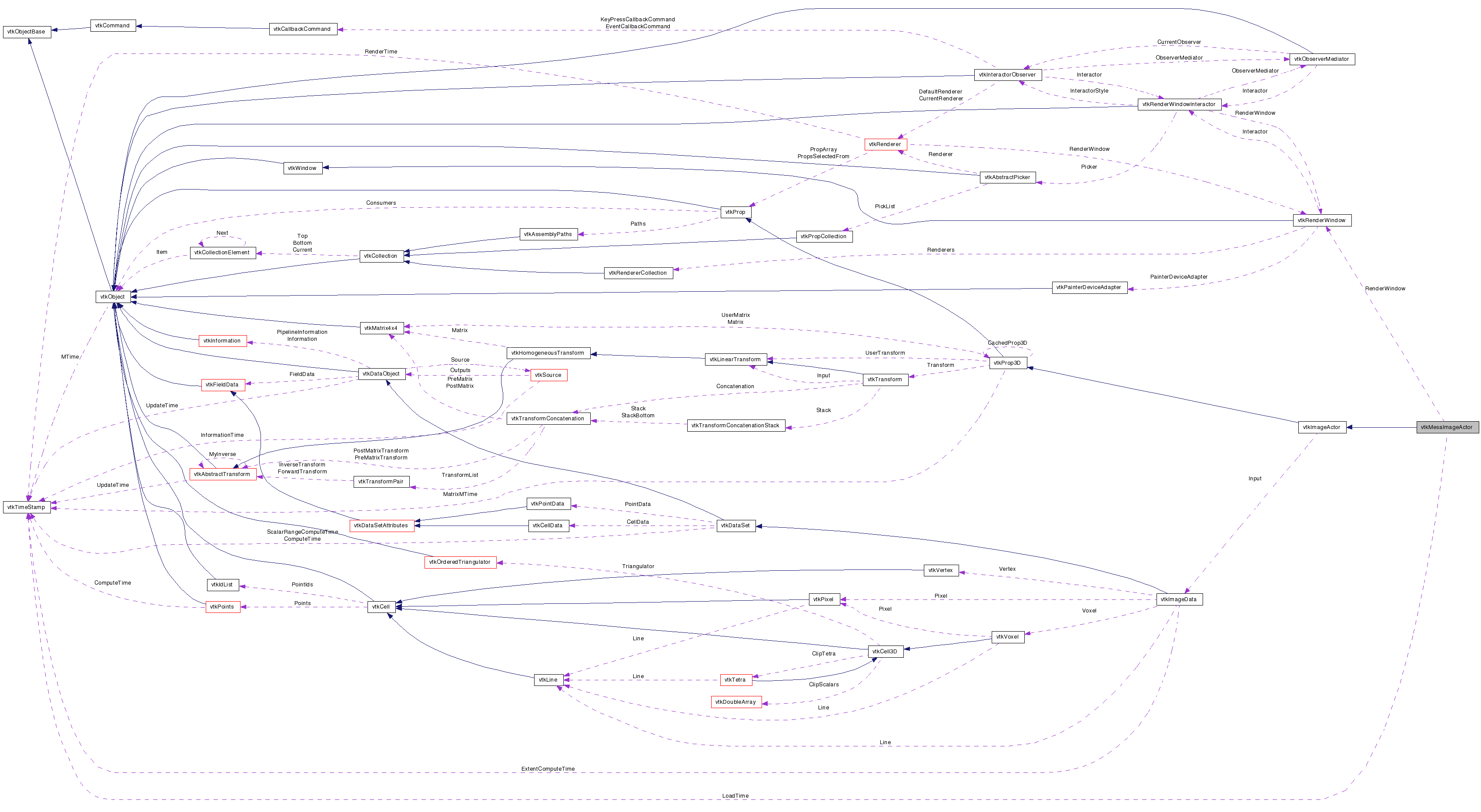

Collaboration diagram for vtkMesaImageActor:

Collaboration graph

List of all members.

Detailed Description

Mesa texture map.

vtkMesaImageActor is a concrete implementation of the abstract class vtkImageActor. vtkMesaImageActor interfaces to the Mesa rendering library.

Definition at line 31 of file vtkMesaImageActor.h.

Public Types

typedef vtkImageActor Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
virtual void PrintSelf (ostream &os, vtkIndent indent)
void Load (vtkRenderer *ren)
void Render (vtkRenderer *ren)
void ReleaseGraphicsResources (vtkWindow *)

Static Public Member Functions

static vtkMesaImageActorNew ()
static int IsTypeOf (const char *type)
static vtkMesaImageActorSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkMesaImageActor ()
 ~vtkMesaImageActor ()
unsigned char * MakeDataSuitable (int &xsize, int &ysize, int &release, int &reuseTexture)
void InternalRender (vtkRenderer *ren)
int TextureSizeOK (int size[2])

Protected Attributes

vtkTimeStamp LoadTime
long Index
double Coords [12]
double TCoords [8]
int TextureSize [2]

Static Protected Attributes

static long GlobalIndex

Member Typedef Documentation

Reimplemented from vtkImageActor.

Definition at line 35 of file vtkMesaImageActor.h.

Constructor & Destructor Documentation

vtkMesaImageActor::vtkMesaImageActor (  )  [protected]

vtkMesaImageActor::~vtkMesaImageActor (  )  [protected]

Member Function Documentation

static vtkMesaImageActor* vtkMesaImageActor::New (  )  [static]

Instantiate the image actor.

Reimplemented from vtkImageActor.

virtual const char* vtkMesaImageActor::GetClassName (  )  [virtual]

Reimplemented from vtkImageActor.

static int vtkMesaImageActor::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkImageActor.

virtual int vtkMesaImageActor::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkImageActor.

static vtkMesaImageActor* vtkMesaImageActor::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkImageActor.

virtual void vtkMesaImageActor::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkImageActor.

void vtkMesaImageActor::Load ( vtkRenderer ren  )

Implement base class method.

void vtkMesaImageActor::Render ( vtkRenderer ren  )  [virtual]

Implement base class method.

Reimplemented from vtkImageActor.

void vtkMesaImageActor::ReleaseGraphicsResources ( vtkWindow  )  [virtual]

Release any graphics resources that are being consumed by this texture. The parameter window could be used to determine which graphic resources to release. Using the same texture object in multiple render windows is NOT currently supported.

Reimplemented from vtkProp.

unsigned char* vtkMesaImageActor::MakeDataSuitable ( int &  xsize,
int &  ysize,
int &  release,
int &  reuseTexture
) [protected]

void vtkMesaImageActor::InternalRender ( vtkRenderer ren  )  [protected]

int vtkMesaImageActor::TextureSizeOK ( int  size[2]  )  [protected]

Member Data Documentation

Definition at line 57 of file vtkMesaImageActor.h.

long vtkMesaImageActor::Index [protected]

Definition at line 58 of file vtkMesaImageActor.h.

long vtkMesaImageActor::GlobalIndex [static, protected]

Definition at line 59 of file vtkMesaImageActor.h.

Definition at line 60 of file vtkMesaImageActor.h.

double vtkMesaImageActor::Coords[12] [protected]

Definition at line 61 of file vtkMesaImageActor.h.

double vtkMesaImageActor::TCoords[8] [protected]

Definition at line 62 of file vtkMesaImageActor.h.

int vtkMesaImageActor::TextureSize[2] [protected]

Definition at line 63 of file vtkMesaImageActor.h.

The documentation for this class was generated from the following file:
