vtkMesaVolumeTextureMapper2D Class Reference

#include <vtkMesaVolumeTextureMapper2D.h>

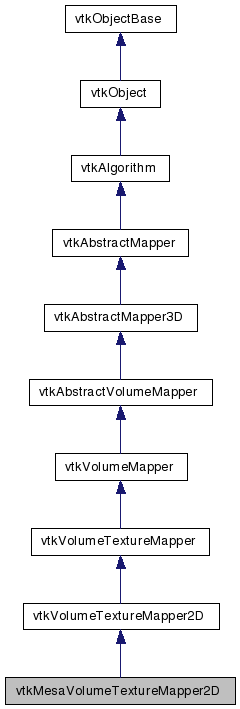

Inheritance diagram for vtkMesaVolumeTextureMapper2D:

[legend]

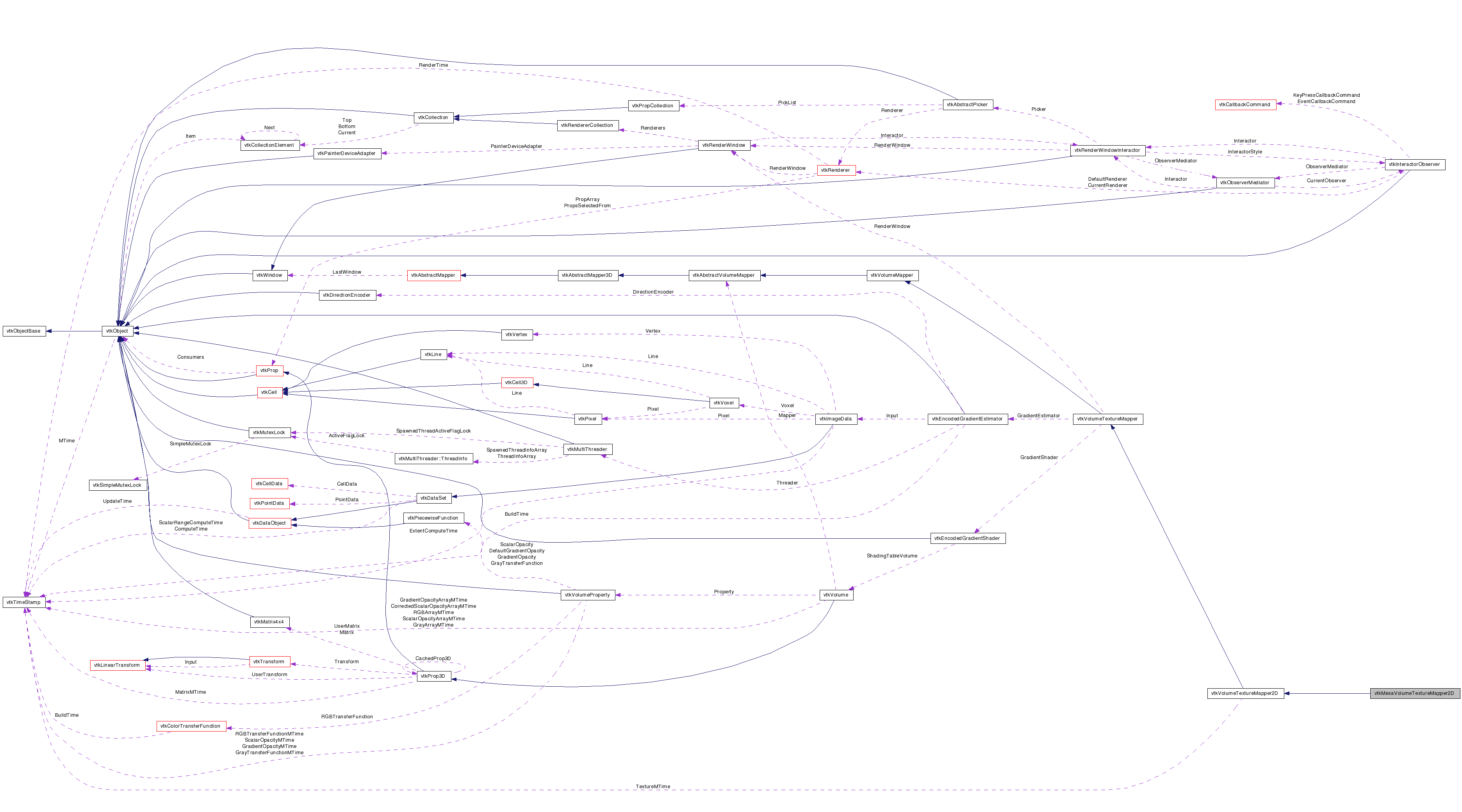

Collaboration diagram for vtkMesaVolumeTextureMapper2D:

[legend]

List of all members.

---

Detailed Description

Abstract class for a volume mapper.

vtkMesaVolumeTextureMapper2D renders a volume using 2D texture mapping.

See also:

vtkVolumeMapper

Definition at line 30 of file vtkMesaVolumeTextureMapper2D.h.

Public Types
typedef vtkVolumeTextureMapper2D	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	Render (vtkRenderer *ren, vtkVolume *vol)
void	RenderQuads (int count, float *v, float *t, unsigned char *texture, int size[2], int reverseFlag)
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkMesaVolumeTextureMapper2D *	SafeDownCast (vtkObject *o)
static vtkMesaVolumeTextureMapper2D *	New ()
Protected Member Functions
	vtkMesaVolumeTextureMapper2D ()
	~vtkMesaVolumeTextureMapper2D ()

---

Member Typedef Documentation

typedef vtkVolumeTextureMapper2D vtkMesaVolumeTextureMapper2D::Superclass

Reimplemented from vtkVolumeTextureMapper2D.

Definition at line 33 of file vtkMesaVolumeTextureMapper2D.h.

---

Constructor & Destructor Documentation

vtkMesaVolumeTextureMapper2D::vtkMesaVolumeTextureMapper2D

(

)

[protected]

vtkMesaVolumeTextureMapper2D::~vtkMesaVolumeTextureMapper2D

(

)

[protected]

---

Member Function Documentation

virtual const char* vtkMesaVolumeTextureMapper2D::GetClassName

(

)

[virtual]

Reimplemented from vtkVolumeTextureMapper2D.

static int vtkMesaVolumeTextureMapper2D::IsTypeOf

(

const char *

name

)

[static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkVolumeTextureMapper2D.

virtual int vtkMesaVolumeTextureMapper2D::IsA

(

const char *

name

)

[virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkVolumeTextureMapper2D.

static vtkMesaVolumeTextureMapper2D* vtkMesaVolumeTextureMapper2D::SafeDownCast

(

vtkObject *

o

)

[static]

Reimplemented from vtkVolumeTextureMapper2D.

void vtkMesaVolumeTextureMapper2D::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			[virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkVolumeTextureMapper2D.

static vtkMesaVolumeTextureMapper2D* vtkMesaVolumeTextureMapper2D::New

(

)

[static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkVolumeTextureMapper2D.

virtual void vtkMesaVolumeTextureMapper2D::Render	(	vtkRenderer *	ren,
		vtkVolume *	vol
	)			[virtual]

WARNING: INTERNAL METHOD - NOT INTENDED FOR GENERAL USE DO NOT USE THIS METHOD OUTSIDE OF THE RENDERING PROCESS Render the volume

Reimplemented from vtkVolumeTextureMapper2D.

void vtkMesaVolumeTextureMapper2D::RenderQuads	(	int	count,
		float *	v,
		float *	t,
		unsigned char *	texture,
		int	size[2],
		int	reverseFlag
	)

---

The documentation for this class was generated from the following file:

• dox/VolumeRendering/vtkMesaVolumeTextureMapper2D.h
