vtkMeshQuality Class Reference

#include <vtkMeshQuality.h>

Inheritance diagram for vtkMeshQuality:

Inheritance graph
[legend]

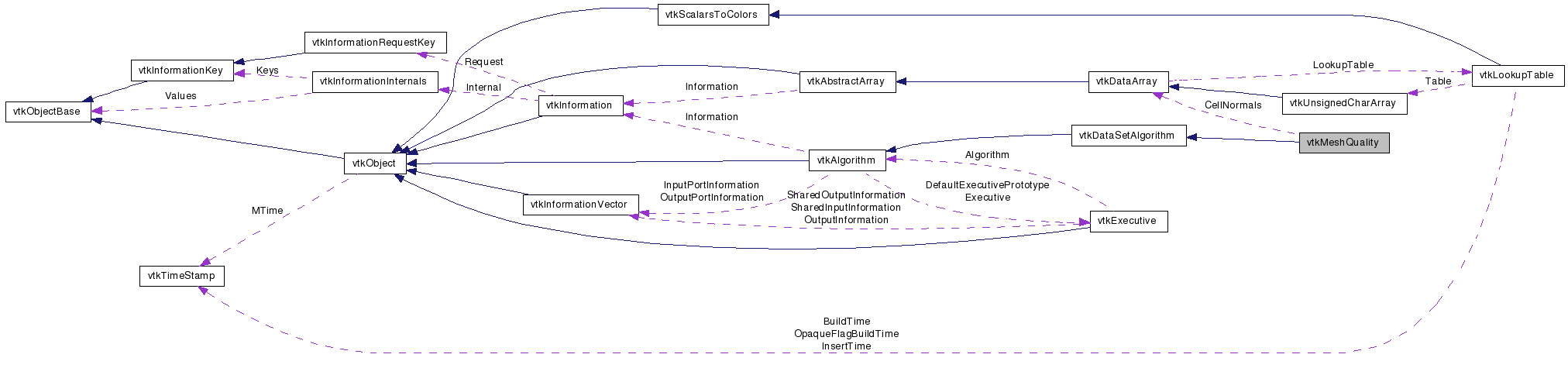

Collaboration diagram for vtkMeshQuality:

Collaboration graph
[legend]

List of all members.


Detailed Description

Calculate functions of quality of the elements.

Date
2008-03-05 18:15:17
Revision
1.33
of a mesh

vtkMeshQuality computes one or more functions of (geometric) quality for each 2-D and 3-D cell (triangle, quadrilateral, tetrahedron, or hexahedron) of a mesh. These functions of quality are then averaged over the entire mesh. The minimum, average, maximum, and unbiased variance of quality for each type of cell is stored in the output mesh's FieldData. The FieldData arrays are named "Mesh Triangle Quality," "Mesh Quadrilateral Quality," "Mesh Tetrahedron Quality," and "Mesh Hexahedron Quality." Each array has a single tuple with 5 components. The first 4 components are the quality statistics mentioned above; the final value is the number of cells of the given type. This final component makes aggregation of statistics for distributed mesh data possible.

By default, the per-cell quality is added to the mesh's cell data, in an array named "Quality." Cell types not supported by this filter will have an entry of 0. Use SaveCellQualityOff() to store only the final statistics.

This version of the filter written by Philippe Pebay and David Thompson overtakes an older version written by Leila Baghdadi, Hanif Ladak, and David Steinman at the Imaging Research Labs, Robarts Research Institute. That version only supported tetrahedral radius ratio. See the CompatibilityModeOn() member for information on how to make this filter behave like the previous implementation. For more information on the triangle quality functions of this class, cf. Pebay & Baker 2003, Analysis of triangle quality measures, Math Comp 72:244. For more information on the quadrangle quality functions of this class, cf. Pebay 2004, Planar Quadrangle Quality Measures, Eng Comp 20:2.

Warning:
While more general than before, this class does not address many cell types, including wedges and pyramids in 3D and triangle strips and fans in 2D (among others). Most quadrilateral quality functions are intended for planar quadrilaterals only. The minimal angle is not, strictly speaking, a quality function, but it is provided because of its useage by many authors.
Tests:
vtkMeshQuality (Tests)

Definition at line 106 of file vtkMeshQuality.h.


Public Types

typedef vtkDataSetAlgorithm Superclass

Public Member Functions

void PrintSelf (ostream &os, vtkIndent indent)
virtual const char * GetClassName ()
virtual int IsA (const char *type)
virtual void SetSaveCellQuality (int)
virtual int GetSaveCellQuality ()
virtual void SaveCellQualityOn ()
virtual void SaveCellQualityOff ()
virtual void SetTriangleQualityMeasure (int)
virtual int GetTriangleQualityMeasure ()
void SetTriangleQualityMeasureToArea ()
void SetTriangleQualityMeasureToEdgeRatio ()
void SetTriangleQualityMeasureToAspectRatio ()
void SetTriangleQualityMeasureToRadiusRatio ()
void SetTriangleQualityMeasureToAspectFrobenius ()
void SetTriangleQualityMeasureToMinAngle ()
void SetTriangleQualityMeasureToMaxAngle ()
void SetTriangleQualityMeasureToCondition ()
void SetTriangleQualityMeasureToScaledJacobian ()
void SetTriangleQualityMeasureToRelativeSizeSquared ()
void SetTriangleQualityMeasureToShape ()
void SetTriangleQualityMeasureToShapeAndSize ()
void SetTriangleQualityMeasureToDistortion ()
virtual void SetQuadQualityMeasure (int)
virtual int GetQuadQualityMeasure ()
void SetQuadQualityMeasureToEdgeRatio ()
void SetQuadQualityMeasureToAspectRatio ()
void SetQuadQualityMeasureToRadiusRatio ()
void SetQuadQualityMeasureToMedAspectFrobenius ()
void SetQuadQualityMeasureToMaxAspectFrobenius ()
void SetQuadQualityMeasureToMaxEdgeRatios ()
void SetQuadQualityMeasureToSkew ()
void SetQuadQualityMeasureToTaper ()
void SetQuadQualityMeasureToWarpage ()
void SetQuadQualityMeasureToArea ()
void SetQuadQualityMeasureToStretch ()
void SetQuadQualityMeasureToMinAngle ()
void SetQuadQualityMeasureToMaxAngle ()
void SetQuadQualityMeasureToOddy ()
void SetQuadQualityMeasureToCondition ()
void SetQuadQualityMeasureToJacobian ()
void SetQuadQualityMeasureToScaledJacobian ()
void SetQuadQualityMeasureToShear ()
void SetQuadQualityMeasureToShape ()
void SetQuadQualityMeasureToRelativeSizeSquared ()
void SetQuadQualityMeasureToShapeAndSize ()
void SetQuadQualityMeasureToShearAndSize ()
void SetQuadQualityMeasureToDistortion ()
virtual void SetTetQualityMeasure (int)
virtual int GetTetQualityMeasure ()
void SetTetQualityMeasureToEdgeRatio ()
void SetTetQualityMeasureToAspectRatio ()
void SetTetQualityMeasureToRadiusRatio ()
void SetTetQualityMeasureToAspectFrobenius ()
void SetTetQualityMeasureToMinAngle ()
void SetTetQualityMeasureToCollapseRatio ()
void SetTetQualityMeasureToAspectBeta ()
void SetTetQualityMeasureToAspectGamma ()
void SetTetQualityMeasureToVolume ()
void SetTetQualityMeasureToCondition ()
void SetTetQualityMeasureToJacobian ()
void SetTetQualityMeasureToScaledJacobian ()
void SetTetQualityMeasureToShape ()
void SetTetQualityMeasureToRelativeSizeSquared ()
void SetTetQualityMeasureToShapeAndSize ()
void SetTetQualityMeasureToDistortion ()
virtual void SetHexQualityMeasure (int)
virtual int GetHexQualityMeasure ()
void SetHexQualityMeasureToEdgeRatio ()
void SetHexQualityMeasureToMedAspectFrobenius ()
void SetHexQualityMeasureToMaxAspectFrobenius ()
void SetHexQualityMeasureToMaxEdgeRatios ()
void SetHexQualityMeasureToSkew ()
void SetHexQualityMeasureToTaper ()
void SetHexQualityMeasureToVolume ()
void SetHexQualityMeasureToStretch ()
void SetHexQualityMeasureToDiagonal ()
void SetHexQualityMeasureToDimension ()
void SetHexQualityMeasureToOddy ()
void SetHexQualityMeasureToCondition ()
void SetHexQualityMeasureToJacobian ()
void SetHexQualityMeasureToScaledJacobian ()
void SetHexQualityMeasureToShear ()
void SetHexQualityMeasureToShape ()
void SetHexQualityMeasureToRelativeSizeSquared ()
void SetHexQualityMeasureToShapeAndSize ()
void SetHexQualityMeasureToShearAndSize ()
void SetHexQualityMeasureToDistortion ()
virtual void SetRatio (int r)
int GetRatio ()
virtual void RatioOn ()
virtual void RatioOff ()
virtual void SetVolume (int cv)
int GetVolume ()
virtual void VolumeOn ()
virtual void VolumeOff ()
virtual void SetCompatibilityMode (int cm)
virtual int GetCompatibilityMode ()
virtual void CompatibilityModeOn ()
virtual void CompatibilityModeOff ()

Static Public Member Functions

static int IsTypeOf (const char *type)
static vtkMeshQualitySafeDownCast (vtkObject *o)
static vtkMeshQualityNew ()
static double TriangleArea (vtkCell *cell)
static double TriangleEdgeRatio (vtkCell *cell)
static double TriangleAspectRatio (vtkCell *cell)
static double TriangleRadiusRatio (vtkCell *cell)
static double TriangleAspectFrobenius (vtkCell *cell)
static double TriangleMinAngle (vtkCell *cell)
static double TriangleMaxAngle (vtkCell *cell)
static double TriangleCondition (vtkCell *cell)
static double TriangleScaledJacobian (vtkCell *cell)
static double TriangleRelativeSizeSquared (vtkCell *cell)
static double TriangleShape (vtkCell *cell)
static double TriangleShapeAndSize (vtkCell *cell)
static double TriangleDistortion (vtkCell *cell)
static double QuadEdgeRatio (vtkCell *cell)
static double QuadAspectRatio (vtkCell *cell)
static double QuadRadiusRatio (vtkCell *cell)
static double QuadMedAspectFrobenius (vtkCell *cell)
static double QuadMaxAspectFrobenius (vtkCell *cell)
static double QuadMinAngle (vtkCell *cell)
static double QuadMaxEdgeRatios (vtkCell *cell)
static double QuadSkew (vtkCell *cell)
static double QuadTaper (vtkCell *cell)
static double QuadWarpage (vtkCell *cell)
static double QuadArea (vtkCell *cell)
static double QuadStretch (vtkCell *cell)
static double QuadMaxAngle (vtkCell *cell)
static double QuadOddy (vtkCell *cell)
static double QuadCondition (vtkCell *cell)
static double QuadJacobian (vtkCell *cell)
static double QuadScaledJacobian (vtkCell *cell)
static double QuadShear (vtkCell *cell)
static double QuadShape (vtkCell *cell)
static double QuadRelativeSizeSquared (vtkCell *cell)
static double QuadShapeAndSize (vtkCell *cell)
static double QuadShearAndSize (vtkCell *cell)
static double QuadDistortion (vtkCell *cell)
static double TetEdgeRatio (vtkCell *cell)
static double TetAspectRatio (vtkCell *cell)
static double TetRadiusRatio (vtkCell *cell)
static double TetAspectFrobenius (vtkCell *cell)
static double TetMinAngle (vtkCell *cell)
static double HexEdgeRatio (vtkCell *cell)
static double HexMedAspectFrobenius (vtkCell *cell)
static double TetCollapseRatio (vtkCell *cell)
static double TetAspectBeta (vtkCell *cell)
static double TetAspectGamma (vtkCell *cell)
static double TetVolume (vtkCell *cell)
static double TetCondition (vtkCell *cell)
static double TetJacobian (vtkCell *cell)
static double TetScaledJacobian (vtkCell *cell)
static double TetShape (vtkCell *cell)
static double TetRelativeSizeSquared (vtkCell *cell)
static double TetShapeandSize (vtkCell *cell)
static double TetDistortion (vtkCell *cell)
static double HexMaxAspectFrobenius (vtkCell *cell)
static double HexMaxEdgeRatio (vtkCell *cell)
static double HexSkew (vtkCell *cell)
static double HexTaper (vtkCell *cell)
static double HexVolume (vtkCell *cell)
static double HexStretch (vtkCell *cell)
static double HexDiagonal (vtkCell *cell)
static double HexDimension (vtkCell *cell)
static double HexOddy (vtkCell *cell)
static double HexCondition (vtkCell *cell)
static double HexJacobian (vtkCell *cell)
static double HexScaledJacobian (vtkCell *cell)
static double HexShear (vtkCell *cell)
static double HexShape (vtkCell *cell)
static double HexRelativeSizeSquared (vtkCell *cell)
static double HexShapeAndSize (vtkCell *cell)
static double HexShearAndSize (vtkCell *cell)
static double HexDistortion (vtkCell *cell)

Protected Member Functions

 vtkMeshQuality ()
 ~vtkMeshQuality ()
virtual int RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)

Static Protected Member Functions

static int GetCurrentTriangleNormal (double point[3], double normal[3])

Protected Attributes

int SaveCellQuality
int TriangleQualityMeasure
int QuadQualityMeasure
int TetQualityMeasure
int HexQualityMeasure
int CompatibilityMode
int Volume
vtkDataArrayCellNormals

Static Protected Attributes

static double CurrentTriNormal [3]

Member Typedef Documentation

Reimplemented from vtkDataSetAlgorithm.

Definition at line 110 of file vtkMeshQuality.h.


Constructor & Destructor Documentation

vtkMeshQuality::vtkMeshQuality (  )  [protected]

vtkMeshQuality::~vtkMeshQuality (  )  [protected]


Member Function Documentation

void vtkMeshQuality::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkDataSetAlgorithm.

virtual const char* vtkMeshQuality::GetClassName (  )  [virtual]

Reimplemented from vtkDataSetAlgorithm.

static int vtkMeshQuality::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkDataSetAlgorithm.

virtual int vtkMeshQuality::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkDataSetAlgorithm.

static vtkMeshQuality* vtkMeshQuality::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkDataSetAlgorithm.

static vtkMeshQuality* vtkMeshQuality::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkDataSetAlgorithm.

virtual void vtkMeshQuality::SetSaveCellQuality ( int   )  [virtual]

This variable controls whether or not cell quality is stored as cell data in the resulting mesh or discarded (leaving only the aggregate quality average of the entire mesh, recorded in the FieldData).

virtual int vtkMeshQuality::GetSaveCellQuality (  )  [virtual]

This variable controls whether or not cell quality is stored as cell data in the resulting mesh or discarded (leaving only the aggregate quality average of the entire mesh, recorded in the FieldData).

virtual void vtkMeshQuality::SaveCellQualityOn (  )  [virtual]

This variable controls whether or not cell quality is stored as cell data in the resulting mesh or discarded (leaving only the aggregate quality average of the entire mesh, recorded in the FieldData).

virtual void vtkMeshQuality::SaveCellQualityOff (  )  [virtual]

This variable controls whether or not cell quality is stored as cell data in the resulting mesh or discarded (leaving only the aggregate quality average of the entire mesh, recorded in the FieldData).

virtual void vtkMeshQuality::SetTriangleQualityMeasure ( int   )  [virtual]

Set/Get the particular estimator used to function the quality of triangles. The default is VTK_QUALITY_RADIUS_RATIO and valid values also include VTK_QUALITY_ASPECT_RATIO, VTK_QUALITY_ASPECT_FROBENIUS, and VTK_QUALITY_EDGE_RATIO, VTK_QUALITY_MIN_ANGLE, VTK_QUALITY_MAX_ANGLE, VTK_QUALITY_CONDITION, VTK_QUALITY_SCALED_JACOBIAN, VTK_QUALITY_RELATIVE_SIZE_SQUARED, VTK_QUALITY_SHAPE, VTK_QUALITY_SHAPE_AND_SIZE, and VTK_QUALITY_DISTORTION.

virtual int vtkMeshQuality::GetTriangleQualityMeasure (  )  [virtual]

Set/Get the particular estimator used to function the quality of triangles. The default is VTK_QUALITY_RADIUS_RATIO and valid values also include VTK_QUALITY_ASPECT_RATIO, VTK_QUALITY_ASPECT_FROBENIUS, and VTK_QUALITY_EDGE_RATIO, VTK_QUALITY_MIN_ANGLE, VTK_QUALITY_MAX_ANGLE, VTK_QUALITY_CONDITION, VTK_QUALITY_SCALED_JACOBIAN, VTK_QUALITY_RELATIVE_SIZE_SQUARED, VTK_QUALITY_SHAPE, VTK_QUALITY_SHAPE_AND_SIZE, and VTK_QUALITY_DISTORTION.

void vtkMeshQuality::SetTriangleQualityMeasureToArea (  )  [inline]

Set/Get the particular estimator used to function the quality of triangles. The default is VTK_QUALITY_RADIUS_RATIO and valid values also include VTK_QUALITY_ASPECT_RATIO, VTK_QUALITY_ASPECT_FROBENIUS, and VTK_QUALITY_EDGE_RATIO, VTK_QUALITY_MIN_ANGLE, VTK_QUALITY_MAX_ANGLE, VTK_QUALITY_CONDITION, VTK_QUALITY_SCALED_JACOBIAN, VTK_QUALITY_RELATIVE_SIZE_SQUARED, VTK_QUALITY_SHAPE, VTK_QUALITY_SHAPE_AND_SIZE, and VTK_QUALITY_DISTORTION.

Definition at line 133 of file vtkMeshQuality.h.

void vtkMeshQuality::SetTriangleQualityMeasureToEdgeRatio (  )  [inline]

Set/Get the particular estimator used to function the quality of triangles. The default is VTK_QUALITY_RADIUS_RATIO and valid values also include VTK_QUALITY_ASPECT_RATIO, VTK_QUALITY_ASPECT_FROBENIUS, and VTK_QUALITY_EDGE_RATIO, VTK_QUALITY_MIN_ANGLE, VTK_QUALITY_MAX_ANGLE, VTK_QUALITY_CONDITION, VTK_QUALITY_SCALED_JACOBIAN, VTK_QUALITY_RELATIVE_SIZE_SQUARED, VTK_QUALITY_SHAPE, VTK_QUALITY_SHAPE_AND_SIZE, and VTK_QUALITY_DISTORTION.

Definition at line 137 of file vtkMeshQuality.h.

void vtkMeshQuality::SetTriangleQualityMeasureToAspectRatio (  )  [inline]

Set/Get the particular estimator used to function the quality of triangles. The default is VTK_QUALITY_RADIUS_RATIO and valid values also include VTK_QUALITY_ASPECT_RATIO, VTK_QUALITY_ASPECT_FROBENIUS, and VTK_QUALITY_EDGE_RATIO, VTK_QUALITY_MIN_ANGLE, VTK_QUALITY_MAX_ANGLE, VTK_QUALITY_CONDITION, VTK_QUALITY_SCALED_JACOBIAN, VTK_QUALITY_RELATIVE_SIZE_SQUARED, VTK_QUALITY_SHAPE, VTK_QUALITY_SHAPE_AND_SIZE, and VTK_QUALITY_DISTORTION.

Definition at line 141 of file vtkMeshQuality.h.

void vtkMeshQuality::SetTriangleQualityMeasureToRadiusRatio (  )  [inline]

Set/Get the particular estimator used to function the quality of triangles. The default is VTK_QUALITY_RADIUS_RATIO and valid values also include VTK_QUALITY_ASPECT_RATIO, VTK_QUALITY_ASPECT_FROBENIUS, and VTK_QUALITY_EDGE_RATIO, VTK_QUALITY_MIN_ANGLE, VTK_QUALITY_MAX_ANGLE, VTK_QUALITY_CONDITION, VTK_QUALITY_SCALED_JACOBIAN, VTK_QUALITY_RELATIVE_SIZE_SQUARED, VTK_QUALITY_SHAPE, VTK_QUALITY_SHAPE_AND_SIZE, and VTK_QUALITY_DISTORTION.

Definition at line 145 of file vtkMeshQuality.h.

void vtkMeshQuality::SetTriangleQualityMeasureToAspectFrobenius (  )  [inline]

Set/Get the particular estimator used to function the quality of triangles. The default is VTK_QUALITY_RADIUS_RATIO and valid values also include VTK_QUALITY_ASPECT_RATIO, VTK_QUALITY_ASPECT_FROBENIUS, and VTK_QUALITY_EDGE_RATIO, VTK_QUALITY_MIN_ANGLE, VTK_QUALITY_MAX_ANGLE, VTK_QUALITY_CONDITION, VTK_QUALITY_SCALED_JACOBIAN, VTK_QUALITY_RELATIVE_SIZE_SQUARED, VTK_QUALITY_SHAPE, VTK_QUALITY_SHAPE_AND_SIZE, and VTK_QUALITY_DISTORTION.

Definition at line 149 of file vtkMeshQuality.h.

void vtkMeshQuality::SetTriangleQualityMeasureToMinAngle (  )  [inline]

Set/Get the particular estimator used to function the quality of triangles. The default is VTK_QUALITY_RADIUS_RATIO and valid values also include VTK_QUALITY_ASPECT_RATIO, VTK_QUALITY_ASPECT_FROBENIUS, and VTK_QUALITY_EDGE_RATIO, VTK_QUALITY_MIN_ANGLE, VTK_QUALITY_MAX_ANGLE, VTK_QUALITY_CONDITION, VTK_QUALITY_SCALED_JACOBIAN, VTK_QUALITY_RELATIVE_SIZE_SQUARED, VTK_QUALITY_SHAPE, VTK_QUALITY_SHAPE_AND_SIZE, and VTK_QUALITY_DISTORTION.

Definition at line 153 of file vtkMeshQuality.h.

void vtkMeshQuality::SetTriangleQualityMeasureToMaxAngle (  )  [inline]

Set/Get the particular estimator used to function the quality of triangles. The default is VTK_QUALITY_RADIUS_RATIO and valid values also include VTK_QUALITY_ASPECT_RATIO, VTK_QUALITY_ASPECT_FROBENIUS, and VTK_QUALITY_EDGE_RATIO, VTK_QUALITY_MIN_ANGLE, VTK_QUALITY_MAX_ANGLE, VTK_QUALITY_CONDITION, VTK_QUALITY_SCALED_JACOBIAN, VTK_QUALITY_RELATIVE_SIZE_SQUARED, VTK_QUALITY_SHAPE, VTK_QUALITY_SHAPE_AND_SIZE, and VTK_QUALITY_DISTORTION.

Definition at line 157 of file vtkMeshQuality.h.

void vtkMeshQuality::SetTriangleQualityMeasureToCondition (  )  [inline]

Set/Get the particular estimator used to function the quality of triangles. The default is VTK_QUALITY_RADIUS_RATIO and valid values also include VTK_QUALITY_ASPECT_RATIO, VTK_QUALITY_ASPECT_FROBENIUS, and VTK_QUALITY_EDGE_RATIO, VTK_QUALITY_MIN_ANGLE, VTK_QUALITY_MAX_ANGLE, VTK_QUALITY_CONDITION, VTK_QUALITY_SCALED_JACOBIAN, VTK_QUALITY_RELATIVE_SIZE_SQUARED, VTK_QUALITY_SHAPE, VTK_QUALITY_SHAPE_AND_SIZE, and VTK_QUALITY_DISTORTION.

Definition at line 161 of file vtkMeshQuality.h.

void vtkMeshQuality::SetTriangleQualityMeasureToScaledJacobian (  )  [inline]

Set/Get the particular estimator used to function the quality of triangles. The default is VTK_QUALITY_RADIUS_RATIO and valid values also include VTK_QUALITY_ASPECT_RATIO, VTK_QUALITY_ASPECT_FROBENIUS, and VTK_QUALITY_EDGE_RATIO, VTK_QUALITY_MIN_ANGLE, VTK_QUALITY_MAX_ANGLE, VTK_QUALITY_CONDITION, VTK_QUALITY_SCALED_JACOBIAN, VTK_QUALITY_RELATIVE_SIZE_SQUARED, VTK_QUALITY_SHAPE, VTK_QUALITY_SHAPE_AND_SIZE, and VTK_QUALITY_DISTORTION.

Definition at line 165 of file vtkMeshQuality.h.

void vtkMeshQuality::SetTriangleQualityMeasureToRelativeSizeSquared (  )  [inline]

Set/Get the particular estimator used to function the quality of triangles. The default is VTK_QUALITY_RADIUS_RATIO and valid values also include VTK_QUALITY_ASPECT_RATIO, VTK_QUALITY_ASPECT_FROBENIUS, and VTK_QUALITY_EDGE_RATIO, VTK_QUALITY_MIN_ANGLE, VTK_QUALITY_MAX_ANGLE, VTK_QUALITY_CONDITION, VTK_QUALITY_SCALED_JACOBIAN, VTK_QUALITY_RELATIVE_SIZE_SQUARED, VTK_QUALITY_SHAPE, VTK_QUALITY_SHAPE_AND_SIZE, and VTK_QUALITY_DISTORTION.

Definition at line 169 of file vtkMeshQuality.h.

void vtkMeshQuality::SetTriangleQualityMeasureToShape (  )  [inline]

Set/Get the particular estimator used to function the quality of triangles. The default is VTK_QUALITY_RADIUS_RATIO and valid values also include VTK_QUALITY_ASPECT_RATIO, VTK_QUALITY_ASPECT_FROBENIUS, and VTK_QUALITY_EDGE_RATIO, VTK_QUALITY_MIN_ANGLE, VTK_QUALITY_MAX_ANGLE, VTK_QUALITY_CONDITION, VTK_QUALITY_SCALED_JACOBIAN, VTK_QUALITY_RELATIVE_SIZE_SQUARED, VTK_QUALITY_SHAPE, VTK_QUALITY_SHAPE_AND_SIZE, and VTK_QUALITY_DISTORTION.

Definition at line 173 of file vtkMeshQuality.h.

void vtkMeshQuality::SetTriangleQualityMeasureToShapeAndSize (  )  [inline]

Set/Get the particular estimator used to function the quality of triangles. The default is VTK_QUALITY_RADIUS_RATIO and valid values also include VTK_QUALITY_ASPECT_RATIO, VTK_QUALITY_ASPECT_FROBENIUS, and VTK_QUALITY_EDGE_RATIO, VTK_QUALITY_MIN_ANGLE, VTK_QUALITY_MAX_ANGLE, VTK_QUALITY_CONDITION, VTK_QUALITY_SCALED_JACOBIAN, VTK_QUALITY_RELATIVE_SIZE_SQUARED, VTK_QUALITY_SHAPE, VTK_QUALITY_SHAPE_AND_SIZE, and VTK_QUALITY_DISTORTION.

Definition at line 177 of file vtkMeshQuality.h.

void vtkMeshQuality::SetTriangleQualityMeasureToDistortion (  )  [inline]

Set/Get the particular estimator used to function the quality of triangles. The default is VTK_QUALITY_RADIUS_RATIO and valid values also include VTK_QUALITY_ASPECT_RATIO, VTK_QUALITY_ASPECT_FROBENIUS, and VTK_QUALITY_EDGE_RATIO, VTK_QUALITY_MIN_ANGLE, VTK_QUALITY_MAX_ANGLE, VTK_QUALITY_CONDITION, VTK_QUALITY_SCALED_JACOBIAN, VTK_QUALITY_RELATIVE_SIZE_SQUARED, VTK_QUALITY_SHAPE, VTK_QUALITY_SHAPE_AND_SIZE, and VTK_QUALITY_DISTORTION.

Definition at line 181 of file vtkMeshQuality.h.

virtual void vtkMeshQuality::SetQuadQualityMeasure ( int   )  [virtual]

Set/Get the particular estimator used to measure the quality of quadrilaterals. The default is VTK_QUALITY_EDGE_RATIO and valid values also include VTK_QUALITY_RADIUS_RATIO, VTK_QUALITY_ASPECT_RATIO, VTK_QUALITY_MAX_EDGE_RATIO VTK_QUALITY_SKEW, VTK_QUALITY_TAPER, VTK_QUALITY_WARPAGE, VTK_QUALITY_AREA, VTK_QUALITY_STRETCH, VTK_QUALITY_MIN_ANGLE, VTK_QUALITY_MAX_ANGLE, VTK_QUALITY_ODDY, VTK_QUALITY_CONDITION, VTK_QUALITY_JACOBIAN, VTK_QUALITY_SCALED_JACOBIAN, VTK_QUALITY_SHEAR, VTK_QUALITY_SHAPE, VTK_QUALITY_RELATIVE_SIZE_SQUARED, VTK_QUALITY_SHAPE_AND_SIZE, VTK_QUALITY_SHEAR_AND_SIZE, and VTK_QUALITY_DISTORTION. Scope: Except for VTK_QUALITY_EDGE_RATIO, these estimators are intended for planar quadrilaterals only; use at your own risk if you really want to assess non-planar quadrilateral quality with those.

virtual int vtkMeshQuality::GetQuadQualityMeasure (  )  [virtual]

Set/Get the particular estimator used to measure the quality of quadrilaterals. The default is VTK_QUALITY_EDGE_RATIO and valid values also include VTK_QUALITY_RADIUS_RATIO, VTK_QUALITY_ASPECT_RATIO, VTK_QUALITY_MAX_EDGE_RATIO VTK_QUALITY_SKEW, VTK_QUALITY_TAPER, VTK_QUALITY_WARPAGE, VTK_QUALITY_AREA, VTK_QUALITY_STRETCH, VTK_QUALITY_MIN_ANGLE, VTK_QUALITY_MAX_ANGLE, VTK_QUALITY_ODDY, VTK_QUALITY_CONDITION, VTK_QUALITY_JACOBIAN, VTK_QUALITY_SCALED_JACOBIAN, VTK_QUALITY_SHEAR, VTK_QUALITY_SHAPE, VTK_QUALITY_RELATIVE_SIZE_SQUARED, VTK_QUALITY_SHAPE_AND_SIZE, VTK_QUALITY_SHEAR_AND_SIZE, and VTK_QUALITY_DISTORTION. Scope: Except for VTK_QUALITY_EDGE_RATIO, these estimators are intended for planar quadrilaterals only; use at your own risk if you really want to assess non-planar quadrilateral quality with those.

void vtkMeshQuality::SetQuadQualityMeasureToEdgeRatio (  )  [inline]

Set/Get the particular estimator used to measure the quality of quadrilaterals. The default is VTK_QUALITY_EDGE_RATIO and valid values also include VTK_QUALITY_RADIUS_RATIO, VTK_QUALITY_ASPECT_RATIO, VTK_QUALITY_MAX_EDGE_RATIO VTK_QUALITY_SKEW, VTK_QUALITY_TAPER, VTK_QUALITY_WARPAGE, VTK_QUALITY_AREA, VTK_QUALITY_STRETCH, VTK_QUALITY_MIN_ANGLE, VTK_QUALITY_MAX_ANGLE, VTK_QUALITY_ODDY, VTK_QUALITY_CONDITION, VTK_QUALITY_JACOBIAN, VTK_QUALITY_SCALED_JACOBIAN, VTK_QUALITY_SHEAR, VTK_QUALITY_SHAPE, VTK_QUALITY_RELATIVE_SIZE_SQUARED, VTK_QUALITY_SHAPE_AND_SIZE, VTK_QUALITY_SHEAR_AND_SIZE, and VTK_QUALITY_DISTORTION. Scope: Except for VTK_QUALITY_EDGE_RATIO, these estimators are intended for planar quadrilaterals only; use at your own risk if you really want to assess non-planar quadrilateral quality with those.

Definition at line 204 of file vtkMeshQuality.h.

void vtkMeshQuality::SetQuadQualityMeasureToAspectRatio (  )  [inline]

Set/Get the particular estimator used to measure the quality of quadrilaterals. The default is VTK_QUALITY_EDGE_RATIO and valid values also include VTK_QUALITY_RADIUS_RATIO, VTK_QUALITY_ASPECT_RATIO, VTK_QUALITY_MAX_EDGE_RATIO VTK_QUALITY_SKEW, VTK_QUALITY_TAPER, VTK_QUALITY_WARPAGE, VTK_QUALITY_AREA, VTK_QUALITY_STRETCH, VTK_QUALITY_MIN_ANGLE, VTK_QUALITY_MAX_ANGLE, VTK_QUALITY_ODDY, VTK_QUALITY_CONDITION, VTK_QUALITY_JACOBIAN, VTK_QUALITY_SCALED_JACOBIAN, VTK_QUALITY_SHEAR, VTK_QUALITY_SHAPE, VTK_QUALITY_RELATIVE_SIZE_SQUARED, VTK_QUALITY_SHAPE_AND_SIZE, VTK_QUALITY_SHEAR_AND_SIZE, and VTK_QUALITY_DISTORTION. Scope: Except for VTK_QUALITY_EDGE_RATIO, these estimators are intended for planar quadrilaterals only; use at your own risk if you really want to assess non-planar quadrilateral quality with those.

Definition at line 208 of file vtkMeshQuality.h.

void vtkMeshQuality::SetQuadQualityMeasureToRadiusRatio (  )  [inline]

Set/Get the particular estimator used to measure the quality of quadrilaterals. The default is VTK_QUALITY_EDGE_RATIO and valid values also include VTK_QUALITY_RADIUS_RATIO, VTK_QUALITY_ASPECT_RATIO, VTK_QUALITY_MAX_EDGE_RATIO VTK_QUALITY_SKEW, VTK_QUALITY_TAPER, VTK_QUALITY_WARPAGE, VTK_QUALITY_AREA, VTK_QUALITY_STRETCH, VTK_QUALITY_MIN_ANGLE, VTK_QUALITY_MAX_ANGLE, VTK_QUALITY_ODDY, VTK_QUALITY_CONDITION, VTK_QUALITY_JACOBIAN, VTK_QUALITY_SCALED_JACOBIAN, VTK_QUALITY_SHEAR, VTK_QUALITY_SHAPE, VTK_QUALITY_RELATIVE_SIZE_SQUARED, VTK_QUALITY_SHAPE_AND_SIZE, VTK_QUALITY_SHEAR_AND_SIZE, and VTK_QUALITY_DISTORTION. Scope: Except for VTK_QUALITY_EDGE_RATIO, these estimators are intended for planar quadrilaterals only; use at your own risk if you really want to assess non-planar quadrilateral quality with those.

Definition at line 212 of file vtkMeshQuality.h.

void vtkMeshQuality::SetQuadQualityMeasureToMedAspectFrobenius (  )  [inline]

Set/Get the particular estimator used to measure the quality of quadrilaterals. The default is VTK_QUALITY_EDGE_RATIO and valid values also include VTK_QUALITY_RADIUS_RATIO, VTK_QUALITY_ASPECT_RATIO, VTK_QUALITY_MAX_EDGE_RATIO VTK_QUALITY_SKEW, VTK_QUALITY_TAPER, VTK_QUALITY_WARPAGE, VTK_QUALITY_AREA, VTK_QUALITY_STRETCH, VTK_QUALITY_MIN_ANGLE, VTK_QUALITY_MAX_ANGLE, VTK_QUALITY_ODDY, VTK_QUALITY_CONDITION, VTK_QUALITY_JACOBIAN, VTK_QUALITY_SCALED_JACOBIAN, VTK_QUALITY_SHEAR, VTK_QUALITY_SHAPE, VTK_QUALITY_RELATIVE_SIZE_SQUARED, VTK_QUALITY_SHAPE_AND_SIZE, VTK_QUALITY_SHEAR_AND_SIZE, and VTK_QUALITY_DISTORTION. Scope: Except for VTK_QUALITY_EDGE_RATIO, these estimators are intended for planar quadrilaterals only; use at your own risk if you really want to assess non-planar quadrilateral quality with those.

Definition at line 216 of file vtkMeshQuality.h.

void vtkMeshQuality::SetQuadQualityMeasureToMaxAspectFrobenius (  )  [inline]

Set/Get the particular estimator used to measure the quality of quadrilaterals. The default is VTK_QUALITY_EDGE_RATIO and valid values also include VTK_QUALITY_RADIUS_RATIO, VTK_QUALITY_ASPECT_RATIO, VTK_QUALITY_MAX_EDGE_RATIO VTK_QUALITY_SKEW, VTK_QUALITY_TAPER, VTK_QUALITY_WARPAGE, VTK_QUALITY_AREA, VTK_QUALITY_STRETCH, VTK_QUALITY_MIN_ANGLE, VTK_QUALITY_MAX_ANGLE, VTK_QUALITY_ODDY, VTK_QUALITY_CONDITION, VTK_QUALITY_JACOBIAN, VTK_QUALITY_SCALED_JACOBIAN, VTK_QUALITY_SHEAR, VTK_QUALITY_SHAPE, VTK_QUALITY_RELATIVE_SIZE_SQUARED, VTK_QUALITY_SHAPE_AND_SIZE, VTK_QUALITY_SHEAR_AND_SIZE, and VTK_QUALITY_DISTORTION. Scope: Except for VTK_QUALITY_EDGE_RATIO, these estimators are intended for planar quadrilaterals only; use at your own risk if you really want to assess non-planar quadrilateral quality with those.

Definition at line 220 of file vtkMeshQuality.h.

void vtkMeshQuality::SetQuadQualityMeasureToMaxEdgeRatios (  )  [inline]

Set/Get the particular estimator used to measure the quality of quadrilaterals. The default is VTK_QUALITY_EDGE_RATIO and valid values also include VTK_QUALITY_RADIUS_RATIO, VTK_QUALITY_ASPECT_RATIO, VTK_QUALITY_MAX_EDGE_RATIO VTK_QUALITY_SKEW, VTK_QUALITY_TAPER, VTK_QUALITY_WARPAGE, VTK_QUALITY_AREA, VTK_QUALITY_STRETCH, VTK_QUALITY_MIN_ANGLE, VTK_QUALITY_MAX_ANGLE, VTK_QUALITY_ODDY, VTK_QUALITY_CONDITION, VTK_QUALITY_JACOBIAN, VTK_QUALITY_SCALED_JACOBIAN, VTK_QUALITY_SHEAR, VTK_QUALITY_SHAPE, VTK_QUALITY_RELATIVE_SIZE_SQUARED, VTK_QUALITY_SHAPE_AND_SIZE, VTK_QUALITY_SHEAR_AND_SIZE, and VTK_QUALITY_DISTORTION. Scope: Except for VTK_QUALITY_EDGE_RATIO, these estimators are intended for planar quadrilaterals only; use at your own risk if you really want to assess non-planar quadrilateral quality with those.

Definition at line 224 of file vtkMeshQuality.h.

void vtkMeshQuality::SetQuadQualityMeasureToSkew (  )  [inline]

Set/Get the particular estimator used to measure the quality of quadrilaterals. The default is VTK_QUALITY_EDGE_RATIO and valid values also include VTK_QUALITY_RADIUS_RATIO, VTK_QUALITY_ASPECT_RATIO, VTK_QUALITY_MAX_EDGE_RATIO VTK_QUALITY_SKEW, VTK_QUALITY_TAPER, VTK_QUALITY_WARPAGE, VTK_QUALITY_AREA, VTK_QUALITY_STRETCH, VTK_QUALITY_MIN_ANGLE, VTK_QUALITY_MAX_ANGLE, VTK_QUALITY_ODDY, VTK_QUALITY_CONDITION, VTK_QUALITY_JACOBIAN, VTK_QUALITY_SCALED_JACOBIAN, VTK_QUALITY_SHEAR, VTK_QUALITY_SHAPE, VTK_QUALITY_RELATIVE_SIZE_SQUARED, VTK_QUALITY_SHAPE_AND_SIZE, VTK_QUALITY_SHEAR_AND_SIZE, and VTK_QUALITY_DISTORTION. Scope: Except for VTK_QUALITY_EDGE_RATIO, these estimators are intended for planar quadrilaterals only; use at your own risk if you really want to assess non-planar quadrilateral quality with those.

Definition at line 228 of file vtkMeshQuality.h.

void vtkMeshQuality::SetQuadQualityMeasureToTaper (  )  [inline]

Set/Get the particular estimator used to measure the quality of quadrilaterals. The default is VTK_QUALITY_EDGE_RATIO and valid values also include VTK_QUALITY_RADIUS_RATIO, VTK_QUALITY_ASPECT_RATIO, VTK_QUALITY_MAX_EDGE_RATIO VTK_QUALITY_SKEW, VTK_QUALITY_TAPER, VTK_QUALITY_WARPAGE, VTK_QUALITY_AREA, VTK_QUALITY_STRETCH, VTK_QUALITY_MIN_ANGLE, VTK_QUALITY_MAX_ANGLE, VTK_QUALITY_ODDY, VTK_QUALITY_CONDITION, VTK_QUALITY_JACOBIAN, VTK_QUALITY_SCALED_JACOBIAN, VTK_QUALITY_SHEAR, VTK_QUALITY_SHAPE, VTK_QUALITY_RELATIVE_SIZE_SQUARED, VTK_QUALITY_SHAPE_AND_SIZE, VTK_QUALITY_SHEAR_AND_SIZE, and VTK_QUALITY_DISTORTION. Scope: Except for VTK_QUALITY_EDGE_RATIO, these estimators are intended for planar quadrilaterals only; use at your own risk if you really want to assess non-planar quadrilateral quality with those.

Definition at line 232 of file vtkMeshQuality.h.

void vtkMeshQuality::SetQuadQualityMeasureToWarpage (  )  [inline]

Set/Get the particular estimator used to measure the quality of quadrilaterals. The default is VTK_QUALITY_EDGE_RATIO and valid values also include VTK_QUALITY_RADIUS_RATIO, VTK_QUALITY_ASPECT_RATIO, VTK_QUALITY_MAX_EDGE_RATIO VTK_QUALITY_SKEW, VTK_QUALITY_TAPER, VTK_QUALITY_WARPAGE, VTK_QUALITY_AREA, VTK_QUALITY_STRETCH, VTK_QUALITY_MIN_ANGLE, VTK_QUALITY_MAX_ANGLE, VTK_QUALITY_ODDY, VTK_QUALITY_CONDITION, VTK_QUALITY_JACOBIAN, VTK_QUALITY_SCALED_JACOBIAN, VTK_QUALITY_SHEAR, VTK_QUALITY_SHAPE, VTK_QUALITY_RELATIVE_SIZE_SQUARED, VTK_QUALITY_SHAPE_AND_SIZE, VTK_QUALITY_SHEAR_AND_SIZE, and VTK_QUALITY_DISTORTION. Scope: Except for VTK_QUALITY_EDGE_RATIO, these estimators are intended for planar quadrilaterals only; use at your own risk if you really want to assess non-planar quadrilateral quality with those.

Definition at line 236 of file vtkMeshQuality.h.

void vtkMeshQuality::SetQuadQualityMeasureToArea (  )  [inline]

Set/Get the particular estimator used to measure the quality of quadrilaterals. The default is VTK_QUALITY_EDGE_RATIO and valid values also include VTK_QUALITY_RADIUS_RATIO, VTK_QUALITY_ASPECT_RATIO, VTK_QUALITY_MAX_EDGE_RATIO VTK_QUALITY_SKEW, VTK_QUALITY_TAPER, VTK_QUALITY_WARPAGE, VTK_QUALITY_AREA, VTK_QUALITY_STRETCH, VTK_QUALITY_MIN_ANGLE, VTK_QUALITY_MAX_ANGLE, VTK_QUALITY_ODDY, VTK_QUALITY_CONDITION, VTK_QUALITY_JACOBIAN, VTK_QUALITY_SCALED_JACOBIAN, VTK_QUALITY_SHEAR, VTK_QUALITY_SHAPE, VTK_QUALITY_RELATIVE_SIZE_SQUARED, VTK_QUALITY_SHAPE_AND_SIZE, VTK_QUALITY_SHEAR_AND_SIZE, and VTK_QUALITY_DISTORTION. Scope: Except for VTK_QUALITY_EDGE_RATIO, these estimators are intended for planar quadrilaterals only; use at your own risk if you really want to assess non-planar quadrilateral quality with those.

Definition at line 240 of file vtkMeshQuality.h.

void vtkMeshQuality::SetQuadQualityMeasureToStretch (  )  [inline]

Set/Get the particular estimator used to measure the quality of quadrilaterals. The default is VTK_QUALITY_EDGE_RATIO and valid values also include VTK_QUALITY_RADIUS_RATIO, VTK_QUALITY_ASPECT_RATIO, VTK_QUALITY_MAX_EDGE_RATIO VTK_QUALITY_SKEW, VTK_QUALITY_TAPER, VTK_QUALITY_WARPAGE, VTK_QUALITY_AREA, VTK_QUALITY_STRETCH, VTK_QUALITY_MIN_ANGLE, VTK_QUALITY_MAX_ANGLE, VTK_QUALITY_ODDY, VTK_QUALITY_CONDITION, VTK_QUALITY_JACOBIAN, VTK_QUALITY_SCALED_JACOBIAN, VTK_QUALITY_SHEAR, VTK_QUALITY_SHAPE, VTK_QUALITY_RELATIVE_SIZE_SQUARED, VTK_QUALITY_SHAPE_AND_SIZE, VTK_QUALITY_SHEAR_AND_SIZE, and VTK_QUALITY_DISTORTION. Scope: Except for VTK_QUALITY_EDGE_RATIO, these estimators are intended for planar quadrilaterals only; use at your own risk if you really want to assess non-planar quadrilateral quality with those.

Definition at line 244 of file vtkMeshQuality.h.

void vtkMeshQuality::SetQuadQualityMeasureToMinAngle (  )  [inline]

Set/Get the particular estimator used to measure the quality of quadrilaterals. The default is VTK_QUALITY_EDGE_RATIO and valid values also include VTK_QUALITY_RADIUS_RATIO, VTK_QUALITY_ASPECT_RATIO, VTK_QUALITY_MAX_EDGE_RATIO VTK_QUALITY_SKEW, VTK_QUALITY_TAPER, VTK_QUALITY_WARPAGE, VTK_QUALITY_AREA, VTK_QUALITY_STRETCH, VTK_QUALITY_MIN_ANGLE, VTK_QUALITY_MAX_ANGLE, VTK_QUALITY_ODDY, VTK_QUALITY_CONDITION, VTK_QUALITY_JACOBIAN, VTK_QUALITY_SCALED_JACOBIAN, VTK_QUALITY_SHEAR, VTK_QUALITY_SHAPE, VTK_QUALITY_RELATIVE_SIZE_SQUARED, VTK_QUALITY_SHAPE_AND_SIZE, VTK_QUALITY_SHEAR_AND_SIZE, and VTK_QUALITY_DISTORTION. Scope: Except for VTK_QUALITY_EDGE_RATIO, these estimators are intended for planar quadrilaterals only; use at your own risk if you really want to assess non-planar quadrilateral quality with those.

Definition at line 248 of file vtkMeshQuality.h.

void vtkMeshQuality::SetQuadQualityMeasureToMaxAngle (  )  [inline]

Set/Get the particular estimator used to measure the quality of quadrilaterals. The default is VTK_QUALITY_EDGE_RATIO and valid values also include VTK_QUALITY_RADIUS_RATIO, VTK_QUALITY_ASPECT_RATIO, VTK_QUALITY_MAX_EDGE_RATIO VTK_QUALITY_SKEW, VTK_QUALITY_TAPER, VTK_QUALITY_WARPAGE, VTK_QUALITY_AREA, VTK_QUALITY_STRETCH, VTK_QUALITY_MIN_ANGLE, VTK_QUALITY_MAX_ANGLE, VTK_QUALITY_ODDY, VTK_QUALITY_CONDITION, VTK_QUALITY_JACOBIAN, VTK_QUALITY_SCALED_JACOBIAN, VTK_QUALITY_SHEAR, VTK_QUALITY_SHAPE, VTK_QUALITY_RELATIVE_SIZE_SQUARED, VTK_QUALITY_SHAPE_AND_SIZE, VTK_QUALITY_SHEAR_AND_SIZE, and VTK_QUALITY_DISTORTION. Scope: Except for VTK_QUALITY_EDGE_RATIO, these estimators are intended for planar quadrilaterals only; use at your own risk if you really want to assess non-planar quadrilateral quality with those.

Definition at line 252 of file vtkMeshQuality.h.

void vtkMeshQuality::SetQuadQualityMeasureToOddy (  )  [inline]

Set/Get the particular estimator used to measure the quality of quadrilaterals. The default is VTK_QUALITY_EDGE_RATIO and valid values also include VTK_QUALITY_RADIUS_RATIO, VTK_QUALITY_ASPECT_RATIO, VTK_QUALITY_MAX_EDGE_RATIO VTK_QUALITY_SKEW, VTK_QUALITY_TAPER, VTK_QUALITY_WARPAGE, VTK_QUALITY_AREA, VTK_QUALITY_STRETCH, VTK_QUALITY_MIN_ANGLE, VTK_QUALITY_MAX_ANGLE, VTK_QUALITY_ODDY, VTK_QUALITY_CONDITION, VTK_QUALITY_JACOBIAN, VTK_QUALITY_SCALED_JACOBIAN, VTK_QUALITY_SHEAR, VTK_QUALITY_SHAPE, VTK_QUALITY_RELATIVE_SIZE_SQUARED, VTK_QUALITY_SHAPE_AND_SIZE, VTK_QUALITY_SHEAR_AND_SIZE, and VTK_QUALITY_DISTORTION. Scope: Except for VTK_QUALITY_EDGE_RATIO, these estimators are intended for planar quadrilaterals only; use at your own risk if you really want to assess non-planar quadrilateral quality with those.

Definition at line 256 of file vtkMeshQuality.h.

void vtkMeshQuality::SetQuadQualityMeasureToCondition (  )  [inline]

Set/Get the particular estimator used to measure the quality of quadrilaterals. The default is VTK_QUALITY_EDGE_RATIO and valid values also include VTK_QUALITY_RADIUS_RATIO, VTK_QUALITY_ASPECT_RATIO, VTK_QUALITY_MAX_EDGE_RATIO VTK_QUALITY_SKEW, VTK_QUALITY_TAPER, VTK_QUALITY_WARPAGE, VTK_QUALITY_AREA, VTK_QUALITY_STRETCH, VTK_QUALITY_MIN_ANGLE, VTK_QUALITY_MAX_ANGLE, VTK_QUALITY_ODDY, VTK_QUALITY_CONDITION, VTK_QUALITY_JACOBIAN, VTK_QUALITY_SCALED_JACOBIAN, VTK_QUALITY_SHEAR, VTK_QUALITY_SHAPE, VTK_QUALITY_RELATIVE_SIZE_SQUARED, VTK_QUALITY_SHAPE_AND_SIZE, VTK_QUALITY_SHEAR_AND_SIZE, and VTK_QUALITY_DISTORTION. Scope: Except for VTK_QUALITY_EDGE_RATIO, these estimators are intended for planar quadrilaterals only; use at your own risk if you really want to assess non-planar quadrilateral quality with those.

Definition at line 260 of file vtkMeshQuality.h.

void vtkMeshQuality::SetQuadQualityMeasureToJacobian (  )  [inline]

Set/Get the particular estimator used to measure the quality of quadrilaterals. The default is VTK_QUALITY_EDGE_RATIO and valid values also include VTK_QUALITY_RADIUS_RATIO, VTK_QUALITY_ASPECT_RATIO, VTK_QUALITY_MAX_EDGE_RATIO VTK_QUALITY_SKEW, VTK_QUALITY_TAPER, VTK_QUALITY_WARPAGE, VTK_QUALITY_AREA, VTK_QUALITY_STRETCH, VTK_QUALITY_MIN_ANGLE, VTK_QUALITY_MAX_ANGLE, VTK_QUALITY_ODDY, VTK_QUALITY_CONDITION, VTK_QUALITY_JACOBIAN, VTK_QUALITY_SCALED_JACOBIAN, VTK_QUALITY_SHEAR, VTK_QUALITY_SHAPE, VTK_QUALITY_RELATIVE_SIZE_SQUARED, VTK_QUALITY_SHAPE_AND_SIZE, VTK_QUALITY_SHEAR_AND_SIZE, and VTK_QUALITY_DISTORTION. Scope: Except for VTK_QUALITY_EDGE_RATIO, these estimators are intended for planar quadrilaterals only; use at your own risk if you really want to assess non-planar quadrilateral quality with those.

Definition at line 264 of file vtkMeshQuality.h.

void vtkMeshQuality::SetQuadQualityMeasureToScaledJacobian (  )  [inline]

Set/Get the particular estimator used to measure the quality of quadrilaterals. The default is VTK_QUALITY_EDGE_RATIO and valid values also include VTK_QUALITY_RADIUS_RATIO, VTK_QUALITY_ASPECT_RATIO, VTK_QUALITY_MAX_EDGE_RATIO VTK_QUALITY_SKEW, VTK_QUALITY_TAPER, VTK_QUALITY_WARPAGE, VTK_QUALITY_AREA, VTK_QUALITY_STRETCH, VTK_QUALITY_MIN_ANGLE, VTK_QUALITY_MAX_ANGLE, VTK_QUALITY_ODDY, VTK_QUALITY_CONDITION, VTK_QUALITY_JACOBIAN, VTK_QUALITY_SCALED_JACOBIAN, VTK_QUALITY_SHEAR, VTK_QUALITY_SHAPE, VTK_QUALITY_RELATIVE_SIZE_SQUARED, VTK_QUALITY_SHAPE_AND_SIZE, VTK_QUALITY_SHEAR_AND_SIZE, and VTK_QUALITY_DISTORTION. Scope: Except for VTK_QUALITY_EDGE_RATIO, these estimators are intended for planar quadrilaterals only; use at your own risk if you really want to assess non-planar quadrilateral quality with those.

Definition at line 268 of file vtkMeshQuality.h.

void vtkMeshQuality::SetQuadQualityMeasureToShear (  )  [inline]

Set/Get the particular estimator used to measure the quality of quadrilaterals. The default is VTK_QUALITY_EDGE_RATIO and valid values also include VTK_QUALITY_RADIUS_RATIO, VTK_QUALITY_ASPECT_RATIO, VTK_QUALITY_MAX_EDGE_RATIO VTK_QUALITY_SKEW, VTK_QUALITY_TAPER, VTK_QUALITY_WARPAGE, VTK_QUALITY_AREA, VTK_QUALITY_STRETCH, VTK_QUALITY_MIN_ANGLE, VTK_QUALITY_MAX_ANGLE, VTK_QUALITY_ODDY, VTK_QUALITY_CONDITION, VTK_QUALITY_JACOBIAN, VTK_QUALITY_SCALED_JACOBIAN, VTK_QUALITY_SHEAR, VTK_QUALITY_SHAPE, VTK_QUALITY_RELATIVE_SIZE_SQUARED, VTK_QUALITY_SHAPE_AND_SIZE, VTK_QUALITY_SHEAR_AND_SIZE, and VTK_QUALITY_DISTORTION. Scope: Except for VTK_QUALITY_EDGE_RATIO, these estimators are intended for planar quadrilaterals only; use at your own risk if you really want to assess non-planar quadrilateral quality with those.

Definition at line 272 of file vtkMeshQuality.h.

void vtkMeshQuality::SetQuadQualityMeasureToShape (  )  [inline]

Set/Get the particular estimator used to measure the quality of quadrilaterals. The default is VTK_QUALITY_EDGE_RATIO and valid values also include VTK_QUALITY_RADIUS_RATIO, VTK_QUALITY_ASPECT_RATIO, VTK_QUALITY_MAX_EDGE_RATIO VTK_QUALITY_SKEW, VTK_QUALITY_TAPER, VTK_QUALITY_WARPAGE, VTK_QUALITY_AREA, VTK_QUALITY_STRETCH, VTK_QUALITY_MIN_ANGLE, VTK_QUALITY_MAX_ANGLE, VTK_QUALITY_ODDY, VTK_QUALITY_CONDITION, VTK_QUALITY_JACOBIAN, VTK_QUALITY_SCALED_JACOBIAN, VTK_QUALITY_SHEAR, VTK_QUALITY_SHAPE, VTK_QUALITY_RELATIVE_SIZE_SQUARED, VTK_QUALITY_SHAPE_AND_SIZE, VTK_QUALITY_SHEAR_AND_SIZE, and VTK_QUALITY_DISTORTION. Scope: Except for VTK_QUALITY_EDGE_RATIO, these estimators are intended for planar quadrilaterals only; use at your own risk if you really want to assess non-planar quadrilateral quality with those.

Definition at line 276 of file vtkMeshQuality.h.

void vtkMeshQuality::SetQuadQualityMeasureToRelativeSizeSquared (  )  [inline]

Set/Get the particular estimator used to measure the quality of quadrilaterals. The default is VTK_QUALITY_EDGE_RATIO and valid values also include VTK_QUALITY_RADIUS_RATIO, VTK_QUALITY_ASPECT_RATIO, VTK_QUALITY_MAX_EDGE_RATIO VTK_QUALITY_SKEW, VTK_QUALITY_TAPER, VTK_QUALITY_WARPAGE, VTK_QUALITY_AREA, VTK_QUALITY_STRETCH, VTK_QUALITY_MIN_ANGLE, VTK_QUALITY_MAX_ANGLE, VTK_QUALITY_ODDY, VTK_QUALITY_CONDITION, VTK_QUALITY_JACOBIAN, VTK_QUALITY_SCALED_JACOBIAN, VTK_QUALITY_SHEAR, VTK_QUALITY_SHAPE, VTK_QUALITY_RELATIVE_SIZE_SQUARED, VTK_QUALITY_SHAPE_AND_SIZE, VTK_QUALITY_SHEAR_AND_SIZE, and VTK_QUALITY_DISTORTION. Scope: Except for VTK_QUALITY_EDGE_RATIO, these estimators are intended for planar quadrilaterals only; use at your own risk if you really want to assess non-planar quadrilateral quality with those.

Definition at line 280 of file vtkMeshQuality.h.

void vtkMeshQuality::SetQuadQualityMeasureToShapeAndSize (  )  [inline]

Set/Get the particular estimator used to measure the quality of quadrilaterals. The default is VTK_QUALITY_EDGE_RATIO and valid values also include VTK_QUALITY_RADIUS_RATIO, VTK_QUALITY_ASPECT_RATIO, VTK_QUALITY_MAX_EDGE_RATIO VTK_QUALITY_SKEW, VTK_QUALITY_TAPER, VTK_QUALITY_WARPAGE, VTK_QUALITY_AREA, VTK_QUALITY_STRETCH, VTK_QUALITY_MIN_ANGLE, VTK_QUALITY_MAX_ANGLE, VTK_QUALITY_ODDY, VTK_QUALITY_CONDITION, VTK_QUALITY_JACOBIAN, VTK_QUALITY_SCALED_JACOBIAN, VTK_QUALITY_SHEAR, VTK_QUALITY_SHAPE, VTK_QUALITY_RELATIVE_SIZE_SQUARED, VTK_QUALITY_SHAPE_AND_SIZE, VTK_QUALITY_SHEAR_AND_SIZE, and VTK_QUALITY_DISTORTION. Scope: Except for VTK_QUALITY_EDGE_RATIO, these estimators are intended for planar quadrilaterals only; use at your own risk if you really want to assess non-planar quadrilateral quality with those.

Definition at line 284 of file vtkMeshQuality.h.

void vtkMeshQuality::SetQuadQualityMeasureToShearAndSize (  )  [inline]

Set/Get the particular estimator used to measure the quality of quadrilaterals. The default is VTK_QUALITY_EDGE_RATIO and valid values also include VTK_QUALITY_RADIUS_RATIO, VTK_QUALITY_ASPECT_RATIO, VTK_QUALITY_MAX_EDGE_RATIO VTK_QUALITY_SKEW, VTK_QUALITY_TAPER, VTK_QUALITY_WARPAGE, VTK_QUALITY_AREA, VTK_QUALITY_STRETCH, VTK_QUALITY_MIN_ANGLE, VTK_QUALITY_MAX_ANGLE, VTK_QUALITY_ODDY, VTK_QUALITY_CONDITION, VTK_QUALITY_JACOBIAN, VTK_QUALITY_SCALED_JACOBIAN, VTK_QUALITY_SHEAR, VTK_QUALITY_SHAPE, VTK_QUALITY_RELATIVE_SIZE_SQUARED, VTK_QUALITY_SHAPE_AND_SIZE, VTK_QUALITY_SHEAR_AND_SIZE, and VTK_QUALITY_DISTORTION. Scope: Except for VTK_QUALITY_EDGE_RATIO, these estimators are intended for planar quadrilaterals only; use at your own risk if you really want to assess non-planar quadrilateral quality with those.

Definition at line 288 of file vtkMeshQuality.h.

void vtkMeshQuality::SetQuadQualityMeasureToDistortion (  )  [inline]

Set/Get the particular estimator used to measure the quality of quadrilaterals. The default is VTK_QUALITY_EDGE_RATIO and valid values also include VTK_QUALITY_RADIUS_RATIO, VTK_QUALITY_ASPECT_RATIO, VTK_QUALITY_MAX_EDGE_RATIO VTK_QUALITY_SKEW, VTK_QUALITY_TAPER, VTK_QUALITY_WARPAGE, VTK_QUALITY_AREA, VTK_QUALITY_STRETCH, VTK_QUALITY_MIN_ANGLE, VTK_QUALITY_MAX_ANGLE, VTK_QUALITY_ODDY, VTK_QUALITY_CONDITION, VTK_QUALITY_JACOBIAN, VTK_QUALITY_SCALED_JACOBIAN, VTK_QUALITY_SHEAR, VTK_QUALITY_SHAPE, VTK_QUALITY_RELATIVE_SIZE_SQUARED, VTK_QUALITY_SHAPE_AND_SIZE, VTK_QUALITY_SHEAR_AND_SIZE, and VTK_QUALITY_DISTORTION. Scope: Except for VTK_QUALITY_EDGE_RATIO, these estimators are intended for planar quadrilaterals only; use at your own risk if you really want to assess non-planar quadrilateral quality with those.

Definition at line 292 of file vtkMeshQuality.h.

virtual void vtkMeshQuality::SetTetQualityMeasure ( int   )  [virtual]

Set/Get the particular estimator used to measure the quality of tetrahedra. The default is VTK_QUALITY_RADIUS_RATIO (identical to Verdict's aspect ratio beta) and valid values also include VTK_QUALITY_ASPECT_RATIO, VTK_QUALITY_ASPECT_FROBENIUS, VTK_QUALITY_EDGE_RATIO, VTK_QUALITY_COLLAPSE_RATIO, VTK_QUALITY_ASPECT_BETA, VTK_QUALITY_ASPECT_GAMMA, VTK_QUALITY_VOLUME, VTK_QUALITY_CONDITION, VTK_QUALITY_JACOBIAN, VTK_QUALITY_SCALED_JACOBIAN, VTK_QUALITY_SHAPE, VTK_QUALITY_RELATIVE_SIZE_SQUARED, VTK_QUALITY_SHAPE_AND_SIZE, and VTK_QUALITY_DISTORTION.

virtual int vtkMeshQuality::GetTetQualityMeasure (  )  [virtual]

Set/Get the particular estimator used to measure the quality of tetrahedra. The default is VTK_QUALITY_RADIUS_RATIO (identical to Verdict's aspect ratio beta) and valid values also include VTK_QUALITY_ASPECT_RATIO, VTK_QUALITY_ASPECT_FROBENIUS, VTK_QUALITY_EDGE_RATIO, VTK_QUALITY_COLLAPSE_RATIO, VTK_QUALITY_ASPECT_BETA, VTK_QUALITY_ASPECT_GAMMA, VTK_QUALITY_VOLUME, VTK_QUALITY_CONDITION, VTK_QUALITY_JACOBIAN, VTK_QUALITY_SCALED_JACOBIAN, VTK_QUALITY_SHAPE, VTK_QUALITY_RELATIVE_SIZE_SQUARED, VTK_QUALITY_SHAPE_AND_SIZE, and VTK_QUALITY_DISTORTION.

void vtkMeshQuality::SetTetQualityMeasureToEdgeRatio (  )  [inline]

Set/Get the particular estimator used to measure the quality of tetrahedra. The default is VTK_QUALITY_RADIUS_RATIO (identical to Verdict's aspect ratio beta) and valid values also include VTK_QUALITY_ASPECT_RATIO, VTK_QUALITY_ASPECT_FROBENIUS, VTK_QUALITY_EDGE_RATIO, VTK_QUALITY_COLLAPSE_RATIO, VTK_QUALITY_ASPECT_BETA, VTK_QUALITY_ASPECT_GAMMA, VTK_QUALITY_VOLUME, VTK_QUALITY_CONDITION, VTK_QUALITY_JACOBIAN, VTK_QUALITY_SCALED_JACOBIAN, VTK_QUALITY_SHAPE, VTK_QUALITY_RELATIVE_SIZE_SQUARED, VTK_QUALITY_SHAPE_AND_SIZE, and VTK_QUALITY_DISTORTION.

Definition at line 311 of file vtkMeshQuality.h.

void vtkMeshQuality::SetTetQualityMeasureToAspectRatio (  )  [inline]

Set/Get the particular estimator used to measure the quality of tetrahedra. The default is VTK_QUALITY_RADIUS_RATIO (identical to Verdict's aspect ratio beta) and valid values also include VTK_QUALITY_ASPECT_RATIO, VTK_QUALITY_ASPECT_FROBENIUS, VTK_QUALITY_EDGE_RATIO, VTK_QUALITY_COLLAPSE_RATIO, VTK_QUALITY_ASPECT_BETA, VTK_QUALITY_ASPECT_GAMMA, VTK_QUALITY_VOLUME, VTK_QUALITY_CONDITION, VTK_QUALITY_JACOBIAN, VTK_QUALITY_SCALED_JACOBIAN, VTK_QUALITY_SHAPE, VTK_QUALITY_RELATIVE_SIZE_SQUARED, VTK_QUALITY_SHAPE_AND_SIZE, and VTK_QUALITY_DISTORTION.

Definition at line 315 of file vtkMeshQuality.h.

void vtkMeshQuality::SetTetQualityMeasureToRadiusRatio (  )  [inline]

Set/Get the particular estimator used to measure the quality of tetrahedra. The default is VTK_QUALITY_RADIUS_RATIO (identical to Verdict's aspect ratio beta) and valid values also include VTK_QUALITY_ASPECT_RATIO, VTK_QUALITY_ASPECT_FROBENIUS, VTK_QUALITY_EDGE_RATIO, VTK_QUALITY_COLLAPSE_RATIO, VTK_QUALITY_ASPECT_BETA, VTK_QUALITY_ASPECT_GAMMA, VTK_QUALITY_VOLUME, VTK_QUALITY_CONDITION, VTK_QUALITY_JACOBIAN, VTK_QUALITY_SCALED_JACOBIAN, VTK_QUALITY_SHAPE, VTK_QUALITY_RELATIVE_SIZE_SQUARED, VTK_QUALITY_SHAPE_AND_SIZE, and VTK_QUALITY_DISTORTION.

Definition at line 319 of file vtkMeshQuality.h.

void vtkMeshQuality::SetTetQualityMeasureToAspectFrobenius (  )  [inline]

Set/Get the particular estimator used to measure the quality of tetrahedra. The default is VTK_QUALITY_RADIUS_RATIO (identical to Verdict's aspect ratio beta) and valid values also include VTK_QUALITY_ASPECT_RATIO, VTK_QUALITY_ASPECT_FROBENIUS, VTK_QUALITY_EDGE_RATIO, VTK_QUALITY_COLLAPSE_RATIO, VTK_QUALITY_ASPECT_BETA, VTK_QUALITY_ASPECT_GAMMA, VTK_QUALITY_VOLUME, VTK_QUALITY_CONDITION, VTK_QUALITY_JACOBIAN, VTK_QUALITY_SCALED_JACOBIAN, VTK_QUALITY_SHAPE, VTK_QUALITY_RELATIVE_SIZE_SQUARED, VTK_QUALITY_SHAPE_AND_SIZE, and VTK_QUALITY_DISTORTION.

Definition at line 323 of file vtkMeshQuality.h.

void vtkMeshQuality::SetTetQualityMeasureToMinAngle (  )  [inline]

Set/Get the particular estimator used to measure the quality of tetrahedra. The default is VTK_QUALITY_RADIUS_RATIO (identical to Verdict's aspect ratio beta) and valid values also include VTK_QUALITY_ASPECT_RATIO, VTK_QUALITY_ASPECT_FROBENIUS, VTK_QUALITY_EDGE_RATIO, VTK_QUALITY_COLLAPSE_RATIO, VTK_QUALITY_ASPECT_BETA, VTK_QUALITY_ASPECT_GAMMA, VTK_QUALITY_VOLUME, VTK_QUALITY_CONDITION, VTK_QUALITY_JACOBIAN, VTK_QUALITY_SCALED_JACOBIAN, VTK_QUALITY_SHAPE, VTK_QUALITY_RELATIVE_SIZE_SQUARED, VTK_QUALITY_SHAPE_AND_SIZE, and VTK_QUALITY_DISTORTION.

Definition at line 327 of file vtkMeshQuality.h.

void vtkMeshQuality::SetTetQualityMeasureToCollapseRatio (  )  [inline]

Set/Get the particular estimator used to measure the quality of tetrahedra. The default is VTK_QUALITY_RADIUS_RATIO (identical to Verdict's aspect ratio beta) and valid values also include VTK_QUALITY_ASPECT_RATIO, VTK_QUALITY_ASPECT_FROBENIUS, VTK_QUALITY_EDGE_RATIO, VTK_QUALITY_COLLAPSE_RATIO, VTK_QUALITY_ASPECT_BETA, VTK_QUALITY_ASPECT_GAMMA, VTK_QUALITY_VOLUME, VTK_QUALITY_CONDITION, VTK_QUALITY_JACOBIAN, VTK_QUALITY_SCALED_JACOBIAN, VTK_QUALITY_SHAPE, VTK_QUALITY_RELATIVE_SIZE_SQUARED, VTK_QUALITY_SHAPE_AND_SIZE, and VTK_QUALITY_DISTORTION.

Definition at line 331 of file vtkMeshQuality.h.

void vtkMeshQuality::SetTetQualityMeasureToAspectBeta (  )  [inline]

Set/Get the particular estimator used to measure the quality of tetrahedra. The default is VTK_QUALITY_RADIUS_RATIO (identical to Verdict's aspect ratio beta) and valid values also include VTK_QUALITY_ASPECT_RATIO, VTK_QUALITY_ASPECT_FROBENIUS, VTK_QUALITY_EDGE_RATIO, VTK_QUALITY_COLLAPSE_RATIO, VTK_QUALITY_ASPECT_BETA, VTK_QUALITY_ASPECT_GAMMA, VTK_QUALITY_VOLUME, VTK_QUALITY_CONDITION, VTK_QUALITY_JACOBIAN, VTK_QUALITY_SCALED_JACOBIAN, VTK_QUALITY_SHAPE, VTK_QUALITY_RELATIVE_SIZE_SQUARED, VTK_QUALITY_SHAPE_AND_SIZE, and VTK_QUALITY_DISTORTION.

Definition at line 335 of file vtkMeshQuality.h.

void vtkMeshQuality::SetTetQualityMeasureToAspectGamma (  )  [inline]

Set/Get the particular estimator used to measure the quality of tetrahedra. The default is VTK_QUALITY_RADIUS_RATIO (identical to Verdict's aspect ratio beta) and valid values also include VTK_QUALITY_ASPECT_RATIO, VTK_QUALITY_ASPECT_FROBENIUS, VTK_QUALITY_EDGE_RATIO, VTK_QUALITY_COLLAPSE_RATIO, VTK_QUALITY_ASPECT_BETA, VTK_QUALITY_ASPECT_GAMMA, VTK_QUALITY_VOLUME, VTK_QUALITY_CONDITION, VTK_QUALITY_JACOBIAN, VTK_QUALITY_SCALED_JACOBIAN, VTK_QUALITY_SHAPE, VTK_QUALITY_RELATIVE_SIZE_SQUARED, VTK_QUALITY_SHAPE_AND_SIZE, and VTK_QUALITY_DISTORTION.

Definition at line 339 of file vtkMeshQuality.h.

void vtkMeshQuality::SetTetQualityMeasureToVolume (  )  [inline]

Set/Get the particular estimator used to measure the quality of tetrahedra. The default is VTK_QUALITY_RADIUS_RATIO (identical to Verdict's aspect ratio beta) and valid values also include VTK_QUALITY_ASPECT_RATIO, VTK_QUALITY_ASPECT_FROBENIUS, VTK_QUALITY_EDGE_RATIO, VTK_QUALITY_COLLAPSE_RATIO, VTK_QUALITY_ASPECT_BETA, VTK_QUALITY_ASPECT_GAMMA, VTK_QUALITY_VOLUME, VTK_QUALITY_CONDITION, VTK_QUALITY_JACOBIAN, VTK_QUALITY_SCALED_JACOBIAN, VTK_QUALITY_SHAPE, VTK_QUALITY_RELATIVE_SIZE_SQUARED, VTK_QUALITY_SHAPE_AND_SIZE, and VTK_QUALITY_DISTORTION.

Definition at line 343 of file vtkMeshQuality.h.

void vtkMeshQuality::SetTetQualityMeasureToCondition (  )  [inline]

Set/Get the particular estimator used to measure the quality of tetrahedra. The default is VTK_QUALITY_RADIUS_RATIO (identical to Verdict's aspect ratio beta) and valid values also include VTK_QUALITY_ASPECT_RATIO, VTK_QUALITY_ASPECT_FROBENIUS, VTK_QUALITY_EDGE_RATIO, VTK_QUALITY_COLLAPSE_RATIO, VTK_QUALITY_ASPECT_BETA, VTK_QUALITY_ASPECT_GAMMA, VTK_QUALITY_VOLUME, VTK_QUALITY_CONDITION, VTK_QUALITY_JACOBIAN, VTK_QUALITY_SCALED_JACOBIAN, VTK_QUALITY_SHAPE, VTK_QUALITY_RELATIVE_SIZE_SQUARED, VTK_QUALITY_SHAPE_AND_SIZE, and VTK_QUALITY_DISTORTION.

Definition at line 347 of file vtkMeshQuality.h.

void vtkMeshQuality::SetTetQualityMeasureToJacobian (  )  [inline]

Set/Get the particular estimator used to measure the quality of tetrahedra. The default is VTK_QUALITY_RADIUS_RATIO (identical to Verdict's aspect ratio beta) and valid values also include VTK_QUALITY_ASPECT_RATIO, VTK_QUALITY_ASPECT_FROBENIUS, VTK_QUALITY_EDGE_RATIO, VTK_QUALITY_COLLAPSE_RATIO, VTK_QUALITY_ASPECT_BETA, VTK_QUALITY_ASPECT_GAMMA, VTK_QUALITY_VOLUME, VTK_QUALITY_CONDITION, VTK_QUALITY_JACOBIAN, VTK_QUALITY_SCALED_JACOBIAN, VTK_QUALITY_SHAPE, VTK_QUALITY_RELATIVE_SIZE_SQUARED, VTK_QUALITY_SHAPE_AND_SIZE, and VTK_QUALITY_DISTORTION.

Definition at line 351 of file vtkMeshQuality.h.

void vtkMeshQuality::SetTetQualityMeasureToScaledJacobian (  )  [inline]

Set/Get the particular estimator used to measure the quality of tetrahedra. The default is VTK_QUALITY_RADIUS_RATIO (identical to Verdict's aspect ratio beta) and valid values also include VTK_QUALITY_ASPECT_RATIO, VTK_QUALITY_ASPECT_FROBENIUS, VTK_QUALITY_EDGE_RATIO, VTK_QUALITY_COLLAPSE_RATIO, VTK_QUALITY_ASPECT_BETA, VTK_QUALITY_ASPECT_GAMMA, VTK_QUALITY_VOLUME, VTK_QUALITY_CONDITION, VTK_QUALITY_JACOBIAN, VTK_QUALITY_SCALED_JACOBIAN, VTK_QUALITY_SHAPE, VTK_QUALITY_RELATIVE_SIZE_SQUARED, VTK_QUALITY_SHAPE_AND_SIZE, and VTK_QUALITY_DISTORTION.

Definition at line 355 of file vtkMeshQuality.h.

void vtkMeshQuality::SetTetQualityMeasureToShape (  )  [inline]

Set/Get the particular estimator used to measure the quality of tetrahedra. The default is VTK_QUALITY_RADIUS_RATIO (identical to Verdict's aspect ratio beta) and valid values also include VTK_QUALITY_ASPECT_RATIO, VTK_QUALITY_ASPECT_FROBENIUS, VTK_QUALITY_EDGE_RATIO, VTK_QUALITY_COLLAPSE_RATIO, VTK_QUALITY_ASPECT_BETA, VTK_QUALITY_ASPECT_GAMMA, VTK_QUALITY_VOLUME, VTK_QUALITY_CONDITION, VTK_QUALITY_JACOBIAN, VTK_QUALITY_SCALED_JACOBIAN, VTK_QUALITY_SHAPE, VTK_QUALITY_RELATIVE_SIZE_SQUARED, VTK_QUALITY_SHAPE_AND_SIZE, and VTK_QUALITY_DISTORTION.

Definition at line 359 of file vtkMeshQuality.h.

void vtkMeshQuality::SetTetQualityMeasureToRelativeSizeSquared (  )  [inline]

Set/Get the particular estimator used to measure the quality of tetrahedra. The default is VTK_QUALITY_RADIUS_RATIO (identical to Verdict's aspect ratio beta) and valid values also include VTK_QUALITY_ASPECT_RATIO, VTK_QUALITY_ASPECT_FROBENIUS, VTK_QUALITY_EDGE_RATIO, VTK_QUALITY_COLLAPSE_RATIO, VTK_QUALITY_ASPECT_BETA, VTK_QUALITY_ASPECT_GAMMA, VTK_QUALITY_VOLUME, VTK_QUALITY_CONDITION, VTK_QUALITY_JACOBIAN, VTK_QUALITY_SCALED_JACOBIAN, VTK_QUALITY_SHAPE, VTK_QUALITY_RELATIVE_SIZE_SQUARED, VTK_QUALITY_SHAPE_AND_SIZE, and VTK_QUALITY_DISTORTION.

Definition at line 363 of file vtkMeshQuality.h.

void vtkMeshQuality::SetTetQualityMeasureToShapeAndSize (  )  [inline]

Set/Get the particular estimator used to measure the quality of tetrahedra. The default is VTK_QUALITY_RADIUS_RATIO (identical to Verdict's aspect ratio beta) and valid values also include VTK_QUALITY_ASPECT_RATIO, VTK_QUALITY_ASPECT_FROBENIUS, VTK_QUALITY_EDGE_RATIO, VTK_QUALITY_COLLAPSE_RATIO, VTK_QUALITY_ASPECT_BETA, VTK_QUALITY_ASPECT_GAMMA, VTK_QUALITY_VOLUME, VTK_QUALITY_CONDITION, VTK_QUALITY_JACOBIAN, VTK_QUALITY_SCALED_JACOBIAN, VTK_QUALITY_SHAPE, VTK_QUALITY_RELATIVE_SIZE_SQUARED, VTK_QUALITY_SHAPE_AND_SIZE, and VTK_QUALITY_DISTORTION.

Definition at line 367 of file vtkMeshQuality.h.

void vtkMeshQuality::SetTetQualityMeasureToDistortion (  )  [inline]

Set/Get the particular estimator used to measure the quality of tetrahedra. The default is VTK_QUALITY_RADIUS_RATIO (identical to Verdict's aspect ratio beta) and valid values also include VTK_QUALITY_ASPECT_RATIO, VTK_QUALITY_ASPECT_FROBENIUS, VTK_QUALITY_EDGE_RATIO, VTK_QUALITY_COLLAPSE_RATIO, VTK_QUALITY_ASPECT_BETA, VTK_QUALITY_ASPECT_GAMMA, VTK_QUALITY_VOLUME, VTK_QUALITY_CONDITION, VTK_QUALITY_JACOBIAN, VTK_QUALITY_SCALED_JACOBIAN, VTK_QUALITY_SHAPE, VTK_QUALITY_RELATIVE_SIZE_SQUARED, VTK_QUALITY_SHAPE_AND_SIZE, and VTK_QUALITY_DISTORTION.

Definition at line 371 of file vtkMeshQuality.h.

virtual void vtkMeshQuality::SetHexQualityMeasure ( int   )  [virtual]

Set/Get the particular estimator used to measure the quality of hexahedra. The default is VTK_QUALITY_MAX_ASPECT_FROBENIUS and valid values also include VTK_QUALITY_EDGE_RATIO, VTK_QUALITY_MAX_ASPECT_FROBENIUS, VTK_QUALITY_MAX_EDGE_RATIO, VTK_QUALITY_SKEW, VTK_QUALITY_TAPER, VTK_QUALITY_VOLUME, VTK_QUALITY_STRETCH, VTK_QUALITY_DIAGONAL, VTK_QUALITY_DIMENSION, VTK_QUALITY_ODDY, VTK_QUALITY_CONDITION, VTK_QUALITY_JACOBIAN, VTK_QUALITY_SCALED_JACOBIAN, VTK_QUALITY_SHEAR, VTK_QUALITY_SHAPE, VTK_QUALITY_RELATIVE_SIZE_SQUARED, VTK_QUALITY_SHAPE_AND_SIZE, VTK_QUALITY_SHEAR_AND_SIZE, and VTK_QUALITY_DISTORTION.

virtual int vtkMeshQuality::GetHexQualityMeasure (  )  [virtual]

Set/Get the particular estimator used to measure the quality of hexahedra. The default is VTK_QUALITY_MAX_ASPECT_FROBENIUS and valid values also include VTK_QUALITY_EDGE_RATIO, VTK_QUALITY_MAX_ASPECT_FROBENIUS, VTK_QUALITY_MAX_EDGE_RATIO, VTK_QUALITY_SKEW, VTK_QUALITY_TAPER, VTK_QUALITY_VOLUME, VTK_QUALITY_STRETCH, VTK_QUALITY_DIAGONAL, VTK_QUALITY_DIMENSION, VTK_QUALITY_ODDY, VTK_QUALITY_CONDITION, VTK_QUALITY_JACOBIAN, VTK_QUALITY_SCALED_JACOBIAN, VTK_QUALITY_SHEAR, VTK_QUALITY_SHAPE, VTK_QUALITY_RELATIVE_SIZE_SQUARED, VTK_QUALITY_SHAPE_AND_SIZE, VTK_QUALITY_SHEAR_AND_SIZE, and VTK_QUALITY_DISTORTION.

void vtkMeshQuality::SetHexQualityMeasureToEdgeRatio (  )  [inline]

Set/Get the particular estimator used to measure the quality of hexahedra. The default is VTK_QUALITY_MAX_ASPECT_FROBENIUS and valid values also include VTK_QUALITY_EDGE_RATIO, VTK_QUALITY_MAX_ASPECT_FROBENIUS, VTK_QUALITY_MAX_EDGE_RATIO, VTK_QUALITY_SKEW, VTK_QUALITY_TAPER, VTK_QUALITY_VOLUME, VTK_QUALITY_STRETCH, VTK_QUALITY_DIAGONAL, VTK_QUALITY_DIMENSION, VTK_QUALITY_ODDY, VTK_QUALITY_CONDITION, VTK_QUALITY_JACOBIAN, VTK_QUALITY_SCALED_JACOBIAN, VTK_QUALITY_SHEAR, VTK_QUALITY_SHAPE, VTK_QUALITY_RELATIVE_SIZE_SQUARED, VTK_QUALITY_SHAPE_AND_SIZE, VTK_QUALITY_SHEAR_AND_SIZE, and VTK_QUALITY_DISTORTION.

Definition at line 390 of file vtkMeshQuality.h.

void vtkMeshQuality::SetHexQualityMeasureToMedAspectFrobenius (  )  [inline]

Set/Get the particular estimator used to measure the quality of hexahedra. The default is VTK_QUALITY_MAX_ASPECT_FROBENIUS and valid values also include VTK_QUALITY_EDGE_RATIO, VTK_QUALITY_MAX_ASPECT_FROBENIUS, VTK_QUALITY_MAX_EDGE_RATIO, VTK_QUALITY_SKEW, VTK_QUALITY_TAPER, VTK_QUALITY_VOLUME, VTK_QUALITY_STRETCH, VTK_QUALITY_DIAGONAL, VTK_QUALITY_DIMENSION, VTK_QUALITY_ODDY, VTK_QUALITY_CONDITION, VTK_QUALITY_JACOBIAN, VTK_QUALITY_SCALED_JACOBIAN, VTK_QUALITY_SHEAR, VTK_QUALITY_SHAPE, VTK_QUALITY_RELATIVE_SIZE_SQUARED, VTK_QUALITY_SHAPE_AND_SIZE, VTK_QUALITY_SHEAR_AND_SIZE, and VTK_QUALITY_DISTORTION.

Definition at line 394 of file vtkMeshQuality.h.

void vtkMeshQuality::SetHexQualityMeasureToMaxAspectFrobenius (  )  [inline]

Set/Get the particular estimator used to measure the quality of hexahedra. The default is VTK_QUALITY_MAX_ASPECT_FROBENIUS and valid values also include VTK_QUALITY_EDGE_RATIO, VTK_QUALITY_MAX_ASPECT_FROBENIUS, VTK_QUALITY_MAX_EDGE_RATIO, VTK_QUALITY_SKEW, VTK_QUALITY_TAPER, VTK_QUALITY_VOLUME, VTK_QUALITY_STRETCH, VTK_QUALITY_DIAGONAL, VTK_QUALITY_DIMENSION, VTK_QUALITY_ODDY, VTK_QUALITY_CONDITION, VTK_QUALITY_JACOBIAN, VTK_QUALITY_SCALED_JACOBIAN, VTK_QUALITY_SHEAR, VTK_QUALITY_SHAPE, VTK_QUALITY_RELATIVE_SIZE_SQUARED, VTK_QUALITY_SHAPE_AND_SIZE, VTK_QUALITY_SHEAR_AND_SIZE, and VTK_QUALITY_DISTORTION.

Definition at line 398 of file vtkMeshQuality.h.

void vtkMeshQuality::SetHexQualityMeasureToMaxEdgeRatios (  )  [inline]

Set/Get the particular estimator used to measure the quality of hexahedra. The default is VTK_QUALITY_MAX_ASPECT_FROBENIUS and valid values also include VTK_QUALITY_EDGE_RATIO, VTK_QUALITY_MAX_ASPECT_FROBENIUS, VTK_QUALITY_MAX_EDGE_RATIO, VTK_QUALITY_SKEW, VTK_QUALITY_TAPER, VTK_QUALITY_VOLUME, VTK_QUALITY_STRETCH, VTK_QUALITY_DIAGONAL, VTK_QUALITY_DIMENSION, VTK_QUALITY_ODDY, VTK_QUALITY_CONDITION, VTK_QUALITY_JACOBIAN, VTK_QUALITY_SCALED_JACOBIAN, VTK_QUALITY_SHEAR, VTK_QUALITY_SHAPE, VTK_QUALITY_RELATIVE_SIZE_SQUARED, VTK_QUALITY_SHAPE_AND_SIZE, VTK_QUALITY_SHEAR_AND_SIZE, and VTK_QUALITY_DISTORTION.

Definition at line 402 of file vtkMeshQuality.h.

void vtkMeshQuality::SetHexQualityMeasureToSkew (  )  [inline]

Set/Get the particular estimator used to measure the quality of hexahedra. The default is VTK_QUALITY_MAX_ASPECT_FROBENIUS and valid values also include VTK_QUALITY_EDGE_RATIO, VTK_QUALITY_MAX_ASPECT_FROBENIUS, VTK_QUALITY_MAX_EDGE_RATIO, VTK_QUALITY_SKEW, VTK_QUALITY_TAPER, VTK_QUALITY_VOLUME, VTK_QUALITY_STRETCH, VTK_QUALITY_DIAGONAL, VTK_QUALITY_DIMENSION, VTK_QUALITY_ODDY, VTK_QUALITY_CONDITION, VTK_QUALITY_JACOBIAN, VTK_QUALITY_SCALED_JACOBIAN, VTK_QUALITY_SHEAR, VTK_QUALITY_SHAPE, VTK_QUALITY_RELATIVE_SIZE_SQUARED, VTK_QUALITY_SHAPE_AND_SIZE, VTK_QUALITY_SHEAR_AND_SIZE, and VTK_QUALITY_DISTORTION.

Definition at line 406 of file vtkMeshQuality.h.

void vtkMeshQuality::SetHexQualityMeasureToTaper (  )  [inline]

Set/Get the particular estimator used to measure the quality of hexahedra. The default is VTK_QUALITY_MAX_ASPECT_FROBENIUS and valid values also include VTK_QUALITY_EDGE_RATIO, VTK_QUALITY_MAX_ASPECT_FROBENIUS, VTK_QUALITY_MAX_EDGE_RATIO, VTK_QUALITY_SKEW, VTK_QUALITY_TAPER, VTK_QUALITY_VOLUME, VTK_QUALITY_STRETCH, VTK_QUALITY_DIAGONAL, VTK_QUALITY_DIMENSION, VTK_QUALITY_ODDY, VTK_QUALITY_CONDITION, VTK_QUALITY_JACOBIAN, VTK_QUALITY_SCALED_JACOBIAN, VTK_QUALITY_SHEAR, VTK_QUALITY_SHAPE, VTK_QUALITY_RELATIVE_SIZE_SQUARED, VTK_QUALITY_SHAPE_AND_SIZE, VTK_QUALITY_SHEAR_AND_SIZE, and VTK_QUALITY_DISTORTION.

Definition at line 410 of file vtkMeshQuality.h.

void vtkMeshQuality::SetHexQualityMeasureToVolume (  )  [inline]

Set/Get the particular estimator used to measure the quality of hexahedra. The default is VTK_QUALITY_MAX_ASPECT_FROBENIUS and valid values also include VTK_QUALITY_EDGE_RATIO, VTK_QUALITY_MAX_ASPECT_FROBENIUS, VTK_QUALITY_MAX_EDGE_RATIO, VTK_QUALITY_SKEW, VTK_QUALITY_TAPER, VTK_QUALITY_VOLUME, VTK_QUALITY_STRETCH, VTK_QUALITY_DIAGONAL, VTK_QUALITY_DIMENSION, VTK_QUALITY_ODDY, VTK_QUALITY_CONDITION, VTK_QUALITY_JACOBIAN, VTK_QUALITY_SCALED_JACOBIAN, VTK_QUALITY_SHEAR, VTK_QUALITY_SHAPE, VTK_QUALITY_RELATIVE_SIZE_SQUARED, VTK_QUALITY_SHAPE_AND_SIZE, VTK_QUALITY_SHEAR_AND_SIZE, and VTK_QUALITY_DISTORTION.

Definition at line 414 of file vtkMeshQuality.h.

void vtkMeshQuality::SetHexQualityMeasureToStretch (  )  [inline]

Set/Get the particular estimator used to measure the quality of hexahedra. The default is VTK_QUALITY_MAX_ASPECT_FROBENIUS and valid values also include VTK_QUALITY_EDGE_RATIO, VTK_QUALITY_MAX_ASPECT_FROBENIUS, VTK_QUALITY_MAX_EDGE_RATIO, VTK_QUALITY_SKEW, VTK_QUALITY_TAPER, VTK_QUALITY_VOLUME, VTK_QUALITY_STRETCH, VTK_QUALITY_DIAGONAL, VTK_QUALITY_DIMENSION, VTK_QUALITY_ODDY, VTK_QUALITY_CONDITION, VTK_QUALITY_JACOBIAN, VTK_QUALITY_SCALED_JACOBIAN, VTK_QUALITY_SHEAR, VTK_QUALITY_SHAPE, VTK_QUALITY_RELATIVE_SIZE_SQUARED, VTK_QUALITY_SHAPE_AND_SIZE, VTK_QUALITY_SHEAR_AND_SIZE, and VTK_QUALITY_DISTORTION.

Definition at line 418 of file vtkMeshQuality.h.

void vtkMeshQuality::SetHexQualityMeasureToDiagonal (  )  [inline]

Set/Get the particular estimator used to measure the quality of hexahedra. The default is VTK_QUALITY_MAX_ASPECT_FROBENIUS and valid values also include VTK_QUALITY_EDGE_RATIO, VTK_QUALITY_MAX_ASPECT_FROBENIUS, VTK_QUALITY_MAX_EDGE_RATIO, VTK_QUALITY_SKEW, VTK_QUALITY_TAPER, VTK_QUALITY_VOLUME, VTK_QUALITY_STRETCH, VTK_QUALITY_DIAGONAL, VTK_QUALITY_DIMENSION, VTK_QUALITY_ODDY, VTK_QUALITY_CONDITION, VTK_QUALITY_JACOBIAN, VTK_QUALITY_SCALED_JACOBIAN, VTK_QUALITY_SHEAR, VTK_QUALITY_SHAPE, VTK_QUALITY_RELATIVE_SIZE_SQUARED, VTK_QUALITY_SHAPE_AND_SIZE, VTK_QUALITY_SHEAR_AND_SIZE, and VTK_QUALITY_DISTORTION.

Definition at line 422 of file vtkMeshQuality.h.

void vtkMeshQuality::SetHexQualityMeasureToDimension (  )  [inline]

Set/Get the particular estimator used to measure the quality of hexahedra. The default is VTK_QUALITY_MAX_ASPECT_FROBENIUS and valid values also include VTK_QUALITY_EDGE_RATIO, VTK_QUALITY_MAX_ASPECT_FROBENIUS, VTK_QUALITY_MAX_EDGE_RATIO, VTK_QUALITY_SKEW, VTK_QUALITY_TAPER, VTK_QUALITY_VOLUME, VTK_QUALITY_STRETCH, VTK_QUALITY_DIAGONAL, VTK_QUALITY_DIMENSION, VTK_QUALITY_ODDY, VTK_QUALITY_CONDITION, VTK_QUALITY_JACOBIAN, VTK_QUALITY_SCALED_JACOBIAN, VTK_QUALITY_SHEAR, VTK_QUALITY_SHAPE, VTK_QUALITY_RELATIVE_SIZE_SQUARED, VTK_QUALITY_SHAPE_AND_SIZE, VTK_QUALITY_SHEAR_AND_SIZE, and VTK_QUALITY_DISTORTION.

Definition at line 426 of file vtkMeshQuality.h.

void vtkMeshQuality::SetHexQualityMeasureToOddy (  )  [inline]

Set/Get the particular estimator used to measure the quality of hexahedra. The default is VTK_QUALITY_MAX_ASPECT_FROBENIUS and valid values also include VTK_QUALITY_EDGE_RATIO, VTK_QUALITY_MAX_ASPECT_FROBENIUS, VTK_QUALITY_MAX_EDGE_RATIO, VTK_QUALITY_SKEW, VTK_QUALITY_TAPER, VTK_QUALITY_VOLUME, VTK_QUALITY_STRETCH, VTK_QUALITY_DIAGONAL, VTK_QUALITY_DIMENSION, VTK_QUALITY_ODDY, VTK_QUALITY_CONDITION, VTK_QUALITY_JACOBIAN, VTK_QUALITY_SCALED_JACOBIAN, VTK_QUALITY_SHEAR, VTK_QUALITY_SHAPE, VTK_QUALITY_RELATIVE_SIZE_SQUARED, VTK_QUALITY_SHAPE_AND_SIZE, VTK_QUALITY_SHEAR_AND_SIZE, and VTK_QUALITY_DISTORTION.

Definition at line 430 of file vtkMeshQuality.h.

void vtkMeshQuality::SetHexQualityMeasureToCondition (  )  [inline]

Set/Get the particular estimator used to measure the quality of hexahedra. The default is VTK_QUALITY_MAX_ASPECT_FROBENIUS and valid values also include VTK_QUALITY_EDGE_RATIO, VTK_QUALITY_MAX_ASPECT_FROBENIUS, VTK_QUALITY_MAX_EDGE_RATIO, VTK_QUALITY_SKEW, VTK_QUALITY_TAPER, VTK_QUALITY_VOLUME, VTK_QUALITY_STRETCH, VTK_QUALITY_DIAGONAL, VTK_QUALITY_DIMENSION, VTK_QUALITY_ODDY, VTK_QUALITY_CONDITION, VTK_QUALITY_JACOBIAN, VTK_QUALITY_SCALED_JACOBIAN, VTK_QUALITY_SHEAR, VTK_QUALITY_SHAPE, VTK_QUALITY_RELATIVE_SIZE_SQUARED, VTK_QUALITY_SHAPE_AND_SIZE, VTK_QUALITY_SHEAR_AND_SIZE, and VTK_QUALITY_DISTORTION.

Definition at line 434 of file vtkMeshQuality.h.

void vtkMeshQuality::SetHexQualityMeasureToJacobian (  )  [inline]

Set/Get the particular estimator used to measure the quality of hexahedra. The default is VTK_QUALITY_MAX_ASPECT_FROBENIUS and valid values also include VTK_QUALITY_EDGE_RATIO, VTK_QUALITY_MAX_ASPECT_FROBENIUS, VTK_QUALITY_MAX_EDGE_RATIO, VTK_QUALITY_SKEW, VTK_QUALITY_TAPER, VTK_QUALITY_VOLUME, VTK_QUALITY_STRETCH, VTK_QUALITY_DIAGONAL, VTK_QUALITY_DIMENSION, VTK_QUALITY_ODDY, VTK_QUALITY_CONDITION, VTK_QUALITY_JACOBIAN, VTK_QUALITY_SCALED_JACOBIAN, VTK_QUALITY_SHEAR, VTK_QUALITY_SHAPE, VTK_QUALITY_RELATIVE_SIZE_SQUARED, VTK_QUALITY_SHAPE_AND_SIZE, VTK_QUALITY_SHEAR_AND_SIZE, and VTK_QUALITY_DISTORTION.

Definition at line 438 of file vtkMeshQuality.h.

void vtkMeshQuality::SetHexQualityMeasureToScaledJacobian (  )  [inline]

Set/Get the particular estimator used to measure the quality of hexahedra. The default is VTK_QUALITY_MAX_ASPECT_FROBENIUS and valid values also include VTK_QUALITY_EDGE_RATIO, VTK_QUALITY_MAX_ASPECT_FROBENIUS, VTK_QUALITY_MAX_EDGE_RATIO, VTK_QUALITY_SKEW, VTK_QUALITY_TAPER, VTK_QUALITY_VOLUME, VTK_QUALITY_STRETCH, VTK_QUALITY_DIAGONAL, VTK_QUALITY_DIMENSION, VTK_QUALITY_ODDY, VTK_QUALITY_CONDITION, VTK_QUALITY_JACOBIAN, VTK_QUALITY_SCALED_JACOBIAN, VTK_QUALITY_SHEAR, VTK_QUALITY_SHAPE, VTK_QUALITY_RELATIVE_SIZE_SQUARED, VTK_QUALITY_SHAPE_AND_SIZE, VTK_QUALITY_SHEAR_AND_SIZE, and VTK_QUALITY_DISTORTION.

Definition at line 442 of file vtkMeshQuality.h.

void vtkMeshQuality::SetHexQualityMeasureToShear (  )  [inline]

Set/Get the particular estimator used to measure the quality of hexahedra. The default is VTK_QUALITY_MAX_ASPECT_FROBENIUS and valid values also include VTK_QUALITY_EDGE_RATIO, VTK_QUALITY_MAX_ASPECT_FROBENIUS, VTK_QUALITY_MAX_EDGE_RATIO, VTK_QUALITY_SKEW, VTK_QUALITY_TAPER, VTK_QUALITY_VOLUME, VTK_QUALITY_STRETCH, VTK_QUALITY_DIAGONAL, VTK_QUALITY_DIMENSION, VTK_QUALITY_ODDY, VTK_QUALITY_CONDITION, VTK_QUALITY_JACOBIAN, VTK_QUALITY_SCALED_JACOBIAN, VTK_QUALITY_SHEAR, VTK_QUALITY_SHAPE, VTK_QUALITY_RELATIVE_SIZE_SQUARED, VTK_QUALITY_SHAPE_AND_SIZE, VTK_QUALITY_SHEAR_AND_SIZE, and VTK_QUALITY_DISTORTION.

Definition at line 446 of file vtkMeshQuality.h.

void vtkMeshQuality::SetHexQualityMeasureToShape (  )  [inline]

Set/Get the particular estimator used to measure the quality of hexahedra. The default is VTK_QUALITY_MAX_ASPECT_FROBENIUS and valid values also include VTK_QUALITY_EDGE_RATIO, VTK_QUALITY_MAX_ASPECT_FROBENIUS, VTK_QUALITY_MAX_EDGE_RATIO, VTK_QUALITY_SKEW, VTK_QUALITY_TAPER, VTK_QUALITY_VOLUME, VTK_QUALITY_STRETCH, VTK_QUALITY_DIAGONAL, VTK_QUALITY_DIMENSION, VTK_QUALITY_ODDY, VTK_QUALITY_CONDITION, VTK_QUALITY_JACOBIAN, VTK_QUALITY_SCALED_JACOBIAN, VTK_QUALITY_SHEAR, VTK_QUALITY_SHAPE, VTK_QUALITY_RELATIVE_SIZE_SQUARED, VTK_QUALITY_SHAPE_AND_SIZE, VTK_QUALITY_SHEAR_AND_SIZE, and VTK_QUALITY_DISTORTION.

Definition at line 450 of file vtkMeshQuality.h.

void vtkMeshQuality::SetHexQualityMeasureToRelativeSizeSquared (  )  [inline]

Set/Get the particular estimator used to measure the quality of hexahedra. The default is VTK_QUALITY_MAX_ASPECT_FROBENIUS and valid values also include VTK_QUALITY_EDGE_RATIO, VTK_QUALITY_MAX_ASPECT_FROBENIUS, VTK_QUALITY_MAX_EDGE_RATIO, VTK_QUALITY_SKEW, VTK_QUALITY_TAPER, VTK_QUALITY_VOLUME, VTK_QUALITY_STRETCH, VTK_QUALITY_DIAGONAL, VTK_QUALITY_DIMENSION, VTK_QUALITY_ODDY, VTK_QUALITY_CONDITION, VTK_QUALITY_JACOBIAN, VTK_QUALITY_SCALED_JACOBIAN, VTK_QUALITY_SHEAR, VTK_QUALITY_SHAPE, VTK_QUALITY_RELATIVE_SIZE_SQUARED, VTK_QUALITY_SHAPE_AND_SIZE, VTK_QUALITY_SHEAR_AND_SIZE, and VTK_QUALITY_DISTORTION.

Definition at line 454 of file vtkMeshQuality.h.

void vtkMeshQuality::SetHexQualityMeasureToShapeAndSize (  )  [inline]

Set/Get the particular estimator used to measure the quality of hexahedra. The default is VTK_QUALITY_MAX_ASPECT_FROBENIUS and valid values also include VTK_QUALITY_EDGE_RATIO, VTK_QUALITY_MAX_ASPECT_FROBENIUS, VTK_QUALITY_MAX_EDGE_RATIO, VTK_QUALITY_SKEW, VTK_QUALITY_TAPER, VTK_QUALITY_VOLUME, VTK_QUALITY_STRETCH, VTK_QUALITY_DIAGONAL, VTK_QUALITY_DIMENSION, VTK_QUALITY_ODDY, VTK_QUALITY_CONDITION, VTK_QUALITY_JACOBIAN, VTK_QUALITY_SCALED_JACOBIAN, VTK_QUALITY_SHEAR, VTK_QUALITY_SHAPE, VTK_QUALITY_RELATIVE_SIZE_SQUARED, VTK_QUALITY_SHAPE_AND_SIZE, VTK_QUALITY_SHEAR_AND_SIZE, and VTK_QUALITY_DISTORTION.

Definition at line 458 of file vtkMeshQuality.h.

void vtkMeshQuality::SetHexQualityMeasureToShearAndSize (  )  [inline]

Set/Get the particular estimator used to measure the quality of hexahedra. The default is VTK_QUALITY_MAX_ASPECT_FROBENIUS and valid values also include VTK_QUALITY_EDGE_RATIO, VTK_QUALITY_MAX_ASPECT_FROBENIUS, VTK_QUALITY_MAX_EDGE_RATIO, VTK_QUALITY_SKEW, VTK_QUALITY_TAPER, VTK_QUALITY_VOLUME, VTK_QUALITY_STRETCH, VTK_QUALITY_DIAGONAL, VTK_QUALITY_DIMENSION, VTK_QUALITY_ODDY, VTK_QUALITY_CONDITION, VTK_QUALITY_JACOBIAN, VTK_QUALITY_SCALED_JACOBIAN, VTK_QUALITY_SHEAR, VTK_QUALITY_SHAPE, VTK_QUALITY_RELATIVE_SIZE_SQUARED, VTK_QUALITY_SHAPE_AND_SIZE, VTK_QUALITY_SHEAR_AND_SIZE, and VTK_QUALITY_DISTORTION.

Definition at line 462 of file vtkMeshQuality.h.

void vtkMeshQuality::SetHexQualityMeasureToDistortion (  )  [inline]

Set/Get the particular estimator used to measure the quality of hexahedra. The default is VTK_QUALITY_MAX_ASPECT_FROBENIUS and valid values also include VTK_QUALITY_EDGE_RATIO, VTK_QUALITY_MAX_ASPECT_FROBENIUS, VTK_QUALITY_MAX_EDGE_RATIO, VTK_QUALITY_SKEW, VTK_QUALITY_TAPER, VTK_QUALITY_VOLUME, VTK_QUALITY_STRETCH, VTK_QUALITY_DIAGONAL, VTK_QUALITY_DIMENSION, VTK_QUALITY_ODDY, VTK_QUALITY_CONDITION, VTK_QUALITY_JACOBIAN, VTK_QUALITY_SCALED_JACOBIAN, VTK_QUALITY_SHEAR, VTK_QUALITY_SHAPE, VTK_QUALITY_RELATIVE_SIZE_SQUARED, VTK_QUALITY_SHAPE_AND_SIZE, VTK_QUALITY_SHEAR_AND_SIZE, and VTK_QUALITY_DISTORTION.

Definition at line 466 of file vtkMeshQuality.h.

static double vtkMeshQuality::TriangleArea ( vtkCell cell  )  [static]

This is a static function used to calculate the area of a triangle. It assumes that you pass the correct type of cell -- no type checking is performed because this method is called from the inner loop of the Execute() member function.

static double vtkMeshQuality::TriangleEdgeRatio ( vtkCell cell  )  [static]

This is a static function used to calculate the edge ratio of a triangle. It assumes that you pass the correct type of cell -- no type checking is performed because this method is called from the inner loop of the Execute() member function. The edge ratio of a triangle $t$ is: $\frac{|t|_\infty}{|t|_0}$, where $|t|_\infty$ and $|t|_0$ respectively denote the greatest and the smallest edge lengths of $t$.

static double vtkMeshQuality::TriangleAspectRatio ( vtkCell cell  )  [static]

This is a static function used to calculate the aspect ratio of a triangle. It assumes that you pass the correct type of cell -- no type checking is performed because this method is called from the inner loop of the Execute() member function. The aspect ratio of a triangle $t$ is: $\frac{|t|_\infty}{2\sqrt{3}r}$, where $|t|_\infty$ and $r$ respectively denote the greatest edge length and the inradius of $t$.

static double vtkMeshQuality::TriangleRadiusRatio ( vtkCell cell  )  [static]

This is a static function used to calculate the radius ratio of a triangle. It assumes that you pass the correct type of cell -- no type checking is performed because this method is called from the inner loop of the Execute() member function. The radius ratio of a triangle $t$ is: $\frac{R}{2r}$, where $R$ and $r$ respectively denote the circumradius and the inradius of $t$.

static double vtkMeshQuality::TriangleAspectFrobenius ( vtkCell cell  )  [static]

This is a static function used to calculate the Frobenius condition number of the transformation matrix from an equilateral triangle to a triangle. It assumes that you pass the correct type of cell -- no type checking is performed because this method is called from the inner loop of the Execute() member function. The Frobenius aspect of a triangle $t$, when the reference element is equilateral, is: $\frac{|t|^2_2}{2\sqrt{3}{\cal A}}$, where $|t|^2_2$ and $\cal A$ respectively denote the sum of the squared edge lengths and the area of $t$.

static double vtkMeshQuality::TriangleMinAngle ( vtkCell cell  )  [static]

This is a static function used to calculate the minimal (nonoriented) angle of a triangle, expressed in degrees. It assumes that you pass the correct type of cell -- no type checking is performed because this method is called from the inner loop of the Execute() member function.

static double vtkMeshQuality::TriangleMaxAngle ( vtkCell cell  )  [static]

This is a static function used to calculate the maximal (nonoriented) angle of a triangle, expressed in degrees. It assumes that you pass the correct type of cell -- no type checking is performed because this method is called from the inner loop of the Execute() member function.

static double vtkMeshQuality::TriangleCondition ( vtkCell cell  )  [static]

This is a static function used to calculate the condition number of a triangle. It assumes that you pass the correct type of cell -- no type checking is performed because this method is called from the inner loop of the Execute() member function.

static double vtkMeshQuality::TriangleScaledJacobian ( vtkCell cell  )  [static]

This is a static function used to calculate the scaled Jacobian of a triangle. It assumes that you pass the correct type of cell -- no type checking is performed because this method is called from the inner loop of the Execute() member function.

static double vtkMeshQuality::TriangleRelativeSizeSquared ( vtkCell cell  )  [static]

This is a static function used to calculate the square of the relative size of a triangle. It assumes that you pass the correct type of cell -- no type checking is performed because this method is called from the inner loop of the Execute() member function.

static double vtkMeshQuality::TriangleShape ( vtkCell cell  )  [static]

This is a static function used to calculate the shape of a triangle. It assumes that you pass the correct type of cell -- no type checking is performed because this method is called from the inner loop of the Execute() member function.

static double vtkMeshQuality::TriangleShapeAndSize ( vtkCell cell  )  [static]

This is a static function used to calculate the product of shape and relative size of a triangle. It assumes that you pass the correct type of cell -- no type checking is performed because this method is called from the inner loop of the Execute() member function.

static double vtkMeshQuality::TriangleDistortion ( vtkCell cell  )  [static]

This is a static function used to calculate the distortion of a triangle. It assumes that you pass the correct type of cell -- no type checking is performed because this method is called from the inner loop of the Execute() member function.

static double vtkMeshQuality::QuadEdgeRatio ( vtkCell cell  )  [static]

This is a static function used to calculate the edge ratio of a quadrilateral. It assumes that you pass the correct type of cell -- no type checking is performed because this method is called from the inner loop of the Execute() member function. The edge ratio of a quadrilateral $q$ is: $\frac{|q|_\infty}{|q|_0}$, where $|q|_\infty$ and $|q|_0$ respectively denote the greatest and the smallest edge lengths of $q$.

static double vtkMeshQuality::QuadAspectRatio ( vtkCell cell  )  [static]

This is a static function used to calculate the aspect ratio of a planar quadrilateral. It assumes that you pass the correct type of cell -- no type checking is performed because this method is called from the inner loop of the Execute() member function. Use at your own risk with nonplanar quadrilaterals. The aspect ratio of a planar quadrilateral $q$ is: $\frac{|q|_1|q|_\infty}{4{\cal A}}$, where $|q|_1$, $|q|_\infty$ and ${\cal A}$ respectively denote the perimeter, the greatest edge length and the area of $q$.

static double vtkMeshQuality::QuadRadiusRatio ( vtkCell cell  )  [static]

This is a static function used to calculate the radius ratio of a planar quadrilateral. The name is only used by analogy with the triangle radius ratio, because in general a quadrilateral does not have a circumcircle nor an incircle. It assumes that you pass the correct type of cell -- no type checking is performed because this method is called from the inner loop of the Execute() member function. Use at your own risk with nonplanar quadrilaterals. The radius ratio of a planar quadrilateral $q$ is: $\frac{|q|_2h_{\max}}{\min_i{\cal A}_i}$, where $|q|_2$, $h_{\max}$ and $\min{\cal A}_i$ respectively denote the sum of the squared edge lengths, the greatest amongst diagonal and edge lengths and the smallest area of the 4 triangles extractable from $q$.

static double vtkMeshQuality::QuadMedAspectFrobenius ( vtkCell cell  )  [static]

This is a static function used to calculate the average Frobenius aspect of the 4 corner triangles of a planar quadrilateral, when the reference triangle elements are right isosceles at the quadrangle vertices. It assumes that you pass the correct type of cell -- no type checking is performed because this method is called from the inner loop of the Execute() member function. Use at your own risk with nonplanar quadrilaterals. The Frobenius aspect of a triangle $t$, when the reference element is right isosceles at vertex $V$, is: $\frac{f^2+g^2}{4{\cal A}}$, where $f^2+g^2$ and $\cal A$ respectively denote the sum of the squared lengths of the edges attached to $V$ and the area of $t$.

static double vtkMeshQuality::QuadMaxAspectFrobenius ( vtkCell cell  )  [static]

This is a static function used to calculate the maximal Frobenius aspect of the 4 corner triangles of a planar quadrilateral, when the reference triangle elements are right isosceles at the quadrangle vertices. It assumes that you pass the correct type of cell -- no type checking is performed because this method is called from the inner loop of the Execute() member function. Use at your own risk with nonplanar quadrilaterals. The Frobenius aspect of a triangle $t$, when the reference element is right isosceles at vertex $V$, is: $\frac{f^2+g^2}{4{\cal A}}$, where $f^2+g^2$ and $\cal A$ respectively denote the sum of the squared lengths of the edges attached to $V$ and the area of $t$.

static double vtkMeshQuality::QuadMinAngle ( vtkCell cell  )  [static]

This is a static function used to calculate the minimal (nonoriented) angle of a quadrilateral, expressed in degrees. It assumes that you pass the correct type of cell -- no type checking is performed because this method is called from the inner loop of the Execute() member function.

static double vtkMeshQuality::QuadMaxEdgeRatios ( vtkCell cell  )  [static]

static double vtkMeshQuality::QuadSkew ( vtkCell cell  )  [static]

static double vtkMeshQuality::QuadTaper ( vtkCell cell  )  [static]

static double vtkMeshQuality::QuadWarpage ( vtkCell cell  )  [static]

static double vtkMeshQuality::QuadArea ( vtkCell cell  )  [static]

static double vtkMeshQuality::QuadStretch ( vtkCell cell  )  [static]

static double vtkMeshQuality::QuadMaxAngle ( vtkCell cell  )  [static]

static double vtkMeshQuality::QuadOddy ( vtkCell cell  )  [static]

static double vtkMeshQuality::QuadCondition ( vtkCell cell  )  [static]

static double vtkMeshQuality::QuadJacobian ( vtkCell cell  )  [static]

static double vtkMeshQuality::QuadScaledJacobian ( vtkCell cell  )  [static]

static double vtkMeshQuality::QuadShear ( vtkCell cell  )  [static]

static double vtkMeshQuality::QuadShape ( vtkCell cell  )  [static]

static double vtkMeshQuality::QuadRelativeSizeSquared ( vtkCell cell  )  [static]

static double vtkMeshQuality::QuadShapeAndSize ( vtkCell cell  )  [static]

static double vtkMeshQuality::QuadShearAndSize ( vtkCell cell  )  [static]

static double vtkMeshQuality::QuadDistortion ( vtkCell cell  )  [static]

static double vtkMeshQuality::TetEdgeRatio ( vtkCell cell  )  [static]

This is a static function used to calculate the edge ratio of a tetrahedron. It assumes that you pass the correct type of cell -- no type checking is performed because this method is called from the inner loop of the Execute() member function. The edge ratio of a tetrahedron $K$ is: $\frac{|K|_\infty}{|K|_0}$, where $|K|_\infty$ and $|K|_0$ respectively denote the greatest and the smallest edge lengths of $K$.

static double vtkMeshQuality::TetAspectRatio ( vtkCell cell  )  [static]

This is a static function used to calculate the aspect ratio of a tetrahedron. It assumes that you pass the correct type of cell -- no type checking is performed because this method is called from the inner loop of the Execute() member function. The aspect ratio of a tetrahedron $K$ is: $\frac{|K|_\infty}{2\sqrt{6}r}$, where $|K|_\infty$ and $r$ respectively denote the greatest edge length and the inradius of $K$.

static double vtkMeshQuality::TetRadiusRatio ( vtkCell cell  )  [static]

This is a static function used to calculate the radius ratio of a tetrahedron. It assumes that you pass the correct type of cell -- no type checking is performed because this method is called from the inner loop of the Execute() member function. The radius ratio of a tetrahedron $K$ is: $\frac{R}{3r}$, where $R$ and $r$ respectively denote the circumradius and the inradius of $K$.

static double vtkMeshQuality::TetAspectFrobenius ( vtkCell cell  )  [static]

This is a static function used to calculate the Frobenius condition number of the transformation matrix from a regular tetrahedron to a tetrahedron. It assumes that you pass the correct type of cell -- no type checking is performed because this method is called from the inner loop of the Execute() member function. The Frobenius aspect of a tetrahedron $K$, when the reference element is regular, is: $\frac{\frac{3}{2}(l_{11}+l_{22}+l_{33}) - (l_{12}+l_{13}+l_{23})} {3(\sqrt{2}\det{T})^\frac{2}{3}}$, where $T$ and $l_{ij}$ respectively denote the edge matrix of $K$ and the entries of $L=T^t\,T$.

static double vtkMeshQuality::TetMinAngle ( vtkCell cell  )  [static]

This is a static function used to calculate the minimal (nonoriented) dihedral angle of a tetrahedron, expressed in degrees. It assumes that you pass the correct type of cell -- no type checking is performed because this method is called from the inner loop of the Execute() member function.

static double vtkMeshQuality::TetCollapseRatio ( vtkCell cell  )  [static]

This is a static function used to calculate the collapse ratio of a tetrahedron. The collapse ratio is a dimensionless number defined as the smallest ratio of the height of a vertex above its opposing triangle to the longest edge of that opposing triangle across all vertices of the tetrahedron. It assumes that you pass the correct type of cell -- no type checking is performed because this method is called from the inner loop of the Execute() member function.

static double vtkMeshQuality::TetAspectBeta ( vtkCell cell  )  [static]

This is a static function used to calculate the collapse ratio of a tetrahedron. The collapse ratio is a dimensionless number defined as the smallest ratio of the height of a vertex above its opposing triangle to the longest edge of that opposing triangle across all vertices of the tetrahedron. It assumes that you pass the correct type of cell -- no type checking is performed because this method is called from the inner loop of the Execute() member function.

static double vtkMeshQuality::TetAspectGamma ( vtkCell cell  )  [static]

This is a static function used to calculate the collapse ratio of a tetrahedron. The collapse ratio is a dimensionless number defined as the smallest ratio of the height of a vertex above its opposing triangle to the longest edge of that opposing triangle across all vertices of the tetrahedron. It assumes that you pass the correct type of cell -- no type checking is performed because this method is called from the inner loop of the Execute() member function.

static double vtkMeshQuality::TetVolume ( vtkCell cell  )  [static]

This is a static function used to calculate the collapse ratio of a tetrahedron. The collapse ratio is a dimensionless number defined as the smallest ratio of the height of a vertex above its opposing triangle to the longest edge of that opposing triangle across all vertices of the tetrahedron. It assumes that you pass the correct type of cell -- no type checking is performed because this method is called from the inner loop of the Execute() member function.

static double vtkMeshQuality::TetCondition ( vtkCell cell  )  [static]

This is a static function used to calculate the collapse ratio of a tetrahedron. The collapse ratio is a dimensionless number defined as the smallest ratio of the height of a vertex above its opposing triangle to the longest edge of that opposing triangle across all vertices of the tetrahedron. It assumes that you pass the correct type of cell -- no type checking is performed because this method is called from the inner loop of the Execute() member function.

static double vtkMeshQuality::TetJacobian ( vtkCell cell  )  [static]

This is a static function used to calculate the collapse ratio of a tetrahedron. The collapse ratio is a dimensionless number defined as the smallest ratio of the height of a vertex above its opposing triangle to the longest edge of that opposing triangle across all vertices of the tetrahedron. It assumes that you pass the correct type of cell -- no type checking is performed because this method is called from the inner loop of the Execute() member function.

static double vtkMeshQuality::TetScaledJacobian ( vtkCell cell  )  [static]

This is a static function used to calculate the collapse ratio of a tetrahedron. The collapse ratio is a dimensionless number defined as the smallest ratio of the height of a vertex above its opposing triangle to the longest edge of that opposing triangle across all vertices of the tetrahedron. It assumes that you pass the correct type of cell -- no type checking is performed because this method is called from the inner loop of the Execute() member function.

static double vtkMeshQuality::TetShape ( vtkCell cell  )  [static]

This is a static function used to calculate the collapse ratio of a tetrahedron. The collapse ratio is a dimensionless number defined as the smallest ratio of the height of a vertex above its opposing triangle to the longest edge of that opposing triangle across all vertices of the tetrahedron. It assumes that you pass the correct type of cell -- no type checking is performed because this method is called from the inner loop of the Execute() member function.

static double vtkMeshQuality::TetRelativeSizeSquared ( vtkCell cell  )  [static]

This is a static function used to calculate the collapse ratio of a tetrahedron. The collapse ratio is a dimensionless number defined as the smallest ratio of the height of a vertex above its opposing triangle to the longest edge of that opposing triangle across all vertices of the tetrahedron. It assumes that you pass the correct type of cell -- no type checking is performed because this method is called from the inner loop of the Execute() member function.

static double vtkMeshQuality::TetShapeandSize ( vtkCell cell  )  [static]

This is a static function used to calculate the collapse ratio of a tetrahedron. The collapse ratio is a dimensionless number defined as the smallest ratio of the height of a vertex above its opposing triangle to the longest edge of that opposing triangle across all vertices of the tetrahedron. It assumes that you pass the correct type of cell -- no type checking is performed because this method is called from the inner loop of the Execute() member function.

static double vtkMeshQuality::TetDistortion ( vtkCell cell  )  [static]

This is a static function used to calculate the collapse ratio of a tetrahedron. The collapse ratio is a dimensionless number defined as the smallest ratio of the height of a vertex above its opposing triangle to the longest edge of that opposing triangle across all vertices of the tetrahedron. It assumes that you pass the correct type of cell -- no type checking is performed because this method is called from the inner loop of the Execute() member function.

static double vtkMeshQuality::HexEdgeRatio ( vtkCell cell  )  [static]

This is a static function used to calculate the edge ratio of a hexahedron. It assumes that you pass the correct type of cell -- no type checking is performed because this method is called from the inner loop of the Execute() member function. The edge ratio of a hexahedron $H$ is: $\frac{|H|_\infty}{|H|_0}$, where $|H|_\infty$ and $|H|_0$ respectively denote the greatest and the smallest edge lengths of $H$.

static double vtkMeshQuality::HexMedAspectFrobenius ( vtkCell cell  )  [static]

This is a static function used to calculate the average Frobenius aspect of the 8 corner tetrahedra of a hexahedron, when the reference tetrahedral elements are right isosceles at the hexahedron vertices. It assumes that you pass the correct type of cell -- no type checking is performed because this method is called from the inner loop of the Execute() member function.

static double vtkMeshQuality::HexMaxAspectFrobenius ( vtkCell cell  )  [static]

This is a static function used to calculate the maximal Frobenius aspect of the 8 corner tetrahedra of a hexahedron, when the reference tetrahedral elements are right isosceles at the hexahedron vertices. It assumes that you pass the correct type of cell -- no type checking is performed because this method is called from the inner loop of the Execute() member function.

static double vtkMeshQuality::HexMaxEdgeRatio ( vtkCell cell  )  [static]

This is a static function used to calculate the maximal Frobenius aspect of the 8 corner tetrahedra of a hexahedron, when the reference tetrahedral elements are right isosceles at the hexahedron vertices. It assumes that you pass the correct type of cell -- no type checking is performed because this method is called from the inner loop of the Execute() member function.

static double vtkMeshQuality::HexSkew ( vtkCell cell  )  [static]

This is a static function used to calculate the maximal Frobenius aspect of the 8 corner tetrahedra of a hexahedron, when the reference tetrahedral elements are right isosceles at the hexahedron vertices. It assumes that you pass the correct type of cell -- no type checking is performed because this method is called from the inner loop of the Execute() member function.

static double vtkMeshQuality::HexTaper ( vtkCell cell  )  [static]

This is a static function used to calculate the maximal Frobenius aspect of the 8 corner tetrahedra of a hexahedron, when the reference tetrahedral elements are right isosceles at the hexahedron vertices. It assumes that you pass the correct type of cell -- no type checking is performed because this method is called from the inner loop of the Execute() member function.

static double vtkMeshQuality::HexVolume ( vtkCell cell  )  [static]

This is a static function used to calculate the maximal Frobenius aspect of the 8 corner tetrahedra of a hexahedron, when the reference tetrahedral elements are right isosceles at the hexahedron vertices. It assumes that you pass the correct type of cell -- no type checking is performed because this method is called from the inner loop of the Execute() member function.

static double vtkMeshQuality::HexStretch ( vtkCell cell  )  [static]

This is a static function used to calculate the maximal Frobenius aspect of the 8 corner tetrahedra of a hexahedron, when the reference tetrahedral elements are right isosceles at the hexahedron vertices. It assumes that you pass the correct type of cell -- no type checking is performed because this method is called from the inner loop of the Execute() member function.

static double vtkMeshQuality::HexDiagonal ( vtkCell cell  )  [static]

This is a static function used to calculate the maximal Frobenius aspect of the 8 corner tetrahedra of a hexahedron, when the reference tetrahedral elements are right isosceles at the hexahedron vertices. It assumes that you pass the correct type of cell -- no type checking is performed because this method is called from the inner loop of the Execute() member function.

static double vtkMeshQuality::HexDimension ( vtkCell cell  )  [static]

This is a static function used to calculate the maximal Frobenius aspect of the 8 corner tetrahedra of a hexahedron, when the reference tetrahedral elements are right isosceles at the hexahedron vertices. It assumes that you pass the correct type of cell -- no type checking is performed because this method is called from the inner loop of the Execute() member function.

static double vtkMeshQuality::HexOddy ( vtkCell cell  )  [static]

This is a static function used to calculate the maximal Frobenius aspect of the 8 corner tetrahedra of a hexahedron, when the reference tetrahedral elements are right isosceles at the hexahedron vertices. It assumes that you pass the correct type of cell -- no type checking is performed because this method is called from the inner loop of the Execute() member function.

static double vtkMeshQuality::HexCondition ( vtkCell cell  )  [static]

This is a static function used to calculate the maximal Frobenius aspect of the 8 corner tetrahedra of a hexahedron, when the reference tetrahedral elements are right isosceles at the hexahedron vertices. It assumes that you pass the correct type of cell -- no type checking is performed because this method is called from the inner loop of the Execute() member function.

static double vtkMeshQuality::HexJacobian ( vtkCell cell  )  [static]

This is a static function used to calculate the maximal Frobenius aspect of the 8 corner tetrahedra of a hexahedron, when the reference tetrahedral elements are right isosceles at the hexahedron vertices. It assumes that you pass the correct type of cell -- no type checking is performed because this method is called from the inner loop of the Execute() member function.

static double vtkMeshQuality::HexScaledJacobian ( vtkCell cell  )  [static]

This is a static function used to calculate the maximal Frobenius aspect of the 8 corner tetrahedra of a hexahedron, when the reference tetrahedral elements are right isosceles at the hexahedron vertices. It assumes that you pass the correct type of cell -- no type checking is performed because this method is called from the inner loop of the Execute() member function.

static double vtkMeshQuality::HexShear ( vtkCell cell  )  [static]

This is a static function used to calculate the maximal Frobenius aspect of the 8 corner tetrahedra of a hexahedron, when the reference tetrahedral elements are right isosceles at the hexahedron vertices. It assumes that you pass the correct type of cell -- no type checking is performed because this method is called from the inner loop of the Execute() member function.

static double vtkMeshQuality::HexShape ( vtkCell cell  )  [static]

This is a static function used to calculate the maximal Frobenius aspect of the 8 corner tetrahedra of a hexahedron, when the reference tetrahedral elements are right isosceles at the hexahedron vertices. It assumes that you pass the correct type of cell -- no type checking is performed because this method is called from the inner loop of the Execute() member function.

static double vtkMeshQuality::HexRelativeSizeSquared ( vtkCell cell  )  [static]

This is a static function used to calculate the maximal Frobenius aspect of the 8 corner tetrahedra of a hexahedron, when the reference tetrahedral elements are right isosceles at the hexahedron vertices. It assumes that you pass the correct type of cell -- no type checking is performed because this method is called from the inner loop of the Execute() member function.

static double vtkMeshQuality::HexShapeAndSize ( vtkCell cell  )  [static]

This is a static function used to calculate the maximal Frobenius aspect of the 8 corner tetrahedra of a hexahedron, when the reference tetrahedral elements are right isosceles at the hexahedron vertices. It assumes that you pass the correct type of cell -- no type checking is performed because this method is called from the inner loop of the Execute() member function.

static double vtkMeshQuality::HexShearAndSize ( vtkCell cell  )  [static]

This is a static function used to calculate the maximal Frobenius aspect of the 8 corner tetrahedra of a hexahedron, when the reference tetrahedral elements are right isosceles at the hexahedron vertices. It assumes that you pass the correct type of cell -- no type checking is performed because this method is called from the inner loop of the Execute() member function.

static double vtkMeshQuality::HexDistortion ( vtkCell cell  )  [static]

This is a static function used to calculate the maximal Frobenius aspect of the 8 corner tetrahedra of a hexahedron, when the reference tetrahedral elements are right isosceles at the hexahedron vertices. It assumes that you pass the correct type of cell -- no type checking is performed because this method is called from the inner loop of the Execute() member function.

virtual void vtkMeshQuality::SetRatio ( int  r  )  [inline, virtual]

These methods are deprecated. Use Get/SetSaveCellQuality() instead. Formerly, SetRatio could be used to disable computation of the tetrahedral radius ratio so that volume alone could be computed. Now, cell quality is always computed, but you may decide not to store the result for each cell. This allows average cell quality of a mesh to be calculated without requiring per-cell storage.

Definition at line 768 of file vtkMeshQuality.h.

int vtkMeshQuality::GetRatio (  )  [inline]

These methods are deprecated. Use Get/SetSaveCellQuality() instead. Formerly, SetRatio could be used to disable computation of the tetrahedral radius ratio so that volume alone could be computed. Now, cell quality is always computed, but you may decide not to store the result for each cell. This allows average cell quality of a mesh to be calculated without requiring per-cell storage.

Definition at line 769 of file vtkMeshQuality.h.

virtual void vtkMeshQuality::RatioOn (  )  [virtual]

These methods are deprecated. Use Get/SetSaveCellQuality() instead. Formerly, SetRatio could be used to disable computation of the tetrahedral radius ratio so that volume alone could be computed. Now, cell quality is always computed, but you may decide not to store the result for each cell. This allows average cell quality of a mesh to be calculated without requiring per-cell storage.

virtual void vtkMeshQuality::RatioOff (  )  [virtual]

These methods are deprecated. Use Get/SetSaveCellQuality() instead. Formerly, SetRatio could be used to disable computation of the tetrahedral radius ratio so that volume alone could be computed. Now, cell quality is always computed, but you may decide not to store the result for each cell. This allows average cell quality of a mesh to be calculated without requiring per-cell storage.

virtual void vtkMeshQuality::SetVolume ( int  cv  )  [inline, virtual]

These methods are deprecated. The functionality of computing cell volume is being removed until it can be computed for any 3D cell. (The previous implementation only worked for tetrahedra.) For now, turning on the volume computation will put this filter into "compatibility mode," where tetrahedral cell volume is stored in first component of each output tuple and the radius ratio is stored in the second component. You may also use CompatibilityModeOn()/Off() to enter this mode. In this mode, cells other than tetrahedra will have report a volume of 0.0 (if volume computation is enabled). By default, volume computation is disabled and compatibility mode is off, since it does not make a lot of sense for meshes with non-tetrahedral cells.

Definition at line 786 of file vtkMeshQuality.h.

int vtkMeshQuality::GetVolume (  )  [inline]

These methods are deprecated. The functionality of computing cell volume is being removed until it can be computed for any 3D cell. (The previous implementation only worked for tetrahedra.) For now, turning on the volume computation will put this filter into "compatibility mode," where tetrahedral cell volume is stored in first component of each output tuple and the radius ratio is stored in the second component. You may also use CompatibilityModeOn()/Off() to enter this mode. In this mode, cells other than tetrahedra will have report a volume of 0.0 (if volume computation is enabled). By default, volume computation is disabled and compatibility mode is off, since it does not make a lot of sense for meshes with non-tetrahedral cells.

Definition at line 799 of file vtkMeshQuality.h.

virtual void vtkMeshQuality::VolumeOn (  )  [virtual]

These methods are deprecated. The functionality of computing cell volume is being removed until it can be computed for any 3D cell. (The previous implementation only worked for tetrahedra.) For now, turning on the volume computation will put this filter into "compatibility mode," where tetrahedral cell volume is stored in first component of each output tuple and the radius ratio is stored in the second component. You may also use CompatibilityModeOn()/Off() to enter this mode. In this mode, cells other than tetrahedra will have report a volume of 0.0 (if volume computation is enabled). By default, volume computation is disabled and compatibility mode is off, since it does not make a lot of sense for meshes with non-tetrahedral cells.

virtual void vtkMeshQuality::VolumeOff (  )  [virtual]

These methods are deprecated. The functionality of computing cell volume is being removed until it can be computed for any 3D cell. (The previous implementation only worked for tetrahedra.) For now, turning on the volume computation will put this filter into "compatibility mode," where tetrahedral cell volume is stored in first component of each output tuple and the radius ratio is stored in the second component. You may also use CompatibilityModeOn()/Off() to enter this mode. In this mode, cells other than tetrahedra will have report a volume of 0.0 (if volume computation is enabled). By default, volume computation is disabled and compatibility mode is off, since it does not make a lot of sense for meshes with non-tetrahedral cells.

virtual void vtkMeshQuality::SetCompatibilityMode ( int  cm  )  [inline, virtual]

CompatibilityMode governs whether, when both a quality function and cell volume are to be stored as cell data, the two values are stored in a single array. When compatibility mode is off (the default), two separate arrays are used -- one labeled "Quality" and the other labeled "Volume". When compatibility mode is on, both values are stored in a single array, with volume as the first component and quality as the second component. Enabling CompatibilityMode changes the default tetrahedral quality function to VTK_QUALITY_RADIUS_RATIO and turns volume computation on. (This matches the default behavior of the initial implementation of vtkMeshQuality.) You may change quality function and volume computation without leaving compatibility mode. Disabling compatibility mode does not affect the current volume computation or tetrahedral quality function settings. The final caveat to CompatibilityMode is that regardless of its setting, the resulting array will be of type vtkDoubleArray rather than the original vtkFloatArray. This is a safety function to keep the authors from diving off of the Combinatorial Coding Cliff into Certain Insanity.

Definition at line 825 of file vtkMeshQuality.h.

virtual int vtkMeshQuality::GetCompatibilityMode (  )  [virtual]

CompatibilityMode governs whether, when both a quality function and cell volume are to be stored as cell data, the two values are stored in a single array. When compatibility mode is off (the default), two separate arrays are used -- one labeled "Quality" and the other labeled "Volume". When compatibility mode is on, both values are stored in a single array, with volume as the first component and quality as the second component. Enabling CompatibilityMode changes the default tetrahedral quality function to VTK_QUALITY_RADIUS_RATIO and turns volume computation on. (This matches the default behavior of the initial implementation of vtkMeshQuality.) You may change quality function and volume computation without leaving compatibility mode. Disabling compatibility mode does not affect the current volume computation or tetrahedral quality function settings. The final caveat to CompatibilityMode is that regardless of its setting, the resulting array will be of type vtkDoubleArray rather than the original vtkFloatArray. This is a safety function to keep the authors from diving off of the Combinatorial Coding Cliff into Certain Insanity.

virtual void vtkMeshQuality::CompatibilityModeOn (  )  [virtual]

CompatibilityMode governs whether, when both a quality function and cell volume are to be stored as cell data, the two values are stored in a single array. When compatibility mode is off (the default), two separate arrays are used -- one labeled "Quality" and the other labeled "Volume". When compatibility mode is on, both values are stored in a single array, with volume as the first component and quality as the second component. Enabling CompatibilityMode changes the default tetrahedral quality function to VTK_QUALITY_RADIUS_RATIO and turns volume computation on. (This matches the default behavior of the initial implementation of vtkMeshQuality.) You may change quality function and volume computation without leaving compatibility mode. Disabling compatibility mode does not affect the current volume computation or tetrahedral quality function settings. The final caveat to CompatibilityMode is that regardless of its setting, the resulting array will be of type vtkDoubleArray rather than the original vtkFloatArray. This is a safety function to keep the authors from diving off of the Combinatorial Coding Cliff into Certain Insanity.

virtual void vtkMeshQuality::CompatibilityModeOff (  )  [virtual]

CompatibilityMode governs whether, when both a quality function and cell volume are to be stored as cell data, the two values are stored in a single array. When compatibility mode is off (the default), two separate arrays are used -- one labeled "Quality" and the other labeled "Volume". When compatibility mode is on, both values are stored in a single array, with volume as the first component and quality as the second component. Enabling CompatibilityMode changes the default tetrahedral quality function to VTK_QUALITY_RADIUS_RATIO and turns volume computation on. (This matches the default behavior of the initial implementation of vtkMeshQuality.) You may change quality function and volume computation without leaving compatibility mode. Disabling compatibility mode does not affect the current volume computation or tetrahedral quality function settings. The final caveat to CompatibilityMode is that regardless of its setting, the resulting array will be of type vtkDoubleArray rather than the original vtkFloatArray. This is a safety function to keep the authors from diving off of the Combinatorial Coding Cliff into Certain Insanity.

virtual int vtkMeshQuality::RequestData ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [protected, virtual]

This is called within ProcessRequest when a request asks the algorithm to do its work. This is the method you should override to do whatever the algorithm is designed to do. This happens during the fourth pass in the pipeline execution process.

Reimplemented from vtkDataSetAlgorithm.

static int vtkMeshQuality::GetCurrentTriangleNormal ( double  point[3],
double  normal[3]
) [static, protected]

A function called by some VERDICT triangle quality functions to test for inverted triangles.


Member Data Documentation

Definition at line 853 of file vtkMeshQuality.h.

Definition at line 854 of file vtkMeshQuality.h.

Definition at line 855 of file vtkMeshQuality.h.

Definition at line 856 of file vtkMeshQuality.h.

Definition at line 857 of file vtkMeshQuality.h.

Definition at line 859 of file vtkMeshQuality.h.

int vtkMeshQuality::Volume [protected]

Definition at line 860 of file vtkMeshQuality.h.

Definition at line 862 of file vtkMeshQuality.h.

double vtkMeshQuality::CurrentTriNormal[3] [static, protected]

Definition at line 863 of file vtkMeshQuality.h.


The documentation for this class was generated from the following file:

Generated on Sat Dec 27 13:37:25 2008 for VTK by  doxygen 1.5.6
