vtkMILVideoSource Class Reference

#include <vtkMILVideoSource.h>

Inheritance diagram for vtkMILVideoSource:

Inheritance graph
[legend]

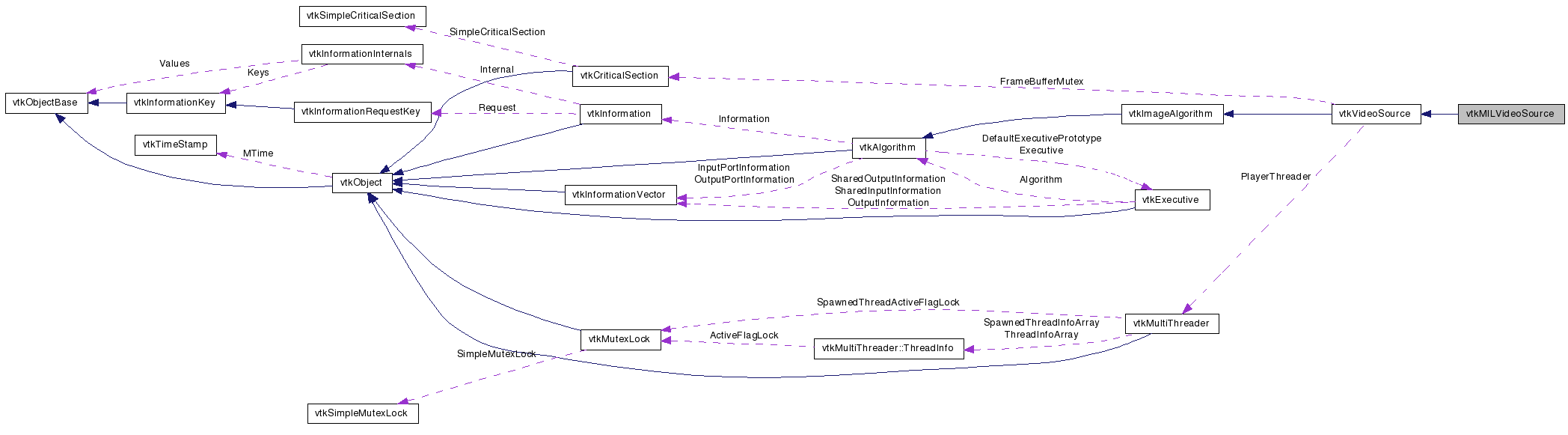

Collaboration diagram for vtkMILVideoSource:

Collaboration graph
[legend]

List of all members.


Detailed Description

Matrox Imaging Library frame grabbers.

vtkMILVideoSource provides an interface to Matrox Meteor, MeteorII and Corona video digitizers through the Matrox Imaging Library interface. In order to use this class, you must link VTK with mil.lib, MIL version 5.0 or higher is required.

Warning:
With some capture cards, if this class is leaked and ReleaseSystemResources is not called, you may have to reboot before you can capture again. vtkVideoSource used to keep a global list and delete the video sources if your program leaked, due to exit crashes that was removed.
See also:
vtkWin32VideoSource vtkVideoSource

Definition at line 67 of file vtkMILVideoSource.h.

void * OldHookFunction
void * OldUserDataPtr
int FrameCounter
int ForceGrab
void InternalGrab ()

Public Types

typedef vtkVideoSource Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
void Record ()
void Play ()
void Stop ()
void Grab ()
void SetFrameSize (int x, int y, int z)
void SetOutputFormat (int format)
void Initialize ()
void ReleaseSystemResources ()
virtual void SetVideoChannel (int channel)
virtual int GetVideoChannel ()
virtual void SetVideoFormat (int format)
void SetVideoFormatToNTSC ()
void SetVideoFormatToPAL ()
void SetVideoFormatToSECAM ()
void SetVideoFormatToRS170 ()
void SetVideoFormatToCCIR ()
void SetVideoFormatToNonStandard ()
virtual int GetVideoFormat ()
virtual void SetVideoInput (int input)
void SetVideoInputToMono ()
void SetVideoInputToComposite ()
void SetVideoInputToYC ()
void SetVideoInputToRGB ()
void SetVideoInputToDigital ()
virtual int GetVideoInput ()
virtual void SetContrastLevel (float contrast)
virtual float GetContrastLevel ()
virtual void SetBrightnessLevel (float brightness)
virtual float GetBrightnessLevel ()
virtual void SetHueLevel (float hue)
virtual float GetHueLevel ()
virtual void SetSaturationLevel (float saturation)
virtual float GetSaturationLevel ()
virtual void SetBlackLevel (float value)
virtual float GetBlackLevel ()
virtual void SetWhiteLevel (float value)
virtual float GetWhiteLevel ()
virtual void SetMILSystemType (const char *)
virtual char * GetMILSystemType ()
void SetMILSystemTypeToMeteor ()
void SetMILSystemTypeToMeteorII ()
void SetMILSystemTypeToMeteorIIDig ()
void SetMILSystemTypeToMeteorIICL ()
void SetMILSystemTypeToMeteorII1394 ()
void SetMILSystemTypeToCorona ()
void SetMILSystemTypeToCoronaII ()
void SetMILSystemTypeToPulsar ()
void SetMILSystemTypeToGenesis ()
void SetMILSystemTypeToGenesisPlus ()
void SetMILSystemTypeToOrion ()
void SetMILSystemTypeToCronos ()
void SetMILSystemTypeToOdyssey ()
virtual void SetMILSystemNumber (int)
virtual int GetMILSystemNumber ()
virtual void SetMILDigitizerDCF (const char *)
virtual char * GetMILDigitizerDCF ()
virtual void SetMILDigitizerNumber (int)
virtual int GetMILDigitizerNumber ()
virtual void SetMILErrorMessages (int yesno)
virtual void MILErrorMessagesOn ()
virtual void MILErrorMessagesOff ()
virtual int GetMILErrorMessages ()
virtual void SetMILAppID (long)
virtual long GetMILAppID ()
virtual void SetMILSysID (long)
virtual long GetMILSysID ()
virtual long GetMILDigID ()
virtual long GetMILBufID ()

Static Public Member Functions

static vtkMILVideoSourceNew ()
static int IsTypeOf (const char *type)
static vtkMILVideoSourceSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkMILVideoSource ()
 ~vtkMILVideoSource ()
virtual void AllocateMILDigitizer ()
virtual void AllocateMILBuffer ()
virtual char * MILInterpreterForSystem (const char *system)
double CreateTimeStampForFrame (unsigned long frame)

Protected Attributes

char * MILInterpreterDLL
int VideoChannel
int VideoInput
int VideoInputForColor
int VideoFormat
float ContrastLevel
float BrightnessLevel
float HueLevel
float SaturationLevel
float BlackLevel
float WhiteLevel
int FrameMaxSize [2]
long MILAppID
long MILSysID
long MILDigID
long MILBufID
char * MILSystemType
int MILSystemNumber
int MILDigitizerNumber
char * MILDigitizerDCF
int MILErrorMessages
int MILAppInternallyAllocated
int MILSysInternallyAllocated
int FatalMILError
double LastTimeStamp
unsigned long LastFrameCount
double EstimatedFramePeriod
double NextFramePeriod

Member Typedef Documentation

Reimplemented from vtkVideoSource.

Definition at line 71 of file vtkMILVideoSource.h.


Constructor & Destructor Documentation

vtkMILVideoSource::vtkMILVideoSource (  )  [protected]

vtkMILVideoSource::~vtkMILVideoSource (  )  [protected]


Member Function Documentation

static vtkMILVideoSource* vtkMILVideoSource::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkVideoSource.

virtual const char* vtkMILVideoSource::GetClassName (  )  [virtual]

Reimplemented from vtkVideoSource.

static int vtkMILVideoSource::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkVideoSource.

virtual int vtkMILVideoSource::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkVideoSource.

static vtkMILVideoSource* vtkMILVideoSource::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkVideoSource.

void vtkMILVideoSource::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkVideoSource.

void vtkMILVideoSource::Record (  )  [virtual]

Standard VCR functionality: Record incoming video.

Reimplemented from vtkVideoSource.

void vtkMILVideoSource::Play (  )  [virtual]

Standard VCR functionality: Play recorded video.

Reimplemented from vtkVideoSource.

void vtkMILVideoSource::Stop (  )  [virtual]

Standard VCR functionality: Stop recording or playing.

Reimplemented from vtkVideoSource.

void vtkMILVideoSource::Grab (  )  [virtual]

Grab a single video frame.

Reimplemented from vtkVideoSource.

void vtkMILVideoSource::SetFrameSize ( int  x,
int  y,
int  z
) [virtual]

Request a particular frame size (set the third value to 1).

Reimplemented from vtkVideoSource.

void vtkMILVideoSource::SetOutputFormat ( int  format  )  [virtual]

Request a particular output format (default: VTK_RGB).

Reimplemented from vtkVideoSource.

virtual void vtkMILVideoSource::SetVideoChannel ( int  channel  )  [virtual]

Set/Get the video channel

virtual int vtkMILVideoSource::GetVideoChannel (  )  [virtual]

Set/Get the video channel

virtual void vtkMILVideoSource::SetVideoFormat ( int  format  )  [virtual]

Set/Get the video format

void vtkMILVideoSource::SetVideoFormatToNTSC (  )  [inline]

Set/Get the video format

Definition at line 101 of file vtkMILVideoSource.h.

void vtkMILVideoSource::SetVideoFormatToPAL (  )  [inline]

Set/Get the video format

Definition at line 102 of file vtkMILVideoSource.h.

void vtkMILVideoSource::SetVideoFormatToSECAM (  )  [inline]

Set/Get the video format

Definition at line 103 of file vtkMILVideoSource.h.

void vtkMILVideoSource::SetVideoFormatToRS170 (  )  [inline]

Set/Get the video format

Definition at line 104 of file vtkMILVideoSource.h.

void vtkMILVideoSource::SetVideoFormatToCCIR (  )  [inline]

Set/Get the video format

Definition at line 105 of file vtkMILVideoSource.h.

void vtkMILVideoSource::SetVideoFormatToNonStandard (  )  [inline]

Set/Get the video format

Definition at line 106 of file vtkMILVideoSource.h.

virtual int vtkMILVideoSource::GetVideoFormat (  )  [virtual]

Set/Get the video format

virtual void vtkMILVideoSource::SetVideoInput ( int  input  )  [virtual]

Set/Get the video input

void vtkMILVideoSource::SetVideoInputToMono (  )  [inline]

Set/Get the video input

Definition at line 114 of file vtkMILVideoSource.h.

void vtkMILVideoSource::SetVideoInputToComposite (  )  [inline]

Set/Get the video input

Definition at line 115 of file vtkMILVideoSource.h.

void vtkMILVideoSource::SetVideoInputToYC (  )  [inline]

Set/Get the video input

Definition at line 116 of file vtkMILVideoSource.h.

void vtkMILVideoSource::SetVideoInputToRGB (  )  [inline]

Set/Get the video input

Definition at line 117 of file vtkMILVideoSource.h.

void vtkMILVideoSource::SetVideoInputToDigital (  )  [inline]

Set/Get the video input

Definition at line 118 of file vtkMILVideoSource.h.

virtual int vtkMILVideoSource::GetVideoInput (  )  [virtual]

Set/Get the video input

virtual void vtkMILVideoSource::SetContrastLevel ( float  contrast  )  [virtual]

Set/Get the video levels for composite/SVideo: the valid ranges are: Contrast [0.0,2.0] Brighness [0.0,255.0] Hue [-0.5,0.5] Saturation [0.0,2.0]

virtual float vtkMILVideoSource::GetContrastLevel (  )  [virtual]

Set/Get the video levels for composite/SVideo: the valid ranges are: Contrast [0.0,2.0] Brighness [0.0,255.0] Hue [-0.5,0.5] Saturation [0.0,2.0]

virtual void vtkMILVideoSource::SetBrightnessLevel ( float  brightness  )  [virtual]

Set/Get the video levels for composite/SVideo: the valid ranges are: Contrast [0.0,2.0] Brighness [0.0,255.0] Hue [-0.5,0.5] Saturation [0.0,2.0]

virtual float vtkMILVideoSource::GetBrightnessLevel (  )  [virtual]

Set/Get the video levels for composite/SVideo: the valid ranges are: Contrast [0.0,2.0] Brighness [0.0,255.0] Hue [-0.5,0.5] Saturation [0.0,2.0]

virtual void vtkMILVideoSource::SetHueLevel ( float  hue  )  [virtual]

Set/Get the video levels for composite/SVideo: the valid ranges are: Contrast [0.0,2.0] Brighness [0.0,255.0] Hue [-0.5,0.5] Saturation [0.0,2.0]

virtual float vtkMILVideoSource::GetHueLevel (  )  [virtual]

Set/Get the video levels for composite/SVideo: the valid ranges are: Contrast [0.0,2.0] Brighness [0.0,255.0] Hue [-0.5,0.5] Saturation [0.0,2.0]

virtual void vtkMILVideoSource::SetSaturationLevel ( float  saturation  )  [virtual]

Set/Get the video levels for composite/SVideo: the valid ranges are: Contrast [0.0,2.0] Brighness [0.0,255.0] Hue [-0.5,0.5] Saturation [0.0,2.0]

virtual float vtkMILVideoSource::GetSaturationLevel (  )  [virtual]

Set/Get the video levels for composite/SVideo: the valid ranges are: Contrast [0.0,2.0] Brighness [0.0,255.0] Hue [-0.5,0.5] Saturation [0.0,2.0]

virtual void vtkMILVideoSource::SetBlackLevel ( float  value  )  [virtual]

Set/Get the video levels for monochrome/RGB: valid values are between 0.0 and 255.0.

virtual float vtkMILVideoSource::GetBlackLevel (  )  [inline, virtual]

Set/Get the video levels for monochrome/RGB: valid values are between 0.0 and 255.0.

Definition at line 140 of file vtkMILVideoSource.h.

virtual void vtkMILVideoSource::SetWhiteLevel ( float  value  )  [virtual]

Set/Get the video levels for monochrome/RGB: valid values are between 0.0 and 255.0.

virtual float vtkMILVideoSource::GetWhiteLevel (  )  [inline, virtual]

Set/Get the video levels for monochrome/RGB: valid values are between 0.0 and 255.0.

Definition at line 143 of file vtkMILVideoSource.h.

virtual void vtkMILVideoSource::SetMILSystemType ( const char *   )  [virtual]

Set the system which you want use. If you don't specify a system, then your primary digitizer will be autodetected.

virtual char* vtkMILVideoSource::GetMILSystemType (  )  [virtual]

Set the system which you want use. If you don't specify a system, then your primary digitizer will be autodetected.

void vtkMILVideoSource::SetMILSystemTypeToMeteor (  )  [inline]

Set the system which you want use. If you don't specify a system, then your primary digitizer will be autodetected.

Definition at line 152 of file vtkMILVideoSource.h.

void vtkMILVideoSource::SetMILSystemTypeToMeteorII (  )  [inline]

Set the system which you want use. If you don't specify a system, then your primary digitizer will be autodetected.

Definition at line 153 of file vtkMILVideoSource.h.

void vtkMILVideoSource::SetMILSystemTypeToMeteorIIDig (  )  [inline]

Set the system which you want use. If you don't specify a system, then your primary digitizer will be autodetected.

Definition at line 154 of file vtkMILVideoSource.h.

void vtkMILVideoSource::SetMILSystemTypeToMeteorIICL (  )  [inline]

Set the system which you want use. If you don't specify a system, then your primary digitizer will be autodetected.

Definition at line 155 of file vtkMILVideoSource.h.

void vtkMILVideoSource::SetMILSystemTypeToMeteorII1394 (  )  [inline]

Set the system which you want use. If you don't specify a system, then your primary digitizer will be autodetected.

Definition at line 156 of file vtkMILVideoSource.h.

void vtkMILVideoSource::SetMILSystemTypeToCorona (  )  [inline]

Set the system which you want use. If you don't specify a system, then your primary digitizer will be autodetected.

Definition at line 157 of file vtkMILVideoSource.h.

void vtkMILVideoSource::SetMILSystemTypeToCoronaII (  )  [inline]

Set the system which you want use. If you don't specify a system, then your primary digitizer will be autodetected.

Definition at line 158 of file vtkMILVideoSource.h.

void vtkMILVideoSource::SetMILSystemTypeToPulsar (  )  [inline]

Set the system which you want use. If you don't specify a system, then your primary digitizer will be autodetected.

Definition at line 159 of file vtkMILVideoSource.h.

void vtkMILVideoSource::SetMILSystemTypeToGenesis (  )  [inline]

Set the system which you want use. If you don't specify a system, then your primary digitizer will be autodetected.

Definition at line 160 of file vtkMILVideoSource.h.

void vtkMILVideoSource::SetMILSystemTypeToGenesisPlus (  )  [inline]

Set the system which you want use. If you don't specify a system, then your primary digitizer will be autodetected.

Definition at line 161 of file vtkMILVideoSource.h.

void vtkMILVideoSource::SetMILSystemTypeToOrion (  )  [inline]

Set the system which you want use. If you don't specify a system, then your primary digitizer will be autodetected.

Definition at line 162 of file vtkMILVideoSource.h.

void vtkMILVideoSource::SetMILSystemTypeToCronos (  )  [inline]

Set the system which you want use. If you don't specify a system, then your primary digitizer will be autodetected.

Definition at line 163 of file vtkMILVideoSource.h.

void vtkMILVideoSource::SetMILSystemTypeToOdyssey (  )  [inline]

Set the system which you want use. If you don't specify a system, then your primary digitizer will be autodetected.

Definition at line 164 of file vtkMILVideoSource.h.

virtual void vtkMILVideoSource::SetMILSystemNumber ( int   )  [virtual]

Set the system which you want use. If you don't specify a system, then your primary digitizer will be autodetected.

virtual int vtkMILVideoSource::GetMILSystemNumber (  )  [virtual]

Set the system which you want use. If you don't specify a system, then your primary digitizer will be autodetected.

virtual void vtkMILVideoSource::SetMILDigitizerDCF ( const char *   )  [virtual]

Set the DCF filename for non-standard video formats

virtual char* vtkMILVideoSource::GetMILDigitizerDCF (  )  [virtual]

Set the DCF filename for non-standard video formats

virtual void vtkMILVideoSource::SetMILDigitizerNumber ( int   )  [virtual]

Set the digitizer number for systems with multiple digitizers

virtual int vtkMILVideoSource::GetMILDigitizerNumber (  )  [virtual]

Set the digitizer number for systems with multiple digitizers

virtual void vtkMILVideoSource::SetMILErrorMessages ( int  yesno  )  [virtual]

Set whether to display MIL error messages (default on)

virtual void vtkMILVideoSource::MILErrorMessagesOn (  )  [virtual]

Set whether to display MIL error messages (default on)

virtual void vtkMILVideoSource::MILErrorMessagesOff (  )  [virtual]

Set whether to display MIL error messages (default on)

virtual int vtkMILVideoSource::GetMILErrorMessages (  )  [virtual]

Set whether to display MIL error messages (default on)

virtual void vtkMILVideoSource::SetMILAppID ( long   )  [virtual]

Allows fine-grained control

virtual long vtkMILVideoSource::GetMILAppID (  )  [virtual]

Allows fine-grained control

virtual void vtkMILVideoSource::SetMILSysID ( long   )  [virtual]

Allows fine-grained control

virtual long vtkMILVideoSource::GetMILSysID (  )  [virtual]

Allows fine-grained control

virtual long vtkMILVideoSource::GetMILDigID (  )  [virtual]

Allows fine-grained control

virtual long vtkMILVideoSource::GetMILBufID (  )  [virtual]

Allows fine-grained control

void vtkMILVideoSource::Initialize (  )  [virtual]

Initialize the driver (this is called automatically when the first grab is done).

Reimplemented from vtkVideoSource.

void vtkMILVideoSource::ReleaseSystemResources (  )  [virtual]

Free the driver (this is called automatically inside the destructor).

Reimplemented from vtkVideoSource.

void vtkMILVideoSource::InternalGrab (  )  [virtual]

For internal use only

Reimplemented from vtkVideoSource.

virtual void vtkMILVideoSource::AllocateMILDigitizer (  )  [protected, virtual]

virtual void vtkMILVideoSource::AllocateMILBuffer (  )  [protected, virtual]

virtual char* vtkMILVideoSource::MILInterpreterForSystem ( const char *  system  )  [protected, virtual]

double vtkMILVideoSource::CreateTimeStampForFrame ( unsigned long  frame  )  [protected]

Method for updating the virtual clock that accurately times the arrival of each frame, more accurately than is possible with the system clock alone because the virtual clock averages out the jitter.


Member Data Documentation

For internal use only

Definition at line 209 of file vtkMILVideoSource.h.

For internal use only

Definition at line 210 of file vtkMILVideoSource.h.

For internal use only

Definition at line 211 of file vtkMILVideoSource.h.

For internal use only

Definition at line 212 of file vtkMILVideoSource.h.

Definition at line 224 of file vtkMILVideoSource.h.

Definition at line 226 of file vtkMILVideoSource.h.

Definition at line 227 of file vtkMILVideoSource.h.

Definition at line 228 of file vtkMILVideoSource.h.

Definition at line 229 of file vtkMILVideoSource.h.

Definition at line 231 of file vtkMILVideoSource.h.

Definition at line 232 of file vtkMILVideoSource.h.

float vtkMILVideoSource::HueLevel [protected]

Definition at line 233 of file vtkMILVideoSource.h.

Definition at line 234 of file vtkMILVideoSource.h.

float vtkMILVideoSource::BlackLevel [protected]

Definition at line 236 of file vtkMILVideoSource.h.

float vtkMILVideoSource::WhiteLevel [protected]

Definition at line 237 of file vtkMILVideoSource.h.

int vtkMILVideoSource::FrameMaxSize[2] [protected]

Definition at line 239 of file vtkMILVideoSource.h.

long vtkMILVideoSource::MILAppID [protected]

Definition at line 241 of file vtkMILVideoSource.h.

long vtkMILVideoSource::MILSysID [protected]

Definition at line 242 of file vtkMILVideoSource.h.

long vtkMILVideoSource::MILDigID [protected]

Definition at line 243 of file vtkMILVideoSource.h.

long vtkMILVideoSource::MILBufID [protected]

Definition at line 244 of file vtkMILVideoSource.h.

Definition at line 248 of file vtkMILVideoSource.h.

Definition at line 249 of file vtkMILVideoSource.h.

Definition at line 251 of file vtkMILVideoSource.h.

Definition at line 252 of file vtkMILVideoSource.h.

Definition at line 254 of file vtkMILVideoSource.h.

Definition at line 256 of file vtkMILVideoSource.h.

Definition at line 257 of file vtkMILVideoSource.h.

Definition at line 259 of file vtkMILVideoSource.h.

Definition at line 266 of file vtkMILVideoSource.h.

unsigned long vtkMILVideoSource::LastFrameCount [protected]

Definition at line 267 of file vtkMILVideoSource.h.

Definition at line 268 of file vtkMILVideoSource.h.

Definition at line 269 of file vtkMILVideoSource.h.


The documentation for this class was generated from the following file:

Generated on Sat Dec 27 13:37:41 2008 for VTK by  doxygen 1.5.6
