vtkOpenGLActor Class Reference

#include <vtkOpenGLActor.h>

Inheritance diagram for vtkOpenGLActor:

Inheritance graph
[legend]

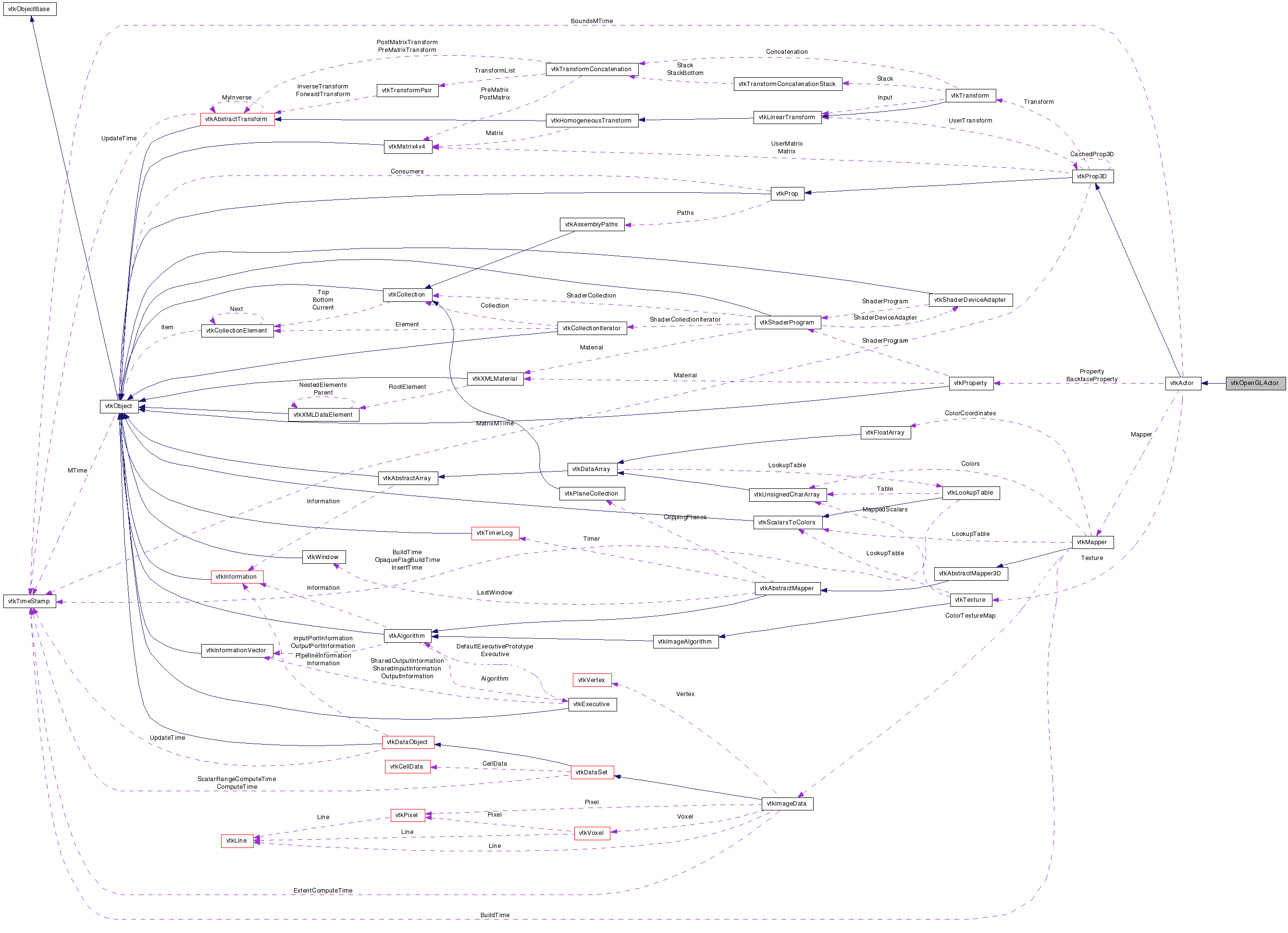

Collaboration diagram for vtkOpenGLActor:

Collaboration graph
[legend]

List of all members.


Detailed Description

OpenGL actor.

vtkOpenGLActor is a concrete implementation of the abstract class vtkActor. vtkOpenGLActor interfaces to the OpenGL rendering library.

Definition at line 29 of file vtkOpenGLActor.h.


Public Types

typedef vtkActor Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
virtual void PrintSelf (ostream &os, vtkIndent indent)
void Render (vtkRenderer *ren, vtkMapper *mapper)

Static Public Member Functions

static vtkOpenGLActorNew ()
static int IsTypeOf (const char *type)
static vtkOpenGLActorSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkOpenGLActor ()
 ~vtkOpenGLActor ()

Member Typedef Documentation

Reimplemented from vtkActor.

Definition at line 35 of file vtkOpenGLActor.h.


Constructor & Destructor Documentation

vtkOpenGLActor::vtkOpenGLActor (  )  [inline, protected]

Definition at line 42 of file vtkOpenGLActor.h.

vtkOpenGLActor::~vtkOpenGLActor (  )  [inline, protected]

Definition at line 43 of file vtkOpenGLActor.h.


Member Function Documentation

static vtkOpenGLActor* vtkOpenGLActor::New (  )  [static]

Creates an actor with the following defaults: origin(0,0,0) position=(0,0,0) scale=(1,1,1) visibility=1 pickable=1 dragable=1 orientation=(0,0,0). No user defined matrix and no texture map.

Reimplemented from vtkActor.

virtual const char* vtkOpenGLActor::GetClassName (  )  [virtual]

Reimplemented from vtkActor.

static int vtkOpenGLActor::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkActor.

virtual int vtkOpenGLActor::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkActor.

static vtkOpenGLActor* vtkOpenGLActor::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkActor.

virtual void vtkOpenGLActor::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkActor.

void vtkOpenGLActor::Render ( vtkRenderer ren,
vtkMapper mapper
) [virtual]

Actual actor render method.

Reimplemented from vtkActor.


The documentation for this class was generated from the following file:
