vtkOpenGLRepresentationPainter Class Reference

#include <vtkOpenGLRepresentationPainter.h>

Inheritance diagram for vtkOpenGLRepresentationPainter:

Inheritance graph
[legend]

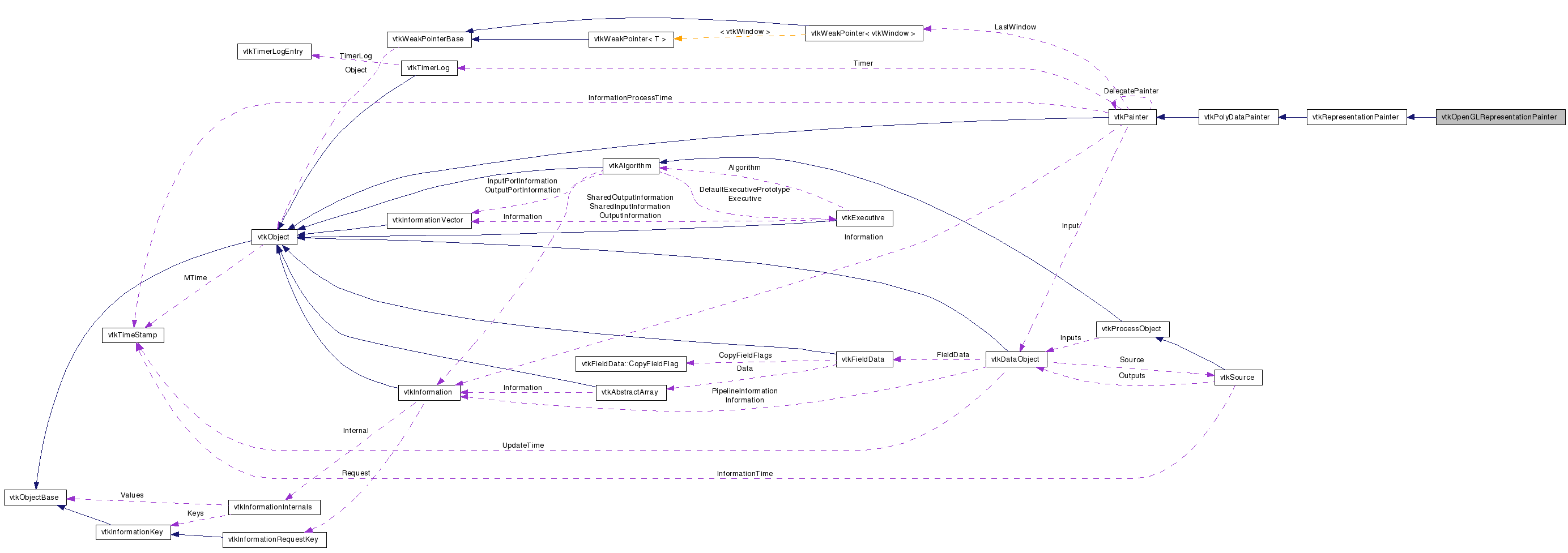

Collaboration diagram for vtkOpenGLRepresentationPainter:

Collaboration graph
[legend]

List of all members.


Detailed Description

painter handling representation using OpenGL.

This is OpenGL implementation of a painter handling representation i.e. Points, Wireframe, Surface.

Definition at line 29 of file vtkOpenGLRepresentationPainter.h.


Public Types

typedef vtkRepresentationPainter Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual double GetTimeToDraw ()

Static Public Member Functions

static
vtkOpenGLRepresentationPainter
New ()
static int IsTypeOf (const char *type)
static
vtkOpenGLRepresentationPainter
SafeDownCast (vtkObject *o)

Protected Member Functions

 vtkOpenGLRepresentationPainter ()
 ~vtkOpenGLRepresentationPainter ()
void RenderInternal (vtkRenderer *renderer, vtkActor *actor, unsigned long typeflags)

Member Typedef Documentation

Reimplemented from vtkRepresentationPainter.

Definition at line 34 of file vtkOpenGLRepresentationPainter.h.


Constructor & Destructor Documentation

vtkOpenGLRepresentationPainter::vtkOpenGLRepresentationPainter (  )  [protected]

vtkOpenGLRepresentationPainter::~vtkOpenGLRepresentationPainter (  )  [protected]


Member Function Documentation

static vtkOpenGLRepresentationPainter* vtkOpenGLRepresentationPainter::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkRepresentationPainter.

virtual const char* vtkOpenGLRepresentationPainter::GetClassName (  )  [virtual]

Reimplemented from vtkRepresentationPainter.

static int vtkOpenGLRepresentationPainter::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkRepresentationPainter.

virtual int vtkOpenGLRepresentationPainter::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkRepresentationPainter.

static vtkOpenGLRepresentationPainter* vtkOpenGLRepresentationPainter::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkRepresentationPainter.

void vtkOpenGLRepresentationPainter::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkRepresentationPainter.

virtual double vtkOpenGLRepresentationPainter::GetTimeToDraw (  )  [inline, virtual]

This painter overrides GetTimeToDraw() to never pass the request to the delegate. This is done since this class may propagate a single render request multiple times to the delegate. In that case the time accumulation responsibility is borne by the painter causing the multiple rendering requests i.e. this painter itself.

Reimplemented from vtkPainter.

Definition at line 43 of file vtkOpenGLRepresentationPainter.h.

void vtkOpenGLRepresentationPainter::RenderInternal ( vtkRenderer renderer,
vtkActor actor,
unsigned long  typeflags
) [protected, virtual]

Changes the polygon mode according to the representation.

Reimplemented from vtkPainter.


The documentation for this class was generated from the following file:
