vtkParametricFunctionSource Class Reference

#include <vtkParametricFunctionSource.h>

Inheritance diagram for vtkParametricFunctionSource:

[legend]

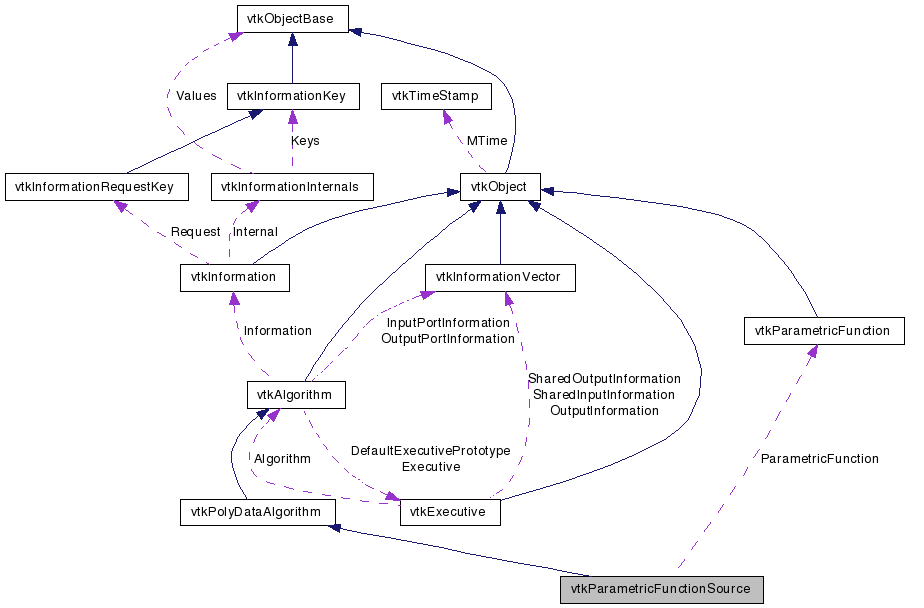

Collaboration diagram for vtkParametricFunctionSource:

[legend]

List of all members.

Detailed Description

tessellate parametric functions

This class tessellates parametric functions. The user must specify how many points in the parametric coordinate directions are required (i.e., the resolution), and the mode to use to generate scalars.

Thanks:: Andrew Maclean a.maclean@cas.edu.au for creating and contributing the class.

See also:

vtkParametricFunction

Implementation of parametrics for 1D lines: vtkParametricSpline

Subclasses of vtkParametricFunction implementing non-orentable surfaces: vtkParametricBoy vtkParametricCrossCap vtkParametricFigure8Klein vtkParametricKlein vtkParametricMobius vtkParametricRoman

Subclasses of vtkParametricFunction implementing orientable surfaces: vtkParametricConicSpiral vtkParametricDini vtkParametricEllipsoid vtkParametricEnneper vtkParametricRandomHills vtkParametricSuperEllipsoid vtkParametricSuperToroid vtkParametricTorus

Tests:: vtkParametricFunctionSource (Tests)

Definition at line 57 of file vtkParametricFunctionSource.h.


Public Types
typedef vtkPolyDataAlgorithm	Superclass

enum	SCALAR_MODE { SCALAR_NONE = 0, SCALAR_U, SCALAR_V, SCALAR_U0, SCALAR_V0, SCALAR_U0V0, SCALAR_MODULUS, SCALAR_PHASE, SCALAR_QUADRANT, SCALAR_X, SCALAR_Y, SCALAR_Z, SCALAR_DISTANCE, SCALAR_FUNCTION_DEFINED }
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
unsigned long	GetMTime ()

virtual void	SetParametricFunction (vtkParametricFunction *)
virtual vtkParametricFunction *	GetParametricFunction ()

virtual void	SetUResolution (int)
virtual int	GetUResolution ()

virtual void	SetVResolution (int)
virtual int	GetVResolution ()

virtual void	SetWResolution (int)
virtual int	GetWResolution ()

virtual void	GenerateTextureCoordinatesOn ()
virtual void	GenerateTextureCoordinatesOff ()
virtual void	SetGenerateTextureCoordinates (int)
virtual int	GetGenerateTextureCoordinates ()

virtual void	SetScalarMode (int)
virtual int	GetScalarMode ()
void	SetScalarModeToNone (void)
void	SetScalarModeToU (void)
void	SetScalarModeToV (void)
void	SetScalarModeToU0 (void)
void	SetScalarModeToV0 (void)
void	SetScalarModeToU0V0 (void)
void	SetScalarModeToModulus (void)
void	SetScalarModeToPhase (void)
void	SetScalarModeToQuadrant (void)
void	SetScalarModeToX (void)
void	SetScalarModeToY (void)
void	SetScalarModeToZ (void)
void	SetScalarModeToDistance (void)
void	SetScalarModeToFunctionDefined (void)
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkParametricFunctionSource *	SafeDownCast (vtkObject *o)
static vtkParametricFunctionSource *	New ()
Protected Member Functions
	vtkParametricFunctionSource ()
virtual	~vtkParametricFunctionSource ()
int	RequestData (vtkInformation info, vtkInformationVector input, vtkInformationVector output)
Protected Attributes
vtkParametricFunction *	ParametricFunction
int	UResolution
int	VResolution
int	WResolution
int	GenerateTextureCoordinates
int	ScalarMode

Member Typedef Documentation

typedef vtkPolyDataAlgorithm vtkParametricFunctionSource::Superclass

Reimplemented from vtkPolyDataAlgorithm.

Definition at line 60 of file vtkParametricFunctionSource.h.

Member Enumeration Documentation

enum vtkParametricFunctionSource::SCALAR_MODE

Enumerate the supported scalar generation modes.

 SCALAR_NONE,
      (default) scalars are not generated. SCALAR_U, the scalar is set to
      the u-value. SCALAR_V, the scalar is set to the v-value. SCALAR_U0,
      the scalar is set to 1 if u = (u_max - u_min)/2 = u_avg, 0 otherwise.
      SCALAR_V0, the scalar is set to 1 if v = (v_max - v_min)/2 = v_avg, 0
      otherwise. SCALAR_U0V0, the scalar is set to 1 if u == u_avg, 2 if v
      == v_avg, 3 if u = u_avg && v = v_avg, 0 otherwise. SCALAR_MODULUS,
      the scalar is set to (sqrt(u*u+v*v)), this is measured relative to
      (u_avg,v_avg). SCALAR_PHASE, the scalar is set to (atan2(v,u)) (in
      degrees, 0 to 360), this is measured relative to (u_avg,v_avg).
      SCALAR_QUADRANT, the scalar is set to 1, 2, 3 or 4 depending upon the
      quadrant of the point (u,v). SCALAR_X, the scalar is set to the
      x-value. SCALAR_Y, the scalar is set to the y-value. SCALAR_Z, the
      scalar is set to the z-value. SCALAR_DISTANCE, the scalar is set to
      (sqrt(x*x+y*y+z*z)). I.e. distance from the origin.
      SCALAR_USER_DEFINED, the scalar is set to the value returned from
      EvaluateScalar().

Enumerator:

SCALAR_NONE
SCALAR_U
SCALAR_V
SCALAR_U0
SCALAR_V0
SCALAR_U0V0
SCALAR_MODULUS
SCALAR_PHASE
SCALAR_QUADRANT
SCALAR_X
SCALAR_Y
SCALAR_Z
SCALAR_DISTANCE
SCALAR_FUNCTION_DEFINED

Definition at line 126 of file vtkParametricFunctionSource.h.

Constructor & Destructor Documentation

vtkParametricFunctionSource::vtkParametricFunctionSource ( ) [protected]

virtual vtkParametricFunctionSource::~vtkParametricFunctionSource ( ) [protected, virtual]

Member Function Documentation

virtual const char* vtkParametricFunctionSource::GetClassName ( ) [virtual]

Reimplemented from vtkPolyDataAlgorithm.

static int vtkParametricFunctionSource::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataAlgorithm.

virtual int vtkParametricFunctionSource::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataAlgorithm.

static vtkParametricFunctionSource* vtkParametricFunctionSource::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkPolyDataAlgorithm.

void vtkParametricFunctionSource::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkPolyDataAlgorithm.

static vtkParametricFunctionSource* vtkParametricFunctionSource::New ( ) [static]

Create a new instance with (50,50,50) points in the (u-v-w) directions.

Reimplemented from vtkPolyDataAlgorithm.

virtual void vtkParametricFunctionSource::SetParametricFunction ( vtkParametricFunction * ) [virtual]

Specify the parametric function to use to generate the tessellation.

virtual vtkParametricFunction* vtkParametricFunctionSource::GetParametricFunction ( ) [virtual]

Specify the parametric function to use to generate the tessellation.

virtual void vtkParametricFunctionSource::SetUResolution ( int ) [virtual]

Set/Get the number of subdivisions / tessellations in the u parametric direction. Note that the number of tessellant points in the u direction is the UResolution + 1.

virtual int vtkParametricFunctionSource::GetUResolution ( ) [virtual]

Set/Get the number of subdivisions / tessellations in the u parametric direction. Note that the number of tessellant points in the u direction is the UResolution + 1.

virtual void vtkParametricFunctionSource::SetVResolution ( int ) [virtual]

Set/Get the number of subdivisions / tessellations in the v parametric direction. Note that the number of tessellant points in the v direction is the VResolution + 1.

virtual int vtkParametricFunctionSource::GetVResolution ( ) [virtual]

Set/Get the number of subdivisions / tessellations in the v parametric direction. Note that the number of tessellant points in the v direction is the VResolution + 1.

virtual void vtkParametricFunctionSource::SetWResolution ( int ) [virtual]

Set/Get the number of subdivisions / tessellations in the w parametric direction. Note that the number of tessellant points in the w direction is the WResolution + 1.

virtual int vtkParametricFunctionSource::GetWResolution ( ) [virtual]

Set/Get the number of subdivisions / tessellations in the w parametric direction. Note that the number of tessellant points in the w direction is the WResolution + 1.

virtual void vtkParametricFunctionSource::GenerateTextureCoordinatesOn ( ) [virtual]

Set/Get the generation of texture coordinates. This is off by default. Note that this is only applicable to parametric surfaces whose parametric dimension is 2. Note that texturing may fail in some cases.

virtual void vtkParametricFunctionSource::GenerateTextureCoordinatesOff ( ) [virtual]

Set/Get the generation of texture coordinates. This is off by default. Note that this is only applicable to parametric surfaces whose parametric dimension is 2. Note that texturing may fail in some cases.

virtual void vtkParametricFunctionSource::SetGenerateTextureCoordinates ( int ) [virtual]

Set/Get the generation of texture coordinates. This is off by default. Note that this is only applicable to parametric surfaces whose parametric dimension is 2. Note that texturing may fail in some cases.

virtual int vtkParametricFunctionSource::GetGenerateTextureCoordinates ( ) [virtual]

Set/Get the generation of texture coordinates. This is off by default. Note that this is only applicable to parametric surfaces whose parametric dimension is 2. Note that texturing may fail in some cases.

virtual void vtkParametricFunctionSource::SetScalarMode ( int ) [virtual]

Get/Set the mode used for the scalar data. The options are: SCALAR_NONE, (default) scalars are not generated. SCALAR_U, the scalar is set to the u-value. SCALAR_V, the scalar is set to the v-value. SCALAR_U0, the scalar is set to 1 if u = (u_max - u_min)/2 = u_avg, 0 otherwise. SCALAR_V0, the scalar is set to 1 if v = (v_max - v_min)/2 = v_avg, 0 otherwise. SCALAR_U0V0, the scalar is set to 1 if u == u_avg, 2 if v == v_avg, 3 if u = u_avg && v = v_avg, 0 otherwise. SCALAR_MODULUS, the scalar is set to (sqrt(u*u+v*v)), this is measured relative to (u_avg,v_avg). SCALAR_PHASE, the scalar is set to (atan2(v,u)) (in degrees, 0 to 360), this is measured relative to (u_avg,v_avg). SCALAR_QUADRANT, the scalar is set to 1, 2, 3 or 4 depending upon the quadrant of the point (u,v). SCALAR_X, the scalar is set to the x-value. SCALAR_Y, the scalar is set to the y-value. SCALAR_Z, the scalar is set to the z-value. SCALAR_DISTANCE, the scalar is set to (sqrt(x*x+y*y+z*z)). I.e. distance from the origin. SCALAR_FUNCTION_DEFINED, the scalar is set to the value returned from EvaluateScalar().

virtual int vtkParametricFunctionSource::GetScalarMode ( ) [virtual]

Get/Set the mode used for the scalar data. The options are: SCALAR_NONE, (default) scalars are not generated. SCALAR_U, the scalar is set to the u-value. SCALAR_V, the scalar is set to the v-value. SCALAR_U0, the scalar is set to 1 if u = (u_max - u_min)/2 = u_avg, 0 otherwise. SCALAR_V0, the scalar is set to 1 if v = (v_max - v_min)/2 = v_avg, 0 otherwise. SCALAR_U0V0, the scalar is set to 1 if u == u_avg, 2 if v == v_avg, 3 if u = u_avg && v = v_avg, 0 otherwise. SCALAR_MODULUS, the scalar is set to (sqrt(u*u+v*v)), this is measured relative to (u_avg,v_avg). SCALAR_PHASE, the scalar is set to (atan2(v,u)) (in degrees, 0 to 360), this is measured relative to (u_avg,v_avg). SCALAR_QUADRANT, the scalar is set to 1, 2, 3 or 4 depending upon the quadrant of the point (u,v). SCALAR_X, the scalar is set to the x-value. SCALAR_Y, the scalar is set to the y-value. SCALAR_Z, the scalar is set to the z-value. SCALAR_DISTANCE, the scalar is set to (sqrt(x*x+y*y+z*z)). I.e. distance from the origin. SCALAR_FUNCTION_DEFINED, the scalar is set to the value returned from EvaluateScalar().

void vtkParametricFunctionSource::SetScalarModeToNone ( void ) [inline]

Get/Set the mode used for the scalar data. The options are: SCALAR_NONE, (default) scalars are not generated. SCALAR_U, the scalar is set to the u-value. SCALAR_V, the scalar is set to the v-value. SCALAR_U0, the scalar is set to 1 if u = (u_max - u_min)/2 = u_avg, 0 otherwise. SCALAR_V0, the scalar is set to 1 if v = (v_max - v_min)/2 = v_avg, 0 otherwise. SCALAR_U0V0, the scalar is set to 1 if u == u_avg, 2 if v == v_avg, 3 if u = u_avg && v = v_avg, 0 otherwise. SCALAR_MODULUS, the scalar is set to (sqrt(u*u+v*v)), this is measured relative to (u_avg,v_avg). SCALAR_PHASE, the scalar is set to (atan2(v,u)) (in degrees, 0 to 360), this is measured relative to (u_avg,v_avg). SCALAR_QUADRANT, the scalar is set to 1, 2, 3 or 4 depending upon the quadrant of the point (u,v). SCALAR_X, the scalar is set to the x-value. SCALAR_Y, the scalar is set to the y-value. SCALAR_Z, the scalar is set to the z-value. SCALAR_DISTANCE, the scalar is set to (sqrt(x*x+y*y+z*z)). I.e. distance from the origin. SCALAR_FUNCTION_DEFINED, the scalar is set to the value returned from EvaluateScalar().

Definition at line 155 of file vtkParametricFunctionSource.h.

void vtkParametricFunctionSource::SetScalarModeToU ( void ) [inline]

Get/Set the mode used for the scalar data. The options are: SCALAR_NONE, (default) scalars are not generated. SCALAR_U, the scalar is set to the u-value. SCALAR_V, the scalar is set to the v-value. SCALAR_U0, the scalar is set to 1 if u = (u_max - u_min)/2 = u_avg, 0 otherwise. SCALAR_V0, the scalar is set to 1 if v = (v_max - v_min)/2 = v_avg, 0 otherwise. SCALAR_U0V0, the scalar is set to 1 if u == u_avg, 2 if v == v_avg, 3 if u = u_avg && v = v_avg, 0 otherwise. SCALAR_MODULUS, the scalar is set to (sqrt(u*u+v*v)), this is measured relative to (u_avg,v_avg). SCALAR_PHASE, the scalar is set to (atan2(v,u)) (in degrees, 0 to 360), this is measured relative to (u_avg,v_avg). SCALAR_QUADRANT, the scalar is set to 1, 2, 3 or 4 depending upon the quadrant of the point (u,v). SCALAR_X, the scalar is set to the x-value. SCALAR_Y, the scalar is set to the y-value. SCALAR_Z, the scalar is set to the z-value. SCALAR_DISTANCE, the scalar is set to (sqrt(x*x+y*y+z*z)). I.e. distance from the origin. SCALAR_FUNCTION_DEFINED, the scalar is set to the value returned from EvaluateScalar().

Definition at line 156 of file vtkParametricFunctionSource.h.

void vtkParametricFunctionSource::SetScalarModeToV ( void ) [inline]

Get/Set the mode used for the scalar data. The options are: SCALAR_NONE, (default) scalars are not generated. SCALAR_U, the scalar is set to the u-value. SCALAR_V, the scalar is set to the v-value. SCALAR_U0, the scalar is set to 1 if u = (u_max - u_min)/2 = u_avg, 0 otherwise. SCALAR_V0, the scalar is set to 1 if v = (v_max - v_min)/2 = v_avg, 0 otherwise. SCALAR_U0V0, the scalar is set to 1 if u == u_avg, 2 if v == v_avg, 3 if u = u_avg && v = v_avg, 0 otherwise. SCALAR_MODULUS, the scalar is set to (sqrt(u*u+v*v)), this is measured relative to (u_avg,v_avg). SCALAR_PHASE, the scalar is set to (atan2(v,u)) (in degrees, 0 to 360), this is measured relative to (u_avg,v_avg). SCALAR_QUADRANT, the scalar is set to 1, 2, 3 or 4 depending upon the quadrant of the point (u,v). SCALAR_X, the scalar is set to the x-value. SCALAR_Y, the scalar is set to the y-value. SCALAR_Z, the scalar is set to the z-value. SCALAR_DISTANCE, the scalar is set to (sqrt(x*x+y*y+z*z)). I.e. distance from the origin. SCALAR_FUNCTION_DEFINED, the scalar is set to the value returned from EvaluateScalar().

Definition at line 157 of file vtkParametricFunctionSource.h.

void vtkParametricFunctionSource::SetScalarModeToU0 ( void ) [inline]

Get/Set the mode used for the scalar data. The options are: SCALAR_NONE, (default) scalars are not generated. SCALAR_U, the scalar is set to the u-value. SCALAR_V, the scalar is set to the v-value. SCALAR_U0, the scalar is set to 1 if u = (u_max - u_min)/2 = u_avg, 0 otherwise. SCALAR_V0, the scalar is set to 1 if v = (v_max - v_min)/2 = v_avg, 0 otherwise. SCALAR_U0V0, the scalar is set to 1 if u == u_avg, 2 if v == v_avg, 3 if u = u_avg && v = v_avg, 0 otherwise. SCALAR_MODULUS, the scalar is set to (sqrt(u*u+v*v)), this is measured relative to (u_avg,v_avg). SCALAR_PHASE, the scalar is set to (atan2(v,u)) (in degrees, 0 to 360), this is measured relative to (u_avg,v_avg). SCALAR_QUADRANT, the scalar is set to 1, 2, 3 or 4 depending upon the quadrant of the point (u,v). SCALAR_X, the scalar is set to the x-value. SCALAR_Y, the scalar is set to the y-value. SCALAR_Z, the scalar is set to the z-value. SCALAR_DISTANCE, the scalar is set to (sqrt(x*x+y*y+z*z)). I.e. distance from the origin. SCALAR_FUNCTION_DEFINED, the scalar is set to the value returned from EvaluateScalar().

Definition at line 158 of file vtkParametricFunctionSource.h.

void vtkParametricFunctionSource::SetScalarModeToV0 ( void ) [inline]

Get/Set the mode used for the scalar data. The options are: SCALAR_NONE, (default) scalars are not generated. SCALAR_U, the scalar is set to the u-value. SCALAR_V, the scalar is set to the v-value. SCALAR_U0, the scalar is set to 1 if u = (u_max - u_min)/2 = u_avg, 0 otherwise. SCALAR_V0, the scalar is set to 1 if v = (v_max - v_min)/2 = v_avg, 0 otherwise. SCALAR_U0V0, the scalar is set to 1 if u == u_avg, 2 if v == v_avg, 3 if u = u_avg && v = v_avg, 0 otherwise. SCALAR_MODULUS, the scalar is set to (sqrt(u*u+v*v)), this is measured relative to (u_avg,v_avg). SCALAR_PHASE, the scalar is set to (atan2(v,u)) (in degrees, 0 to 360), this is measured relative to (u_avg,v_avg). SCALAR_QUADRANT, the scalar is set to 1, 2, 3 or 4 depending upon the quadrant of the point (u,v). SCALAR_X, the scalar is set to the x-value. SCALAR_Y, the scalar is set to the y-value. SCALAR_Z, the scalar is set to the z-value. SCALAR_DISTANCE, the scalar is set to (sqrt(x*x+y*y+z*z)). I.e. distance from the origin. SCALAR_FUNCTION_DEFINED, the scalar is set to the value returned from EvaluateScalar().

Definition at line 159 of file vtkParametricFunctionSource.h.

void vtkParametricFunctionSource::SetScalarModeToU0V0 ( void ) [inline]

Get/Set the mode used for the scalar data. The options are: SCALAR_NONE, (default) scalars are not generated. SCALAR_U, the scalar is set to the u-value. SCALAR_V, the scalar is set to the v-value. SCALAR_U0, the scalar is set to 1 if u = (u_max - u_min)/2 = u_avg, 0 otherwise. SCALAR_V0, the scalar is set to 1 if v = (v_max - v_min)/2 = v_avg, 0 otherwise. SCALAR_U0V0, the scalar is set to 1 if u == u_avg, 2 if v == v_avg, 3 if u = u_avg && v = v_avg, 0 otherwise. SCALAR_MODULUS, the scalar is set to (sqrt(u*u+v*v)), this is measured relative to (u_avg,v_avg). SCALAR_PHASE, the scalar is set to (atan2(v,u)) (in degrees, 0 to 360), this is measured relative to (u_avg,v_avg). SCALAR_QUADRANT, the scalar is set to 1, 2, 3 or 4 depending upon the quadrant of the point (u,v). SCALAR_X, the scalar is set to the x-value. SCALAR_Y, the scalar is set to the y-value. SCALAR_Z, the scalar is set to the z-value. SCALAR_DISTANCE, the scalar is set to (sqrt(x*x+y*y+z*z)). I.e. distance from the origin. SCALAR_FUNCTION_DEFINED, the scalar is set to the value returned from EvaluateScalar().

Definition at line 160 of file vtkParametricFunctionSource.h.

void vtkParametricFunctionSource::SetScalarModeToModulus ( void ) [inline]

Get/Set the mode used for the scalar data. The options are: SCALAR_NONE, (default) scalars are not generated. SCALAR_U, the scalar is set to the u-value. SCALAR_V, the scalar is set to the v-value. SCALAR_U0, the scalar is set to 1 if u = (u_max - u_min)/2 = u_avg, 0 otherwise. SCALAR_V0, the scalar is set to 1 if v = (v_max - v_min)/2 = v_avg, 0 otherwise. SCALAR_U0V0, the scalar is set to 1 if u == u_avg, 2 if v == v_avg, 3 if u = u_avg && v = v_avg, 0 otherwise. SCALAR_MODULUS, the scalar is set to (sqrt(u*u+v*v)), this is measured relative to (u_avg,v_avg). SCALAR_PHASE, the scalar is set to (atan2(v,u)) (in degrees, 0 to 360), this is measured relative to (u_avg,v_avg). SCALAR_QUADRANT, the scalar is set to 1, 2, 3 or 4 depending upon the quadrant of the point (u,v). SCALAR_X, the scalar is set to the x-value. SCALAR_Y, the scalar is set to the y-value. SCALAR_Z, the scalar is set to the z-value. SCALAR_DISTANCE, the scalar is set to (sqrt(x*x+y*y+z*z)). I.e. distance from the origin. SCALAR_FUNCTION_DEFINED, the scalar is set to the value returned from EvaluateScalar().

Definition at line 161 of file vtkParametricFunctionSource.h.

void vtkParametricFunctionSource::SetScalarModeToPhase ( void ) [inline]

Get/Set the mode used for the scalar data. The options are: SCALAR_NONE, (default) scalars are not generated. SCALAR_U, the scalar is set to the u-value. SCALAR_V, the scalar is set to the v-value. SCALAR_U0, the scalar is set to 1 if u = (u_max - u_min)/2 = u_avg, 0 otherwise. SCALAR_V0, the scalar is set to 1 if v = (v_max - v_min)/2 = v_avg, 0 otherwise. SCALAR_U0V0, the scalar is set to 1 if u == u_avg, 2 if v == v_avg, 3 if u = u_avg && v = v_avg, 0 otherwise. SCALAR_MODULUS, the scalar is set to (sqrt(u*u+v*v)), this is measured relative to (u_avg,v_avg). SCALAR_PHASE, the scalar is set to (atan2(v,u)) (in degrees, 0 to 360), this is measured relative to (u_avg,v_avg). SCALAR_QUADRANT, the scalar is set to 1, 2, 3 or 4 depending upon the quadrant of the point (u,v). SCALAR_X, the scalar is set to the x-value. SCALAR_Y, the scalar is set to the y-value. SCALAR_Z, the scalar is set to the z-value. SCALAR_DISTANCE, the scalar is set to (sqrt(x*x+y*y+z*z)). I.e. distance from the origin. SCALAR_FUNCTION_DEFINED, the scalar is set to the value returned from EvaluateScalar().

Definition at line 162 of file vtkParametricFunctionSource.h.

void vtkParametricFunctionSource::SetScalarModeToQuadrant ( void ) [inline]

Get/Set the mode used for the scalar data. The options are: SCALAR_NONE, (default) scalars are not generated. SCALAR_U, the scalar is set to the u-value. SCALAR_V, the scalar is set to the v-value. SCALAR_U0, the scalar is set to 1 if u = (u_max - u_min)/2 = u_avg, 0 otherwise. SCALAR_V0, the scalar is set to 1 if v = (v_max - v_min)/2 = v_avg, 0 otherwise. SCALAR_U0V0, the scalar is set to 1 if u == u_avg, 2 if v == v_avg, 3 if u = u_avg && v = v_avg, 0 otherwise. SCALAR_MODULUS, the scalar is set to (sqrt(u*u+v*v)), this is measured relative to (u_avg,v_avg). SCALAR_PHASE, the scalar is set to (atan2(v,u)) (in degrees, 0 to 360), this is measured relative to (u_avg,v_avg). SCALAR_QUADRANT, the scalar is set to 1, 2, 3 or 4 depending upon the quadrant of the point (u,v). SCALAR_X, the scalar is set to the x-value. SCALAR_Y, the scalar is set to the y-value. SCALAR_Z, the scalar is set to the z-value. SCALAR_DISTANCE, the scalar is set to (sqrt(x*x+y*y+z*z)). I.e. distance from the origin. SCALAR_FUNCTION_DEFINED, the scalar is set to the value returned from EvaluateScalar().

Definition at line 163 of file vtkParametricFunctionSource.h.

void vtkParametricFunctionSource::SetScalarModeToX ( void ) [inline]

Get/Set the mode used for the scalar data. The options are: SCALAR_NONE, (default) scalars are not generated. SCALAR_U, the scalar is set to the u-value. SCALAR_V, the scalar is set to the v-value. SCALAR_U0, the scalar is set to 1 if u = (u_max - u_min)/2 = u_avg, 0 otherwise. SCALAR_V0, the scalar is set to 1 if v = (v_max - v_min)/2 = v_avg, 0 otherwise. SCALAR_U0V0, the scalar is set to 1 if u == u_avg, 2 if v == v_avg, 3 if u = u_avg && v = v_avg, 0 otherwise. SCALAR_MODULUS, the scalar is set to (sqrt(u*u+v*v)), this is measured relative to (u_avg,v_avg). SCALAR_PHASE, the scalar is set to (atan2(v,u)) (in degrees, 0 to 360), this is measured relative to (u_avg,v_avg). SCALAR_QUADRANT, the scalar is set to 1, 2, 3 or 4 depending upon the quadrant of the point (u,v). SCALAR_X, the scalar is set to the x-value. SCALAR_Y, the scalar is set to the y-value. SCALAR_Z, the scalar is set to the z-value. SCALAR_DISTANCE, the scalar is set to (sqrt(x*x+y*y+z*z)). I.e. distance from the origin. SCALAR_FUNCTION_DEFINED, the scalar is set to the value returned from EvaluateScalar().

Definition at line 164 of file vtkParametricFunctionSource.h.

void vtkParametricFunctionSource::SetScalarModeToY ( void ) [inline]

Get/Set the mode used for the scalar data. The options are: SCALAR_NONE, (default) scalars are not generated. SCALAR_U, the scalar is set to the u-value. SCALAR_V, the scalar is set to the v-value. SCALAR_U0, the scalar is set to 1 if u = (u_max - u_min)/2 = u_avg, 0 otherwise. SCALAR_V0, the scalar is set to 1 if v = (v_max - v_min)/2 = v_avg, 0 otherwise. SCALAR_U0V0, the scalar is set to 1 if u == u_avg, 2 if v == v_avg, 3 if u = u_avg && v = v_avg, 0 otherwise. SCALAR_MODULUS, the scalar is set to (sqrt(u*u+v*v)), this is measured relative to (u_avg,v_avg). SCALAR_PHASE, the scalar is set to (atan2(v,u)) (in degrees, 0 to 360), this is measured relative to (u_avg,v_avg). SCALAR_QUADRANT, the scalar is set to 1, 2, 3 or 4 depending upon the quadrant of the point (u,v). SCALAR_X, the scalar is set to the x-value. SCALAR_Y, the scalar is set to the y-value. SCALAR_Z, the scalar is set to the z-value. SCALAR_DISTANCE, the scalar is set to (sqrt(x*x+y*y+z*z)). I.e. distance from the origin. SCALAR_FUNCTION_DEFINED, the scalar is set to the value returned from EvaluateScalar().

Definition at line 165 of file vtkParametricFunctionSource.h.

void vtkParametricFunctionSource::SetScalarModeToZ ( void ) [inline]

Get/Set the mode used for the scalar data. The options are: SCALAR_NONE, (default) scalars are not generated. SCALAR_U, the scalar is set to the u-value. SCALAR_V, the scalar is set to the v-value. SCALAR_U0, the scalar is set to 1 if u = (u_max - u_min)/2 = u_avg, 0 otherwise. SCALAR_V0, the scalar is set to 1 if v = (v_max - v_min)/2 = v_avg, 0 otherwise. SCALAR_U0V0, the scalar is set to 1 if u == u_avg, 2 if v == v_avg, 3 if u = u_avg && v = v_avg, 0 otherwise. SCALAR_MODULUS, the scalar is set to (sqrt(u*u+v*v)), this is measured relative to (u_avg,v_avg). SCALAR_PHASE, the scalar is set to (atan2(v,u)) (in degrees, 0 to 360), this is measured relative to (u_avg,v_avg). SCALAR_QUADRANT, the scalar is set to 1, 2, 3 or 4 depending upon the quadrant of the point (u,v). SCALAR_X, the scalar is set to the x-value. SCALAR_Y, the scalar is set to the y-value. SCALAR_Z, the scalar is set to the z-value. SCALAR_DISTANCE, the scalar is set to (sqrt(x*x+y*y+z*z)). I.e. distance from the origin. SCALAR_FUNCTION_DEFINED, the scalar is set to the value returned from EvaluateScalar().

Definition at line 166 of file vtkParametricFunctionSource.h.

void vtkParametricFunctionSource::SetScalarModeToDistance ( void ) [inline]

Get/Set the mode used for the scalar data. The options are: SCALAR_NONE, (default) scalars are not generated. SCALAR_U, the scalar is set to the u-value. SCALAR_V, the scalar is set to the v-value. SCALAR_U0, the scalar is set to 1 if u = (u_max - u_min)/2 = u_avg, 0 otherwise. SCALAR_V0, the scalar is set to 1 if v = (v_max - v_min)/2 = v_avg, 0 otherwise. SCALAR_U0V0, the scalar is set to 1 if u == u_avg, 2 if v == v_avg, 3 if u = u_avg && v = v_avg, 0 otherwise. SCALAR_MODULUS, the scalar is set to (sqrt(u*u+v*v)), this is measured relative to (u_avg,v_avg). SCALAR_PHASE, the scalar is set to (atan2(v,u)) (in degrees, 0 to 360), this is measured relative to (u_avg,v_avg). SCALAR_QUADRANT, the scalar is set to 1, 2, 3 or 4 depending upon the quadrant of the point (u,v). SCALAR_X, the scalar is set to the x-value. SCALAR_Y, the scalar is set to the y-value. SCALAR_Z, the scalar is set to the z-value. SCALAR_DISTANCE, the scalar is set to (sqrt(x*x+y*y+z*z)). I.e. distance from the origin. SCALAR_FUNCTION_DEFINED, the scalar is set to the value returned from EvaluateScalar().

Definition at line 167 of file vtkParametricFunctionSource.h.

void vtkParametricFunctionSource::SetScalarModeToFunctionDefined ( void ) [inline]

Get/Set the mode used for the scalar data. The options are: SCALAR_NONE, (default) scalars are not generated. SCALAR_U, the scalar is set to the u-value. SCALAR_V, the scalar is set to the v-value. SCALAR_U0, the scalar is set to 1 if u = (u_max - u_min)/2 = u_avg, 0 otherwise. SCALAR_V0, the scalar is set to 1 if v = (v_max - v_min)/2 = v_avg, 0 otherwise. SCALAR_U0V0, the scalar is set to 1 if u == u_avg, 2 if v == v_avg, 3 if u = u_avg && v = v_avg, 0 otherwise. SCALAR_MODULUS, the scalar is set to (sqrt(u*u+v*v)), this is measured relative to (u_avg,v_avg). SCALAR_PHASE, the scalar is set to (atan2(v,u)) (in degrees, 0 to 360), this is measured relative to (u_avg,v_avg). SCALAR_QUADRANT, the scalar is set to 1, 2, 3 or 4 depending upon the quadrant of the point (u,v). SCALAR_X, the scalar is set to the x-value. SCALAR_Y, the scalar is set to the y-value. SCALAR_Z, the scalar is set to the z-value. SCALAR_DISTANCE, the scalar is set to (sqrt(x*x+y*y+z*z)). I.e. distance from the origin. SCALAR_FUNCTION_DEFINED, the scalar is set to the value returned from EvaluateScalar().

Definition at line 168 of file vtkParametricFunctionSource.h.

unsigned long vtkParametricFunctionSource::GetMTime ( ) [virtual]

Return the MTime also considering the parametric function.

Reimplemented from vtkObject.

int vtkParametricFunctionSource::RequestData	(	vtkInformation *	request,
		vtkInformationVector **	inputVector,
		vtkInformationVector *	outputVector
	)			`[protected, virtual]`
