vtkPassThroughLayoutStrategy Class Reference

#include <vtkPassThroughLayoutStrategy.h>

Inheritance diagram for vtkPassThroughLayoutStrategy:

Inheritance graph
[legend]

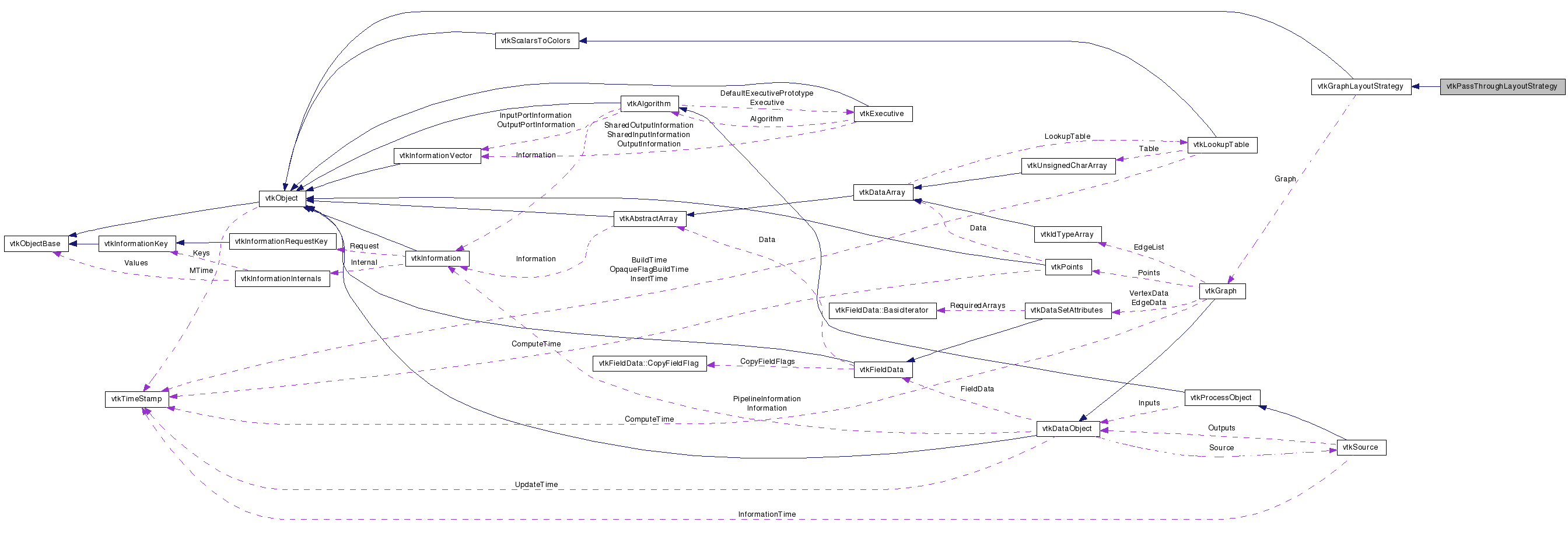

Collaboration diagram for vtkPassThroughLayoutStrategy:

Collaboration graph
[legend]

List of all members.


Detailed Description

a layout strategy that does absolutely nothing

Yes, this incredible strategy does absoluted nothing to the data so in affect passes through the graph untouched. This strategy is useful in the cases where the graph is already laid out.

Tests:
vtkPassThroughLayoutStrategy (Tests)

Definition at line 37 of file vtkPassThroughLayoutStrategy.h.


Public Types

typedef vtkGraphLayoutStrategy Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void Initialize ()
virtual void Layout ()
virtual int IsLayoutComplete ()

Static Public Member Functions

static
vtkPassThroughLayoutStrategy
New ()
static int IsTypeOf (const char *type)
static
vtkPassThroughLayoutStrategy
SafeDownCast (vtkObject *o)

Protected Member Functions

 vtkPassThroughLayoutStrategy ()
 ~vtkPassThroughLayoutStrategy ()

Member Typedef Documentation

Reimplemented from vtkGraphLayoutStrategy.

Definition at line 42 of file vtkPassThroughLayoutStrategy.h.


Constructor & Destructor Documentation

vtkPassThroughLayoutStrategy::vtkPassThroughLayoutStrategy (  )  [protected]

vtkPassThroughLayoutStrategy::~vtkPassThroughLayoutStrategy (  )  [protected]


Member Function Documentation

static vtkPassThroughLayoutStrategy* vtkPassThroughLayoutStrategy::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

virtual const char* vtkPassThroughLayoutStrategy::GetClassName (  )  [virtual]

Reimplemented from vtkGraphLayoutStrategy.

static int vtkPassThroughLayoutStrategy::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkGraphLayoutStrategy.

virtual int vtkPassThroughLayoutStrategy::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkGraphLayoutStrategy.

static vtkPassThroughLayoutStrategy* vtkPassThroughLayoutStrategy::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkGraphLayoutStrategy.

void vtkPassThroughLayoutStrategy::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkGraphLayoutStrategy.

virtual void vtkPassThroughLayoutStrategy::Initialize (  )  [virtual]

This strategy sets up some data structures for faster processing of each Layout() call

Reimplemented from vtkGraphLayoutStrategy.

virtual void vtkPassThroughLayoutStrategy::Layout (  )  [virtual]

This is the layout method where the graph that was set in SetGraph() is laid out. The method can either entirely layout the graph or iteratively lay out the graph. If you have an iterative layout please implement the IsLayoutComplete() method.

Implements vtkGraphLayoutStrategy.

virtual int vtkPassThroughLayoutStrategy::IsLayoutComplete (  )  [inline, virtual]

I'm an iterative layout so this method lets the caller know if I'm done laying out the graph

Reimplemented from vtkGraphLayoutStrategy.

Definition at line 58 of file vtkPassThroughLayoutStrategy.h.


The documentation for this class was generated from the following file:
