vtkPExodusReader Class Reference

#include <vtkPExodusReader.h>

Inheritance diagram for vtkPExodusReader:

[legend]

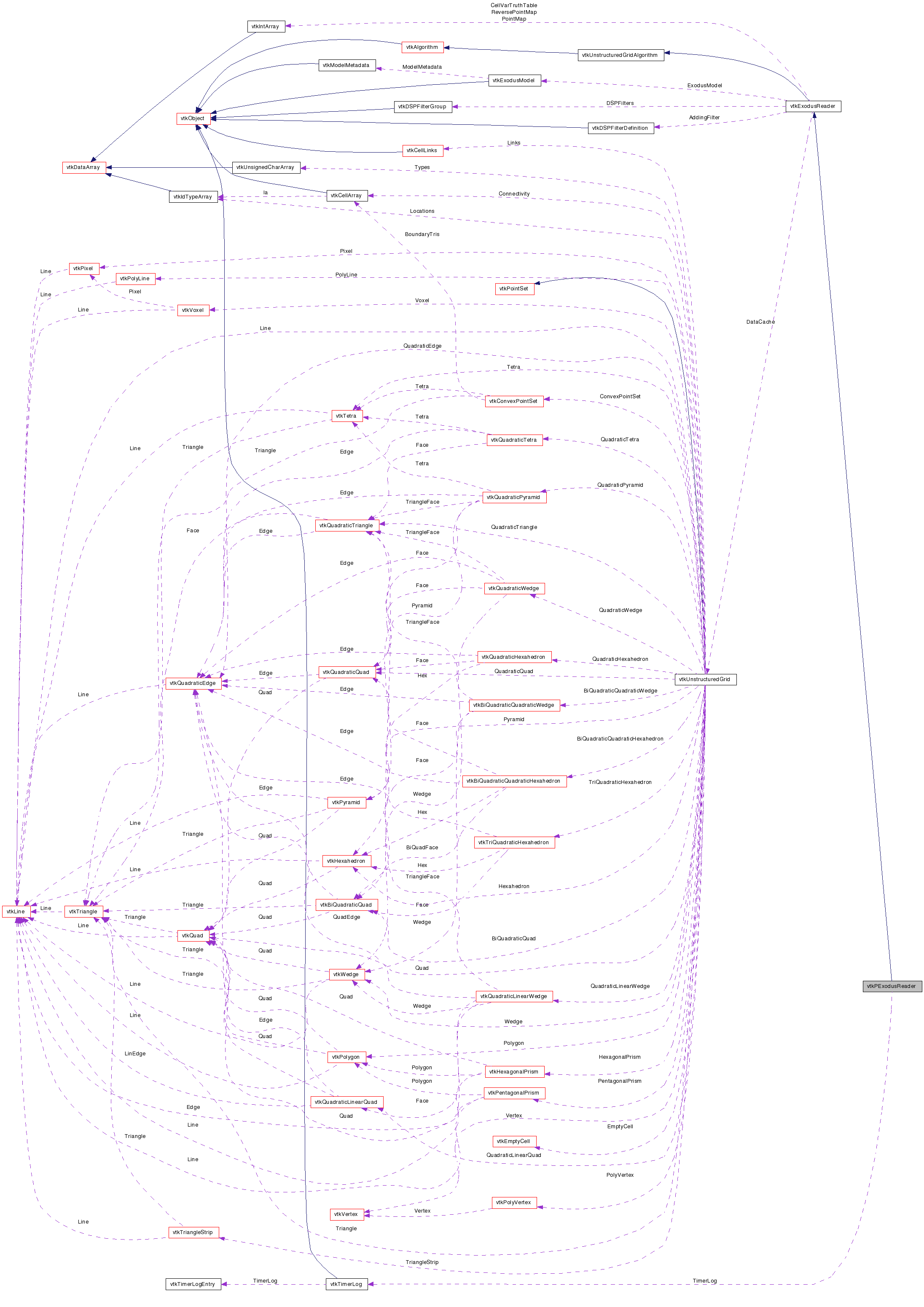

Collaboration diagram for vtkPExodusReader:

[legend]

List of all members.

Detailed Description

Read exodus 2 files .ex2.

vtkPExodusReader is a unstructured grid source object that reads PExodusReaderII files. Most of the meta data associated with the file is loaded when UpdateInformation is called. This includes information like Title, number of blocks, number and names of arrays. This data can be retrieved from methods in this reader. Separate arrays that are meant to be a single vector, are combined internally for convenience. To be combined, the array names have to be identical except for a trailing X,Y and Z (or x,y,z). By default all cell and point arrays are loaded. However, the user can flag arrays not to load with the methods "SetPointDataArrayLoadFlag" and "SetCellDataArrayLoadFlag". The reader responds to piece requests by loading only a range of the possible blocks. Unused points are filtered out internally.

Definition at line 47 of file vtkPExodusReader.h.


int	DeterminePattern (const char *file)
static int	DetermineFileId (const char *file)
Public Types
typedef vtkExodusReader	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
void	SetFileNames (int nfiles, const char **names)
virtual void	SetFileName (const char *name)
char **	GetFileNames ()
int	GetNumberOfFileNames ()
void	SetGenerateFileIdArray (int flag)
virtual int	GetGenerateFileIdArray ()
virtual void	GenerateFileIdArrayOn ()
virtual void	GenerateFileIdArrayOff ()
virtual int	GetTotalNumberOfElements ()
virtual int	GetTotalNumberOfNodes ()
int	GetNumberOfVariableArrays ()
const char *	GetVariableArrayName (int a_which)
void	EnableDSPFiltering ()
void	AddFilter (vtkDSPFilterDefinition *a_filter)
void	StartAddingFilter ()
void	AddFilterInputVar (char *name)
void	AddFilterOutputVar (char *name)
void	AddFilterNumeratorWeight (double weight)
void	AddFilterForwardNumeratorWeight (double weight)
void	AddFilterDenominatorWeight (double weight)
void	FinishAddingFilter ()
void	RemoveFilter (char *a_outputVariableName)

virtual void	SetFilePattern (const char *)
virtual char *	GetFilePattern ()
virtual void	SetFilePrefix (const char *)
virtual char *	GetFilePrefix ()

void	SetFileRange (int, int)
void	SetFileRange (int *r)
virtual int *	GetFileRange ()
virtual void	GetFileRange (int &, int &)
virtual void	GetFileRange (int[2])

virtual int	GetNumberOfFiles ()
Static Public Member Functions
static vtkPExodusReader *	New ()
static int	IsTypeOf (const char *type)
static vtkPExodusReader *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkPExodusReader ()
	~vtkPExodusReader ()
void	GetDSPOutputArrays (int exoid, vtkUnstructuredGrid *output)
void	SetUpEmptyGrid ()
int	RequestInformation (vtkInformation , vtkInformationVector , vtkInformationVector )
int	RequestData (vtkInformation , vtkInformationVector , vtkInformationVector )
Protected Attributes
char *	FilePattern
char *	CurrentFilePattern
char *	FilePrefix
char *	CurrentFilePrefix
char *	MultiFileName
int	FileRange [2]
int	CurrentFileRange [2]
int	NumberOfFiles
char **	FileNames
int	NumberOfFileNames
int	GenerateFileIdArray
vtkstd::vector< vtkExodusReader * >	readerList
int	Timing
vtkTimerLog *	TimerLog

Member Typedef Documentation

typedef vtkExodusReader vtkPExodusReader::Superclass

Reimplemented from vtkExodusReader.

Definition at line 51 of file vtkPExodusReader.h.

Constructor & Destructor Documentation

vtkPExodusReader::vtkPExodusReader ( ) [protected]

vtkPExodusReader::~vtkPExodusReader ( ) [protected]

Member Function Documentation

static vtkPExodusReader* vtkPExodusReader::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkExodusReader.

virtual const char* vtkPExodusReader::GetClassName ( ) [virtual]

Reimplemented from vtkExodusReader.

static int vtkPExodusReader::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkExodusReader.

virtual int vtkPExodusReader::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkExodusReader.

static vtkPExodusReader* vtkPExodusReader::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkExodusReader.

void vtkPExodusReader::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkExodusReader.

virtual void vtkPExodusReader::SetFilePattern ( const char * ) [virtual]

These methods tell the reader that the data is ditributed across multiple files. This is for distributed execution. It this case, pieces are mapped to files. The pattern should have one d to format the file number. FileNumberRange is used to generate file numbers. I was thinking of having an arbitrary list of file numbers. This may happen in the future. (That is why there is no GetFileNumberRange method.

virtual char* vtkPExodusReader::GetFilePattern ( ) [virtual]

These methods tell the reader that the data is ditributed across multiple files. This is for distributed execution. It this case, pieces are mapped to files. The pattern should have one d to format the file number. FileNumberRange is used to generate file numbers. I was thinking of having an arbitrary list of file numbers. This may happen in the future. (That is why there is no GetFileNumberRange method.

virtual void vtkPExodusReader::SetFilePrefix ( const char * ) [virtual]

These methods tell the reader that the data is ditributed across multiple files. This is for distributed execution. It this case, pieces are mapped to files. The pattern should have one d to format the file number. FileNumberRange is used to generate file numbers. I was thinking of having an arbitrary list of file numbers. This may happen in the future. (That is why there is no GetFileNumberRange method.

virtual char* vtkPExodusReader::GetFilePrefix ( ) [virtual]

These methods tell the reader that the data is ditributed across multiple files. This is for distributed execution. It this case, pieces are mapped to files. The pattern should have one d to format the file number. FileNumberRange is used to generate file numbers. I was thinking of having an arbitrary list of file numbers. This may happen in the future. (That is why there is no GetFileNumberRange method.

void vtkPExodusReader::SetFileRange	(	int	,
		int
	)
