vtkPointsPainter Class Reference

#include <vtkPointsPainter.h>

Inheritance diagram for vtkPointsPainter:

Inheritance graph
[legend]

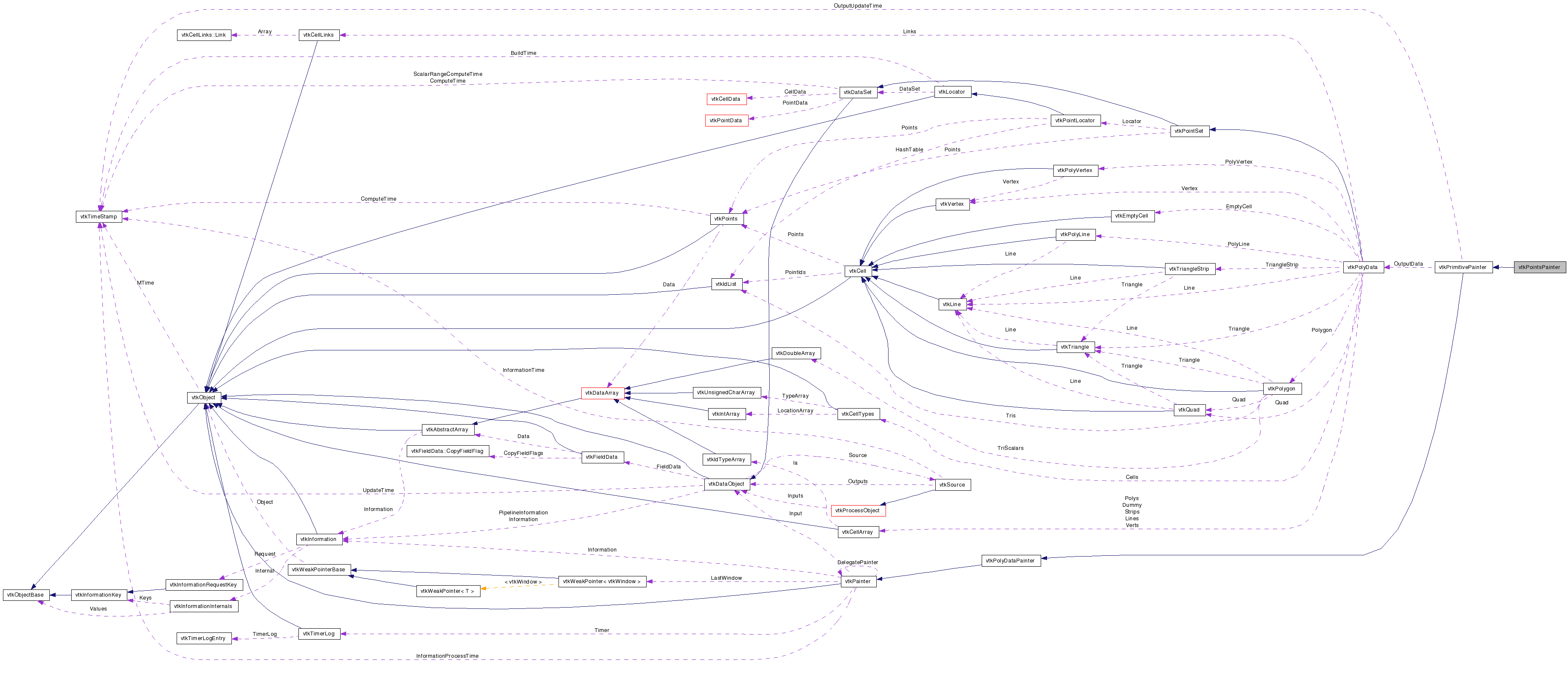

Collaboration diagram for vtkPointsPainter:

Collaboration graph
[legend]

List of all members.


Detailed Description

this painter paints verts.

This painter tries to paint points efficiently. Request to Render any other primitive are ignored and not passed to the delegate painter, if any. This painter cannot handle cell colors/normals. If they are present the request is passed on to the Delegate painter. If this class is able to render the primitive, the render request is not propagated to the delegate painter.

Definition at line 31 of file vtkPointsPainter.h.


Public Types

typedef vtkPrimitivePainter Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)

Static Public Member Functions

static vtkPointsPainterNew ()
static int IsTypeOf (const char *type)
static vtkPointsPainterSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkPointsPainter ()
 ~vtkPointsPainter ()
virtual int RenderPrimitive (unsigned long flags, vtkDataArray *n, vtkUnsignedCharArray *c, vtkDataArray *t, vtkRenderer *ren)

Member Typedef Documentation

Reimplemented from vtkPrimitivePainter.

Definition at line 35 of file vtkPointsPainter.h.


Constructor & Destructor Documentation

vtkPointsPainter::vtkPointsPainter (  )  [protected]

vtkPointsPainter::~vtkPointsPainter (  )  [protected]


Member Function Documentation

static vtkPointsPainter* vtkPointsPainter::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

virtual const char* vtkPointsPainter::GetClassName (  )  [virtual]

Reimplemented from vtkPrimitivePainter.

static int vtkPointsPainter::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkPrimitivePainter.

virtual int vtkPointsPainter::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkPrimitivePainter.

static vtkPointsPainter* vtkPointsPainter::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkPrimitivePainter.

void vtkPointsPainter::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkPrimitivePainter.

virtual int vtkPointsPainter::RenderPrimitive ( unsigned long  flags,
vtkDataArray n,
vtkUnsignedCharArray c,
vtkDataArray t,
vtkRenderer ren
) [protected, virtual]

The actual rendering happens here. This method is called only when SupportedPrimitive is present in typeflags when Render() is invoked.

Implements vtkPrimitivePainter.


The documentation for this class was generated from the following file:
