vtkPointsProjectedHull Class Reference

#include <vtkPointsProjectedHull.h>

Inheritance diagram for vtkPointsProjectedHull:

Inheritance graph
[legend]

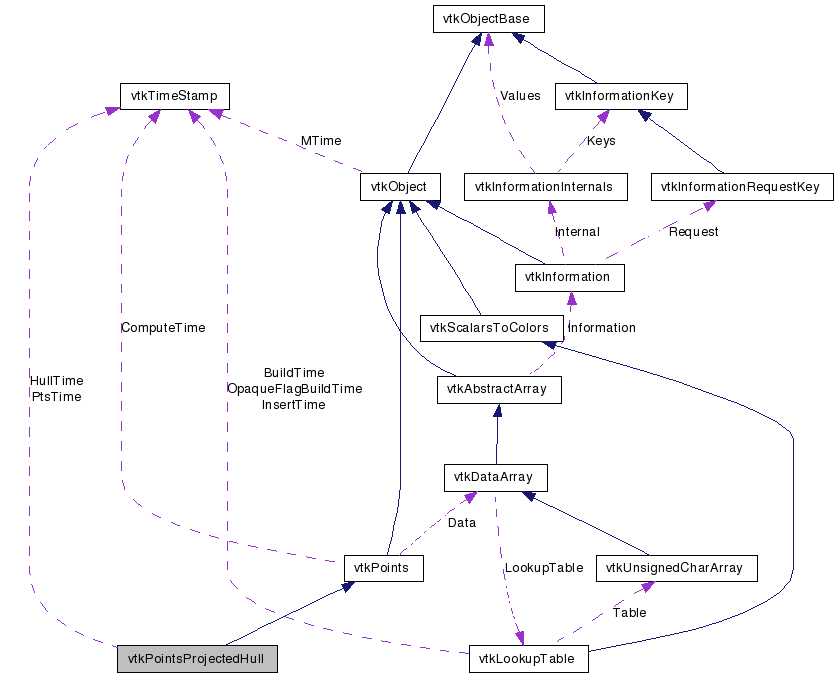

Collaboration diagram for vtkPointsProjectedHull:

Collaboration graph
[legend]

List of all members.


Detailed Description

the convex hull of the orthogonal projection of the vtkPoints in the 3 coordinate directions

a subclass of vtkPoints, it maintains the counter clockwise convex hull of the points (projected orthogonally in the three coordinate directions) and has a method to test for intersection of that hull with an axis aligned rectangle. This is used for intersection tests of 3D volumes.

Definition at line 36 of file vtkPointsProjectedHull.h.


Public Member Functions

void PrintSelf (ostream &os, vtkIndent indent)
int RectangleIntersectionX (vtkPoints *R)
int RectangleIntersectionX (float ymin, float ymax, float zmin, float zmax)
int RectangleIntersectionX (double ymin, double ymax, double zmin, double zmax)
int RectangleIntersectionY (vtkPoints *R)
int RectangleIntersectionY (float zmin, float zmax, float xmin, float xmax)
int RectangleIntersectionY (double zmin, double zmax, double xmin, double xmax)
int RectangleIntersectionZ (vtkPoints *R)
int RectangleIntersectionZ (float xmin, float xmax, float ymin, float ymax)
int RectangleIntersectionZ (double xmin, double xmax, double ymin, double ymax)
int GetCCWHullX (float *pts, int len)
int GetCCWHullX (double *pts, int len)
int GetCCWHullY (float *pts, int len)
int GetCCWHullY (double *pts, int len)
int GetCCWHullZ (float *pts, int len)
int GetCCWHullZ (double *pts, int len)
int GetSizeCCWHullX ()
int GetSizeCCWHullY ()
int GetSizeCCWHullZ ()
void Initialize ()
void Reset ()
void Update ()

Static Public Member Functions

static vtkPointsProjectedHullNew ()

Protected Member Functions

 vtkPointsProjectedHull ()
 ~vtkPointsProjectedHull ()

Constructor & Destructor Documentation

vtkPointsProjectedHull::vtkPointsProjectedHull (  )  [protected]

vtkPointsProjectedHull::~vtkPointsProjectedHull (  )  [protected]


Member Function Documentation

void vtkPointsProjectedHull::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkPoints.

static vtkPointsProjectedHull* vtkPointsProjectedHull::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkPoints.

int vtkPointsProjectedHull::RectangleIntersectionX ( vtkPoints R  )

determine whether the resulting rectangle intersects the convex hull of the projection of the points along that axis.

int vtkPointsProjectedHull::RectangleIntersectionX ( float  ymin,
float  ymax,
float  zmin,
float  zmax
)

the convex hull of the projection of the points along the positive X-axis.

int vtkPointsProjectedHull::RectangleIntersectionX ( double  ymin,
double  ymax,
double  zmin,
double  zmax
)

int vtkPointsProjectedHull::RectangleIntersectionY ( vtkPoints R  )

of the parallel projection along the Y axis of the points

int vtkPointsProjectedHull::RectangleIntersectionY ( float  zmin,
float  zmax,
float  xmin,
float  xmax
)

the convex hull of the projection of the points along the positive Y-axis.

int vtkPointsProjectedHull::RectangleIntersectionY ( double  zmin,
double  zmax,
double  xmin,
double  xmax
)

int vtkPointsProjectedHull::RectangleIntersectionZ ( vtkPoints R  )

of the parallel projection along the Z axis of the points

int vtkPointsProjectedHull::RectangleIntersectionZ ( float  xmin,
float  xmax,
float  ymin,
float  ymax
)

the convex hull of the projection of the points along the positive Z-axis.

int vtkPointsProjectedHull::RectangleIntersectionZ ( double  xmin,
double  xmax,
double  ymin,
double  ymax
)

int vtkPointsProjectedHull::GetCCWHullX ( float *  pts,
int  len
)

Returns the coordinates (y,z) of the points in the convex hull of the projection of the points down the positive x-axis. pts has storage for len*2 values.

int vtkPointsProjectedHull::GetCCWHullX ( double *  pts,
int  len
)

int vtkPointsProjectedHull::GetCCWHullY ( float *  pts,
int  len
)

Returns the coordinates (z, x) of the points in the convex hull of the projection of the points down the positive y-axis. pts has storage for len*2 values.

int vtkPointsProjectedHull::GetCCWHullY ( double *  pts,
int  len
)

int vtkPointsProjectedHull::GetCCWHullZ ( float *  pts,
int  len
)

Returns the coordinates (x, y) of the points in the convex hull of the projection of the points down the positive z-axis. pts has storage for len*2 values.

int vtkPointsProjectedHull::GetCCWHullZ ( double *  pts,
int  len
)

int vtkPointsProjectedHull::GetSizeCCWHullX (  )

Returns the number of points in the convex hull of the projection of the points down the positive x-axis

int vtkPointsProjectedHull::GetSizeCCWHullY (  )

Returns the number of points in the convex hull of the projection of the points down the positive y-axis

int vtkPointsProjectedHull::GetSizeCCWHullZ (  )

Returns the number of points in the convex hull of the projection of the points down the positive z-axis

void vtkPointsProjectedHull::Initialize (  )  [virtual]

Return object to instantiated state.

Reimplemented from vtkPoints.

void vtkPointsProjectedHull::Reset (  )  [inline, virtual]

Make object look empty but do not delete memory.

Reimplemented from vtkPoints.

Definition at line 113 of file vtkPointsProjectedHull.h.

void vtkPointsProjectedHull::Update (  )

Forces recalculation of convex hulls, use this if you delete/add points


The documentation for this class was generated from the following file:
