vtkQtTableView Class Reference

#include <vtkQtTableView.h>

Inheritance diagram for vtkQtTableView:

Inheritance graph
[legend]

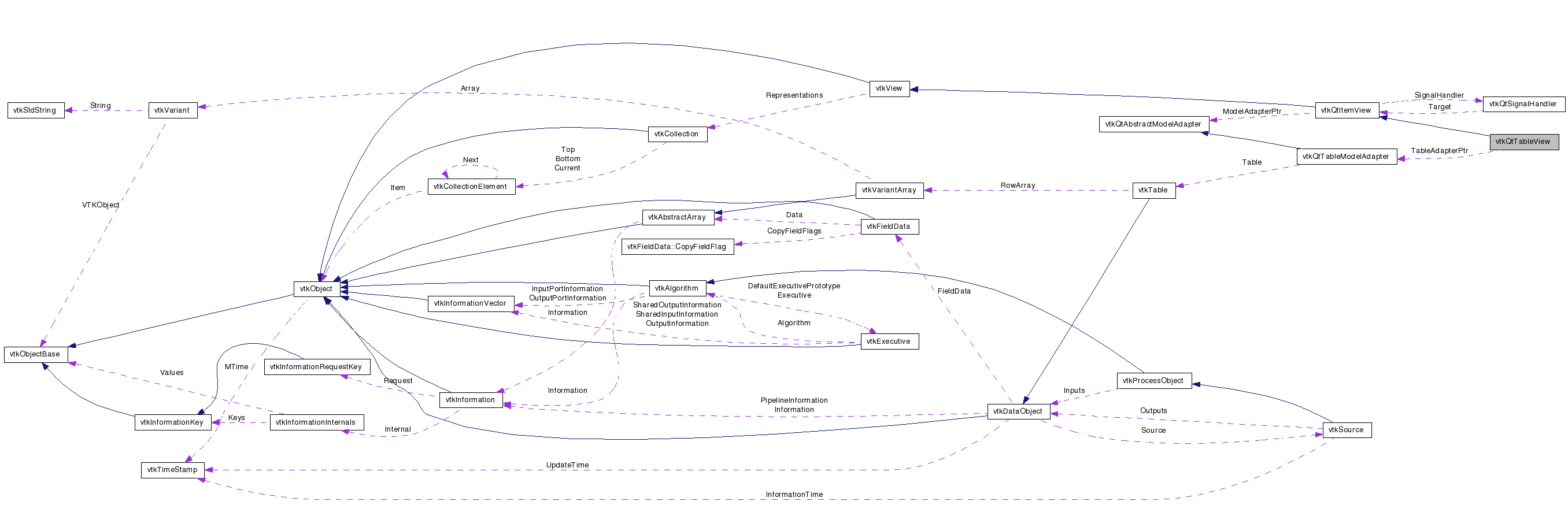

Collaboration diagram for vtkQtTableView:

Collaboration graph
[legend]

List of all members.


Detailed Description

A VTK view based on a Qt table view.

vtkQtTableView is a VTK view with an underlying QTableView.

Thanks:
Thanks to Brian Wylie from Sandia National Laboratories for implementing this class
Tests:
vtkQtTableView (Tests)

Definition at line 43 of file vtkQtTableView.h.


Public Types

typedef vtkQtItemView Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void SetItemView (QAbstractItemView *)
virtual void SetItemModelAdapter (vtkQtAbstractModelAdapter *qma)
virtual vtkTableGetVTKTable ()

Static Public Member Functions

static vtkQtTableViewNew ()
static int IsTypeOf (const char *type)
static vtkQtTableViewSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkQtTableView ()
 ~vtkQtTableView ()

Member Typedef Documentation

Reimplemented from vtkQtItemView.

Definition at line 47 of file vtkQtTableView.h.


Constructor & Destructor Documentation

vtkQtTableView::vtkQtTableView (  )  [protected]

vtkQtTableView::~vtkQtTableView (  )  [protected]


Member Function Documentation

static vtkQtTableView* vtkQtTableView::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkQtItemView.

virtual const char* vtkQtTableView::GetClassName (  )  [virtual]

Reimplemented from vtkQtItemView.

static int vtkQtTableView::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkQtItemView.

virtual int vtkQtTableView::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkQtItemView.

static vtkQtTableView* vtkQtTableView::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkQtItemView.

void vtkQtTableView::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkQtItemView.

virtual void vtkQtTableView::SetItemView ( QAbstractItemView *   )  [virtual]

Set the underlying Qt view.

Reimplemented from vtkQtItemView.

virtual void vtkQtTableView::SetItemModelAdapter ( vtkQtAbstractModelAdapter qma  )  [virtual]

Set the underlying Qt model adapter.

Reimplemented from vtkQtItemView.

virtual vtkTable* vtkQtTableView::GetVTKTable (  )  [virtual]

Get the underlying vtkTable


The documentation for this class was generated from the following file:
