vtkRectilinearGrid Class Reference

#include <vtkRectilinearGrid.h>

Inheritance diagram for vtkRectilinearGrid:

Inheritance graph
[legend]

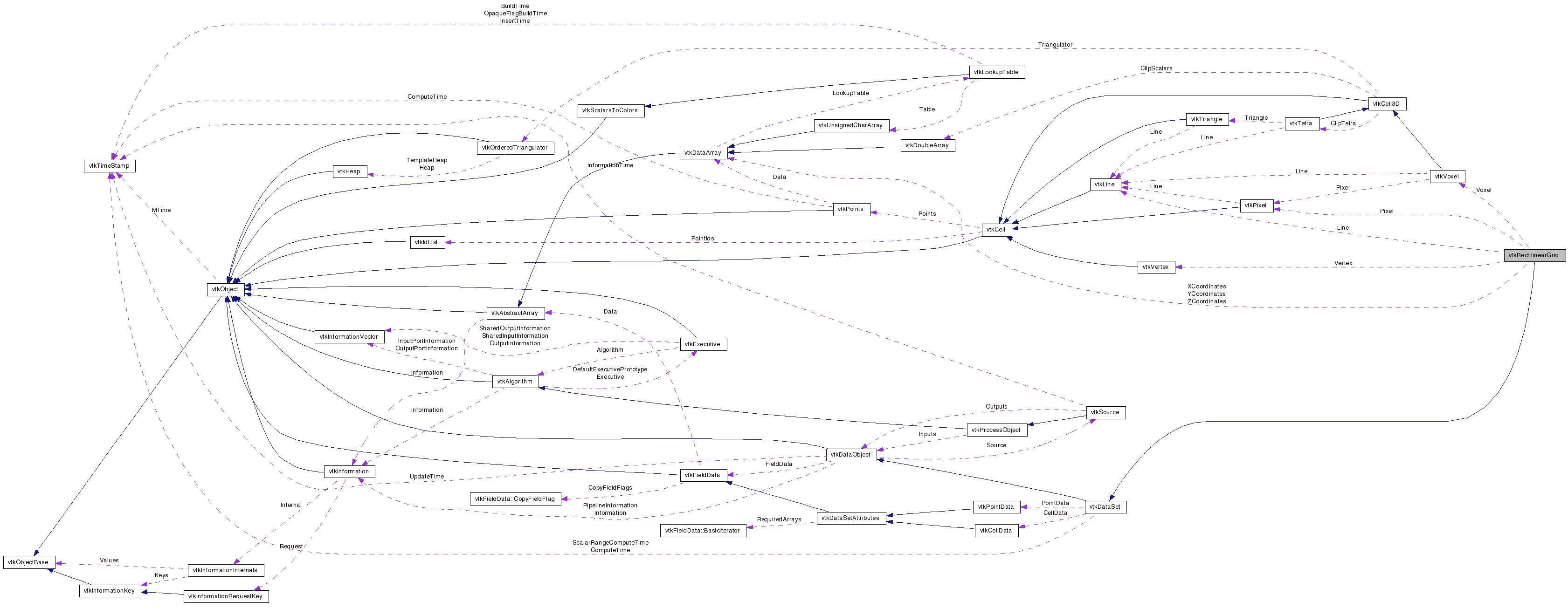

Collaboration diagram for vtkRectilinearGrid:

Collaboration graph
[legend]

List of all members.


Detailed Description

a dataset that is topologically regular with variable spacing in the three coordinate directions

vtkRectilinearGrid is a data object that is a concrete implementation of vtkDataSet. vtkRectilinearGrid represents a geometric structure that is topologically regular with variable spacing in the three coordinate directions x-y-z.

To define a vtkRectilinearGrid, you must specify the dimensions of the data and provide three arrays of values specifying the coordinates along the x-y-z axes. The coordinate arrays are specified using three vtkDataArray objects (one for x, one for y, one for z).

Warning:
Make sure that the dimensions of the grid match the number of coordinates in the x-y-z directions. If not, unpredictable results (including program failure) may result. Also, you must supply coordinates in all three directions, even if the dataset topology is 2D, 1D, or 0D.
Examples:
vtkRectilinearGrid (Examples)
Tests:
vtkRectilinearGrid (Tests)

Definition at line 53 of file vtkRectilinearGrid.h.


Public Types

typedef vtkDataSet Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
int GetDataObjectType ()
void CopyStructure (vtkDataSet *ds)
void Initialize ()
int GetDataDimension ()
int ComputeStructuredCoordinates (double x[3], int ijk[3], double pcoords[3])
vtkIdType ComputePointId (int ijk[3])
vtkIdType ComputeCellId (int ijk[3])
unsigned long GetActualMemorySize ()
int GetExtentType ()
virtual void Crop ()
vtkIdType GetNumberOfCells ()
vtkIdType GetNumberOfPoints ()
double * GetPoint (vtkIdType ptId)
void GetPoint (vtkIdType id, double x[3])
vtkCellGetCell (vtkIdType cellId)
void GetCell (vtkIdType cellId, vtkGenericCell *cell)
void GetCellBounds (vtkIdType cellId, double bounds[6])
int FindPoint (double x, double y, double z)
vtkIdType FindPoint (double x[3])
vtkIdType FindCell (double x[3], vtkCell *cell, vtkIdType cellId, double tol2, int &subId, double pcoords[3], double *weights)
vtkIdType FindCell (double x[3], vtkCell *cell, vtkGenericCell *gencell, vtkIdType cellId, double tol2, int &subId, double pcoords[3], double *weights)
vtkCellFindAndGetCell (double x[3], vtkCell *cell, vtkIdType cellId, double tol2, int &subId, double pcoords[3], double *weights)
int GetCellType (vtkIdType cellId)
void GetCellPoints (vtkIdType cellId, vtkIdList *ptIds)
void GetPointCells (vtkIdType ptId, vtkIdList *cellIds)
void ComputeBounds ()
int GetMaxCellSize ()
void GetCellNeighbors (vtkIdType cellId, vtkIdList *ptIds, vtkIdList *cellIds)
void SetDimensions (int i, int j, int k)
void SetDimensions (int dim[3])
virtual int * GetDimensions ()
virtual void GetDimensions (int data[3])
virtual void SetXCoordinates (vtkDataArray *)
virtual vtkDataArrayGetXCoordinates ()
virtual void SetYCoordinates (vtkDataArray *)
virtual vtkDataArrayGetYCoordinates ()
virtual void SetZCoordinates (vtkDataArray *)
virtual vtkDataArrayGetZCoordinates ()
void SetExtent (int extent[6])
void SetExtent (int x1, int x2, int y1, int y2, int z1, int z2)
virtual int * GetExtent ()
virtual void GetExtent (int &, int &, int &, int &, int &, int &)
virtual void GetExtent (int[6])
void ShallowCopy (vtkDataObject *src)
void DeepCopy (vtkDataObject *src)

Static Public Member Functions

static vtkRectilinearGridNew ()
static int IsTypeOf (const char *type)
static vtkRectilinearGridSafeDownCast (vtkObject *o)
static vtkRectilinearGridGetData (vtkInformation *info)
static vtkRectilinearGridGetData (vtkInformationVector *v, int i=0)

Protected Member Functions

 vtkRectilinearGrid ()
 ~vtkRectilinearGrid ()

Protected Attributes

vtkVertexVertex
vtkLineLine
vtkPixelPixel
vtkVoxelVoxel
int Dimensions [3]
int DataDescription
int Extent [6]
vtkDataArrayXCoordinates
vtkDataArrayYCoordinates
vtkDataArrayZCoordinates
double PointReturn [3]

Member Typedef Documentation

Reimplemented from vtkDataSet.

Definition at line 58 of file vtkRectilinearGrid.h.


Constructor & Destructor Documentation

vtkRectilinearGrid::vtkRectilinearGrid (  )  [protected]

vtkRectilinearGrid::~vtkRectilinearGrid (  )  [protected]


Member Function Documentation

static vtkRectilinearGrid* vtkRectilinearGrid::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkDataObject.

virtual const char* vtkRectilinearGrid::GetClassName (  )  [virtual]

Reimplemented from vtkDataSet.

static int vtkRectilinearGrid::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkDataSet.

virtual int vtkRectilinearGrid::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkDataSet.

static vtkRectilinearGrid* vtkRectilinearGrid::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkDataSet.

void vtkRectilinearGrid::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkDataSet.

int vtkRectilinearGrid::GetDataObjectType (  )  [inline, virtual]

Return what type of dataset this is.

Reimplemented from vtkDataSet.

Definition at line 62 of file vtkRectilinearGrid.h.

void vtkRectilinearGrid::CopyStructure ( vtkDataSet ds  )  [virtual]

Copy the geometric and topological structure of an input rectilinear grid object.

Implements vtkDataSet.

void vtkRectilinearGrid::Initialize (  )  [virtual]

Restore object to initial state. Release memory back to system.

Reimplemented from vtkDataSet.

vtkIdType vtkRectilinearGrid::GetNumberOfCells (  )  [inline, virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.

Implements vtkDataSet.

Definition at line 219 of file vtkRectilinearGrid.h.

vtkIdType vtkRectilinearGrid::GetNumberOfPoints (  )  [inline, virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.

Implements vtkDataSet.

Definition at line 240 of file vtkRectilinearGrid.h.

double* vtkRectilinearGrid::GetPoint ( vtkIdType  ptId  )  [virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.

Implements vtkDataSet.

void vtkRectilinearGrid::GetPoint ( vtkIdType  id,
double  x[3]
) [virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.

Reimplemented from vtkDataSet.

vtkCell* vtkRectilinearGrid::GetCell ( vtkIdType  cellId  )  [virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.

Implements vtkDataSet.

void vtkRectilinearGrid::GetCell ( vtkIdType  cellId,
vtkGenericCell cell
) [virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.

Implements vtkDataSet.

void vtkRectilinearGrid::GetCellBounds ( vtkIdType  cellId,
double  bounds[6]
) [virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.

Reimplemented from vtkDataSet.

int vtkRectilinearGrid::FindPoint ( double  x,
double  y,
double  z
) [inline]

Standard vtkDataSet API methods. See vtkDataSet for more information.

Reimplemented from vtkDataSet.

Definition at line 80 of file vtkRectilinearGrid.h.

vtkIdType vtkRectilinearGrid::FindPoint ( double  x[3]  )  [virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.

Implements vtkDataSet.

vtkIdType vtkRectilinearGrid::FindCell ( double  x[3],
vtkCell cell,
vtkIdType  cellId,
double  tol2,
int &  subId,
double  pcoords[3],
double *  weights
) [virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.

Implements vtkDataSet.

vtkIdType vtkRectilinearGrid::FindCell ( double  x[3],
vtkCell cell,
vtkGenericCell gencell,
vtkIdType  cellId,
double  tol2,
int &  subId,
double  pcoords[3],
double *  weights
) [virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.

Implements vtkDataSet.

vtkCell* vtkRectilinearGrid::FindAndGetCell ( double  x[3],
vtkCell cell,
vtkIdType  cellId,
double  tol2,
int &  subId,
double  pcoords[3],
double *  weights
) [virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.

Reimplemented from vtkDataSet.

int vtkRectilinearGrid::GetCellType ( vtkIdType  cellId  )  [virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.

Implements vtkDataSet.

void vtkRectilinearGrid::GetCellPoints ( vtkIdType  cellId,
vtkIdList ptIds
) [inline, virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.

Implements vtkDataSet.

Definition at line 91 of file vtkRectilinearGrid.h.

void vtkRectilinearGrid::GetPointCells ( vtkIdType  ptId,
vtkIdList cellIds
) [inline, virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.

Implements vtkDataSet.

Definition at line 94 of file vtkRectilinearGrid.h.

void vtkRectilinearGrid::ComputeBounds (  )  [virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.

Reimplemented from vtkDataSet.

int vtkRectilinearGrid::GetMaxCellSize (  )  [inline, virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.

Implements vtkDataSet.

Definition at line 97 of file vtkRectilinearGrid.h.

void vtkRectilinearGrid::GetCellNeighbors ( vtkIdType  cellId,
vtkIdList ptIds,
vtkIdList cellIds
) [virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.

Reimplemented from vtkDataSet.

void vtkRectilinearGrid::SetDimensions ( int  i,
int  j,
int  k
)

Set dimensions of rectilinear grid dataset. This also sets the extent.

void vtkRectilinearGrid::SetDimensions ( int  dim[3]  )

Set dimensions of rectilinear grid dataset. This also sets the extent.

virtual int* vtkRectilinearGrid::GetDimensions (  )  [virtual]

Get dimensions of this rectilinear grid dataset.

virtual void vtkRectilinearGrid::GetDimensions ( int  data[3]  )  [virtual]

Get dimensions of this rectilinear grid dataset.

int vtkRectilinearGrid::GetDataDimension (  )  [inline]

Return the dimensionality of the data.

Definition at line 246 of file vtkRectilinearGrid.h.

int vtkRectilinearGrid::ComputeStructuredCoordinates ( double  x[3],
int  ijk[3],
double  pcoords[3]
)

Convenience function computes the structured coordinates for a point x[3]. The cell is specified by the array ijk[3], and the parametric coordinates in the cell are specified with pcoords[3]. The function returns a 0 if the point x is outside of the grid, and a 1 if inside the grid.

vtkIdType vtkRectilinearGrid::ComputePointId ( int  ijk[3]  )  [inline]

Given a location in structured coordinates (i-j-k), return the point id.

Definition at line 252 of file vtkRectilinearGrid.h.

vtkIdType vtkRectilinearGrid::ComputeCellId ( int  ijk[3]  )  [inline]

Given a location in structured coordinates (i-j-k), return the cell id.

Definition at line 258 of file vtkRectilinearGrid.h.

virtual void vtkRectilinearGrid::SetXCoordinates ( vtkDataArray  )  [virtual]

Specify the grid coordinates in the x-direction.

virtual vtkDataArray* vtkRectilinearGrid::GetXCoordinates (  )  [virtual]

Specify the grid coordinates in the x-direction.

virtual void vtkRectilinearGrid::SetYCoordinates ( vtkDataArray  )  [virtual]

Specify the grid coordinates in the y-direction.

virtual vtkDataArray* vtkRectilinearGrid::GetYCoordinates (  )  [virtual]

Specify the grid coordinates in the y-direction.

virtual void vtkRectilinearGrid::SetZCoordinates ( vtkDataArray  )  [virtual]

Specify the grid coordinates in the z-direction.

virtual vtkDataArray* vtkRectilinearGrid::GetZCoordinates (  )  [virtual]

Specify the grid coordinates in the z-direction.

void vtkRectilinearGrid::SetExtent ( int  extent[6]  )

Different ways to set the extent of the data array. The extent should be set before the "Scalars" are set or allocated. The Extent is stored in the order (X, Y, Z).

void vtkRectilinearGrid::SetExtent ( int  x1,
int  x2,
int  y1,
int  y2,
int  z1,
int  z2
)

Different ways to set the extent of the data array. The extent should be set before the "Scalars" are set or allocated. The Extent is stored in the order (X, Y, Z).

virtual int* vtkRectilinearGrid::GetExtent (  )  [virtual]

Different ways to set the extent of the data array. The extent should be set before the "Scalars" are set or allocated. The Extent is stored in the order (X, Y, Z).

virtual void vtkRectilinearGrid::GetExtent ( int &  ,
int &  ,
int &  ,
int &  ,
int &  ,
int &
) [virtual]

Different ways to set the extent of the data array. The extent should be set before the "Scalars" are set or allocated. The Extent is stored in the order (X, Y, Z).

virtual void vtkRectilinearGrid::GetExtent ( int  [6]  )  [virtual]

Different ways to set the extent of the data array. The extent should be set before the "Scalars" are set or allocated. The Extent is stored in the order (X, Y, Z).

unsigned long vtkRectilinearGrid::GetActualMemorySize (  )  [virtual]

Return the actual size of the data in kilobytes. This number is valid only after the pipeline has updated. The memory size returned is guaranteed to be greater than or equal to the memory required to represent the data (e.g., extra space in arrays, etc. are not included in the return value). THIS METHOD IS THREAD SAFE.

Reimplemented from vtkDataSet.

void vtkRectilinearGrid::ShallowCopy ( vtkDataObject src  )  [virtual]

Shallow and Deep copy.

Reimplemented from vtkDataSet.

void vtkRectilinearGrid::DeepCopy ( vtkDataObject src  )  [virtual]

Shallow and Deep copy.

Reimplemented from vtkDataSet.

int vtkRectilinearGrid::GetExtentType (  )  [inline, virtual]

Structured extent. The extent type is a 3D extent

Reimplemented from vtkDataObject.

Definition at line 173 of file vtkRectilinearGrid.h.

virtual void vtkRectilinearGrid::Crop (  )  [virtual]

Reallocates and copies to set the Extent to the UpdateExtent. This is used internally when the exact extent is requested, and the source generated more than the update extent.

Reimplemented from vtkDataObject.

static vtkRectilinearGrid* vtkRectilinearGrid::GetData ( vtkInformation info  )  [static]

Retrieve an instance of this class from an information object.

Reimplemented from vtkDataSet.

static vtkRectilinearGrid* vtkRectilinearGrid::GetData ( vtkInformationVector v,
int  i = 0
) [static]

Retrieve an instance of this class from an information object.

Reimplemented from vtkDataSet.


Member Data Documentation

Definition at line 193 of file vtkRectilinearGrid.h.

Definition at line 194 of file vtkRectilinearGrid.h.

Definition at line 195 of file vtkRectilinearGrid.h.

Definition at line 196 of file vtkRectilinearGrid.h.

int vtkRectilinearGrid::Dimensions[3] [protected]

Definition at line 198 of file vtkRectilinearGrid.h.

Definition at line 199 of file vtkRectilinearGrid.h.

int vtkRectilinearGrid::Extent[6] [protected]

Definition at line 201 of file vtkRectilinearGrid.h.

Definition at line 203 of file vtkRectilinearGrid.h.

Definition at line 204 of file vtkRectilinearGrid.h.

Definition at line 205 of file vtkRectilinearGrid.h.

double vtkRectilinearGrid::PointReturn[3] [protected]

Definition at line 208 of file vtkRectilinearGrid.h.


The documentation for this class was generated from the following file:

Generated on Sat Dec 27 13:46:42 2008 for VTK by  doxygen 1.5.6
