vtkRIBProperty Class Reference

#include <vtkRIBProperty.h>

Inheritance diagram for vtkRIBProperty:

Inheritance graph
[legend]

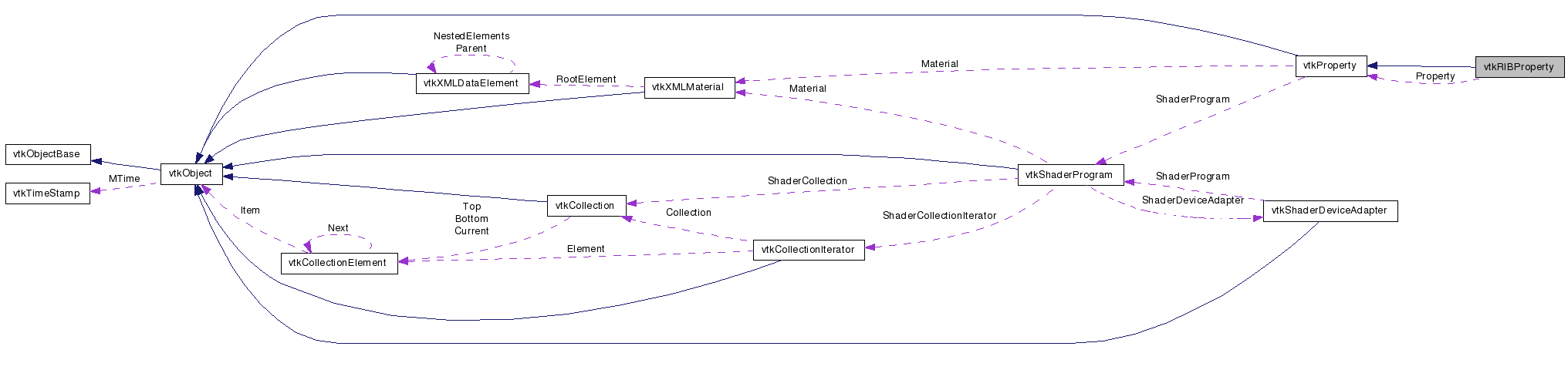

Collaboration diagram for vtkRIBProperty:

Collaboration graph
[legend]

List of all members.


Detailed Description

RIP Property.

vtkRIBProperty is a subclass of vtkProperty that allows the user to specify named shaders for use with RenderMan. Both a surface shader and displacement shader can be specified. Parameters for the shaders can be declared and set.

See also:
vtkRIBExporter
Tests:
vtkRIBProperty (Tests)

Definition at line 37 of file vtkRIBProperty.h.


Public Types

typedef vtkProperty Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
char * GetDeclarations ()
char * GetParameters ()
virtual void SetSurfaceShader (const char *)
virtual char * GetSurfaceShader ()
virtual void SetDisplacementShader (const char *)
virtual char * GetDisplacementShader ()
void SetVariable (char *variable, char *declaration)
void AddVariable (char *variable, char *declaration)
void SetParameter (char *parameter, char *value)
void AddParameter (char *parameter, char *value)

Static Public Member Functions

static vtkRIBPropertyNew ()
static int IsTypeOf (const char *type)
static vtkRIBPropertySafeDownCast (vtkObject *o)

Protected Member Functions

 vtkRIBProperty ()
 ~vtkRIBProperty ()
void Render (vtkActor *a, vtkRenderer *ren)

Protected Attributes

vtkPropertyProperty
char * SurfaceShader
char * DisplacementShader
char * Declarations
char * Parameters

Member Typedef Documentation

Reimplemented from vtkProperty.

Definition at line 41 of file vtkRIBProperty.h.


Constructor & Destructor Documentation

vtkRIBProperty::vtkRIBProperty (  )  [protected]

vtkRIBProperty::~vtkRIBProperty (  )  [protected]


Member Function Documentation

static vtkRIBProperty* vtkRIBProperty::New (  )  [static]

Construct object with object color, ambient color, diffuse color, specular color, and edge color white; ambient coefficient=0; diffuse coefficient=0; specular coefficient=0; specular power=1; Gouraud shading; and surface representation. Backface and frontface culling are off.

Reimplemented from vtkProperty.

virtual const char* vtkRIBProperty::GetClassName (  )  [virtual]

Reimplemented from vtkProperty.

static int vtkRIBProperty::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkProperty.

virtual int vtkRIBProperty::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkProperty.

static vtkRIBProperty* vtkRIBProperty::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkProperty.

void vtkRIBProperty::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkProperty.

virtual void vtkRIBProperty::SetSurfaceShader ( const char *   )  [virtual]

Specify the name of a surface shader.

virtual char* vtkRIBProperty::GetSurfaceShader (  )  [virtual]

Specify the name of a surface shader.

virtual void vtkRIBProperty::SetDisplacementShader ( const char *   )  [virtual]

Specify the name of a displacement shader.

virtual char* vtkRIBProperty::GetDisplacementShader (  )  [virtual]

Specify the name of a displacement shader.

void vtkRIBProperty::SetVariable ( char *  variable,
char *  declaration
)

Specify declarations for variables..

void vtkRIBProperty::AddVariable ( char *  variable,
char *  declaration
)

Specify declarations for variables..

char* vtkRIBProperty::GetDeclarations (  )

Get variable declarations

void vtkRIBProperty::SetParameter ( char *  parameter,
char *  value
)

Specify parameter values for variables.

void vtkRIBProperty::AddParameter ( char *  parameter,
char *  value
)

Specify parameter values for variables.

char* vtkRIBProperty::GetParameters (  )

Get parameters.

void vtkRIBProperty::Render ( vtkActor ,
vtkRenderer
) [protected, virtual]

This method causes the property to set up whatever is required for its instance variables. This is actually handled by a subclass of vtkProperty, which is created automatically. This method includes the invoking actor as an argument which can be used by property devices that require the actor.

Reimplemented from vtkProperty.


Member Data Documentation

Definition at line 79 of file vtkRIBProperty.h.

char* vtkRIBProperty::SurfaceShader [protected]

Definition at line 80 of file vtkRIBProperty.h.

Definition at line 81 of file vtkRIBProperty.h.

char* vtkRIBProperty::Declarations [protected]

Definition at line 82 of file vtkRIBProperty.h.

char* vtkRIBProperty::Parameters [protected]

Definition at line 83 of file vtkRIBProperty.h.


The documentation for this class was generated from the following file:
