#include <vtkRotationalExtrusionFilter.h>
vtkRotationalExtrusionFilter is a modeling filter. It takes polygonal data as input and generates polygonal data on output. The input dataset is swept around the z-axis to create new polygonal primitives. These primitives form a "skirt" or swept surface. For example, sweeping a line results in a cylindrical shell, and sweeping a circle creates a torus.
There are a number of control parameters for this filter. You can control whether the sweep of a 2D object (i.e., polygon or triangle strip) is capped with the generating geometry via the "Capping" instance variable. Also, you can control the angle of rotation, and whether translation along the z-axis is performed along with the rotation. (Translation is useful for creating "springs".) You also can adjust the radius of the generating geometry using the "DeltaRotation" instance variable.
The skirt is generated by locating certain topological features. Free edges (edges of polygons or triangle strips only used by one polygon or triangle strips) generate surfaces. This is true also of lines or polylines. Vertices generate lines.
This filter can be used to model axisymmetric objects like cylinders, bottles, and wine glasses; or translational/rotational symmetric objects like springs or corkscrews.
Some polygonal objects have no free edges (e.g., sphere). When swept, this will result in two separate surfaces if capping is on, or no surface if capping is off.
Definition at line 68 of file vtkRotationalExtrusionFilter.h.

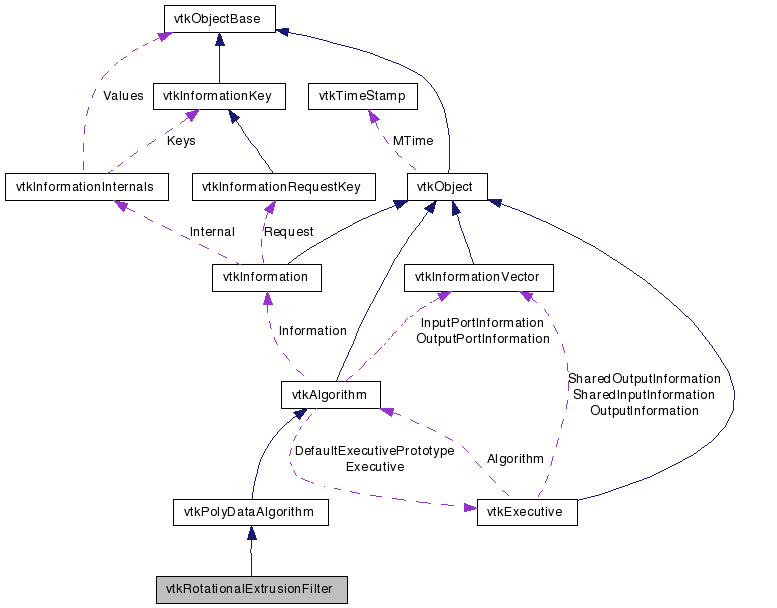

Public Types | |
typedef vtkPolyDataAlgorithm | Superclass |
Public Member Functions | |
virtual const char * | GetClassName () |
virtual int | IsA (const char *type) |
void | PrintSelf (ostream &os, vtkIndent indent) |
virtual void | SetResolution (int) |
virtual int | GetResolution () |
virtual void | SetCapping (int) |
virtual int | GetCapping () |
virtual void | CappingOn () |
virtual void | CappingOff () |
virtual void | SetAngle (double) |
virtual double | GetAngle () |
virtual void | SetTranslation (double) |
virtual double | GetTranslation () |
virtual void | SetDeltaRadius (double) |
virtual double | GetDeltaRadius () |
Static Public Member Functions | |
static int | IsTypeOf (const char *type) |
static vtkRotationalExtrusionFilter * | SafeDownCast (vtkObject *o) |
static vtkRotationalExtrusionFilter * | New () |
Protected Member Functions | |
vtkRotationalExtrusionFilter () | |
~vtkRotationalExtrusionFilter () | |
int | RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *) |
Protected Attributes | |
int | Resolution |
int | Capping |
double | Angle |
double | Translation |
double | DeltaRadius |
Reimplemented from vtkPolyDataAlgorithm.
Definition at line 71 of file vtkRotationalExtrusionFilter.h.
vtkRotationalExtrusionFilter::vtkRotationalExtrusionFilter | ( | ) | [protected] |
vtkRotationalExtrusionFilter::~vtkRotationalExtrusionFilter | ( | ) | [inline, protected] |
Definition at line 112 of file vtkRotationalExtrusionFilter.h.
virtual const char* vtkRotationalExtrusionFilter::GetClassName | ( | ) | [virtual] |
Reimplemented from vtkPolyDataAlgorithm.
static int vtkRotationalExtrusionFilter::IsTypeOf | ( | const char * | name | ) | [static] |
Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.
Reimplemented from vtkPolyDataAlgorithm.
virtual int vtkRotationalExtrusionFilter::IsA | ( | const char * | name | ) | [virtual] |
Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.
Reimplemented from vtkPolyDataAlgorithm.
static vtkRotationalExtrusionFilter* vtkRotationalExtrusionFilter::SafeDownCast | ( | vtkObject * | o | ) | [static] |
Reimplemented from vtkPolyDataAlgorithm.
void vtkRotationalExtrusionFilter::PrintSelf | ( | ostream & | os, | |
vtkIndent | indent | |||
) | [virtual] |
Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.
Reimplemented from vtkPolyDataAlgorithm.
static vtkRotationalExtrusionFilter* vtkRotationalExtrusionFilter::New | ( | ) | [static] |
Create object with capping on, angle of 360 degrees, resolution = 12, and no translation along z-axis. vector (0,0,1), and point (0,0,0).
Reimplemented from vtkPolyDataAlgorithm.
virtual void vtkRotationalExtrusionFilter::SetResolution | ( | int | ) | [virtual] |
Set/Get resolution of sweep operation. Resolution controls the number of intermediate node points.
virtual int vtkRotationalExtrusionFilter::GetResolution | ( | ) | [virtual] |
Set/Get resolution of sweep operation. Resolution controls the number of intermediate node points.
virtual void vtkRotationalExtrusionFilter::SetCapping | ( | int | ) | [virtual] |
Turn on/off the capping of the skirt.
virtual int vtkRotationalExtrusionFilter::GetCapping | ( | ) | [virtual] |
Turn on/off the capping of the skirt.
virtual void vtkRotationalExtrusionFilter::CappingOn | ( | ) | [virtual] |
Turn on/off the capping of the skirt.
virtual void vtkRotationalExtrusionFilter::CappingOff | ( | ) | [virtual] |
Turn on/off the capping of the skirt.
virtual void vtkRotationalExtrusionFilter::SetAngle | ( | double | ) | [virtual] |
Set/Get angle of rotation.
virtual double vtkRotationalExtrusionFilter::GetAngle | ( | ) | [virtual] |
Set/Get angle of rotation.
virtual void vtkRotationalExtrusionFilter::SetTranslation | ( | double | ) | [virtual] |
Set/Get total amount of translation along the z-axis.
virtual double vtkRotationalExtrusionFilter::GetTranslation | ( | ) | [virtual] |
Set/Get total amount of translation along the z-axis.
virtual void vtkRotationalExtrusionFilter::SetDeltaRadius | ( | double | ) | [virtual] |
Set/Get change in radius during sweep process.
virtual double vtkRotationalExtrusionFilter::GetDeltaRadius | ( | ) | [virtual] |
Set/Get change in radius during sweep process.
int vtkRotationalExtrusionFilter::RequestData | ( | vtkInformation * | request, | |
vtkInformationVector ** | inputVector, | |||
vtkInformationVector * | outputVector | |||
) | [protected, virtual] |
This is called by the superclass. This is the method you should override.
Reimplemented from vtkPolyDataAlgorithm.
int vtkRotationalExtrusionFilter::Resolution [protected] |
Definition at line 115 of file vtkRotationalExtrusionFilter.h.
int vtkRotationalExtrusionFilter::Capping [protected] |
Definition at line 116 of file vtkRotationalExtrusionFilter.h.
double vtkRotationalExtrusionFilter::Angle [protected] |
Definition at line 117 of file vtkRotationalExtrusionFilter.h.
double vtkRotationalExtrusionFilter::Translation [protected] |
Definition at line 118 of file vtkRotationalExtrusionFilter.h.
double vtkRotationalExtrusionFilter::DeltaRadius [protected] |
Definition at line 119 of file vtkRotationalExtrusionFilter.h.
