vtkRotationFilter Class Reference

#include <vtkRotationFilter.h>

Inheritance diagram for vtkRotationFilter:

[legend]

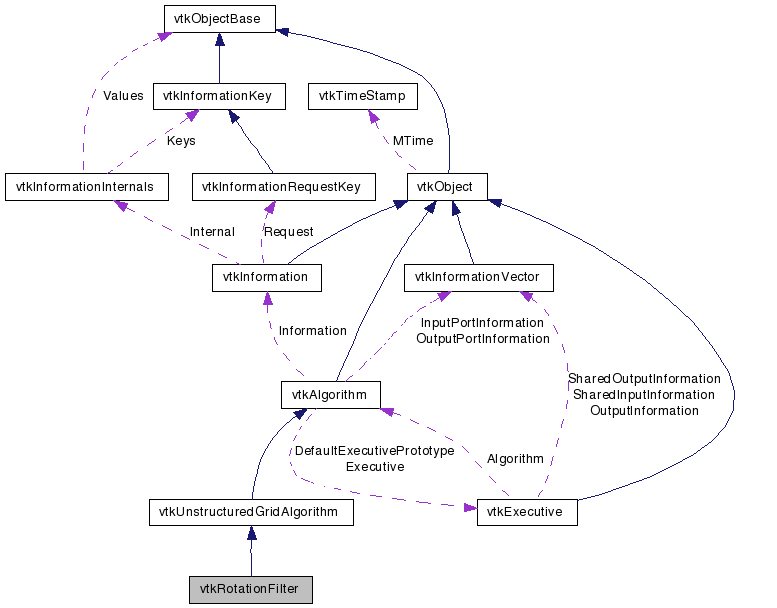

Collaboration diagram for vtkRotationFilter:

[legend]

List of all members.

Detailed Description

Duplicates a data set by rotation about an axis.

The vtkRotationFilter duplicates a data set by rotation about one of the 3 axis of the dataset's reference. Since it converts data sets into unstructured grids, it is not efficient for structured data sets.

Thanks:: Theophane Foggia of The Swiss National Supercomputing Centre (CSCS) for creating and contributing this filter

Tests:: vtkRotationFilter (Tests)

Definition at line 36 of file vtkRotationFilter.h.


Public Types
enum	RotationAxis { USE_X = 0, USE_Y = 1, USE_Z = 2 }
typedef vtkUnstructuredGridAlgorithm	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)

virtual void	SetAxis (int)
virtual int	GetAxis ()
void	SetAxisToX ()
void	SetAxisToY ()
void	SetAxisToZ ()

virtual void	SetAngle (double)
virtual double	GetAngle ()

virtual void	SetCenter (double, double, double)
virtual void	SetCenter (double[3])
virtual double *	GetCenter ()
virtual void	GetCenter (double &, double &, double &)
virtual void	GetCenter (double[3])

virtual void	SetNumberOfCopies (int)
virtual int	GetNumberOfCopies ()

virtual void	SetCopyInput (int)
virtual int	GetCopyInput ()
virtual void	CopyInputOn ()
virtual void	CopyInputOff ()
Static Public Member Functions
static vtkRotationFilter *	New ()
static int	IsTypeOf (const char *type)
static vtkRotationFilter *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkRotationFilter ()
	~vtkRotationFilter ()
virtual int	RequestData (vtkInformation , vtkInformationVector , vtkInformationVector )
virtual int	FillInputPortInformation (int port, vtkInformation *info)
Protected Attributes
int	Axis
double	Angle
double	Center [3]
int	NumberOfCopies
int	CopyInput

Member Typedef Documentation

typedef vtkUnstructuredGridAlgorithm vtkRotationFilter::Superclass

Reimplemented from vtkUnstructuredGridAlgorithm.

Definition at line 40 of file vtkRotationFilter.h.

Member Enumeration Documentation

enum vtkRotationFilter::RotationAxis

Enumerator:

USE_X
USE_Y
USE_Z

Definition at line 44 of file vtkRotationFilter.h.

Constructor & Destructor Documentation

vtkRotationFilter::vtkRotationFilter ( ) [protected]

vtkRotationFilter::~vtkRotationFilter ( ) [protected]

Member Function Documentation

static vtkRotationFilter* vtkRotationFilter::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkUnstructuredGridAlgorithm.

virtual const char* vtkRotationFilter::GetClassName ( ) [virtual]

Reimplemented from vtkUnstructuredGridAlgorithm.

static int vtkRotationFilter::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkUnstructuredGridAlgorithm.

virtual int vtkRotationFilter::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkUnstructuredGridAlgorithm.

static vtkRotationFilter* vtkRotationFilter::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkUnstructuredGridAlgorithm.

void vtkRotationFilter::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkUnstructuredGridAlgorithm.

virtual void vtkRotationFilter::SetAxis ( int ) [virtual]
