vtkScenePicker Class Reference

#include <vtkScenePicker.h>

Inheritance diagram for vtkScenePicker:

[legend]

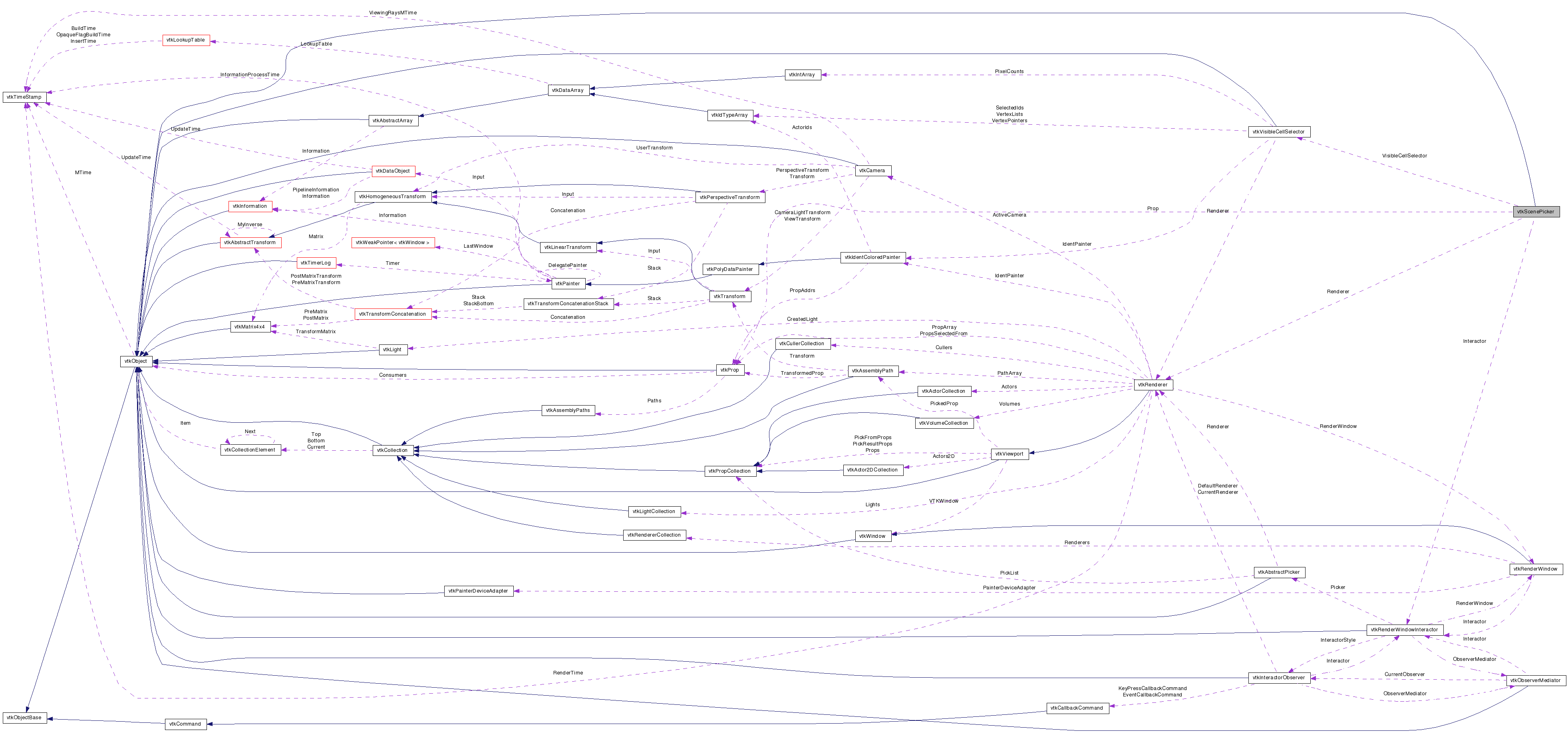

Collaboration diagram for vtkScenePicker:

[legend]

List of all members.

---

Detailed Description

Picks an entire viewport at one shot.

The Scene picker, unline conventional pickers picks an entire viewport at one shot and caches the result, which can be retrieved later. The utility of the class arises during Actor Selection. Let's say you have a couple of polygonal objects in your scene and you wish to have a status bar that indicates the object your mouse is over. Picking repeatedly every time your mouse moves would be very slow. The scene picker automatically picks your viewport every time the camera is changed and caches the information. Additionally, it observes the vtkRenderWindowInteractor to avoid picking during interaction, so that you still maintain your interactivity. In effect, the picker does an additional pick-render of your scene every time you stop interacting with your scene. As an example, see Rendering/TestScenePicker.

Warning:

• Unlike a vtkHoverWidget, this class is not timer based. The hover widget picks a scene when the mouse is over an actor for a specified duration.
• This class uses a vtkVisibleCellSelector under the hood. Hence, it will work only for actors that have opaque geomerty and are rendered by a vtkPolyDataMapper.

See also:

vtkHoverWidget vtkVisibleCellSelector

Tests:

vtkScenePicker (Tests)

Definition at line 56 of file vtkScenePicker.h.

Public Types
typedef vtkObject	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
vtkIdType	GetCellId (int displayPos[2])
vtkIdType	GetVertexId (int displayPos[2])
vtkProp *	GetViewProp (int displayPos[2])
virtual void	SetRenderer (vtkRenderer *)
virtual vtkRenderer *	GetRenderer ()
virtual void	SetEnableVertexPicking (int)
virtual int	GetEnableVertexPicking ()
virtual void	EnableVertexPickingOn ()
virtual void	EnableVertexPickingOff ()
Static Public Member Functions
static vtkScenePicker *	New ()
static int	IsTypeOf (const char *type)
static vtkScenePicker *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkScenePicker ()
	~vtkScenePicker ()
void	PickRender ()
void	PickRender (int x0, int y0, int x1, int y1)
void	Update (int displayPos[2])
void	SetInteractor (vtkRenderWindowInteractor *)
Protected Attributes
int	EnableVertexPicking
vtkVisibleCellSelector *	VisibleCellSelector
vtkRenderer *	Renderer
vtkRenderWindowInteractor *	Interactor
vtkIdType	VertId
vtkIdType	CellId
vtkProp *	Prop
bool	NeedToUpdate
bool	FirstTime
int	LastQueriedDisplayPos [2]
vtkScenePickerSelectionRenderCommand *	SelectionRenderCommand
Friends
class	vtkRenderer
class	vtkScenePickerSelectionRenderCommand

---

Member Typedef Documentation

typedef vtkObject vtkScenePicker::Superclass

Reimplemented from vtkObject.

Definition at line 64 of file vtkScenePicker.h.

---

Constructor & Destructor Documentation

vtkScenePicker::vtkScenePicker

(

)

[protected]

vtkScenePicker::~vtkScenePicker

(

)

[protected]

---

Member Function Documentation

static vtkScenePicker* vtkScenePicker::New

(

)

[static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

virtual const char* vtkScenePicker::GetClassName

(

)

[virtual]

Reimplemented from vtkObject.

static int vtkScenePicker::IsTypeOf

(

const char *

name

)

[static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

virtual int vtkScenePicker::IsA

(

const char *

name

)

[virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

static vtkScenePicker* vtkScenePicker::SafeDownCast

(

vtkObject *

o

)

[static]

Reimplemented from vtkObject.

void vtkScenePicker::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			[virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkObject.

virtual void vtkScenePicker::SetRenderer

(

vtkRenderer *

)

[virtual]

Set the renderer. Scene picks are restricted to the viewport.

virtual vtkRenderer* vtkScenePicker::GetRenderer

(

)

[virtual]

Set the renderer. Scene picks are restricted to the viewport.

vtkIdType vtkScenePicker::GetCellId

(

int

displayPos[2]

)

Get cell id at the pick position. Returns -1 if no cell was picked. Makes sense only after Pick has been called.

vtkIdType vtkScenePicker::GetVertexId

(

int

displayPos[2]

)

Get cell id at the pick position. Returns -1 if no cell was picked. Makes sense only after Pick has been called.

vtkProp* vtkScenePicker::GetViewProp

(

int

displayPos[2]

)

Get actor at the pick position. Returns NULL if none. Makes sense only after Pick has been called.

virtual void vtkScenePicker::SetEnableVertexPicking

(

int

)

[virtual]

Vertex picking (using the method GetVertexId()), required additional resources and can slow down still render time by 5-10%. Enabled by default.

virtual int vtkScenePicker::GetEnableVertexPicking

(

)

[virtual]

Vertex picking (using the method GetVertexId()), required additional resources and can slow down still render time by 5-10%. Enabled by default.

virtual void vtkScenePicker::EnableVertexPickingOn

(

)

[virtual]

Vertex picking (using the method GetVertexId()), required additional resources and can slow down still render time by 5-10%. Enabled by default.

virtual void vtkScenePicker::EnableVertexPickingOff

(

)

[virtual]

Vertex picking (using the method GetVertexId()), required additional resources and can slow down still render time by 5-10%. Enabled by default.

void vtkScenePicker::PickRender

(

)

[protected]

void vtkScenePicker::PickRender	(	int	x0,
		int	y0,
		int	x1,
		int	y1
	)			[protected]

void vtkScenePicker::Update

(

int

displayPos[2]

)

[protected]

void vtkScenePicker::SetInteractor

(

vtkRenderWindowInteractor *

)

[protected]

---

Friends And Related Function Documentation

friend class vtkRenderer [friend]

Definition at line 59 of file vtkScenePicker.h.

friend class vtkScenePickerSelectionRenderCommand [friend]

Definition at line 60 of file vtkScenePicker.h.

---

Member Data Documentation

int vtkScenePicker::EnableVertexPicking [protected]

Definition at line 113 of file vtkScenePicker.h.

vtkVisibleCellSelector* vtkScenePicker::VisibleCellSelector [protected]

Definition at line 114 of file vtkScenePicker.h.

vtkRenderer* vtkScenePicker::Renderer [protected]

Definition at line 115 of file vtkScenePicker.h.

vtkRenderWindowInteractor* vtkScenePicker::Interactor [protected]

Definition at line 116 of file vtkScenePicker.h.

vtkIdType vtkScenePicker::VertId [protected]

Definition at line 117 of file vtkScenePicker.h.

vtkIdType vtkScenePicker::CellId [protected]

Definition at line 118 of file vtkScenePicker.h.

vtkProp* vtkScenePicker::Prop [protected]

Definition at line 119 of file vtkScenePicker.h.

bool vtkScenePicker::NeedToUpdate [protected]

Definition at line 120 of file vtkScenePicker.h.

bool vtkScenePicker::FirstTime [protected]

Definition at line 121 of file vtkScenePicker.h.

int vtkScenePicker::LastQueriedDisplayPos[2] [protected]

Definition at line 122 of file vtkScenePicker.h.

vtkScenePickerSelectionRenderCommand* vtkScenePicker::SelectionRenderCommand [protected]

Definition at line 123 of file vtkScenePicker.h.

---

The documentation for this class was generated from the following file:

• dox/Rendering/vtkScenePicker.h
