vtkSimpleElevationFilter Class Reference

#include <vtkSimpleElevationFilter.h>

Inheritance diagram for vtkSimpleElevationFilter:

[legend]

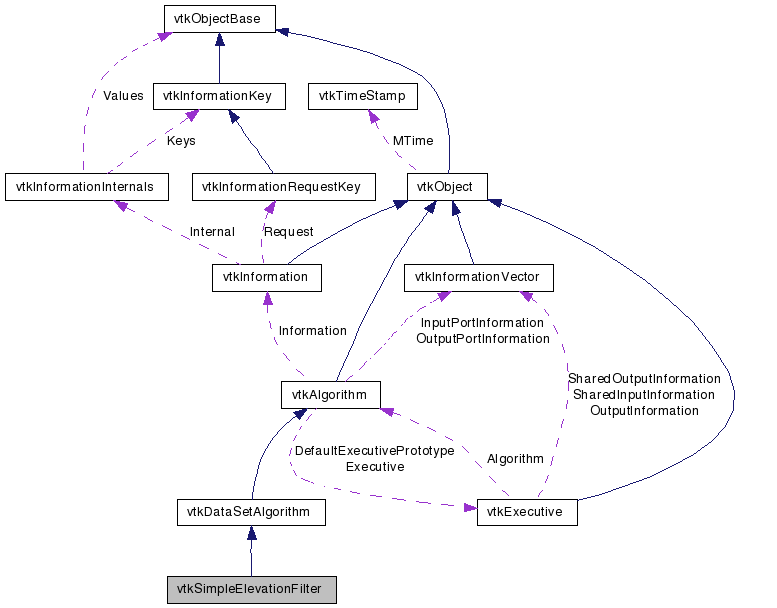

Collaboration diagram for vtkSimpleElevationFilter:

[legend]

List of all members.

---

Detailed Description

generate scalars along a specified direction

vtkSimpleElevationFilter is a filter to generate scalar values from a dataset. The scalar values are generated by dotting a user-specified vector against a vector defined from the input dataset points to the origin.

See also:

vtkElevationFilter

Tests:

vtkSimpleElevationFilter (Tests)

Definition at line 34 of file vtkSimpleElevationFilter.h.

Public Types
typedef vtkDataSetAlgorithm	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	SetVector (double, double, double)
virtual void	SetVector (double[3])
virtual double *	GetVector ()
virtual void	GetVector (double data[3])
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkSimpleElevationFilter *	SafeDownCast (vtkObject *o)
static vtkSimpleElevationFilter *	New ()
Protected Member Functions
	vtkSimpleElevationFilter ()
	~vtkSimpleElevationFilter ()
int	RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
Protected Attributes
double	Vector [3]

---

Member Typedef Documentation

typedef vtkDataSetAlgorithm vtkSimpleElevationFilter::Superclass

Reimplemented from vtkDataSetAlgorithm.

Definition at line 37 of file vtkSimpleElevationFilter.h.

---

Constructor & Destructor Documentation

vtkSimpleElevationFilter::vtkSimpleElevationFilter

(

)

[protected]

vtkSimpleElevationFilter::~vtkSimpleElevationFilter

(

)

[inline, protected]

Definition at line 51 of file vtkSimpleElevationFilter.h.

---

Member Function Documentation

virtual const char* vtkSimpleElevationFilter::GetClassName

(

)

[virtual]

Reimplemented from vtkDataSetAlgorithm.

static int vtkSimpleElevationFilter::IsTypeOf

(

const char *

name

)

[static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkDataSetAlgorithm.

virtual int vtkSimpleElevationFilter::IsA

(

const char *

name

)

[virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkDataSetAlgorithm.

static vtkSimpleElevationFilter* vtkSimpleElevationFilter::SafeDownCast

(

vtkObject *

o

)

[static]

Reimplemented from vtkDataSetAlgorithm.

void vtkSimpleElevationFilter::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			[virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkDataSetAlgorithm.

static vtkSimpleElevationFilter* vtkSimpleElevationFilter::New

(

)

[static]

Construct object with Vector=(0,0,1);

Reimplemented from vtkDataSetAlgorithm.

virtual void vtkSimpleElevationFilter::SetVector	(	double	,
		double	,
		double
	)			[virtual]

Define one end of the line (small scalar values).

virtual void vtkSimpleElevationFilter::SetVector

(

double

[3]

)

[virtual]

Define one end of the line (small scalar values).

virtual double* vtkSimpleElevationFilter::GetVector

(

)

[virtual]

Define one end of the line (small scalar values).

virtual void vtkSimpleElevationFilter::GetVector

(

double

data[3]

)

[virtual]

Define one end of the line (small scalar values).

int vtkSimpleElevationFilter::RequestData	(	vtkInformation *	,
		vtkInformationVector **	,
		vtkInformationVector *
	)			[protected, virtual]

This is called within ProcessRequest when a request asks the algorithm to do its work. This is the method you should override to do whatever the algorithm is designed to do. This happens during the fourth pass in the pipeline execution process.

Reimplemented from vtkDataSetAlgorithm.

---

Member Data Documentation

double vtkSimpleElevationFilter::Vector[3] [protected]

Definition at line 54 of file vtkSimpleElevationFilter.h.

---

The documentation for this class was generated from the following file:

• dox/Graphics/vtkSimpleElevationFilter.h
