vtkSpherePuzzle Class Reference

#include <vtkSpherePuzzle.h>

Inheritance diagram for vtkSpherePuzzle:

[legend]

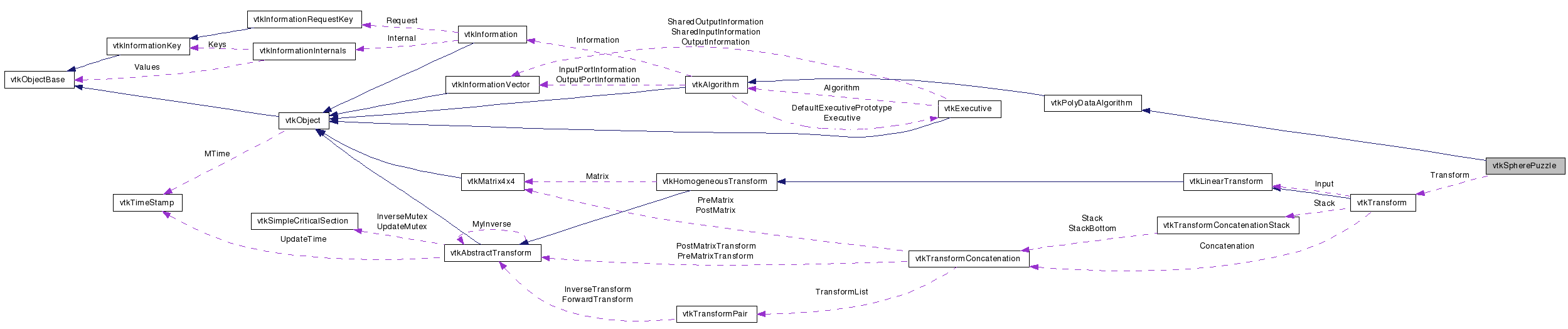

Collaboration diagram for vtkSpherePuzzle:

[legend]

List of all members.

---

Detailed Description

create a polygonal sphere centered at the origin

vtkSpherePuzzle creates

Examples:

vtkSpherePuzzle (Examples)

Tests:

vtkSpherePuzzle (Tests)

Definition at line 36 of file vtkSpherePuzzle.h.

Public Types
typedef vtkPolyDataAlgorithm	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
void	Reset ()
void	MoveHorizontal (int section, int percentage, int rightFlag)
void	MoveVertical (int section, int percentage, int rightFlag)
int	SetPoint (double x, double y, double z)
void	MovePoint (int percentage)
int *	GetState ()
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkSpherePuzzle *	SafeDownCast (vtkObject *o)
static vtkSpherePuzzle *	New ()
Protected Member Functions
	vtkSpherePuzzle ()
	~vtkSpherePuzzle ()
int	RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
void	MarkVertical (int section)
void	MarkHorizontal (int section)
Protected Attributes
int	State [32]
int	PieceMask [32]
vtkTransform *	Transform
unsigned char	Colors [96]
int	Active
int	VerticalFlag
int	RightFlag
int	Section

---

Member Typedef Documentation

typedef vtkPolyDataAlgorithm vtkSpherePuzzle::Superclass

Reimplemented from vtkPolyDataAlgorithm.

Definition at line 39 of file vtkSpherePuzzle.h.

---

Constructor & Destructor Documentation

vtkSpherePuzzle::vtkSpherePuzzle

(

)

[protected]

vtkSpherePuzzle::~vtkSpherePuzzle

(

)

[protected]

---

Member Function Documentation

virtual const char* vtkSpherePuzzle::GetClassName

(

)

[virtual]

Reimplemented from vtkPolyDataAlgorithm.

static int vtkSpherePuzzle::IsTypeOf

(

const char *

name

)

[static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataAlgorithm.

virtual int vtkSpherePuzzle::IsA

(

const char *

name

)

[virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataAlgorithm.

static vtkSpherePuzzle* vtkSpherePuzzle::SafeDownCast

(

vtkObject *

o

)

[static]

Reimplemented from vtkPolyDataAlgorithm.

void vtkSpherePuzzle::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			[virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkPolyDataAlgorithm.

static vtkSpherePuzzle* vtkSpherePuzzle::New

(

)

[static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkPolyDataAlgorithm.

void vtkSpherePuzzle::Reset

(

)

Reset the state of this puzzle back to its original state.

void vtkSpherePuzzle::MoveHorizontal	(	int	section,
		int	percentage,
		int	rightFlag
	)

Move the top/bottom half one segment either direction.

void vtkSpherePuzzle::MoveVertical	(	int	section,
		int	percentage,
		int	rightFlag
	)

Rotate vertical half of sphere along one of the longitude lines.

int vtkSpherePuzzle::SetPoint	(	double	x,
		double	y,
		double	z
	)

SetPoint will be called as the mouse moves over the screen. The output will change to indicate the pending move. SetPoint returns zero if move is not activated by point. Otherwise it encodes the move into a unique integer so that the caller can determine if the move state has changed. This will answer the question, "Should I render."

void vtkSpherePuzzle::MovePoint

(

int

percentage

)

Move actually implements the pending move. When percentage is 100, the pending move becomes inactive, and SetPoint will have to be called again to setup another move.

int* vtkSpherePuzzle::GetState

(

)

[inline]

For drawing state as arrows.

Definition at line 66 of file vtkSpherePuzzle.h.

int vtkSpherePuzzle::RequestData	(	vtkInformation *	request,
		vtkInformationVector **	inputVector,
		vtkInformationVector *	outputVector
	)			[protected, virtual]

This is called by the superclass. This is the method you should override.

Reimplemented from vtkPolyDataAlgorithm.

void vtkSpherePuzzle::MarkVertical

(

int

section

)

[protected]

void vtkSpherePuzzle::MarkHorizontal

(

int

section

)

[protected]

---

Member Data Documentation

int vtkSpherePuzzle::State[32] [protected]

Definition at line 76 of file vtkSpherePuzzle.h.

int vtkSpherePuzzle::PieceMask[32] [protected]

Definition at line 79 of file vtkSpherePuzzle.h.

vtkTransform* vtkSpherePuzzle::Transform [protected]

Definition at line 80 of file vtkSpherePuzzle.h.

unsigned char vtkSpherePuzzle::Colors[96] [protected]

Definition at line 83 of file vtkSpherePuzzle.h.

int vtkSpherePuzzle::Active [protected]

Definition at line 86 of file vtkSpherePuzzle.h.

int vtkSpherePuzzle::VerticalFlag [protected]

Definition at line 87 of file vtkSpherePuzzle.h.

int vtkSpherePuzzle::RightFlag [protected]

Definition at line 88 of file vtkSpherePuzzle.h.

int vtkSpherePuzzle::Section [protected]

Definition at line 89 of file vtkSpherePuzzle.h.

---

The documentation for this class was generated from the following file:

• dox/Graphics/vtkSpherePuzzle.h
