vtkStringToTimePoint Class Reference

#include <vtkStringToTimePoint.h>

Inheritance diagram for vtkStringToTimePoint:

[legend]

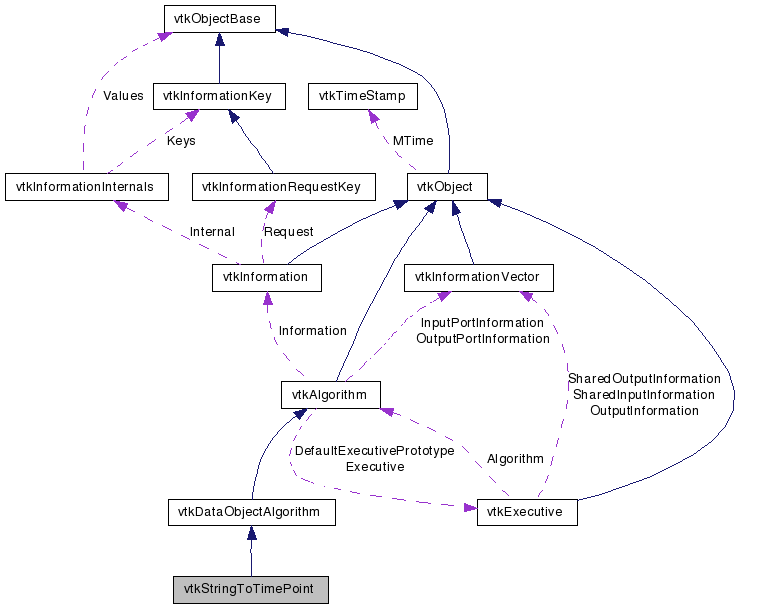

Collaboration diagram for vtkStringToTimePoint:

[legend]

List of all members.

Detailed Description

Converts a string array to a integral time array.

vtkStringToTimePoint is a filter for converting a string array into a datetime, time or date array. The input strings must conform to one of the ISO8601 formats defined in vtkTimePointUtility.

The input array specified by SetInputArrayToProcess(...) indicates the array to process. This array must be of type vtkStringArray.

The output array will be of type vtkTypeUInt64Array.

Tests:: vtkStringToTimePoint (Tests)

Definition at line 44 of file vtkStringToTimePoint.h.


Public Types
typedef vtkDataObjectAlgorithm	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)

virtual void	SetOutputArrayName (const char *)
virtual char *	GetOutputArrayName ()

virtual int	ProcessRequest (vtkInformation request, vtkInformationVector inputVector, vtkInformationVector outputVector)
Static Public Member Functions
static vtkStringToTimePoint *	New ()
static int	IsTypeOf (const char *type)
static vtkStringToTimePoint *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkStringToTimePoint ()
	~vtkStringToTimePoint ()
int	RequestData (vtkInformation , vtkInformationVector , vtkInformationVector )

virtual int	RequestDataObject (vtkInformation request, vtkInformationVector inputVector, vtkInformationVector outputVector)
Protected Attributes
char *	OutputArrayName

Member Typedef Documentation

typedef vtkDataObjectAlgorithm vtkStringToTimePoint::Superclass

Reimplemented from vtkDataObjectAlgorithm.

Definition at line 48 of file vtkStringToTimePoint.h.

Constructor & Destructor Documentation

vtkStringToTimePoint::vtkStringToTimePoint ( ) [protected]

vtkStringToTimePoint::~vtkStringToTimePoint ( ) [protected]

Member Function Documentation

static vtkStringToTimePoint* vtkStringToTimePoint::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkDataObjectAlgorithm.

virtual const char* vtkStringToTimePoint::GetClassName ( ) [virtual]

Reimplemented from vtkDataObjectAlgorithm.

static int vtkStringToTimePoint::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkDataObjectAlgorithm.

virtual int vtkStringToTimePoint::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkDataObjectAlgorithm.

static vtkStringToTimePoint* vtkStringToTimePoint::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkDataObjectAlgorithm.

void vtkStringToTimePoint::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkDataObjectAlgorithm.

virtual void vtkStringToTimePoint::SetOutputArrayName ( const char * ) [virtual]

The name of the output array. If this is not specified, the name will be the same as the input array name with either " [to datetime]", " [to date]", or " [to time]" appended.

virtual char* vtkStringToTimePoint::GetOutputArrayName ( ) [virtual]

The name of the output array. If this is not specified, the name will be the same as the input array name with either " [to datetime]", " [to date]", or " [to time]" appended.

virtual int vtkStringToTimePoint::ProcessRequest	(	vtkInformation *	request,
		vtkInformationVector **	inputVector,
		vtkInformationVector *	outputVector
	)			`[virtual]`

This is required to capture REQUEST_DATA_OBJECT requests.

Reimplemented from vtkDataObjectAlgorithm.

virtual int vtkStringToTimePoint::RequestDataObject	(	vtkInformation *	request,
		vtkInformationVector **	inputVector,
		vtkInformationVector *	outputVector
	)			`[protected, virtual]`
