vtkTemporalInterpolatedVelocityField Class Reference

#include <vtkTemporalInterpolatedVelocityField.h>

Inheritance diagram for vtkTemporalInterpolatedVelocityField:

[legend]

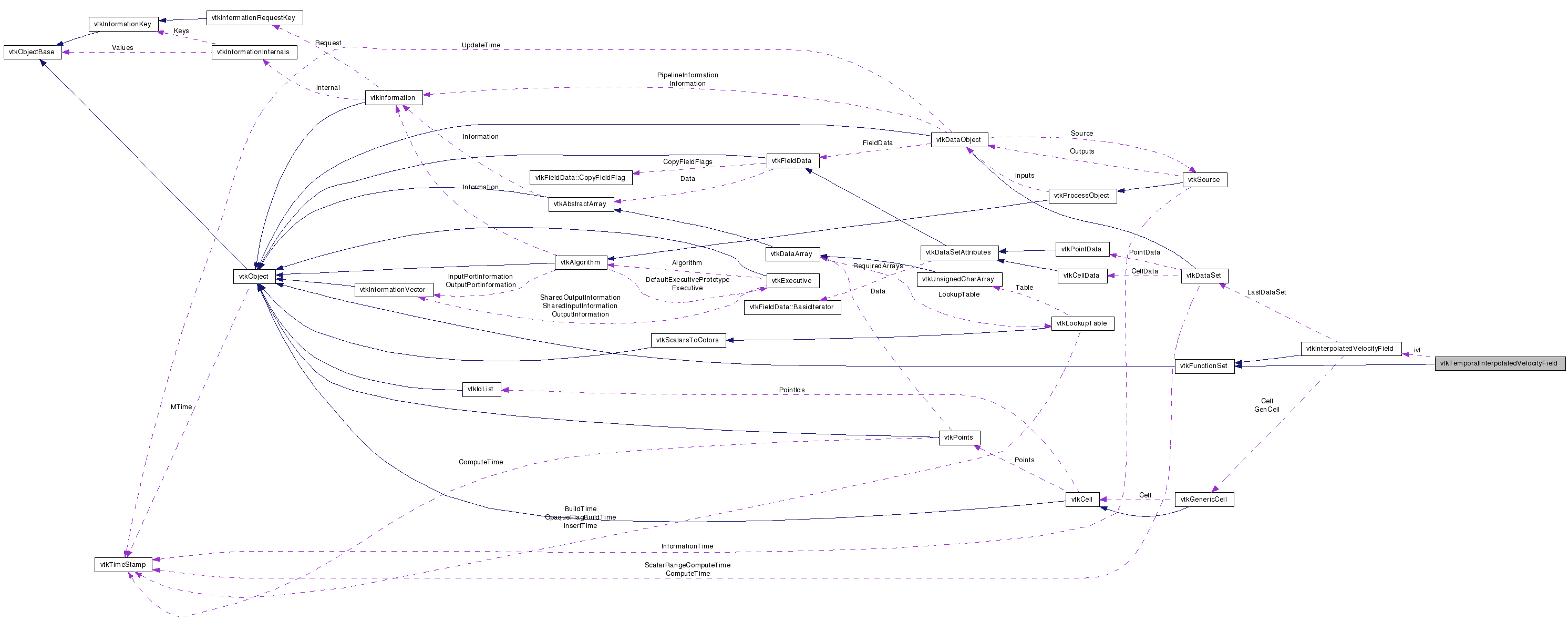

Collaboration diagram for vtkTemporalInterpolatedVelocityField:

[legend]

List of all members.

Detailed Description

A helper class for interpolating between times during particle tracing.

vtkTemporalInterpolatedVelocityField is a temporal version of vtk vtkInterpolatedVelocityField. I maintains two copies of vtkInterpolatedVelocityField internally and uses them to obtain velocity values at time T1 and T2. In fact the class does quite a bit more than this because when the geometry of the datasets is the same at T1 and T2, we can re-use cached cell Ids and weights used in the cell interpolation routines. Additionally, the same weights can be used when interpolating (point) scalar values and computing vorticity etc, so the class acts as a general purpose helper for the temporal particle tracing code (vtkTemporalStreamTracer)

Warning:: vtkTemporalInterpolatedVelocityField is not thread safe. A new instance should be created by each thread.

See also:: vtkFunctionSet vtkStreamer vtkInterpolatedVelocityField vtkTemporalStreamTracer

Definition at line 56 of file vtkTemporalInterpolatedVelocityField.h.


Public Types
typedef vtkFunctionSet	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
virtual void	PrintSelf (ostream &os, vtkIndent indent)
virtual int	FunctionValues (double x, double u)
void	AddDataSetAtTime (int N, double T, vtkDataSet *dataset)
void	ClearCache ()
int	TestPoint (double *x)
bool	InterpolatePoint (vtkPointData outPD1, vtkPointData outPD2, vtkIdType outIndex)
bool	InterpolatePointAtT (int T, vtkPointData *outPD, vtkIdType outIndex)
bool	GetVorticityData (int T, double pcoords[3], double weights, vtkGenericCell &cell, vtkDoubleArray *cellVectors)

void	SelectVectors (const char *fieldName)

void	SetGeometryFixed (int g)
int	GetGeometryFixed ()

bool	GetCachedCellIds (vtkIdType id[2], int ds[2])
void	SetCachedCellIds (vtkIdType id[2], int ds[2])

virtual double *	GetLastGoodVelocity ()
virtual void	GetLastGoodVelocity (double &, double &, double &)
virtual void	GetLastGoodVelocity (double[3])

virtual double	GetCurrentWeight ()
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkTemporalInterpolatedVelocityField *	SafeDownCast (vtkObject *o)
static vtkTemporalInterpolatedVelocityField *	New ()
Protected Member Functions
	vtkTemporalInterpolatedVelocityField ()
	~vtkTemporalInterpolatedVelocityField ()
int	FunctionValues (vtkDataSet ds, double x, double *f)
virtual void	SetVectorsSelection (const char *v)
Protected Attributes
vtkInterpolatedVelocityField *	ivf [2]
double	vals1 [3]
double	vals2 [3]
double	times [2]
double	LastGoodVelocity [3]
double	CurrentWeight
double	OneMinusWeight
double	ScaleCoeff
int	GeometryFixed
vtkTInterpolatedVelocityFieldDataSetsType *	DataSets [2]

Member Typedef Documentation

typedef vtkFunctionSet vtkTemporalInterpolatedVelocityField::Superclass

Reimplemented from vtkFunctionSet.

Definition at line 59 of file vtkTemporalInterpolatedVelocityField.h.

Constructor & Destructor Documentation

vtkTemporalInterpolatedVelocityField::vtkTemporalInterpolatedVelocityField ( ) [protected]

vtkTemporalInterpolatedVelocityField::~vtkTemporalInterpolatedVelocityField ( ) [protected]

Member Function Documentation

virtual const char* vtkTemporalInterpolatedVelocityField::GetClassName ( ) [virtual]

Reimplemented from vtkFunctionSet.

static int vtkTemporalInterpolatedVelocityField::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkFunctionSet.

virtual int vtkTemporalInterpolatedVelocityField::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkFunctionSet.

static vtkTemporalInterpolatedVelocityField* vtkTemporalInterpolatedVelocityField::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkFunctionSet.

virtual void vtkTemporalInterpolatedVelocityField::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkFunctionSet.

static vtkTemporalInterpolatedVelocityField* vtkTemporalInterpolatedVelocityField::New ( ) [static]

Construct a vtkTemporalInterpolatedVelocityField with no initial data set. Caching is on. LastCellId is set to -1.

Reimplemented from vtkObject.

virtual int vtkTemporalInterpolatedVelocityField::FunctionValues	(	double *	x,
		double *	u
	)			`[virtual]`

Evaluate the velocity field, f, at (x, y, z, t). For now, t is ignored.

Implements vtkFunctionSet.

void vtkTemporalInterpolatedVelocityField::SelectVectors ( const char * fieldName ) [inline]

If you want to work with an arbitrary vector array, then set its name here. By default this is NULL and the filter will use the active vector array.

Definition at line 74 of file vtkTemporalInterpolatedVelocityField.h.

void vtkTemporalInterpolatedVelocityField::AddDataSetAtTime	(	int	N,
		double	T,
		vtkDataSet *	dataset
	)

In order to use this class, two sets of data must be supplied, corresponding to times T1 and T2. Data is added via this function.

void vtkTemporalInterpolatedVelocityField::SetGeometryFixed ( int g ) [inline]

Allow the algorithm using us to turn on/off caching of CellIds between datasets. If true, then calculations on the second set of data (T2) use the weights from T1 without any error checking. Use with caution. We don't use a SetGetMacro to avoid calling Modified()

Definition at line 87 of file vtkTemporalInterpolatedVelocityField.h.

int vtkTemporalInterpolatedVelocityField::GetGeometryFixed ( ) [inline]

Allow the algorithm using us to turn on/off caching of CellIds between datasets. If true, then calculations on the second set of data (T2) use the weights from T1 without any error checking. Use with caution. We don't use a SetGetMacro to avoid calling Modified()

Definition at line 89 of file vtkTemporalInterpolatedVelocityField.h.

bool vtkTemporalInterpolatedVelocityField::GetCachedCellIds	(	vtkIdType	id[2],
		int	ds[2]
	)

Between iterations of the PArticle TRacer, Id's of the Cell are stored and then at the start of the next particle the Ids are set to 'pre-fill' the cache.

void vtkTemporalInterpolatedVelocityField::SetCachedCellIds	(	vtkIdType	id[2],
		int	ds[2]
	)

Between iterations of the PArticle TRacer, Id's of the Cell are stored and then at the start of the next particle the Ids are set to 'pre-fill' the cache.

void vtkTemporalInterpolatedVelocityField::ClearCache ( )

Set the last cell id to -1 so that the next search does not start from the previous cell

int vtkTemporalInterpolatedVelocityField::TestPoint ( double * x )

A utility function which evaluates the point at T1, T2 to see if it is inside the data at both times or only one.

virtual double* vtkTemporalInterpolatedVelocityField::GetLastGoodVelocity ( ) [virtual]

If an interpolation was successful, we can retrieve the last computed value from here.

virtual void vtkTemporalInterpolatedVelocityField::GetLastGoodVelocity	(	double &	,
		double &	,
		double &
	)			`[virtual]`

If an interpolation was successful, we can retrieve the last computed value from here.

virtual void vtkTemporalInterpolatedVelocityField::GetLastGoodVelocity ( double [3] ) [virtual]

If an interpolation was successful, we can retrieve the last computed value from here.

virtual double vtkTemporalInterpolatedVelocityField::GetCurrentWeight ( ) [virtual]

Get the most recent weight between 0->1 from T1->T2

bool vtkTemporalInterpolatedVelocityField::InterpolatePoint	(	vtkPointData *	outPD1,
		vtkPointData *	outPD2,
		vtkIdType	outIndex
	)

bool vtkTemporalInterpolatedVelocityField::InterpolatePointAtT	(	int	T,
		vtkPointData *	outPD,
		vtkIdType	outIndex
	)

bool vtkTemporalInterpolatedVelocityField::GetVorticityData	(	int	T,
		double	pcoords[3],
		double *	weights,
		vtkGenericCell *&	cell,
		vtkDoubleArray *	cellVectors
	)
