vtkTulipReader Class Reference

#include <vtkTulipReader.h>

Inheritance diagram for vtkTulipReader:

Inheritance graph
[legend]

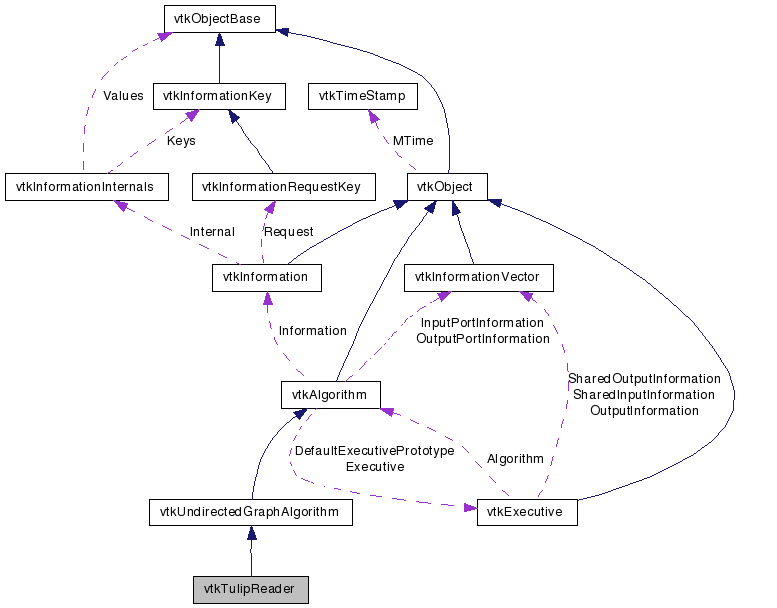

Collaboration diagram for vtkTulipReader:

Collaboration graph
[legend]

List of all members.


Detailed Description

Reads tulip graph files.

vtkTulipReader reads in files in the Tulip format. An example is the following (nodes 0 1 2 3 4 5 6 7 8 9) (edge 0 0 1) (edge 1 1 2) (edge 2 2 3) (edge 3 3 4) (edge 4 4 5) (edge 5 5 6) (edge 6 6 7) (edge 7 7 8) (edge 8 8 9) (edge 9 9 0) (edge 10 0 5) (edge 11 2 7) (edge 12 4 9) where "nodes" defines all the nodes ids in the graph, and "edge" is a triple of edge id, source vertex id, and target vertex id. The graph is read in as undirected graph. NOTE: This currently only supports reading connectivity information. Display information is discarded.

Tests:
vtkTulipReader (Tests)

Definition at line 57 of file vtkTulipReader.h.


Public Types

typedef vtkUndirectedGraphAlgorithm Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual char * GetFileName ()
virtual void SetFileName (const char *)

Static Public Member Functions

static vtkTulipReaderNew ()
static int IsTypeOf (const char *type)
static vtkTulipReaderSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkTulipReader ()
 ~vtkTulipReader ()
virtual int RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)

Member Typedef Documentation

Reimplemented from vtkUndirectedGraphAlgorithm.

Definition at line 61 of file vtkTulipReader.h.


Constructor & Destructor Documentation

vtkTulipReader::vtkTulipReader (  )  [protected]

vtkTulipReader::~vtkTulipReader (  )  [protected]


Member Function Documentation

static vtkTulipReader* vtkTulipReader::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkUndirectedGraphAlgorithm.

virtual const char* vtkTulipReader::GetClassName (  )  [virtual]

Reimplemented from vtkUndirectedGraphAlgorithm.

static int vtkTulipReader::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkUndirectedGraphAlgorithm.

virtual int vtkTulipReader::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkUndirectedGraphAlgorithm.

static vtkTulipReader* vtkTulipReader::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkUndirectedGraphAlgorithm.

void vtkTulipReader::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkUndirectedGraphAlgorithm.

virtual char* vtkTulipReader::GetFileName (  )  [virtual]

The Chaco file name.

virtual void vtkTulipReader::SetFileName ( const char *   )  [virtual]

The Chaco file name.

virtual int vtkTulipReader::RequestData ( vtkInformation request,
vtkInformationVector **  inputVector,
vtkInformationVector outputVector
) [protected, virtual]

This is called by the superclass. This is the method you should override.

Reimplemented from vtkUndirectedGraphAlgorithm.


The documentation for this class was generated from the following file:
