vtkUGFacetReader Class Reference

#include <vtkUGFacetReader.h>

Inheritance diagram for vtkUGFacetReader:

Inheritance graph
[legend]

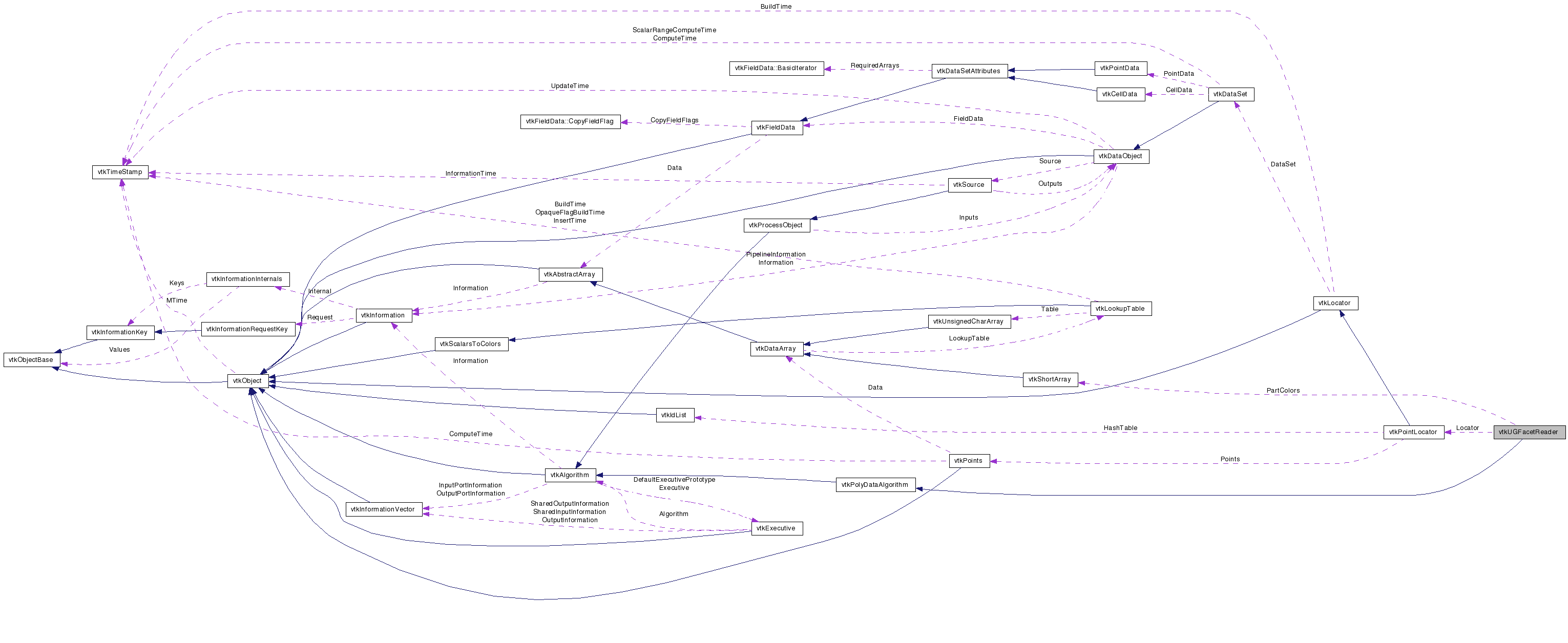

Collaboration diagram for vtkUGFacetReader:

Collaboration graph
[legend]

List of all members.


Detailed Description

read EDS Unigraphics facet files

vtkUGFacetReader is a source object that reads Unigraphics facet files. Unigraphics is a solid modeling system; facet files are the polygonal plot files it uses to create 3D plots.

Definition at line 31 of file vtkUGFacetReader.h.


Public Types

typedef vtkPolyDataAlgorithm Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
unsigned long GetMTime ()
int GetNumberOfParts ()
short GetPartColorIndex (int partId)
void CreateDefaultLocator ()
virtual void SetFileName (const char *)
virtual char * GetFileName ()
virtual void SetPartNumber (int)
virtual int GetPartNumber ()
virtual void SetMerging (int)
virtual int GetMerging ()
virtual void MergingOn ()
virtual void MergingOff ()
void SetLocator (vtkPointLocator *locator)
virtual vtkPointLocatorGetLocator ()

Static Public Member Functions

static int IsTypeOf (const char *type)
static vtkUGFacetReaderSafeDownCast (vtkObject *o)
static vtkUGFacetReaderNew ()

Protected Member Functions

 vtkUGFacetReader ()
 ~vtkUGFacetReader ()
int RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)

Protected Attributes

char * FileName
vtkShortArrayPartColors
int PartNumber
int Merging
vtkPointLocatorLocator

Member Typedef Documentation

Reimplemented from vtkPolyDataAlgorithm.

Definition at line 34 of file vtkUGFacetReader.h.


Constructor & Destructor Documentation

vtkUGFacetReader::vtkUGFacetReader (  )  [protected]

vtkUGFacetReader::~vtkUGFacetReader (  )  [protected]


Member Function Documentation

virtual const char* vtkUGFacetReader::GetClassName (  )  [virtual]

Reimplemented from vtkPolyDataAlgorithm.

static int vtkUGFacetReader::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataAlgorithm.

virtual int vtkUGFacetReader::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataAlgorithm.

static vtkUGFacetReader* vtkUGFacetReader::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkPolyDataAlgorithm.

void vtkUGFacetReader::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkPolyDataAlgorithm.

static vtkUGFacetReader* vtkUGFacetReader::New (  )  [static]

Construct object to extract all parts, and with point merging turned on.

Reimplemented from vtkPolyDataAlgorithm.

unsigned long vtkUGFacetReader::GetMTime (  )  [virtual]

Overload standard modified time function. If locator is modified, then this object is modified as well.

Reimplemented from vtkObject.

virtual void vtkUGFacetReader::SetFileName ( const char *   )  [virtual]

Specify Unigraphics file name.

virtual char* vtkUGFacetReader::GetFileName (  )  [virtual]

Specify Unigraphics file name.

int vtkUGFacetReader::GetNumberOfParts (  )

Special methods for interrogating the data file.

short vtkUGFacetReader::GetPartColorIndex ( int  partId  )

Retrieve color index for the parts in the file.

virtual void vtkUGFacetReader::SetPartNumber ( int   )  [virtual]

Specify the desired part to extract. The part number must range between [0,NumberOfParts-1]. If the value is =(-1), then all parts will be extracted. If the value is <(-1), then no parts will be extracted but the part colors will be updated.

virtual int vtkUGFacetReader::GetPartNumber (  )  [virtual]

Specify the desired part to extract. The part number must range between [0,NumberOfParts-1]. If the value is =(-1), then all parts will be extracted. If the value is <(-1), then no parts will be extracted but the part colors will be updated.

virtual void vtkUGFacetReader::SetMerging ( int   )  [virtual]

Turn on/off merging of points/triangles.

virtual int vtkUGFacetReader::GetMerging (  )  [virtual]

Turn on/off merging of points/triangles.

virtual void vtkUGFacetReader::MergingOn (  )  [virtual]

Turn on/off merging of points/triangles.

virtual void vtkUGFacetReader::MergingOff (  )  [virtual]

Turn on/off merging of points/triangles.

void vtkUGFacetReader::SetLocator ( vtkPointLocator locator  )

Specify a spatial locator for merging points. By default an instance of vtkMergePoints is used.

virtual vtkPointLocator* vtkUGFacetReader::GetLocator (  )  [virtual]

Specify a spatial locator for merging points. By default an instance of vtkMergePoints is used.

void vtkUGFacetReader::CreateDefaultLocator (  )

Create default locator. Used to create one when none is specified.

int vtkUGFacetReader::RequestData ( vtkInformation request,
vtkInformationVector **  inputVector,
vtkInformationVector outputVector
) [protected, virtual]

This is called by the superclass. This is the method you should override.

Reimplemented from vtkPolyDataAlgorithm.


Member Data Documentation

char* vtkUGFacetReader::FileName [protected]

Definition at line 89 of file vtkUGFacetReader.h.

Definition at line 90 of file vtkUGFacetReader.h.

Definition at line 91 of file vtkUGFacetReader.h.

int vtkUGFacetReader::Merging [protected]

Definition at line 92 of file vtkUGFacetReader.h.

Definition at line 93 of file vtkUGFacetReader.h.


The documentation for this class was generated from the following file:
