vtkUnstructuredGridVolumeRayIntegrator Class Reference

#include <vtkUnstructuredGridVolumeRayIntegrator.h>

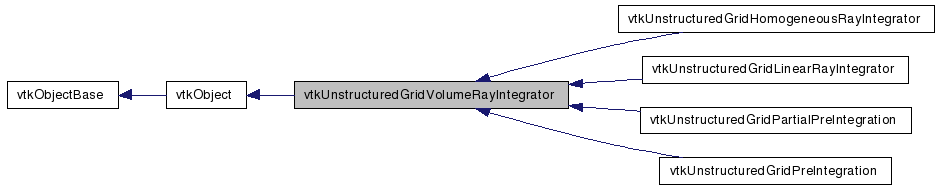

Inheritance diagram for vtkUnstructuredGridVolumeRayIntegrator:

[legend]

Collaboration diagram for vtkUnstructuredGridVolumeRayIntegrator:

[legend]

List of all members.

---

Detailed Description

a superclass for volume ray integration functions

vtkUnstructuredGridVolumeRayIntegrator is a superclass for ray integration functions that can be used within a vtkUnstructuredGridVolumeRayCastMapper.

See also:

vtkUnstructuredGridVolumeRayCastMapper vtkUnstructuredGridVolumeRayCastFunction

Tests:

vtkUnstructuredGridVolumeRayIntegrator (Tests)

Definition at line 42 of file vtkUnstructuredGridVolumeRayIntegrator.h.

Public Types
typedef vtkObject	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
virtual void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	Initialize (vtkVolume *volume, vtkDataArray *scalars)=0
virtual void	Integrate (vtkDoubleArray *intersectionLengths, vtkDataArray *nearIntersections, vtkDataArray *farIntersections, float color[4])=0
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkUnstructuredGridVolumeRayIntegrator *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkUnstructuredGridVolumeRayIntegrator ()
	~vtkUnstructuredGridVolumeRayIntegrator ()

---

Member Typedef Documentation

typedef vtkObject vtkUnstructuredGridVolumeRayIntegrator::Superclass

Reimplemented from vtkObject.

Reimplemented in vtkUnstructuredGridHomogeneousRayIntegrator, vtkUnstructuredGridLinearRayIntegrator, vtkUnstructuredGridPartialPreIntegration, and vtkUnstructuredGridPreIntegration.

Definition at line 45 of file vtkUnstructuredGridVolumeRayIntegrator.h.

---

Constructor & Destructor Documentation

vtkUnstructuredGridVolumeRayIntegrator::vtkUnstructuredGridVolumeRayIntegrator

(

)

[protected]

vtkUnstructuredGridVolumeRayIntegrator::~vtkUnstructuredGridVolumeRayIntegrator

(

)

[protected]

---

Member Function Documentation

virtual const char* vtkUnstructuredGridVolumeRayIntegrator::GetClassName

(

)

[virtual]

Reimplemented from vtkObject.

Reimplemented in vtkUnstructuredGridHomogeneousRayIntegrator, vtkUnstructuredGridLinearRayIntegrator, vtkUnstructuredGridPartialPreIntegration, and vtkUnstructuredGridPreIntegration.

static int vtkUnstructuredGridVolumeRayIntegrator::IsTypeOf

(

const char *

name

)

[static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

Reimplemented in vtkUnstructuredGridHomogeneousRayIntegrator, vtkUnstructuredGridLinearRayIntegrator, vtkUnstructuredGridPartialPreIntegration, and vtkUnstructuredGridPreIntegration.

virtual int vtkUnstructuredGridVolumeRayIntegrator::IsA

(

const char *

name

)

[virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

Reimplemented in vtkUnstructuredGridHomogeneousRayIntegrator, vtkUnstructuredGridLinearRayIntegrator, vtkUnstructuredGridPartialPreIntegration, and vtkUnstructuredGridPreIntegration.

static vtkUnstructuredGridVolumeRayIntegrator* vtkUnstructuredGridVolumeRayIntegrator::SafeDownCast

(

vtkObject *

o

)

[static]

Reimplemented from vtkObject.

Reimplemented in vtkUnstructuredGridHomogeneousRayIntegrator, vtkUnstructuredGridLinearRayIntegrator, vtkUnstructuredGridPartialPreIntegration, and vtkUnstructuredGridPreIntegration.

virtual void vtkUnstructuredGridVolumeRayIntegrator::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			[virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkObject.

Reimplemented in vtkUnstructuredGridHomogeneousRayIntegrator, vtkUnstructuredGridLinearRayIntegrator, vtkUnstructuredGridPartialPreIntegration, and vtkUnstructuredGridPreIntegration.

virtual void vtkUnstructuredGridVolumeRayIntegrator::Initialize	(	vtkVolume *	volume,
		vtkDataArray *	scalars
	)			[pure virtual]

Set up the integrator with the given properties and scalars.

Implemented in vtkUnstructuredGridHomogeneousRayIntegrator, vtkUnstructuredGridLinearRayIntegrator, vtkUnstructuredGridPartialPreIntegration, and vtkUnstructuredGridPreIntegration.

virtual void vtkUnstructuredGridVolumeRayIntegrator::Integrate	(	vtkDoubleArray *	intersectionLengths,
		vtkDataArray *	nearIntersections,
		vtkDataArray *	farIntersections,
		float	color[4]
	)			[pure virtual]

Given a set of intersections (defined by the three arrays), compute the peicewise integration of the array in front to back order. /c intersectionLengths holds the lengths of each peicewise segment. /c nearIntersections and /c farIntersections hold the scalar values at the front and back of each segment. /c color should contain the RGBA value of the volume in front of the segments passed in, and the result will be placed back into /c color.

Implemented in vtkUnstructuredGridHomogeneousRayIntegrator, vtkUnstructuredGridLinearRayIntegrator, vtkUnstructuredGridPartialPreIntegration, and vtkUnstructuredGridPreIntegration.

---

The documentation for this class was generated from the following file:

• dox/VolumeRendering/vtkUnstructuredGridVolumeRayIntegrator.h
