vtkVolumeProVP1000Mapper Class Reference

#include <vtkVolumeProVP1000Mapper.h>

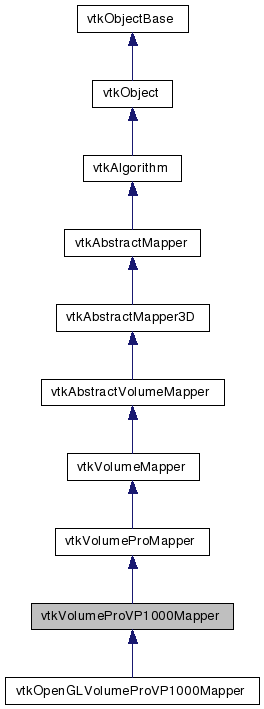

Inheritance diagram for vtkVolumeProVP1000Mapper:

[legend]

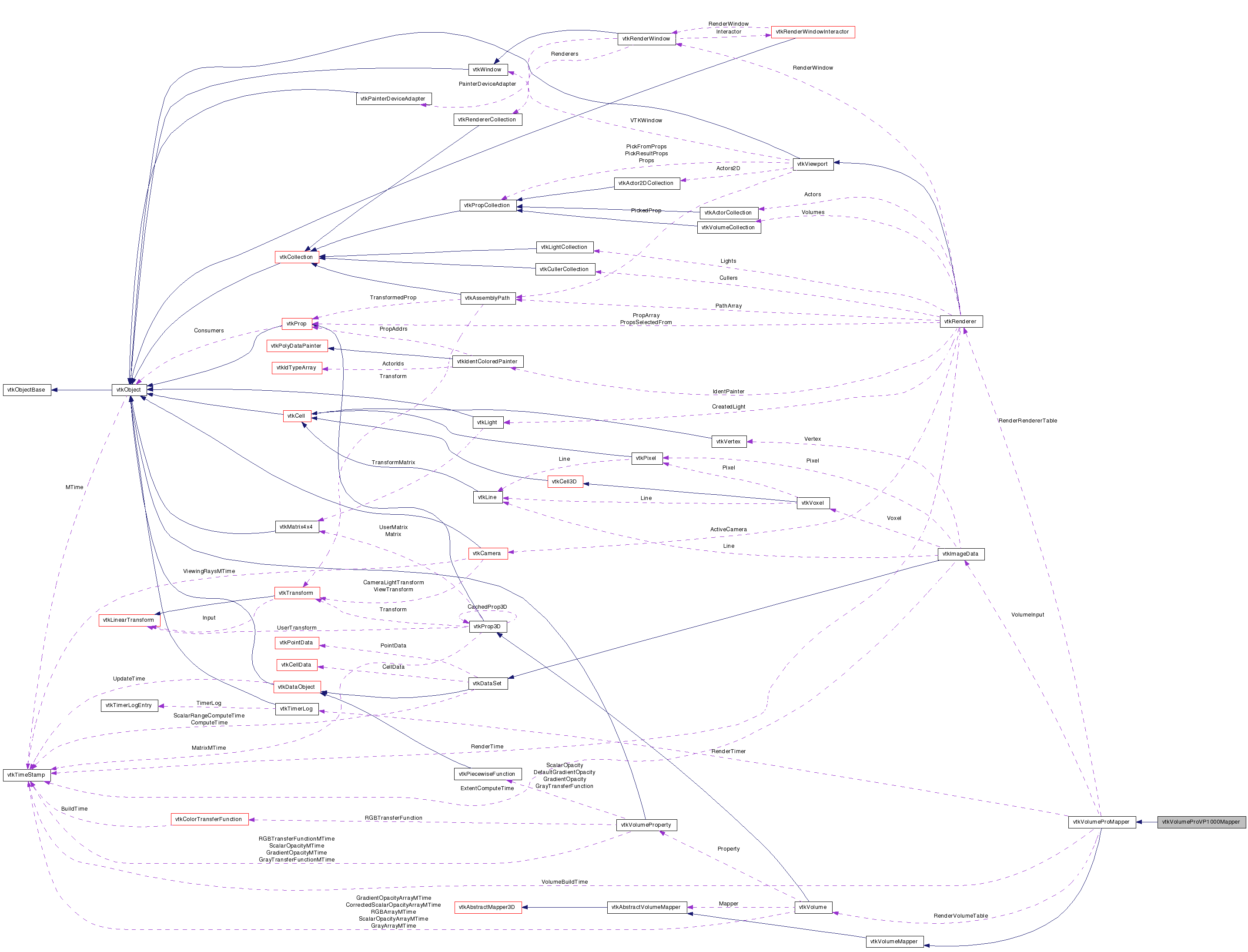

Collaboration diagram for vtkVolumeProVP1000Mapper:

[legend]

List of all members.

Detailed Description

Superclass for VP1000 board.

vtkVolumeProVP1000Mapper is the superclass for VolumePRO volume rendering mappers based on the VP1000 chip. Subclasses are for underlying graphics languages. Users should not create subclasses directly - a vtkVolumeProMapper will automatically create the object of the right type.

This class is not included in the Rendering CMakeLists by default. If you want to add this class to your vtk build, you need to have the vli header and library files, and you will need to perform the following steps:

1. Run cmake; if VLI_LIBRARY_FOR_VP1000 and VLI_INCLUDE_PATH_FOR_VP1000 are set by cmake, then VTK_USE_VOLUMEPRO_1000 will be set to ON. 2. If the VTK_USE_VOLUMEPRO_1000 is OFF, set it to ON in cmake. 3. If the libary file (VLI_LIBRARY_FOR_VP1000) is not found by cmake, set the path to that file, and rerun cmake. 4. If the header file (VLI_INCLUDE_PATH_FOR_VP1000) is not found by cmake, set the path to that file, and rerun cmake. 5. Rebuild VTK.

For more information on the VolumePRO hardware, please see:

http://www.terarecon.com/products/volumepro_prod.html

If you encounter any problems with this class, please inform Kitware, Inc. at kitware@kitware.com.

Warning:: If BlendMode is set to VTK_BLEND_MODE_MIN_INTENSITY, vli requires that the border of the image buffer be set to all 1s (white and opaque), resulting in a white background regardless of the color to which the renderer's background has been set.

See also:: vtkVolumeMapper vtkVolumeProMapper vtkOpenGLVolumeProVP1000Mapper

Definition at line 70 of file vtkVolumeProVP1000Mapper.h.


Public Types
typedef vtkVolumeProMapper	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
virtual void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	SetSuperSamplingFactor (double x, double y, double z)
virtual void	SetMipmapLevel (int level)

virtual void	Render (vtkRenderer , vtkVolume )
virtual int	GetAvailableBoardMemory ()
virtual void	GetLockSizesForBoardMemory (unsigned int type, unsigned int xSize, unsigned int ySize, unsigned int *zSize)
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkVolumeProVP1000Mapper *	SafeDownCast (vtkObject *o)
static vtkVolumeProVP1000Mapper *	New ()
Protected Member Functions
	vtkVolumeProVP1000Mapper ()
	~vtkVolumeProVP1000Mapper ()
void	UpdateCamera (vtkRenderer , vtkVolume )
void	UpdateLights (vtkRenderer , vtkVolume )
void	UpdateProperties (vtkRenderer , vtkVolume )
void	UpdateVolume (vtkRenderer , vtkVolume )
void	UpdateCropping (vtkRenderer , vtkVolume )
void	UpdateCursor (vtkRenderer , vtkVolume )
void	UpdateCutPlane (vtkRenderer , vtkVolume )
virtual void	RenderImageBuffer (vtkRenderer vtkNotUsed(ren), vtkVolume vol, int size[2], unsigned int *outData)
virtual void	RenderBoundingBox (vtkRenderer vtkNotUsed(ren), vtkVolume vol)
virtual void	GetDepthBufferValues (vtkRenderer vtkNotUsed(ren), int vtkNotUsed(size)[2], unsigned int outData)
VLIStatus	CheckSubSampling (const VLIVolume inVolume, const VLIContext inContext, int &outImageWidth, int &outImageHeight)
Protected Attributes
int	LoadedDataSize [3]
VLIImageBuffer *	ImageBuffer
VLIDepthBuffer *	DepthBuffer
int	DrawBoundingBox

Member Typedef Documentation

typedef vtkVolumeProMapper vtkVolumeProVP1000Mapper::Superclass

Reimplemented from vtkVolumeProMapper.

Reimplemented in vtkOpenGLVolumeProVP1000Mapper.

Definition at line 73 of file vtkVolumeProVP1000Mapper.h.

Constructor & Destructor Documentation

vtkVolumeProVP1000Mapper::vtkVolumeProVP1000Mapper ( ) [protected]

vtkVolumeProVP1000Mapper::~vtkVolumeProVP1000Mapper ( ) [protected]

Member Function Documentation

virtual const char* vtkVolumeProVP1000Mapper::GetClassName ( ) [virtual]

Reimplemented from vtkVolumeProMapper.

Reimplemented in vtkOpenGLVolumeProVP1000Mapper.

static int vtkVolumeProVP1000Mapper::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkVolumeProMapper.

Reimplemented in vtkOpenGLVolumeProVP1000Mapper.

virtual int vtkVolumeProVP1000Mapper::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkVolumeProMapper.

Reimplemented in vtkOpenGLVolumeProVP1000Mapper.

static vtkVolumeProVP1000Mapper* vtkVolumeProVP1000Mapper::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkVolumeProMapper.

Reimplemented in vtkOpenGLVolumeProVP1000Mapper.

static vtkVolumeProVP1000Mapper* vtkVolumeProVP1000Mapper::New ( ) [static]

Automatically create the proper subclass

Reimplemented from vtkVolumeProMapper.

Reimplemented in vtkOpenGLVolumeProVP1000Mapper.

virtual void vtkVolumeProVP1000Mapper::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkVolumeProMapper.

Reimplemented in vtkOpenGLVolumeProVP1000Mapper.

virtual void vtkVolumeProVP1000Mapper::Render	(	vtkRenderer *	,
		vtkVolume *
	)			`[virtual]`

Render the image using the hardware and place it in the frame buffer

Reimplemented from vtkVolumeProMapper.

virtual int vtkVolumeProVP1000Mapper::GetAvailableBoardMemory ( ) [virtual]

Render the image using the hardware and place it in the frame buffer

Reimplemented from vtkVolumeProMapper.

virtual void vtkVolumeProVP1000Mapper::GetLockSizesForBoardMemory	(	unsigned int	type,
		unsigned int *	xSize,
		unsigned int *	ySize,
		unsigned int *	zSize
	)			`[virtual]`

Render the image using the hardware and place it in the frame buffer

virtual void vtkVolumeProVP1000Mapper::SetSuperSamplingFactor	(	double	x,
		double	y,
		double	z
	)			`[virtual]`

Set the supersampling factors

Reimplemented from vtkVolumeProMapper.

virtual void vtkVolumeProVP1000Mapper::SetMipmapLevel ( int ) [virtual]

Choose a mipmap level. If AutoAdjustMipmapLevels is off, then this specifies the mipmap level to use during interaction. If AutoAdjustMipmapLevels is on, then this specifies the initial mipmap level to use.

Reimplemented from vtkVolumeProMapper.

void vtkVolumeProVP1000Mapper::UpdateCamera	(	vtkRenderer *	,
		vtkVolume *
	)			`[protected]`

void vtkVolumeProVP1000Mapper::UpdateLights	(	vtkRenderer *	,
		vtkVolume *
	)			`[protected]`

void vtkVolumeProVP1000Mapper::UpdateProperties	(	vtkRenderer *	,
		vtkVolume *
	)			`[protected]`

void vtkVolumeProVP1000Mapper::UpdateVolume	(	vtkRenderer *	,
		vtkVolume *
	)			`[protected]`

void vtkVolumeProVP1000Mapper::UpdateCropping	(	vtkRenderer *	,
		vtkVolume *
	)			`[protected]`

void vtkVolumeProVP1000Mapper::UpdateCursor	(	vtkRenderer *	,
		vtkVolume *
	)			`[protected]`

void vtkVolumeProVP1000Mapper::UpdateCutPlane	(	vtkRenderer *	,
		vtkVolume *
	)			`[protected]`

virtual void vtkVolumeProVP1000Mapper::RenderImageBuffer	(	vtkRenderer *	vtkNotUsedren,
		vtkVolume *	vol,
		int	size[2],
		unsigned int *	outData
	)			`[inline, protected, virtual]`

Definition at line 120 of file vtkVolumeProVP1000Mapper.h.

virtual void vtkVolumeProVP1000Mapper::RenderBoundingBox	(	vtkRenderer *	vtkNotUsedren,
		vtkVolume *	vol
	)			`[inline, protected, virtual]`

Definition at line 128 of file vtkVolumeProVP1000Mapper.h.

virtual void vtkVolumeProVP1000Mapper::GetDepthBufferValues	(	vtkRenderer *	vtkNotUsedren,
		int	vtkNotUsed(size)[2],
		unsigned int *	outData
	)			`[inline, protected, virtual]`

Definition at line 134 of file vtkVolumeProVP1000Mapper.h.

VLIStatus vtkVolumeProVP1000Mapper::CheckSubSampling	(	const VLIVolume *	inVolume,
		const VLIContext *	inContext,
		int &	outImageWidth,
		int &	outImageHeight
	)			`[protected]`
