vtkWarpTo Class Reference

#include <vtkWarpTo.h>

Inheritance diagram for vtkWarpTo:

[legend]

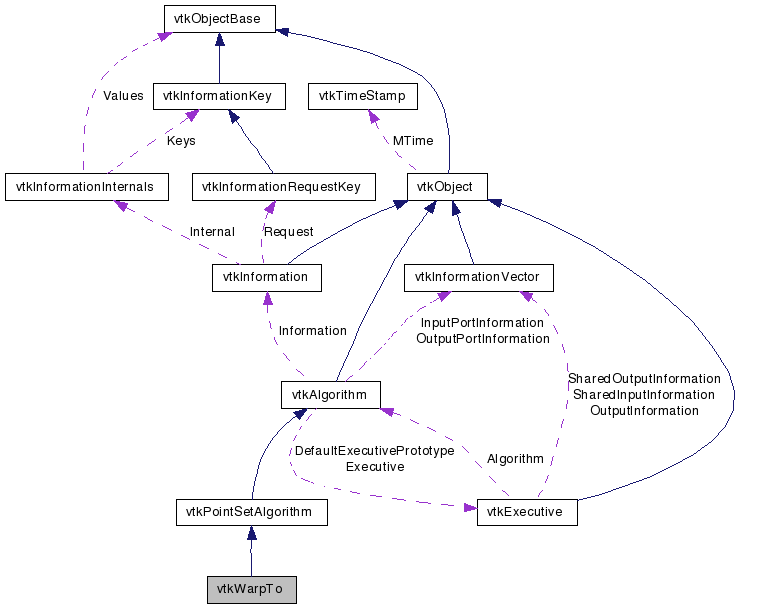

Collaboration diagram for vtkWarpTo:

[legend]

List of all members.

---

Detailed Description

deform geometry by warping towards a point

vtkWarpTo is a filter that modifies point coordinates by moving the points towards a user specified position.

Tests:

vtkWarpTo (Tests)

Definition at line 30 of file vtkWarpTo.h.

Public Types
typedef vtkPointSetAlgorithm	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	SetScaleFactor (double)
virtual double	GetScaleFactor ()
virtual double *	GetPosition ()
virtual void	GetPosition (double data[3])
virtual void	SetPosition (double, double, double)
virtual void	SetPosition (double[3])
virtual void	SetAbsolute (int)
virtual int	GetAbsolute ()
virtual void	AbsoluteOn ()
virtual void	AbsoluteOff ()
Static Public Member Functions
static vtkWarpTo *	New ()
static int	IsTypeOf (const char *type)
static vtkWarpTo *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkWarpTo ()
	~vtkWarpTo ()
int	RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
Protected Attributes
double	ScaleFactor
double	Position [3]
int	Absolute

---

Member Typedef Documentation

typedef vtkPointSetAlgorithm vtkWarpTo::Superclass

Reimplemented from vtkPointSetAlgorithm.

Definition at line 34 of file vtkWarpTo.h.

---

Constructor & Destructor Documentation

vtkWarpTo::vtkWarpTo

(

)

[protected]

vtkWarpTo::~vtkWarpTo

(

)

[inline, protected]

Definition at line 59 of file vtkWarpTo.h.

---

Member Function Documentation

static vtkWarpTo* vtkWarpTo::New

(

)

[static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkPointSetAlgorithm.

virtual const char* vtkWarpTo::GetClassName

(

)

[virtual]

Reimplemented from vtkPointSetAlgorithm.

static int vtkWarpTo::IsTypeOf

(

const char *

name

)

[static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkPointSetAlgorithm.

virtual int vtkWarpTo::IsA

(

const char *

name

)

[virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkPointSetAlgorithm.

static vtkWarpTo* vtkWarpTo::SafeDownCast

(

vtkObject *

o

)

[static]

Reimplemented from vtkPointSetAlgorithm.

void vtkWarpTo::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			[virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkPointSetAlgorithm.

virtual void vtkWarpTo::SetScaleFactor

(

double

)

[virtual]

Set/Get the value to scale displacement.

virtual double vtkWarpTo::GetScaleFactor

(

)

[virtual]

Set/Get the value to scale displacement.

virtual double* vtkWarpTo::GetPosition

(

)

[virtual]

Set/Get the position to warp towards.

virtual void vtkWarpTo::GetPosition

(

double

data[3]

)

[virtual]

Set/Get the position to warp towards.

virtual void vtkWarpTo::SetPosition	(	double	,
		double	,
		double
	)			[virtual]

Set/Get the position to warp towards.

virtual void vtkWarpTo::SetPosition

(

double

[3]

)

[virtual]

Set/Get the position to warp towards.

virtual void vtkWarpTo::SetAbsolute

(

int

)

[virtual]

Set/Get the Absolute ivar. Turning Absolute on causes scale factor of the new position to be one unit away from Position.

virtual int vtkWarpTo::GetAbsolute

(

)

[virtual]

Set/Get the Absolute ivar. Turning Absolute on causes scale factor of the new position to be one unit away from Position.

virtual void vtkWarpTo::AbsoluteOn

(

)

[virtual]

Set/Get the Absolute ivar. Turning Absolute on causes scale factor of the new position to be one unit away from Position.

virtual void vtkWarpTo::AbsoluteOff

(

)

[virtual]

Set/Get the Absolute ivar. Turning Absolute on causes scale factor of the new position to be one unit away from Position.

int vtkWarpTo::RequestData	(	vtkInformation *	,
		vtkInformationVector **	,
		vtkInformationVector *
	)			[protected, virtual]

This is called by the superclass. This is the method you should override.

Reimplemented from vtkPointSetAlgorithm.

---

Member Data Documentation

double vtkWarpTo::ScaleFactor [protected]

Definition at line 62 of file vtkWarpTo.h.

double vtkWarpTo::Position[3] [protected]

Definition at line 63 of file vtkWarpTo.h.

int vtkWarpTo::Absolute [protected]

Definition at line 64 of file vtkWarpTo.h.

---

The documentation for this class was generated from the following file:

• dox/Graphics/vtkWarpTo.h
