vtkAbstractParticleWriter Class Reference

#include <vtkAbstractParticleWriter.h>

Inheritance diagram for vtkAbstractParticleWriter:

Inheritance graph
[legend]

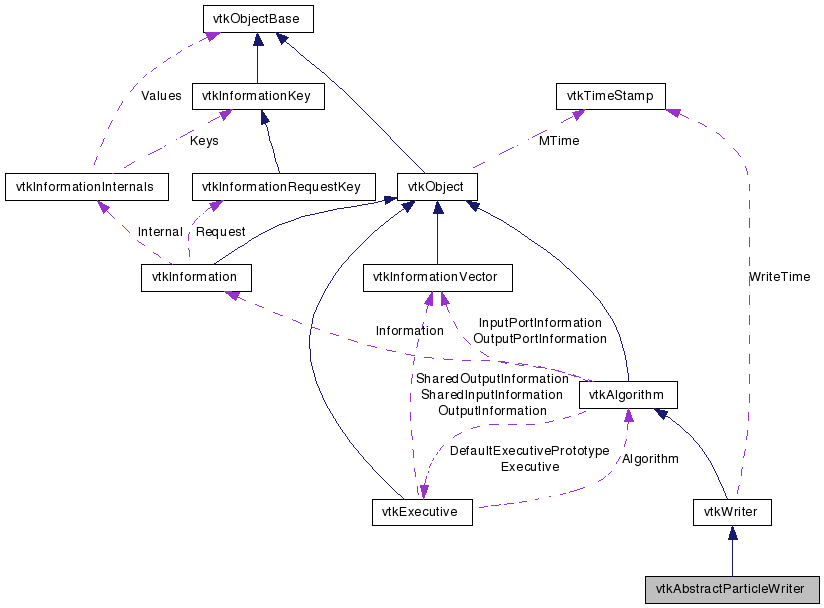

Collaboration diagram for vtkAbstractParticleWriter:

Collaboration graph
[legend]

List of all members.


Detailed Description

abstract class to write particle data to file

vtkAbstractParticleWriter is an abstract class which is used by vtkTemporalStreamTracer to write particles out during simulations. This class is abstract and provides a TimeStep and FileName. Subclasses of this should provide the necessary IO.

Warning:
See vtkWriter
See also:
vtkTemporalStreamTracer

Definition at line 35 of file vtkAbstractParticleWriter.h.


Public Types

typedef vtkWriter Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void CloseFile ()=0
virtual void SetTimeStep (int)
virtual int GetTimeStep ()
virtual void SetTimeValue (double)
virtual double GetTimeValue ()
virtual void SetFileName (const char *)
virtual char * GetFileName ()

Static Public Member Functions

static int IsTypeOf (const char *type)
static vtkAbstractParticleWriterSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkAbstractParticleWriter ()
 ~vtkAbstractParticleWriter ()
virtual void WriteData ()=0

Protected Attributes

int TimeStep
double TimeValue
char * FileName

Member Typedef Documentation

Reimplemented from vtkWriter.

Definition at line 38 of file vtkAbstractParticleWriter.h.


Constructor & Destructor Documentation

vtkAbstractParticleWriter::vtkAbstractParticleWriter (  )  [protected]

vtkAbstractParticleWriter::~vtkAbstractParticleWriter (  )  [protected]


Member Function Documentation

virtual const char* vtkAbstractParticleWriter::GetClassName (  )  [virtual]

Reimplemented from vtkWriter.

static int vtkAbstractParticleWriter::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkWriter.

virtual int vtkAbstractParticleWriter::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkWriter.

static vtkAbstractParticleWriter* vtkAbstractParticleWriter::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkWriter.

void vtkAbstractParticleWriter::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkWriter.

virtual void vtkAbstractParticleWriter::SetTimeStep ( int   )  [virtual]

Set/get the TimeStep that is being written

virtual int vtkAbstractParticleWriter::GetTimeStep (  )  [virtual]

Set/get the TimeStep that is being written

virtual void vtkAbstractParticleWriter::SetTimeValue ( double   )  [virtual]

Before writing the current data out, set the TimeValue (optional) The TimeValue is a float/double value that corresonds to the real time of the data, it may not be regular, whereas the TimeSteps are simple increments.

virtual double vtkAbstractParticleWriter::GetTimeValue (  )  [virtual]

Before writing the current data out, set the TimeValue (optional) The TimeValue is a float/double value that corresonds to the real time of the data, it may not be regular, whereas the TimeSteps are simple increments.

virtual void vtkAbstractParticleWriter::SetFileName ( const char *   )  [virtual]

Set/get the FileName that is being written to

virtual char* vtkAbstractParticleWriter::GetFileName (  )  [virtual]

Set/get the FileName that is being written to

virtual void vtkAbstractParticleWriter::CloseFile (  )  [pure virtual]

Close the file after a write. This is optional but may protect against data loss in between steps

virtual void vtkAbstractParticleWriter::WriteData (  )  [protected, pure virtual]

Implements vtkWriter.


Member Data Documentation

Definition at line 71 of file vtkAbstractParticleWriter.h.

Definition at line 72 of file vtkAbstractParticleWriter.h.

Definition at line 73 of file vtkAbstractParticleWriter.h.


The documentation for this class was generated from the following file:
