vtkAngleWidget Class Reference
#include <vtkAngleWidget.h>

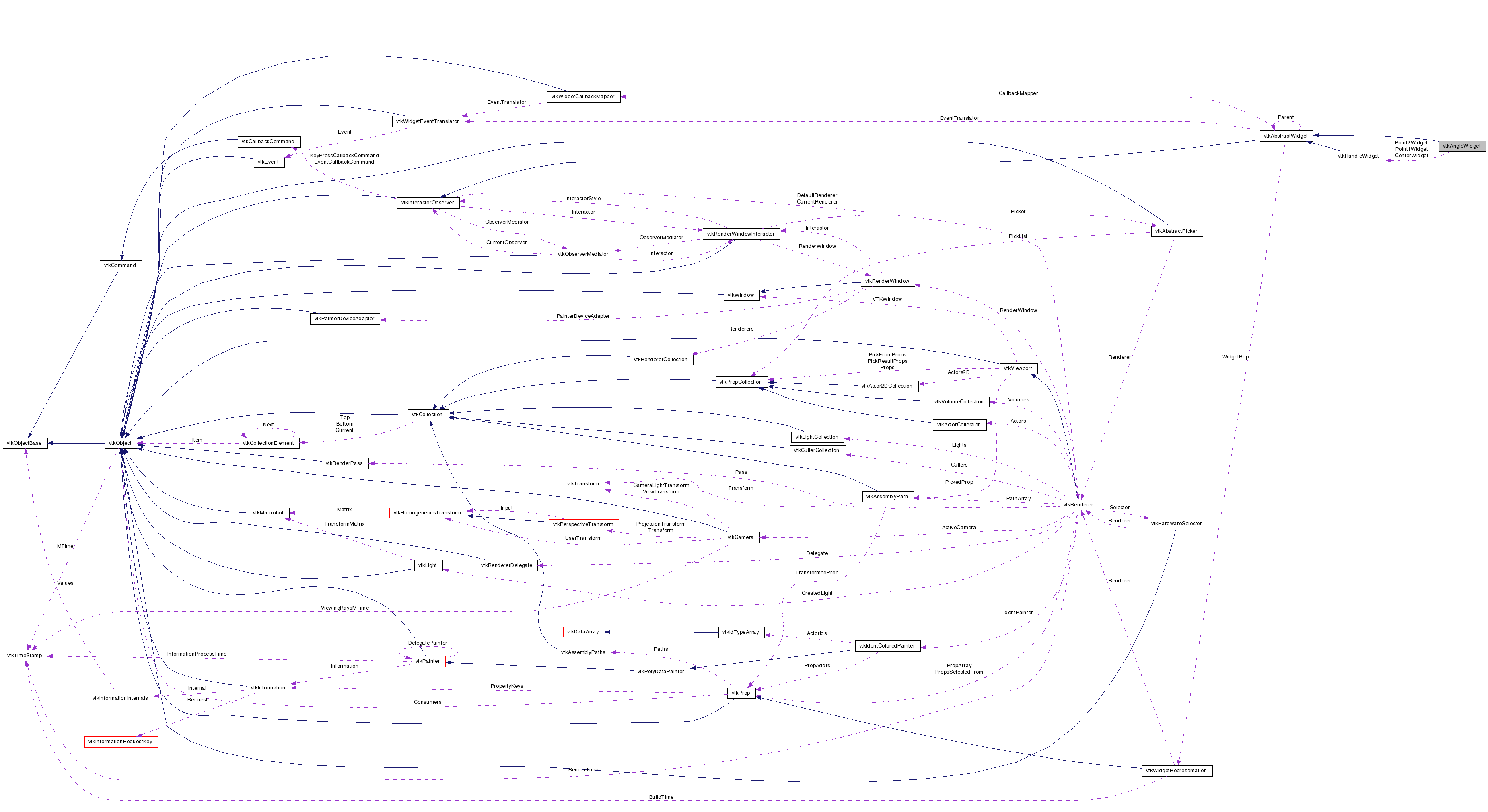

Detailed Description
measure the angle between two rays (defined by three points)The vtkAngleWidget is used to measure the angle between two rays (defined by three points). The three points (two end points and a center) can be positioned independently, and when they are released, a special PlacePointEvent is invoked so that special operations may be take to reposition the point (snap to grid, etc.) The widget has two different modes of interaction: when initially defined (i.e., placing the three points) and then a manipulate mode (adjusting the position of the three points).
To use this widget, specify an instance of vtkAngleWidget and a representation (a subclass of vtkAngleRepresentation). The widget is implemented using three instances of vtkHandleWidget which are used to position the three points. The representations for these handle widgets are provided by the vtkAngleRepresentation.
- Event Bindings:
- By default, the widget responds to the following VTK events (i.e., it watches the vtkRenderWindowInteractor for these events):
LeftButtonPressEvent - add a point or select a handle MouseMoveEvent - position the second or third point, or move a handle LeftButtonReleaseEvent - release the selected handle
- Event Bindings:
- Note that the event bindings described above can be changed using this class's vtkWidgetEventTranslator. This class translates VTK events into the vtkAngleWidget's widget events:
vtkWidgetEvent::AddPoint -- add one point; depending on the state it may the first, second or third point added. Or, if near a handle, select the handle. vtkWidgetEvent::Move -- position the second or third point, or move the handle depending on the state. vtkWidgetEvent::EndSelect -- the handle manipulation process has completed.
- Event Bindings:
- This widget invokes the following VTK events on itself (which observers can listen for):
vtkCommand::StartInteractionEvent (beginning to interact) vtkCommand::EndInteractionEvent (completing interaction) vtkCommand::InteractionEvent (moving a handle) vtkCommand::PlacePointEvent (after a point is positioned; call data includes handle id (0,1,2))
- See also:
- vtkHandleWidget vtkDistanceWidget
- Events:
- vtkCommand::DisableEvent vtkCommand::EndInteractionEvent vtkCommand::MouseMoveEvent vtkCommand::InteractionEvent vtkCommand::EnableEvent vtkCommand::LeftButtonPressEvent vtkCommand::StartInteractionEvent vtkCommand::PlacePointEvent vtkCommand::LeftButtonReleaseEvent
- Tests:
- vtkAngleWidget (Tests)
Definition at line 86 of file vtkAngleWidget.h.
| typedef vtkAbstractWidget | Superclass |
| static int | IsTypeOf (const char *type) |
| static vtkAngleWidget * | SafeDownCast (vtkObject *o) |
| virtual const char * | GetClassName () |
| virtual int | IsA (const char *type) |
| void | PrintSelf (ostream &os, vtkIndent indent) |
Public Member Functions | |
| virtual void | SetEnabled (int) |
| void | CreateDefaultRepresentation () |
| int | IsAngleValid () |
| virtual void | SetProcessEvents (int) |
| void | SetRepresentation (vtkAngleRepresentation *r) |
Static Public Member Functions | |
| static vtkAngleWidget * | New () |
Protected Types | |
| enum | { Start = 0, Define, Manipulate } |
Protected Member Functions | |
| vtkAngleWidget () | |
| ~vtkAngleWidget () | |
| void | StartAngleInteraction (int handleNum) |
| void | AngleInteraction (int handleNum) |
| void | EndAngleInteraction (int handleNum) |
Static Protected Member Functions | |
| static void | AddPointAction (vtkAbstractWidget *) |
| static void | MoveAction (vtkAbstractWidget *) |
| static void | EndSelectAction (vtkAbstractWidget *) |
Protected Attributes | |
| int | WidgetState |
| int | CurrentHandle |
| vtkHandleWidget * | Point1Widget |
| vtkHandleWidget * | CenterWidget |
| vtkHandleWidget * | Point2Widget |
| vtkAngleWidgetCallback * | AngleWidgetCallback1 |
| vtkAngleWidgetCallback * | AngleWidgetCenterCallback |
| vtkAngleWidgetCallback * | AngleWidgetCallback2 |
Friends | |
| class | vtkAngleWidgetCallback |
Member Typedef Documentation
Standard methods for a VTK class.
Reimplemented from vtkAbstractWidget.
Definition at line 94 of file vtkAngleWidget.h.
Member Enumeration Documentation
anonymous enum [protected] |
Constructor & Destructor Documentation
| vtkAngleWidget::vtkAngleWidget | ( | ) | [protected] |
| vtkAngleWidget::~vtkAngleWidget | ( | ) | [protected] |
Member Function Documentation
| static vtkAngleWidget* vtkAngleWidget::New | ( | ) | [static] |
Instantiate this class.
Reimplemented from vtkObject.
| virtual const char* vtkAngleWidget::GetClassName | ( | ) | [virtual] |
Standard methods for a VTK class.
Reimplemented from vtkAbstractWidget.
| static int vtkAngleWidget::IsTypeOf | ( | const char * | type | ) | [static] |
Standard methods for a VTK class.
Reimplemented from vtkAbstractWidget.
| virtual int vtkAngleWidget::IsA | ( | const char * | type | ) | [virtual] |
Standard methods for a VTK class.
Reimplemented from vtkAbstractWidget.
| static vtkAngleWidget* vtkAngleWidget::SafeDownCast | ( | vtkObject * | o | ) | [static] |
Standard methods for a VTK class.
Reimplemented from vtkAbstractWidget.
| void vtkAngleWidget::PrintSelf | ( | ostream & | os, | |
| vtkIndent | indent | |||
| ) | [virtual] |
Standard methods for a VTK class.
Reimplemented from vtkAbstractWidget.
| virtual void vtkAngleWidget::SetEnabled | ( | int | ) | [virtual] |
The method for activiating and deactiviating this widget. This method must be overridden because it is a composite widget and does more than its superclasses' vtkAbstractWidget::SetEnabled() method.
Reimplemented from vtkAbstractWidget.
| void vtkAngleWidget::SetRepresentation | ( | vtkAngleRepresentation * | r | ) | [inline] |
Specify an instance of vtkWidgetRepresentation used to represent this widget in the scene. Note that the representation is a subclass of vtkProp so it can be added to the renderer independent of the widget.
Definition at line 107 of file vtkAngleWidget.h.
| void vtkAngleWidget::CreateDefaultRepresentation | ( | ) | [virtual] |
Create the default widget representation if one is not set.
Implements vtkAbstractWidget.
| int vtkAngleWidget::IsAngleValid | ( | ) |
A flag indicates whether the angle is valid. The angle value only becomes valid after two of the three points are placed.
| virtual void vtkAngleWidget::SetProcessEvents | ( | int | ) | [virtual] |
Methods to change the whether the widget responds to interaction. Overridden to pass the state to component widgets.
Reimplemented from vtkAbstractWidget.
| static void vtkAngleWidget::AddPointAction | ( | vtkAbstractWidget * | ) | [static, protected] |
| static void vtkAngleWidget::MoveAction | ( | vtkAbstractWidget * | ) | [static, protected] |
| static void vtkAngleWidget::EndSelectAction | ( | vtkAbstractWidget * | ) | [static, protected] |
| void vtkAngleWidget::StartAngleInteraction | ( | int | handleNum | ) | [protected] |
| void vtkAngleWidget::AngleInteraction | ( | int | handleNum | ) | [protected] |
| void vtkAngleWidget::EndAngleInteraction | ( | int | handleNum | ) | [protected] |
Friends And Related Function Documentation
friend class vtkAngleWidgetCallback [friend] |
Definition at line 154 of file vtkAngleWidget.h.
Member Data Documentation
int vtkAngleWidget::WidgetState [protected] |
Definition at line 130 of file vtkAngleWidget.h.
int vtkAngleWidget::CurrentHandle [protected] |
Definition at line 131 of file vtkAngleWidget.h.
vtkHandleWidget* vtkAngleWidget::Point1Widget [protected] |
Definition at line 140 of file vtkAngleWidget.h.
vtkHandleWidget* vtkAngleWidget::CenterWidget [protected] |
Definition at line 141 of file vtkAngleWidget.h.
vtkHandleWidget* vtkAngleWidget::Point2Widget [protected] |
Definition at line 142 of file vtkAngleWidget.h.
vtkAngleWidgetCallback* vtkAngleWidget::AngleWidgetCallback1 [protected] |
Definition at line 143 of file vtkAngleWidget.h.
vtkAngleWidgetCallback* vtkAngleWidget::AngleWidgetCenterCallback [protected] |
Definition at line 144 of file vtkAngleWidget.h.
vtkAngleWidgetCallback* vtkAngleWidget::AngleWidgetCallback2 [protected] |
Definition at line 145 of file vtkAngleWidget.h.
The documentation for this class was generated from the following file:
- dox/Widgets/vtkAngleWidget.h
