vtkAppendSelection Class Reference

#include <vtkAppendSelection.h>

Inheritance diagram for vtkAppendSelection:

Inheritance graph
[legend]

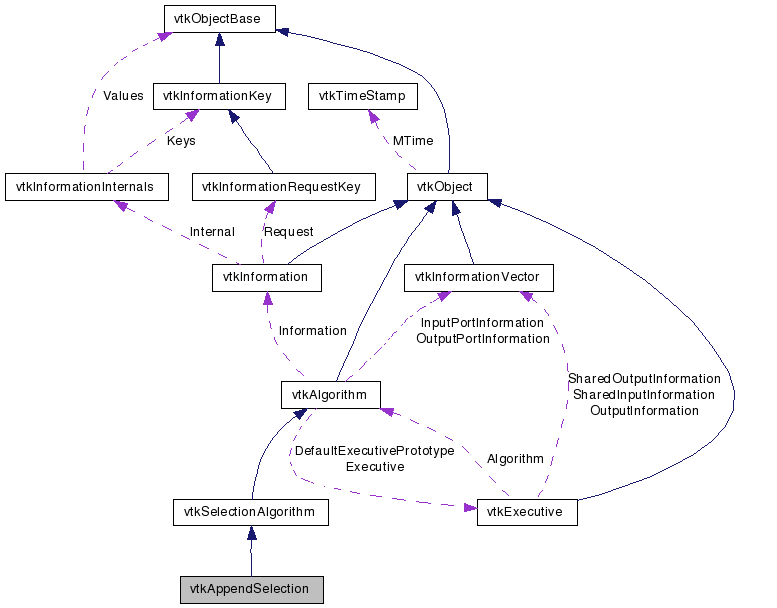

Collaboration diagram for vtkAppendSelection:

Collaboration graph
[legend]

List of all members.


Detailed Description

appends one or more selections together

vtkAppendSelection is a filter that appends one of more selections into a single selection. All selections must have the same content type unless AppendByUnion is false.

Tests:
vtkAppendSelection (Tests)

Definition at line 38 of file vtkAppendSelection.h.


Public Types

typedef vtkSelectionAlgorithm Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
void AddInput (vtkSelection *)
void RemoveInput (vtkSelection *)
void SetNumberOfInputs (int num)
void SetInputByNumber (int num, vtkSelection *input)
virtual void SetUserManagedInputs (int)
virtual int GetUserManagedInputs ()
virtual void UserManagedInputsOn ()
virtual void UserManagedInputsOff ()
vtkSelectionGetInput (int idx)
vtkSelectionGetInput ()
virtual void SetAppendByUnion (int)
virtual int GetAppendByUnion ()
virtual void AppendByUnionOn ()
virtual void AppendByUnionOff ()

Static Public Member Functions

static vtkAppendSelectionNew ()
static int IsTypeOf (const char *type)
static vtkAppendSelectionSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkAppendSelection ()
 ~vtkAppendSelection ()
virtual int RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int FillInputPortInformation (int, vtkInformation *)

Member Typedef Documentation

Reimplemented from vtkSelectionAlgorithm.

Definition at line 43 of file vtkAppendSelection.h.


Constructor & Destructor Documentation

vtkAppendSelection::vtkAppendSelection (  )  [protected]

vtkAppendSelection::~vtkAppendSelection (  )  [protected]


Member Function Documentation

static vtkAppendSelection* vtkAppendSelection::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkSelectionAlgorithm.

virtual const char* vtkAppendSelection::GetClassName (  )  [virtual]

Reimplemented from vtkSelectionAlgorithm.

static int vtkAppendSelection::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkSelectionAlgorithm.

virtual int vtkAppendSelection::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkSelectionAlgorithm.

static vtkAppendSelection* vtkAppendSelection::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkSelectionAlgorithm.

void vtkAppendSelection::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkSelectionAlgorithm.

virtual void vtkAppendSelection::SetUserManagedInputs ( int   )  [virtual]

UserManagedInputs allows the user to set inputs by number instead of using the AddInput/RemoveInput functions. Calls to SetNumberOfInputs/SetInputByNumber should not be mixed with calls to AddInput/RemoveInput. By default, UserManagedInputs is false.

virtual int vtkAppendSelection::GetUserManagedInputs (  )  [virtual]

UserManagedInputs allows the user to set inputs by number instead of using the AddInput/RemoveInput functions. Calls to SetNumberOfInputs/SetInputByNumber should not be mixed with calls to AddInput/RemoveInput. By default, UserManagedInputs is false.

virtual void vtkAppendSelection::UserManagedInputsOn (  )  [virtual]

UserManagedInputs allows the user to set inputs by number instead of using the AddInput/RemoveInput functions. Calls to SetNumberOfInputs/SetInputByNumber should not be mixed with calls to AddInput/RemoveInput. By default, UserManagedInputs is false.

virtual void vtkAppendSelection::UserManagedInputsOff (  )  [virtual]

UserManagedInputs allows the user to set inputs by number instead of using the AddInput/RemoveInput functions. Calls to SetNumberOfInputs/SetInputByNumber should not be mixed with calls to AddInput/RemoveInput. By default, UserManagedInputs is false.

void vtkAppendSelection::AddInput ( vtkSelection  )

Add a dataset to the list of data to append. Should not be used when UserManagedInputs is true, use SetInputByNumber instead.

void vtkAppendSelection::RemoveInput ( vtkSelection  )

Remove a dataset from the list of data to append. Should not be used when UserManagedInputs is true, use SetInputByNumber (NULL) instead.

vtkSelection* vtkAppendSelection::GetInput ( int  idx  )

Get any input of this filter. BTX

vtkSelection* vtkAppendSelection::GetInput (  )  [inline]

Get any input of this filter. BTX

Definition at line 67 of file vtkAppendSelection.h.

void vtkAppendSelection::SetNumberOfInputs ( int  num  )

Directly set(allocate) number of inputs, should only be used when UserManagedInputs is true.

void vtkAppendSelection::SetInputByNumber ( int  num,
vtkSelection input
)

virtual void vtkAppendSelection::SetAppendByUnion ( int   )  [virtual]

When set to true, all the selections are combined together to form a single vtkSelection output. When set to false, the output is a composite selection with input selections as the children of the composite selection. This allows for selections with different content types and properties. Default is true.

virtual int vtkAppendSelection::GetAppendByUnion (  )  [virtual]

When set to true, all the selections are combined together to form a single vtkSelection output. When set to false, the output is a composite selection with input selections as the children of the composite selection. This allows for selections with different content types and properties. Default is true.

virtual void vtkAppendSelection::AppendByUnionOn (  )  [virtual]

When set to true, all the selections are combined together to form a single vtkSelection output. When set to false, the output is a composite selection with input selections as the children of the composite selection. This allows for selections with different content types and properties. Default is true.

virtual void vtkAppendSelection::AppendByUnionOff (  )  [virtual]

When set to true, all the selections are combined together to form a single vtkSelection output. When set to false, the output is a composite selection with input selections as the children of the composite selection. This allows for selections with different content types and properties. Default is true.

virtual int vtkAppendSelection::RequestData ( vtkInformation request,
vtkInformationVector **  inputVector,
vtkInformationVector outputVector
) [protected, virtual]

This is called by the superclass. This is the method you should override.

Reimplemented from vtkSelectionAlgorithm.

virtual int vtkAppendSelection::FillInputPortInformation ( int  port,
vtkInformation info
) [protected, virtual]

Fill the input port information objects for this algorithm. This is invoked by the first call to GetInputPortInformation for each port so subclasses can specify what they can handle.

Reimplemented from vtkSelectionAlgorithm.


The documentation for this class was generated from the following file:
