vtkArcParallelEdgeStrategy Class Reference

#include <vtkArcParallelEdgeStrategy.h>

Inheritance diagram for vtkArcParallelEdgeStrategy:

[legend]

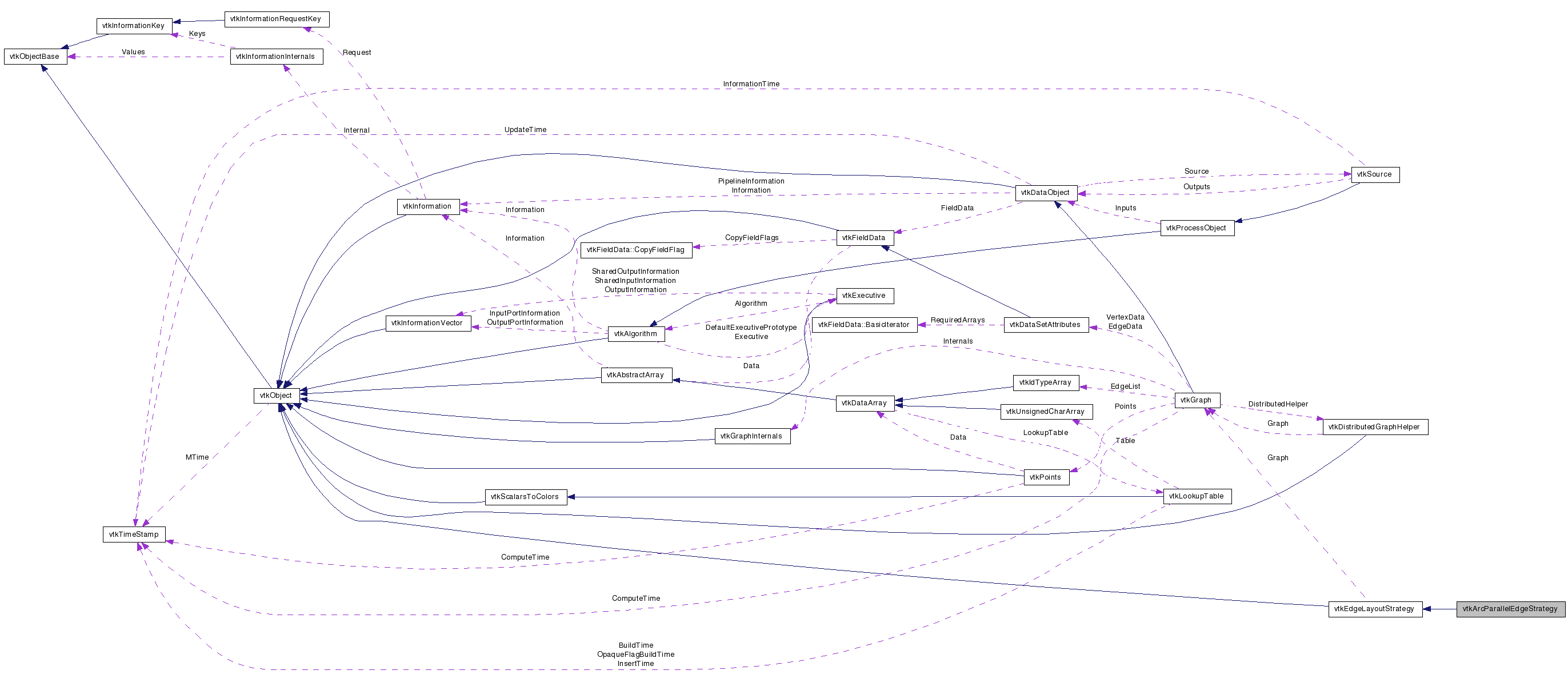

Collaboration diagram for vtkArcParallelEdgeStrategy:

[legend]

List of all members.

Detailed Description

routes parallel edges as arcs

Parallel edges are drawn as arcs, and self-loops are drawn as ovals. When only one edge connects two vertices it is drawn as a straight line.

Events:: vtkCommand::ProgressEvent

Tests:: vtkArcParallelEdgeStrategy (Tests)

Definition at line 40 of file vtkArcParallelEdgeStrategy.h.


Public Types
typedef vtkEdgeLayoutStrategy	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	Layout ()

virtual int	GetNumberOfSubdivisions ()
virtual void	SetNumberOfSubdivisions (int)
Static Public Member Functions
static vtkArcParallelEdgeStrategy *	New ()
static int	IsTypeOf (const char *type)
static vtkArcParallelEdgeStrategy *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkArcParallelEdgeStrategy ()
	~vtkArcParallelEdgeStrategy ()
Protected Attributes
int	NumberOfSubdivisions

Member Typedef Documentation

typedef vtkEdgeLayoutStrategy vtkArcParallelEdgeStrategy::Superclass

Reimplemented from vtkEdgeLayoutStrategy.

Definition at line 44 of file vtkArcParallelEdgeStrategy.h.

Constructor & Destructor Documentation

vtkArcParallelEdgeStrategy::vtkArcParallelEdgeStrategy ( ) [protected]

vtkArcParallelEdgeStrategy::~vtkArcParallelEdgeStrategy ( ) [protected]

Member Function Documentation

static vtkArcParallelEdgeStrategy* vtkArcParallelEdgeStrategy::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

virtual const char* vtkArcParallelEdgeStrategy::GetClassName ( ) [virtual]

Reimplemented from vtkEdgeLayoutStrategy.

static int vtkArcParallelEdgeStrategy::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkEdgeLayoutStrategy.

virtual int vtkArcParallelEdgeStrategy::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkEdgeLayoutStrategy.

static vtkArcParallelEdgeStrategy* vtkArcParallelEdgeStrategy::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkEdgeLayoutStrategy.

void vtkArcParallelEdgeStrategy::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkEdgeLayoutStrategy.

virtual void vtkArcParallelEdgeStrategy::Layout ( ) [virtual]

This is the layout method where the graph that was set in SetGraph() is laid out.

Implements vtkEdgeLayoutStrategy.

virtual int vtkArcParallelEdgeStrategy::GetNumberOfSubdivisions ( ) [virtual]

Get/Set the number of subdivisions on each edge.

virtual void vtkArcParallelEdgeStrategy::SetNumberOfSubdivisions ( int ) [virtual]

Get/Set the number of subdivisions on each edge.
