vtkArcSource Class Reference

#include <vtkArcSource.h>

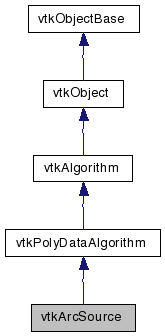

Inheritance diagram for vtkArcSource:

[legend]

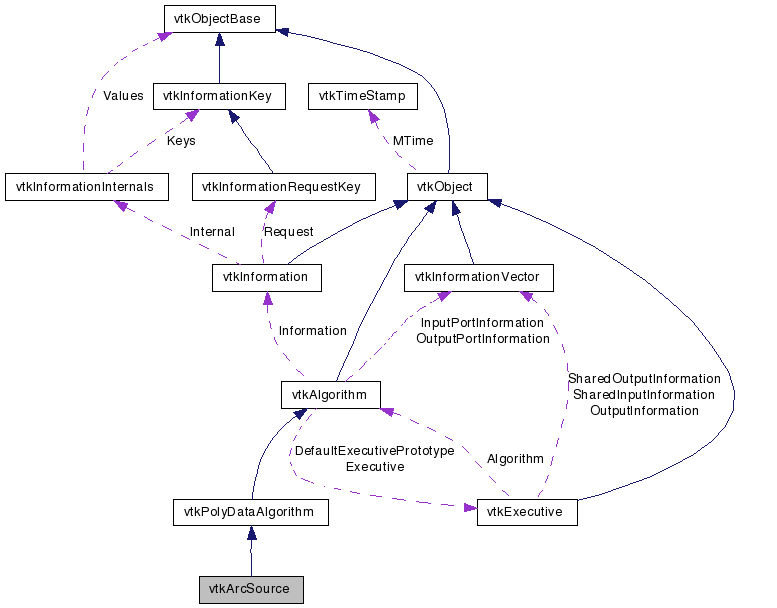

Collaboration diagram for vtkArcSource:

[legend]

List of all members.

Detailed Description

create an arc between two end points

vtkArcSource is a source object that creates an arc defined by two endpoints and a center. The number of segments composing the polyline is controlled by setting the object resolution.

Definition at line 28 of file vtkArcSource.h.


Public Types
typedef vtkPolyDataAlgorithm	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)

virtual void	SetPoint1 (double, double, double)
virtual void	SetPoint1 (double[3])
virtual double *	GetPoint1 ()
virtual void	GetPoint1 (double data[3])

virtual void	SetPoint2 (double, double, double)
virtual void	SetPoint2 (double[3])
virtual double *	GetPoint2 ()
virtual void	GetPoint2 (double data[3])

virtual void	SetCenter (double, double, double)
virtual void	SetCenter (double[3])
virtual double *	GetCenter ()
virtual void	GetCenter (double data[3])

virtual void	SetResolution (int)
virtual int	GetResolution ()
Static Public Member Functions
static vtkArcSource *	New ()
static int	IsTypeOf (const char *type)
static vtkArcSource *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkArcSource (int res=1)
	~vtkArcSource ()
int	RequestData (vtkInformation , vtkInformationVector , vtkInformationVector )
int	RequestInformation (vtkInformation , vtkInformationVector , vtkInformationVector )
Protected Attributes
double	Point1 [3]
double	Point2 [3]
double	Center [3]
int	Resolution

Member Typedef Documentation

typedef vtkPolyDataAlgorithm vtkArcSource::Superclass

Reimplemented from vtkPolyDataAlgorithm.

Definition at line 32 of file vtkArcSource.h.

Constructor & Destructor Documentation

vtkArcSource::vtkArcSource ( int res = 1 ) [protected]

vtkArcSource::~vtkArcSource ( ) [inline, protected]

Definition at line 61 of file vtkArcSource.h.

Member Function Documentation

static vtkArcSource* vtkArcSource::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkPolyDataAlgorithm.

virtual const char* vtkArcSource::GetClassName ( ) [virtual]

Reimplemented from vtkPolyDataAlgorithm.

static int vtkArcSource::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataAlgorithm.

virtual int vtkArcSource::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataAlgorithm.

static vtkArcSource* vtkArcSource::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkPolyDataAlgorithm.

void vtkArcSource::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkPolyDataAlgorithm.

virtual void vtkArcSource::SetPoint1	(	double	,
		double	,
		double
	)			`[virtual]`

Set position of first end point.

virtual void vtkArcSource::SetPoint1 ( double [3] ) [virtual]

Set position of first end point.

virtual double* vtkArcSource::GetPoint1 ( ) [virtual]

Set position of first end point.

virtual void vtkArcSource::GetPoint1 ( double data[3] ) [virtual]

Set position of first end point.

virtual void vtkArcSource::SetPoint2	(	double	,
		double	,
		double
	)			`[virtual]`
