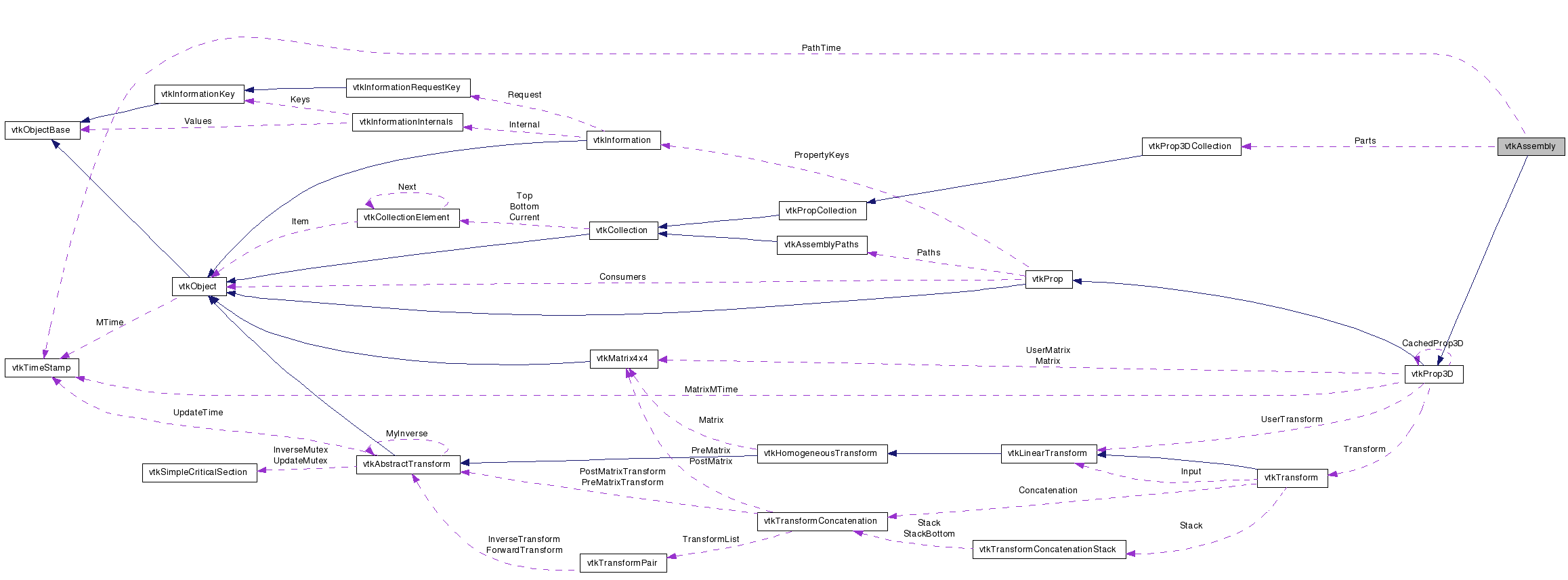

Collaboration diagram for vtkAssembly:

Collaboration graph
[legend]

List of all members.


Detailed Description

create hierarchies of vtkProp3Ds (transformable props)

vtkAssembly is an object that groups vtkProp3Ds, its subclasses, and other assemblies into a tree-like hierarchy. The vtkProp3Ds and assemblies can then be transformed together by transforming just the root assembly of the hierarchy.

A vtkAssembly object can be used in place of an vtkProp3D since it is a subclass of vtkProp3D. The difference is that vtkAssembly maintains a list of vtkProp3D instances (its "parts") that form the assembly. Then, any operation that transforms (i.e., scales, rotates, translates) the parent assembly will transform all its parts. Note that this process is recursive: you can create groups consisting of assemblies and/or vtkProp3Ds to arbitrary depth.

To add an assembly to the renderer's list of props, you only need to add the root of the assembly. During rendering, the parts of the assembly are rendered during a hierarchical traversal process.

Warning:
Collections of assemblies are slower to render than an equivalent list of actors. This is because to support arbitrary nesting of assemblies, the state of the assemblies (i.e., transformation matrices) must be propagated through the assembly hierarchy.

Assemblies can consist of hierarchies of assemblies, where one actor or assembly used in one hierarchy is also used in other hierarchies. However, make that there are no cycles (e.g., parent->child->parent), this will cause program failure.

If you wish to create assemblies without any transformation (using the assembly strictly as a grouping mechanism), then you may wish to consider using vtkPropAssembly.

See also:
vtkActor vtkTransform vtkMapper vtkPolyDataMapper vtkPropAssembly
Tests:
vtkAssembly (Tests)

Definition at line 70 of file vtkAssembly.h.


Public Types

typedef vtkProp3D Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
void AddPart (vtkProp3D *)
void RemovePart (vtkProp3D *)
vtkProp3DCollectionGetParts ()
virtual int HasTranslucentPolygonalGeometry ()
void ReleaseGraphicsResources (vtkWindow *)
unsigned long int GetMTime ()
void ShallowCopy (vtkProp *prop)
void BuildPaths (vtkAssemblyPaths *paths, vtkAssemblyPath *path)
void GetActors (vtkPropCollection *)
void GetVolumes (vtkPropCollection *)
int RenderOpaqueGeometry (vtkViewport *ren)
virtual int RenderTranslucentPolygonalGeometry (vtkViewport *ren)
virtual int RenderVolumetricGeometry (vtkViewport *ren)
void InitPathTraversal ()
vtkAssemblyPathGetNextPath ()
int GetNumberOfPaths ()
void GetBounds (double bounds[6])
double * GetBounds ()

Static Public Member Functions

static vtkAssemblyNew ()
static int IsTypeOf (const char *type)
static vtkAssemblySafeDownCast (vtkObject *o)

Protected Member Functions

 vtkAssembly ()
 ~vtkAssembly ()
virtual void UpdatePaths ()

Protected Attributes

vtkProp3DCollectionParts
vtkTimeStamp PathTime

Member Typedef Documentation

Reimplemented from vtkProp3D.

Definition at line 75 of file vtkAssembly.h.


Constructor & Destructor Documentation

vtkAssembly::vtkAssembly (  )  [protected]

vtkAssembly::~vtkAssembly (  )  [protected]


Member Function Documentation

static vtkAssembly* vtkAssembly::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

virtual const char* vtkAssembly::GetClassName (  )  [virtual]

Reimplemented from vtkProp3D.

static int vtkAssembly::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkProp3D.

virtual int vtkAssembly::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkProp3D.

static vtkAssembly* vtkAssembly::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkProp3D.

void vtkAssembly::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkProp3D.

void vtkAssembly::AddPart ( vtkProp3D  )

Add a part to the list of parts.

void vtkAssembly::RemovePart ( vtkProp3D  )

Remove a part from the list of parts,

vtkProp3DCollection * vtkAssembly::GetParts (  )  [inline]

Return the parts (direct descendants) of this assembly.

Get the list of parts for this assembly.

Definition at line 169 of file vtkAssembly.h.

void vtkAssembly::GetActors ( vtkPropCollection  )  [virtual]

For some exporters and other other operations we must be able to collect all the actors or volumes. These methods are used in that process.

Reimplemented from vtkProp.

void vtkAssembly::GetVolumes ( vtkPropCollection  )  [virtual]

For some exporters and other other operations we must be able to collect all the actors or volumes. These methods are used in that process.

Reimplemented from vtkProp.

int vtkAssembly::RenderOpaqueGeometry ( vtkViewport ren  )  [virtual]

Render this assembly and all its parts. The rendering process is recursive. Note that a mapper need not be defined. If not defined, then no geometry will be drawn for this assembly. This allows you to create "logical" assemblies; that is, assemblies that only serve to group and transform its parts.

Reimplemented from vtkProp.

virtual int vtkAssembly::RenderTranslucentPolygonalGeometry ( vtkViewport ren  )  [virtual]

Render this assembly and all its parts. The rendering process is recursive. Note that a mapper need not be defined. If not defined, then no geometry will be drawn for this assembly. This allows you to create "logical" assemblies; that is, assemblies that only serve to group and transform its parts.

Reimplemented from vtkProp.

virtual int vtkAssembly::RenderVolumetricGeometry ( vtkViewport ren  )  [virtual]

Render this assembly and all its parts. The rendering process is recursive. Note that a mapper need not be defined. If not defined, then no geometry will be drawn for this assembly. This allows you to create "logical" assemblies; that is, assemblies that only serve to group and transform its parts.

Reimplemented from vtkProp.

virtual int vtkAssembly::HasTranslucentPolygonalGeometry (  )  [virtual]

Does this prop have some translucent polygonal geometry?

Reimplemented from vtkProp.

void vtkAssembly::ReleaseGraphicsResources ( vtkWindow  )  [virtual]

Release any graphics resources that are being consumed by this actor. The parameter window could be used to determine which graphic resources to release.

Reimplemented from vtkProp.

void vtkAssembly::InitPathTraversal (  )  [virtual]

Methods to traverse the parts of an assembly. Each part (starting from the root) will appear properly transformed and with the correct properties (depending upon the ApplyProperty and ApplyTransform ivars). Note that the part appears as an instance of vtkProp. These methods should be contrasted to those that traverse the list of parts using GetParts(). GetParts() returns a list of children of this assembly, not necessarily with the correct transformation or properties. To use the methods below - first invoke InitPathTraversal() followed by repeated calls to GetNextPath(). GetNextPath() returns a NULL pointer when the list is exhausted.

Reimplemented from vtkProp3D.

vtkAssemblyPath* vtkAssembly::GetNextPath (  )  [virtual]

Methods to traverse the parts of an assembly. Each part (starting from the root) will appear properly transformed and with the correct properties (depending upon the ApplyProperty and ApplyTransform ivars). Note that the part appears as an instance of vtkProp. These methods should be contrasted to those that traverse the list of parts using GetParts(). GetParts() returns a list of children of this assembly, not necessarily with the correct transformation or properties. To use the methods below - first invoke InitPathTraversal() followed by repeated calls to GetNextPath(). GetNextPath() returns a NULL pointer when the list is exhausted.

Reimplemented from vtkProp.

int vtkAssembly::GetNumberOfPaths (  )  [virtual]

Methods to traverse the parts of an assembly. Each part (starting from the root) will appear properly transformed and with the correct properties (depending upon the ApplyProperty and ApplyTransform ivars). Note that the part appears as an instance of vtkProp. These methods should be contrasted to those that traverse the list of parts using GetParts(). GetParts() returns a list of children of this assembly, not necessarily with the correct transformation or properties. To use the methods below - first invoke InitPathTraversal() followed by repeated calls to GetNextPath(). GetNextPath() returns a NULL pointer when the list is exhausted.

Reimplemented from vtkProp.

void vtkAssembly::GetBounds ( double  bounds[6]  )  [inline]

Get the bounds for the assembly as (Xmin,Xmax,Ymin,Ymax,Zmin,Zmax).

Reimplemented from vtkProp3D.

Definition at line 132 of file vtkAssembly.h.

double* vtkAssembly::GetBounds (  )  [virtual]

Get the bounds for the assembly as (Xmin,Xmax,Ymin,Ymax,Zmin,Zmax).

Implements vtkProp3D.

unsigned long int vtkAssembly::GetMTime (  )  [virtual]

Override default GetMTime method to also consider all of the assembly's parts.

Reimplemented from vtkProp3D.

void vtkAssembly::ShallowCopy ( vtkProp prop  )  [virtual]

Shallow copy of an assembly. Overloads the virtual vtkProp method.

Reimplemented from vtkProp3D.

void vtkAssembly::BuildPaths ( vtkAssemblyPaths paths,
vtkAssemblyPath path
) [virtual]

WARNING: INTERNAL METHOD - NOT INTENDED FOR GENERAL USE DO NOT USE THIS METHOD OUTSIDE OF THE RENDERING PROCESS Overload the superclass' vtkProp BuildPaths() method. Paths consist of an ordered sequence of actors, with transformations properly concatenated.

Reimplemented from vtkProp.

virtual void vtkAssembly::UpdatePaths (  )  [protected, virtual]


Member Data Documentation

Definition at line 156 of file vtkAssembly.h.

Definition at line 160 of file vtkAssembly.h.
