vtkAxes Class Reference

#include <vtkAxes.h>

Inheritance diagram for vtkAxes:

[legend]

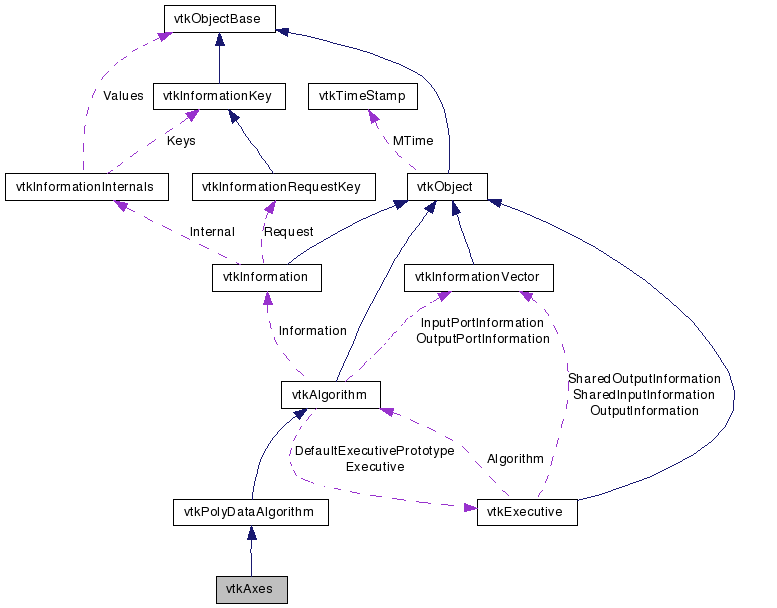

Collaboration diagram for vtkAxes:

[legend]

List of all members.

---

Detailed Description

create an x-y-z axes

vtkAxes creates three lines that form an x-y-z axes. The origin of the axes is user specified (0,0,0 is default), and the size is specified with a scale factor. Three scalar values are generated for the three lines and can be used (via color map) to indicate a particular coordinate axis.

Tests:

vtkAxes (Tests)

Definition at line 32 of file vtkAxes.h.

Public Types
typedef vtkPolyDataAlgorithm	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	SetOrigin (double, double, double)
virtual void	SetOrigin (double[3])
virtual double *	GetOrigin ()
virtual void	GetOrigin (double data[3])
virtual void	SetScaleFactor (double)
virtual double	GetScaleFactor ()
virtual void	SetSymmetric (int)
virtual int	GetSymmetric ()
virtual void	SymmetricOn ()
virtual void	SymmetricOff ()
virtual void	SetComputeNormals (int)
virtual int	GetComputeNormals ()
virtual void	ComputeNormalsOn ()
virtual void	ComputeNormalsOff ()
Static Public Member Functions
static vtkAxes *	New ()
static int	IsTypeOf (const char *type)
static vtkAxes *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkAxes ()
	~vtkAxes ()
int	RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
int	ComputeDivisionExtents (vtkDataObject *output, int idx, int numDivisions)
Protected Attributes
double	Origin [3]
double	ScaleFactor
int	Symmetric
int	ComputeNormals

---

Member Typedef Documentation

typedef vtkPolyDataAlgorithm vtkAxes::Superclass

Reimplemented from vtkPolyDataAlgorithm.

Definition at line 37 of file vtkAxes.h.

---

Constructor & Destructor Documentation

vtkAxes::vtkAxes

(

)

[protected]

vtkAxes::~vtkAxes

(

)

[inline, protected]

Definition at line 68 of file vtkAxes.h.

---

Member Function Documentation

static vtkAxes* vtkAxes::New

(

)

[static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkPolyDataAlgorithm.

virtual const char* vtkAxes::GetClassName

(

)

[virtual]

Reimplemented from vtkPolyDataAlgorithm.

static int vtkAxes::IsTypeOf

(

const char *

name

)

[static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataAlgorithm.

virtual int vtkAxes::IsA

(

const char *

name

)

[virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataAlgorithm.

static vtkAxes* vtkAxes::SafeDownCast

(

vtkObject *

o

)

[static]

Reimplemented from vtkPolyDataAlgorithm.

void vtkAxes::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			[virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkPolyDataAlgorithm.

virtual void vtkAxes::SetOrigin	(	double	,
		double	,
		double
	)			[virtual]

Set the origin of the axes.

virtual void vtkAxes::SetOrigin

(

double

[3]

)

[virtual]

Set the origin of the axes.

virtual double* vtkAxes::GetOrigin

(

)

[virtual]

Set the origin of the axes.

virtual void vtkAxes::GetOrigin

(

double

data[3]

)

[virtual]

Set the origin of the axes.

virtual void vtkAxes::SetScaleFactor

(

double

)

[virtual]

Set the scale factor of the axes. Used to control size.

virtual double vtkAxes::GetScaleFactor

(

)

[virtual]

Set the scale factor of the axes. Used to control size.

virtual void vtkAxes::SetSymmetric

(

int

)

[virtual]

If Symetric is on, the the axis continue to negative values.

virtual int vtkAxes::GetSymmetric

(

)

[virtual]

If Symetric is on, the the axis continue to negative values.

virtual void vtkAxes::SymmetricOn

(

)

[virtual]

If Symetric is on, the the axis continue to negative values.

virtual void vtkAxes::SymmetricOff

(

)

[virtual]

If Symetric is on, the the axis continue to negative values.

virtual void vtkAxes::SetComputeNormals

(

int

)

[virtual]

Option for computing normals. By default they are computed.

virtual int vtkAxes::GetComputeNormals

(

)

[virtual]

Option for computing normals. By default they are computed.

virtual void vtkAxes::ComputeNormalsOn

(

)

[virtual]

Option for computing normals. By default they are computed.

virtual void vtkAxes::ComputeNormalsOff

(

)

[virtual]

Option for computing normals. By default they are computed.

int vtkAxes::RequestData	(	vtkInformation *	request,
		vtkInformationVector **	inputVector,
		vtkInformationVector *	outputVector
	)			[protected, virtual]

This is called by the superclass. This is the method you should override.

Reimplemented from vtkPolyDataAlgorithm.

int vtkAxes::ComputeDivisionExtents	(	vtkDataObject *	output,
		int	idx,
		int	numDivisions
	)			[protected]

---

Member Data Documentation

double vtkAxes::Origin[3] [protected]

Definition at line 75 of file vtkAxes.h.

double vtkAxes::ScaleFactor [protected]

Definition at line 76 of file vtkAxes.h.

int vtkAxes::Symmetric [protected]

Definition at line 78 of file vtkAxes.h.

int vtkAxes::ComputeNormals [protected]

Definition at line 79 of file vtkAxes.h.

---

The documentation for this class was generated from the following file:

• dox/Graphics/vtkAxes.h
