vtkBYUReader Class Reference

#include <vtkBYUReader.h>

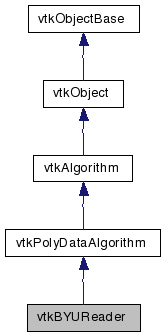

Inheritance diagram for vtkBYUReader:

[legend]

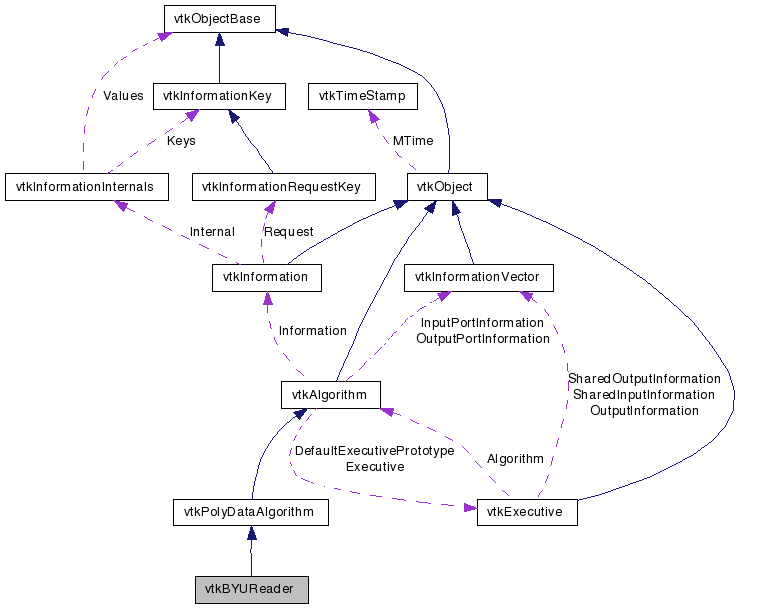

Collaboration diagram for vtkBYUReader:

[legend]

List of all members.

Detailed Description

read MOVIE.BYU polygon files

vtkBYUReader is a source object that reads MOVIE.BYU polygon files. These files consist of a geometry file (.g), a scalar file (.s), a displacement or vector file (.d), and a 2D texture coordinate file (.t).

Tests:: vtkBYUReader (Tests)

Definition at line 32 of file vtkBYUReader.h.


Public Types
typedef vtkPolyDataAlgorithm	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)

virtual void	SetGeometryFileName (const char *)
virtual char *	GetGeometryFileName ()

virtual void	SetFileName (const char *f)
virtual char *	GetFileName ()

virtual void	SetDisplacementFileName (const char *)
virtual char *	GetDisplacementFileName ()

virtual void	SetScalarFileName (const char *)
virtual char *	GetScalarFileName ()

virtual void	SetTextureFileName (const char *)
virtual char *	GetTextureFileName ()

virtual void	SetReadDisplacement (int)
virtual int	GetReadDisplacement ()
virtual void	ReadDisplacementOn ()
virtual void	ReadDisplacementOff ()

virtual void	SetReadScalar (int)
virtual int	GetReadScalar ()
virtual void	ReadScalarOn ()
virtual void	ReadScalarOff ()

virtual void	SetReadTexture (int)
virtual int	GetReadTexture ()
virtual void	ReadTextureOn ()
virtual void	ReadTextureOff ()

virtual void	SetPartNumber (int)
virtual int	GetPartNumber ()
Static Public Member Functions
static vtkBYUReader *	New ()
static int	IsTypeOf (const char *type)
static vtkBYUReader *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkBYUReader ()
	~vtkBYUReader ()
int	RequestData (vtkInformation , vtkInformationVector , vtkInformationVector )
int	ComputeDivisionExtents (vtkDataObject *output, int idx, int numDivisions)
void	ReadGeometryFile (FILE fp, int &numPts, vtkInformation outInfo)
void	ReadDisplacementFile (int numPts, vtkInformation *outInfo)
void	ReadScalarFile (int numPts, vtkInformation *outInfo)
void	ReadTextureFile (int numPts, vtkInformation *outInfo)
Protected Attributes
char *	GeometryFileName
char *	DisplacementFileName
char *	ScalarFileName
char *	TextureFileName
int	ReadDisplacement
int	ReadScalar
int	ReadTexture
int	PartNumber

Member Typedef Documentation

typedef vtkPolyDataAlgorithm vtkBYUReader::Superclass

Reimplemented from vtkPolyDataAlgorithm.

Definition at line 37 of file vtkBYUReader.h.

Constructor & Destructor Documentation

vtkBYUReader::vtkBYUReader ( ) [protected]

vtkBYUReader::~vtkBYUReader ( ) [protected]

Member Function Documentation

static vtkBYUReader* vtkBYUReader::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkPolyDataAlgorithm.

virtual const char* vtkBYUReader::GetClassName ( ) [virtual]

Reimplemented from vtkPolyDataAlgorithm.

static int vtkBYUReader::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataAlgorithm.

virtual int vtkBYUReader::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataAlgorithm.

static vtkBYUReader* vtkBYUReader::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkPolyDataAlgorithm.

void vtkBYUReader::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkPolyDataAlgorithm.

virtual void vtkBYUReader::SetGeometryFileName ( const char * ) [virtual]

Specify name of geometry FileName.

virtual char* vtkBYUReader::GetGeometryFileName ( ) [virtual]

Specify name of geometry FileName.

virtual void vtkBYUReader::SetFileName ( const char * f ) [inline, virtual]

Specify name of geometry FileName (alias).

Definition at line 48 of file vtkBYUReader.h.

virtual char* vtkBYUReader::GetFileName ( ) [inline, virtual]

Specify name of geometry FileName (alias).

Definition at line 49 of file vtkBYUReader.h.

virtual void vtkBYUReader::SetDisplacementFileName ( const char * ) [virtual]

Specify name of displacement FileName.

virtual char* vtkBYUReader::GetDisplacementFileName ( ) [virtual]

Specify name of displacement FileName.

virtual void vtkBYUReader::SetScalarFileName ( const char * ) [virtual]

Specify name of scalar FileName.

virtual char* vtkBYUReader::GetScalarFileName ( ) [virtual]

Specify name of scalar FileName.

virtual void vtkBYUReader::SetTextureFileName ( const char * ) [virtual]

Specify name of texture coordinates FileName.

virtual char* vtkBYUReader::GetTextureFileName ( ) [virtual]

Specify name of texture coordinates FileName.

virtual void vtkBYUReader::SetReadDisplacement ( int ) [virtual]

Turn on/off the reading of the displacement file.

virtual int vtkBYUReader::GetReadDisplacement ( ) [virtual]

Turn on/off the reading of the displacement file.

virtual void vtkBYUReader::ReadDisplacementOn ( ) [virtual]

Turn on/off the reading of the displacement file.

virtual void vtkBYUReader::ReadDisplacementOff ( ) [virtual]

Turn on/off the reading of the displacement file.

virtual void vtkBYUReader::SetReadScalar ( int ) [virtual]

Turn on/off the reading of the scalar file.

virtual int vtkBYUReader::GetReadScalar ( ) [virtual]

Turn on/off the reading of the scalar file.

virtual void vtkBYUReader::ReadScalarOn ( ) [virtual]

Turn on/off the reading of the scalar file.

virtual void vtkBYUReader::ReadScalarOff ( ) [virtual]

Turn on/off the reading of the scalar file.

virtual void vtkBYUReader::SetReadTexture ( int ) [virtual]

Turn on/off the reading of the texture coordinate file. Specify name of geometry FileName.

virtual int vtkBYUReader::GetReadTexture ( ) [virtual]

Turn on/off the reading of the texture coordinate file. Specify name of geometry FileName.

virtual void vtkBYUReader::ReadTextureOn ( ) [virtual]

Turn on/off the reading of the texture coordinate file. Specify name of geometry FileName.

virtual void vtkBYUReader::ReadTextureOff ( ) [virtual]

Turn on/off the reading of the texture coordinate file. Specify name of geometry FileName.

virtual void vtkBYUReader::SetPartNumber ( int ) [virtual]

Set/Get the part number to be read.

virtual int vtkBYUReader::GetPartNumber ( ) [virtual]

Set/Get the part number to be read.

int vtkBYUReader::RequestData	(	vtkInformation *	request,
		vtkInformationVector **	inputVector,
		vtkInformationVector *	outputVector
	)			`[protected, virtual]`
