vtkCachedStreamingDemandDrivenPipeline Class Reference

#include <vtkCachedStreamingDemandDrivenPipeline.h>

Inheritance diagram for vtkCachedStreamingDemandDrivenPipeline:

[legend]

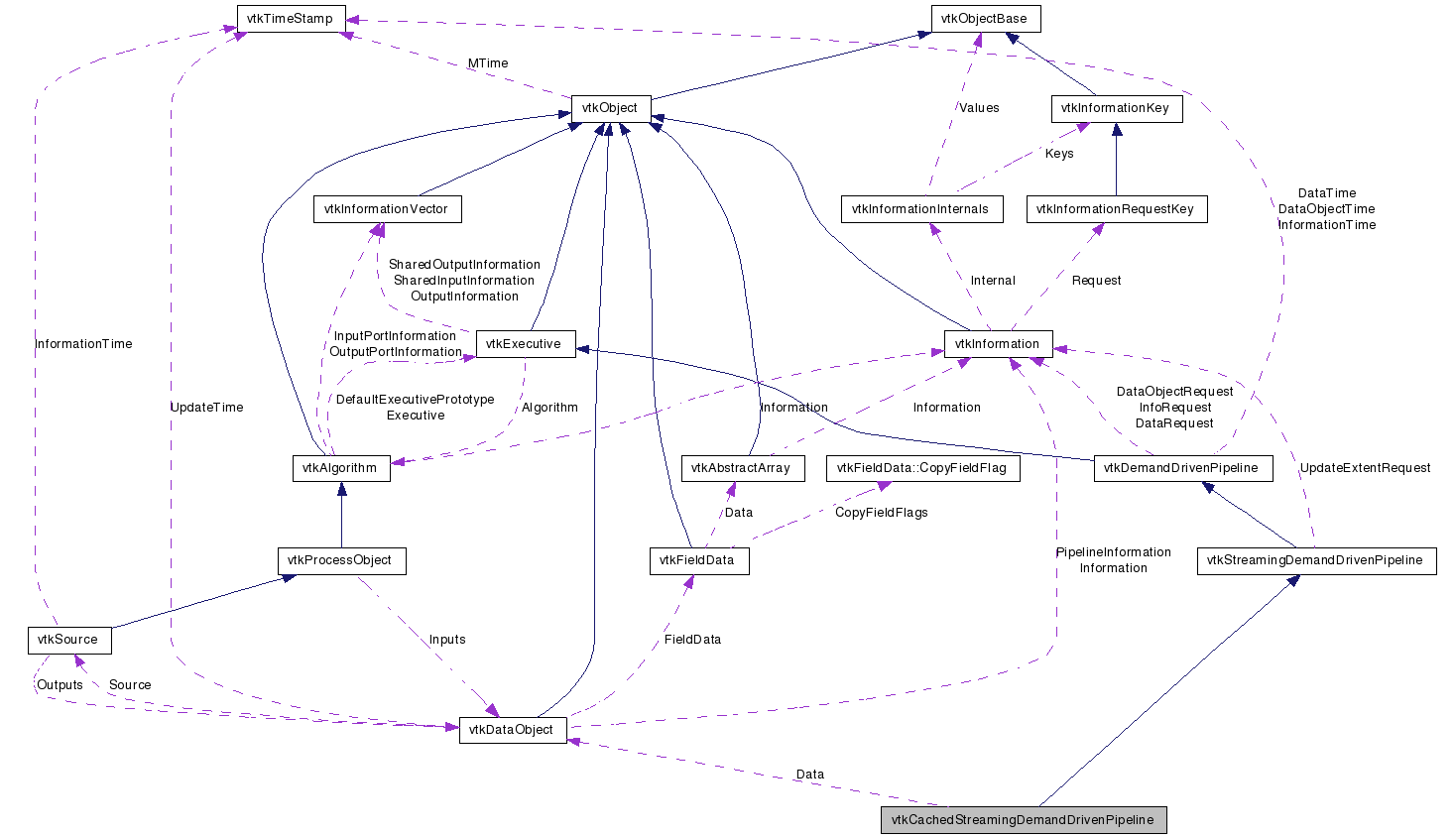

Collaboration diagram for vtkCachedStreamingDemandDrivenPipeline:

[legend]

List of all members.

Detailed Description

vtkCachedStreamingDemandDrivenPipeline

Definition at line 29 of file vtkCachedStreamingDemandDrivenPipeline.h.


Public Types
typedef vtkStreamingDemandDrivenPipeline	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)

virtual int	Update ()
virtual int	Update (int port)

void	SetCacheSize (int size)
virtual int	GetCacheSize ()
Static Public Member Functions
static vtkCachedStreamingDemandDrivenPipeline *	New ()
static int	IsTypeOf (const char *type)
static vtkCachedStreamingDemandDrivenPipeline *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkCachedStreamingDemandDrivenPipeline ()
	~vtkCachedStreamingDemandDrivenPipeline ()
virtual int	NeedToExecuteData (int outputPort, vtkInformationVector *inInfoVec, vtkInformationVector outInfoVec)
virtual int	ExecuteData (vtkInformation request, vtkInformationVector inInfoVec, vtkInformationVector outInfoVec)
Protected Attributes
int	CacheSize
vtkDataObject **	Data
unsigned long *	Times

Member Typedef Documentation

typedef vtkStreamingDemandDrivenPipeline vtkCachedStreamingDemandDrivenPipeline::Superclass

Reimplemented from vtkStreamingDemandDrivenPipeline.

Definition at line 35 of file vtkCachedStreamingDemandDrivenPipeline.h.

Constructor & Destructor Documentation

vtkCachedStreamingDemandDrivenPipeline::vtkCachedStreamingDemandDrivenPipeline ( ) [protected]

vtkCachedStreamingDemandDrivenPipeline::~vtkCachedStreamingDemandDrivenPipeline ( ) [protected]

Member Function Documentation

static vtkCachedStreamingDemandDrivenPipeline* vtkCachedStreamingDemandDrivenPipeline::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkStreamingDemandDrivenPipeline.

virtual const char* vtkCachedStreamingDemandDrivenPipeline::GetClassName ( ) [virtual]

Reimplemented from vtkStreamingDemandDrivenPipeline.

static int vtkCachedStreamingDemandDrivenPipeline::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkStreamingDemandDrivenPipeline.

virtual int vtkCachedStreamingDemandDrivenPipeline::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkStreamingDemandDrivenPipeline.

static vtkCachedStreamingDemandDrivenPipeline* vtkCachedStreamingDemandDrivenPipeline::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkStreamingDemandDrivenPipeline.

void vtkCachedStreamingDemandDrivenPipeline::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkStreamingDemandDrivenPipeline.

virtual int vtkCachedStreamingDemandDrivenPipeline::Update ( ) [virtual]

Bring the algorithm's outputs up-to-date.

Reimplemented from vtkStreamingDemandDrivenPipeline.

virtual int vtkCachedStreamingDemandDrivenPipeline::Update ( int port ) [virtual]

Bring the algorithm's outputs up-to-date.

Reimplemented from vtkStreamingDemandDrivenPipeline.

void vtkCachedStreamingDemandDrivenPipeline::SetCacheSize ( int size )

This is the maximum number of images that can be retained in memory. it defaults to 10.

virtual int vtkCachedStreamingDemandDrivenPipeline::GetCacheSize ( ) [virtual]

This is the maximum number of images that can be retained in memory. it defaults to 10.

virtual int vtkCachedStreamingDemandDrivenPipeline::NeedToExecuteData	(	int	outputPort,
		vtkInformationVector **	inInfoVec,
		vtkInformationVector *	outInfoVec
	)			`[protected, virtual]`

Reimplemented from vtkStreamingDemandDrivenPipeline.

virtual int vtkCachedStreamingDemandDrivenPipeline::ExecuteData	(	vtkInformation *	request,
		vtkInformationVector **	inInfoVec,
		vtkInformationVector *	outInfoVec
	)			`[protected, virtual]`
