vtkCellData Class Reference

#include <vtkCellData.h>

Inheritance diagram for vtkCellData:

[legend]

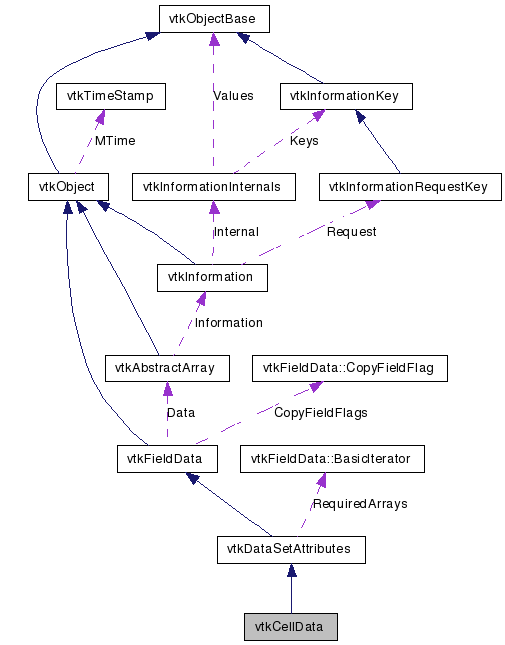

Collaboration diagram for vtkCellData:

[legend]

List of all members.

---

Detailed Description

represent and manipulate cell attribute data

vtkCellData is a class that is used to represent and manipulate cell attribute data (e.g., scalars, vectors, normals, texture coordinates, etc.) Special methods are provided to work with filter objects, such as passing data through filter, copying data from one cell to another, and interpolating data given cell interpolation weights.

Tests:

vtkCellData (Tests)

Definition at line 33 of file vtkCellData.h.

Public Types
typedef vtkDataSetAttributes	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
Static Public Member Functions
static vtkCellData *	New ()
static int	IsTypeOf (const char *type)
static vtkCellData *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkCellData ()
	~vtkCellData ()

---

Member Typedef Documentation

typedef vtkDataSetAttributes vtkCellData::Superclass

Reimplemented from vtkDataSetAttributes.

Definition at line 38 of file vtkCellData.h.

---

Constructor & Destructor Documentation

vtkCellData::vtkCellData

(

)

[inline, protected]

Definition at line 42 of file vtkCellData.h.

vtkCellData::~vtkCellData

(

)

[inline, protected]

Definition at line 43 of file vtkCellData.h.

---

Member Function Documentation

static vtkCellData* vtkCellData::New

(

)

[static]

Construct object with copying turned on for all data.

Reimplemented from vtkDataSetAttributes.

virtual const char* vtkCellData::GetClassName

(

)

[virtual]

Reimplemented from vtkDataSetAttributes.

static int vtkCellData::IsTypeOf

(

const char *

name

)

[static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkDataSetAttributes.

virtual int vtkCellData::IsA

(

const char *

name

)

[virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkDataSetAttributes.

static vtkCellData* vtkCellData::SafeDownCast

(

vtkObject *

o

)

[static]

Reimplemented from vtkDataSetAttributes.

void vtkCellData::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			[virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkDataSetAttributes.

---

The documentation for this class was generated from the following file:

• dox/Filtering/vtkCellData.h
