vtkConvertSelectionDomain Class Reference

#include <vtkConvertSelectionDomain.h>

Inheritance diagram for vtkConvertSelectionDomain:

Inheritance graph
[legend]

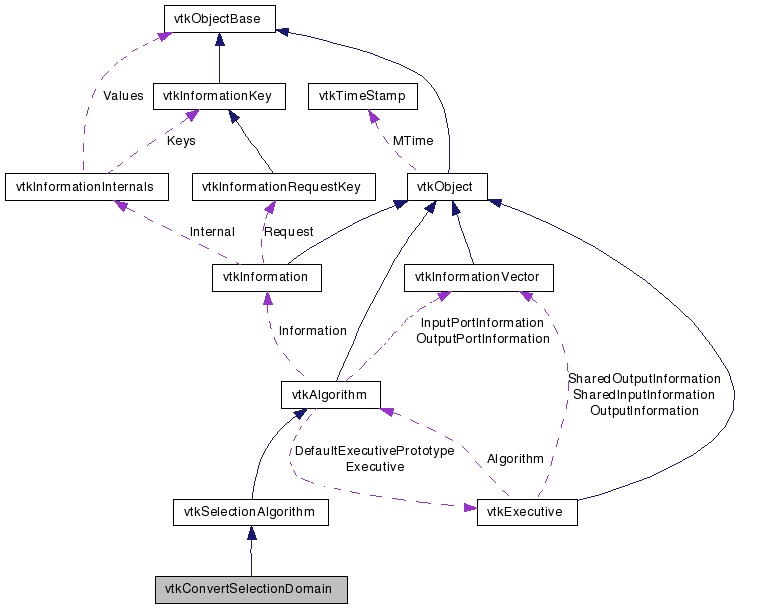

Collaboration diagram for vtkConvertSelectionDomain:

Collaboration graph
[legend]

List of all members.


Detailed Description

Convert a selection from one domain to another.

vtkConvertSelectionDomain converts a selection from one domain to another using known domain mappings. The domain mappings are described by a vtkMultiBlockDataSet containing one or more vtkTables.

The first input port is for the input selection, while the second port is for the multi-block of mappings, and the third port is for the data that is being selected on.

If the second or third port is not set, this filter will pass the selection to the output unchanged.

Definition at line 41 of file vtkConvertSelectionDomain.h.


Public Types

typedef vtkSelectionAlgorithm Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)

Static Public Member Functions

static vtkConvertSelectionDomainNew ()
static int IsTypeOf (const char *type)
static vtkConvertSelectionDomainSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkConvertSelectionDomain ()
 ~vtkConvertSelectionDomain ()
virtual int RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int FillInputPortInformation (int port, vtkInformation *info)

Member Typedef Documentation

Reimplemented from vtkSelectionAlgorithm.

Definition at line 45 of file vtkConvertSelectionDomain.h.


Constructor & Destructor Documentation

vtkConvertSelectionDomain::vtkConvertSelectionDomain (  )  [protected]

vtkConvertSelectionDomain::~vtkConvertSelectionDomain (  )  [protected]


Member Function Documentation

static vtkConvertSelectionDomain* vtkConvertSelectionDomain::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkSelectionAlgorithm.

virtual const char* vtkConvertSelectionDomain::GetClassName (  )  [virtual]

Reimplemented from vtkSelectionAlgorithm.

static int vtkConvertSelectionDomain::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkSelectionAlgorithm.

virtual int vtkConvertSelectionDomain::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkSelectionAlgorithm.

static vtkConvertSelectionDomain* vtkConvertSelectionDomain::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkSelectionAlgorithm.

void vtkConvertSelectionDomain::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkSelectionAlgorithm.

virtual int vtkConvertSelectionDomain::RequestData ( vtkInformation request,
vtkInformationVector **  inputVector,
vtkInformationVector outputVector
) [protected, virtual]

This is called by the superclass. This is the method you should override.

Reimplemented from vtkSelectionAlgorithm.

virtual int vtkConvertSelectionDomain::FillInputPortInformation ( int  port,
vtkInformation info
) [protected, virtual]

Fill the input port information objects for this algorithm. This is invoked by the first call to GetInputPortInformation for each port so subclasses can specify what they can handle.

Reimplemented from vtkSelectionAlgorithm.


The documentation for this class was generated from the following file:
