vtkCubeAxesActor2D Class Reference

#include <vtkCubeAxesActor2D.h>

Inheritance diagram for vtkCubeAxesActor2D:

[legend]

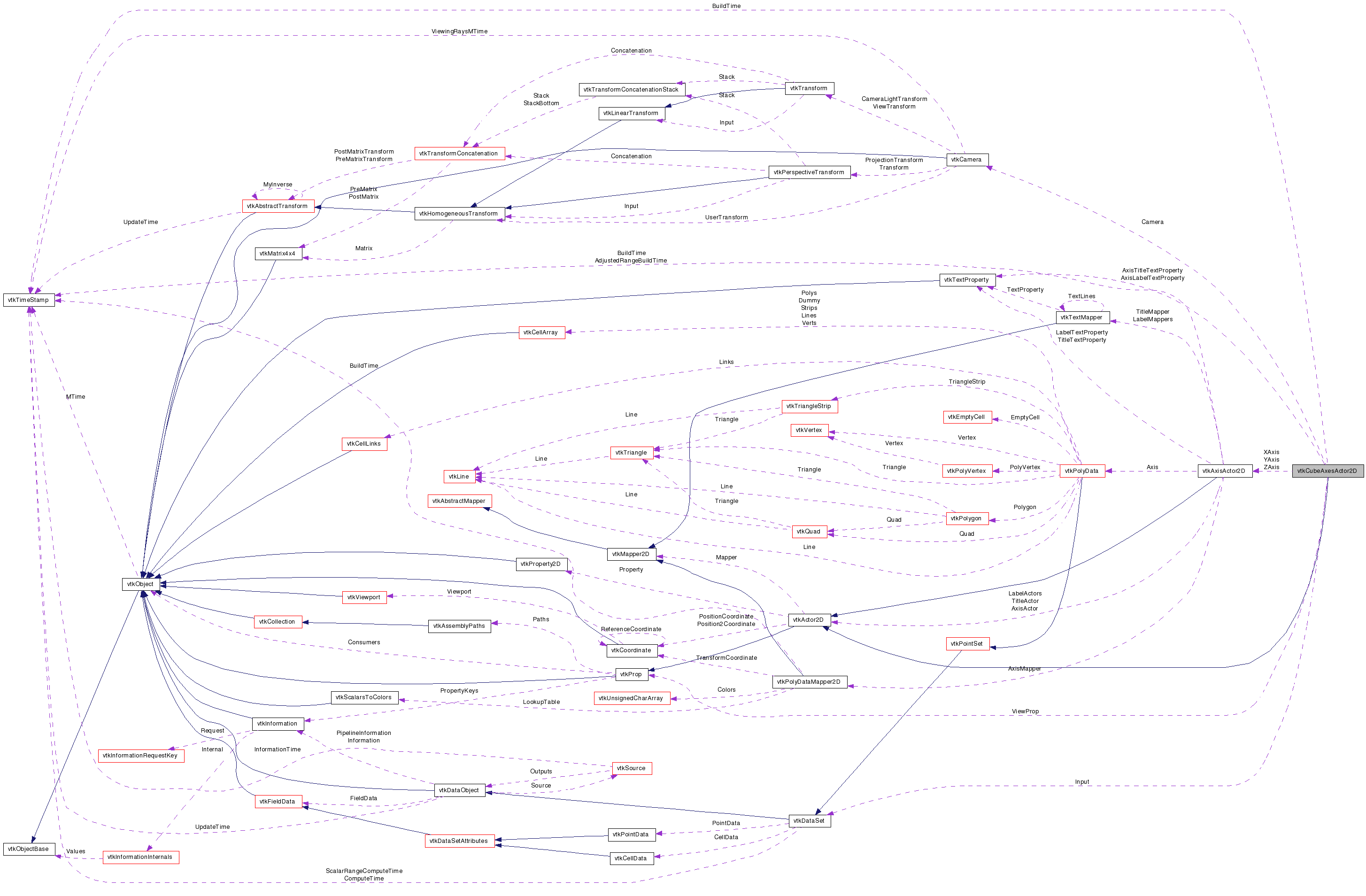

Collaboration diagram for vtkCubeAxesActor2D:

[legend]

List of all members.

Detailed Description

create a 2D plot of a bounding box edges - used for navigation

vtkCubeAxesActor2D is a composite actor that draws three axes of the bounding box of an input dataset. The axes include labels and titles for the x-y-z axes. The algorithm selects the axes that are on the "exterior" of the bounding box, exterior as determined from examining outer edges of the bounding box in projection (display) space. Alternatively, the edges closest to the viewer (i.e., camera position) can be drawn.

To use this object you must define a bounding box and the camera used to render the vtkCubeAxesActor2D. The camera is used to control the scaling and position of the vtkCubeAxesActor2D so that it fits in the viewport and always remains visible.)

The font property of the axes titles and labels can be modified through the AxisTitleTextProperty and AxisLabelTextProperty attributes. You may also use the GetXAxisActor2D, GetYAxisActor2D or GetZAxisActor2D methods to access each individual axis actor to modify their font properties.

The bounding box to use is defined in one of three ways. First, if the Input ivar is defined, then the input dataset's bounds is used. If the Input is not defined, and the Prop (superclass of all actors) is defined, then the Prop's bounds is used. If neither the Input or Prop is defined, then the Bounds instance variable (an array of six doubles) is used.

See also:: vtkActor2D vtkAxisActor2D vtkXYPlotActor vtkTextProperty

Tests:: vtkCubeAxesActor2D (Tests)

Definition at line 61 of file vtkCubeAxesActor2D.h.


Public Types
typedef vtkActor2D	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual int	HasTranslucentPolygonalGeometry ()
void	ReleaseGraphicsResources (vtkWindow *)
void	ShallowCopy (vtkCubeAxesActor2D *actor)
virtual void	SetProp (vtkProp *prop)
virtual vtkProp *	GetProp ()

int	RenderOverlay (vtkViewport *)
int	RenderOpaqueGeometry (vtkViewport *)
virtual int	RenderTranslucentPolygonalGeometry (vtkViewport *)

virtual void	SetInput (vtkDataSet *)
virtual vtkDataSet *	GetInput ()

void	SetViewProp (vtkProp *prop)
virtual vtkProp *	GetViewProp ()

virtual void	SetBounds (double, double, double, double, double, double)
virtual void	SetBounds (double[6])
double *	GetBounds ()
void	GetBounds (double &xmin, double &xmax, double &ymin, double &ymax, double &zmin, double &zmax)
void	GetBounds (double bounds[6])

virtual void	SetRanges (double, double, double, double, double, double)
virtual void	SetRanges (double[6])
double *	GetRanges ()
void	GetRanges (double &xmin, double &xmax, double &ymin, double &ymax, double &zmin, double &zmax)
void	GetRanges (double ranges[6])

virtual void	SetUseRanges (int)
virtual int	GetUseRanges ()
virtual void	UseRangesOn ()
virtual void	UseRangesOff ()

virtual void	SetCamera (vtkCamera *)
virtual vtkCamera *	GetCamera ()

virtual void	SetFlyMode (int)
virtual int	GetFlyMode ()
void	SetFlyModeToOuterEdges ()
void	SetFlyModeToClosestTriad ()

virtual void	SetScaling (int)
virtual int	GetScaling ()
virtual void	ScalingOn ()
virtual void	ScalingOff ()

virtual void	SetNumberOfLabels (int)
virtual int	GetNumberOfLabels ()

virtual void	SetXLabel (const char *)
virtual char *	GetXLabel ()
virtual void	SetYLabel (const char *)
virtual char *	GetYLabel ()
virtual void	SetZLabel (const char *)
virtual char *	GetZLabel ()

vtkAxisActor2D *	GetXAxisActor2D ()
vtkAxisActor2D *	GetYAxisActor2D ()
vtkAxisActor2D *	GetZAxisActor2D ()

virtual void	SetAxisTitleTextProperty (vtkTextProperty *p)
virtual vtkTextProperty *	GetAxisTitleTextProperty ()

virtual void	SetAxisLabelTextProperty (vtkTextProperty *p)
virtual vtkTextProperty *	GetAxisLabelTextProperty ()

virtual void	SetLabelFormat (const char *)
virtual char *	GetLabelFormat ()

virtual void	SetFontFactor (double)
virtual double	GetFontFactor ()

virtual void	SetInertia (int)
virtual int	GetInertia ()

virtual void	SetShowActualBounds (int)
virtual int	GetShowActualBounds ()

virtual void	SetCornerOffset (double)
virtual double	GetCornerOffset ()

virtual void	SetXAxisVisibility (int)
virtual int	GetXAxisVisibility ()
virtual void	XAxisVisibilityOn ()
virtual void	XAxisVisibilityOff ()
virtual void	SetYAxisVisibility (int)
virtual int	GetYAxisVisibility ()
virtual void	YAxisVisibilityOn ()
virtual void	YAxisVisibilityOff ()
virtual void	SetZAxisVisibility (int)
virtual int	GetZAxisVisibility ()
virtual void	ZAxisVisibilityOn ()
virtual void	ZAxisVisibilityOff ()
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkCubeAxesActor2D *	SafeDownCast (vtkObject *o)
static vtkCubeAxesActor2D *	New ()
Protected Member Functions
	vtkCubeAxesActor2D ()
	~vtkCubeAxesActor2D ()
void	TransformBounds (vtkViewport *viewport, double bounds[6], double pts[8][3])
int	ClipBounds (vtkViewport *viewport, double pts[8][3], double bounds[6])
double	EvaluatePoint (double planes[24], double x[3])
double	EvaluateBounds (double planes[24], double bounds[6])
void	AdjustAxes (double pts[8][3], double bounds[6], int idx, int xIdx, int yIdx, int zIdx, int zIdx2, int xAxes, int yAxes, int zAxes, double xCoords[4], double yCoords[4], double zCoords[4], double xRange[2], double yRange[2], double zRange[2])
Protected Attributes
vtkDataSet *	Input
vtkProp *	ViewProp
double	Bounds [6]
double	Ranges [6]
int	UseRanges
vtkCamera *	Camera
int	FlyMode
int	Scaling
vtkAxisActor2D *	XAxis
vtkAxisActor2D *	YAxis
vtkAxisActor2D *	ZAxis
vtkTextProperty *	AxisTitleTextProperty
vtkTextProperty *	AxisLabelTextProperty
vtkTimeStamp	BuildTime
int	NumberOfLabels
char *	XLabel
char *	YLabel
char *	ZLabel
char *	Labels [3]
int	XAxisVisibility
int	YAxisVisibility
int	ZAxisVisibility
char *	LabelFormat
double	FontFactor
double	CornerOffset
int	Inertia
int	RenderCount
int	InertiaAxes [8]
int	RenderSomething
int	ShowActualBounds

Member Typedef Documentation

typedef vtkActor2D vtkCubeAxesActor2D::Superclass

Reimplemented from vtkActor2D.

Definition at line 64 of file vtkCubeAxesActor2D.h.

Constructor & Destructor Documentation

vtkCubeAxesActor2D::vtkCubeAxesActor2D ( ) [protected]

vtkCubeAxesActor2D::~vtkCubeAxesActor2D ( ) [protected]

Member Function Documentation

virtual const char* vtkCubeAxesActor2D::GetClassName ( ) [virtual]

Reimplemented from vtkActor2D.

static int vtkCubeAxesActor2D::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkActor2D.

virtual int vtkCubeAxesActor2D::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkActor2D.

static vtkCubeAxesActor2D* vtkCubeAxesActor2D::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkActor2D.

void vtkCubeAxesActor2D::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkActor2D.

static vtkCubeAxesActor2D* vtkCubeAxesActor2D::New ( ) [static]

Instantiate object with bold, italic, and shadow enabled; font family set to Arial; and label format "6.3g". The number of labels per axis is set to 3.

Reimplemented from vtkActor2D.

int vtkCubeAxesActor2D::RenderOverlay ( vtkViewport * ) [virtual]

Draw the axes as per the vtkProp superclass' API.

Reimplemented from vtkActor2D.

int vtkCubeAxesActor2D::RenderOpaqueGeometry ( vtkViewport * ) [virtual]

Draw the axes as per the vtkProp superclass' API.

Reimplemented from vtkActor2D.

virtual int vtkCubeAxesActor2D::RenderTranslucentPolygonalGeometry ( vtkViewport * ) [inline, virtual]

Draw the axes as per the vtkProp superclass' API.

Reimplemented from vtkActor2D.

Definition at line 76 of file vtkCubeAxesActor2D.h.

virtual int vtkCubeAxesActor2D::HasTranslucentPolygonalGeometry ( ) [virtual]

Does this prop have some translucent polygonal geometry?

Reimplemented from vtkActor2D.

virtual void vtkCubeAxesActor2D::SetInput ( vtkDataSet * ) [virtual]

Use the bounding box of this input dataset to draw the cube axes. If this is not specified, then the class will attempt to determine the bounds from the defined Prop or Bounds.

virtual vtkDataSet* vtkCubeAxesActor2D::GetInput ( ) [virtual]

Use the bounding box of this input dataset to draw the cube axes. If this is not specified, then the class will attempt to determine the bounds from the defined Prop or Bounds.

void vtkCubeAxesActor2D::SetViewProp ( vtkProp * prop )

Use the bounding box of this prop to draw the cube axes. The ViewProp is used to determine the bounds only if the Input is not defined.

virtual vtkProp* vtkCubeAxesActor2D::GetViewProp ( ) [virtual]

Use the bounding box of this prop to draw the cube axes. The ViewProp is used to determine the bounds only if the Input is not defined.

virtual void vtkCubeAxesActor2D::SetBounds	(	double	,
		double	,
		double	,
		double	,
		double	,
		double
	)			`[virtual]`

Explicitly specify the region in space around which to draw the bounds. The bounds is used only when no Input or Prop is specified. The bounds are specified according to (xmin,xmax, ymin,ymax, zmin,zmax), making sure that the min's are less than the max's.

virtual void vtkCubeAxesActor2D::SetBounds ( double [6] ) [virtual]

Explicitly specify the region in space around which to draw the bounds. The bounds is used only when no Input or Prop is specified. The bounds are specified according to (xmin,xmax, ymin,ymax, zmin,zmax), making sure that the min's are less than the max's.

double* vtkCubeAxesActor2D::GetBounds ( ) [virtual]

Explicitly specify the region in space around which to draw the bounds. The bounds is used only when no Input or Prop is specified. The bounds are specified according to (xmin,xmax, ymin,ymax, zmin,zmax), making sure that the min's are less than the max's.

Reimplemented from vtkProp.

void vtkCubeAxesActor2D::GetBounds	(	double &	xmin,
		double &	xmax,
		double &	ymin,
		double &	ymax,
		double &	zmin,
		double &	zmax
	)

Explicitly specify the region in space around which to draw the bounds. The bounds is used only when no Input or Prop is specified. The bounds are specified according to (xmin,xmax, ymin,ymax, zmin,zmax), making sure that the min's are less than the max's.

void vtkCubeAxesActor2D::GetBounds ( double bounds[6] )

Explicitly specify the region in space around which to draw the bounds. The bounds is used only when no Input or Prop is specified. The bounds are specified according to (xmin,xmax, ymin,ymax, zmin,zmax), making sure that the min's are less than the max's.

virtual void vtkCubeAxesActor2D::SetRanges	(	double	,
		double	,
		double	,
		double	,
		double	,
		double
	)			`[virtual]`

Explicitly specify the range of values used on the bounds. The ranges are specified according to (xmin,xmax, ymin,ymax, zmin,zmax), making sure that the min's are less than the max's.

virtual void vtkCubeAxesActor2D::SetRanges ( double [6] ) [virtual]

Explicitly specify the range of values used on the bounds. The ranges are specified according to (xmin,xmax, ymin,ymax, zmin,zmax), making sure that the min's are less than the max's.

double* vtkCubeAxesActor2D::GetRanges ( )

Explicitly specify the range of values used on the bounds. The ranges are specified according to (xmin,xmax, ymin,ymax, zmin,zmax), making sure that the min's are less than the max's.

void vtkCubeAxesActor2D::GetRanges	(	double &	xmin,
		double &	xmax,
		double &	ymin,
		double &	ymax,
		double &	zmin,
		double &	zmax
	)

Explicitly specify the range of values used on the bounds. The ranges are specified according to (xmin,xmax, ymin,ymax, zmin,zmax), making sure that the min's are less than the max's.

void vtkCubeAxesActor2D::GetRanges ( double ranges[6] )

Explicitly specify the range of values used on the bounds. The ranges are specified according to (xmin,xmax, ymin,ymax, zmin,zmax), making sure that the min's are less than the max's.

virtual void vtkCubeAxesActor2D::SetUseRanges ( int ) [virtual]

Set/Get a flag that controls whether the axes use the data ranges or the ranges set by SetRanges. By default the axes use the data ranges.

virtual int vtkCubeAxesActor2D::GetUseRanges ( ) [virtual]

Set/Get a flag that controls whether the axes use the data ranges or the ranges set by SetRanges. By default the axes use the data ranges.

virtual void vtkCubeAxesActor2D::UseRangesOn ( ) [virtual]

Set/Get a flag that controls whether the axes use the data ranges or the ranges set by SetRanges. By default the axes use the data ranges.

virtual void vtkCubeAxesActor2D::UseRangesOff ( ) [virtual]

Set/Get a flag that controls whether the axes use the data ranges or the ranges set by SetRanges. By default the axes use the data ranges.

virtual void vtkCubeAxesActor2D::SetCamera ( vtkCamera * ) [virtual]

Set/Get the camera to perform scaling and translation of the vtkCubeAxesActor2D.

virtual vtkCamera* vtkCubeAxesActor2D::GetCamera ( ) [virtual]

Set/Get the camera to perform scaling and translation of the vtkCubeAxesActor2D.

virtual void vtkCubeAxesActor2D::SetFlyMode ( int ) [virtual]

Specify a mode to control how the axes are drawn: either outer edges or closest triad to the camera position.

virtual int vtkCubeAxesActor2D::GetFlyMode ( ) [virtual]

Specify a mode to control how the axes are drawn: either outer edges or closest triad to the camera position.

void vtkCubeAxesActor2D::SetFlyModeToOuterEdges ( ) [inline]

Specify a mode to control how the axes are drawn: either outer edges or closest triad to the camera position.

Definition at line 140 of file vtkCubeAxesActor2D.h.

void vtkCubeAxesActor2D::SetFlyModeToClosestTriad ( ) [inline]

Specify a mode to control how the axes are drawn: either outer edges or closest triad to the camera position.

Definition at line 142 of file vtkCubeAxesActor2D.h.

virtual void vtkCubeAxesActor2D::SetScaling ( int ) [virtual]

Set/Get a flag that controls whether the axes are scaled to fit in the viewport. If off, the axes size remains constant (i.e., stay the size of the bounding box). By default scaling is on so the axes are scaled to fit inside the viewport.

virtual int vtkCubeAxesActor2D::GetScaling ( ) [virtual]

Set/Get a flag that controls whether the axes are scaled to fit in the viewport. If off, the axes size remains constant (i.e., stay the size of the bounding box). By default scaling is on so the axes are scaled to fit inside the viewport.

virtual void vtkCubeAxesActor2D::ScalingOn ( ) [virtual]

Set/Get a flag that controls whether the axes are scaled to fit in the viewport. If off, the axes size remains constant (i.e., stay the size of the bounding box). By default scaling is on so the axes are scaled to fit inside the viewport.

virtual void vtkCubeAxesActor2D::ScalingOff ( ) [virtual]

Set/Get a flag that controls whether the axes are scaled to fit in the viewport. If off, the axes size remains constant (i.e., stay the size of the bounding box). By default scaling is on so the axes are scaled to fit inside the viewport.

virtual void vtkCubeAxesActor2D::SetNumberOfLabels ( int ) [virtual]

Set/Get the number of annotation labels to show along the x, y, and z axes. This values is a suggestion: the number of labels may vary depending on the particulars of the data.

virtual int vtkCubeAxesActor2D::GetNumberOfLabels ( ) [virtual]

Set/Get the number of annotation labels to show along the x, y, and z axes. This values is a suggestion: the number of labels may vary depending on the particulars of the data.

virtual void vtkCubeAxesActor2D::SetXLabel ( const char * ) [virtual]

Set/Get the labels for the x, y, and z axes. By default, use "X", "Y" and "Z".

virtual char* vtkCubeAxesActor2D::GetXLabel ( ) [virtual]

Set/Get the labels for the x, y, and z axes. By default, use "X", "Y" and "Z".

virtual void vtkCubeAxesActor2D::SetYLabel ( const char * ) [virtual]

Set/Get the labels for the x, y, and z axes. By default, use "X", "Y" and "Z".

virtual char* vtkCubeAxesActor2D::GetYLabel ( ) [virtual]

Set/Get the labels for the x, y, and z axes. By default, use "X", "Y" and "Z".

virtual void vtkCubeAxesActor2D::SetZLabel ( const char * ) [virtual]

Set/Get the labels for the x, y, and z axes. By default, use "X", "Y" and "Z".

virtual char* vtkCubeAxesActor2D::GetZLabel ( ) [virtual]

Set/Get the labels for the x, y, and z axes. By default, use "X", "Y" and "Z".

vtkAxisActor2D* vtkCubeAxesActor2D::GetXAxisActor2D ( ) [inline]

Retrieve handles to the X, Y and Z axis (so that you can set their text properties for example)

Definition at line 178 of file vtkCubeAxesActor2D.h.

vtkAxisActor2D* vtkCubeAxesActor2D::GetYAxisActor2D ( ) [inline]

Retrieve handles to the X, Y and Z axis (so that you can set their text properties for example)

Definition at line 180 of file vtkCubeAxesActor2D.h.

vtkAxisActor2D* vtkCubeAxesActor2D::GetZAxisActor2D ( ) [inline]

Retrieve handles to the X, Y and Z axis (so that you can set their text properties for example)

Definition at line 182 of file vtkCubeAxesActor2D.h.

virtual void vtkCubeAxesActor2D::SetAxisTitleTextProperty ( vtkTextProperty * p ) [virtual]

Set/Get the title text property of all axes. Note that each axis can be controlled individually through the GetX/Y/ZAxisActor2D() methods.

virtual vtkTextProperty* vtkCubeAxesActor2D::GetAxisTitleTextProperty ( ) [virtual]

Set/Get the title text property of all axes. Note that each axis can be controlled individually through the GetX/Y/ZAxisActor2D() methods.

virtual void vtkCubeAxesActor2D::SetAxisLabelTextProperty ( vtkTextProperty * p ) [virtual]

Set/Get the labels text property of all axes. Note that each axis can be controlled individually through the GetX/Y/ZAxisActor2D() methods.

virtual vtkTextProperty* vtkCubeAxesActor2D::GetAxisLabelTextProperty ( ) [virtual]

Set/Get the labels text property of all axes. Note that each axis can be controlled individually through the GetX/Y/ZAxisActor2D() methods.

virtual void vtkCubeAxesActor2D::SetLabelFormat ( const char * ) [virtual]

Set/Get the format with which to print the labels on each of the x-y-z axes.

virtual char* vtkCubeAxesActor2D::GetLabelFormat ( ) [virtual]

Set/Get the format with which to print the labels on each of the x-y-z axes.

virtual void vtkCubeAxesActor2D::SetFontFactor ( double ) [virtual]

Set/Get the factor that controls the overall size of the fonts used to label and title the axes.

virtual double vtkCubeAxesActor2D::GetFontFactor ( ) [virtual]

Set/Get the factor that controls the overall size of the fonts used to label and title the axes.

virtual void vtkCubeAxesActor2D::SetInertia ( int ) [virtual]

Set/Get the inertial factor that controls how often (i.e, how many renders) the axes can switch position (jump from one axes to another).

virtual int vtkCubeAxesActor2D::GetInertia ( ) [virtual]

Set/Get the inertial factor that controls how often (i.e, how many renders) the axes can switch position (jump from one axes to another).

virtual void vtkCubeAxesActor2D::SetShowActualBounds ( int ) [virtual]

Set/Get the variable that controls whether the actual bounds of the dataset are always shown. Setting this variable to 1 means that clipping is disabled and that the actual value of the bounds is displayed even with corner offsets Setting this variable to 0 means these axis will clip themselves and show variable bounds (legacy mode)

virtual int vtkCubeAxesActor2D::GetShowActualBounds ( ) [virtual]

Set/Get the variable that controls whether the actual bounds of the dataset are always shown. Setting this variable to 1 means that clipping is disabled and that the actual value of the bounds is displayed even with corner offsets Setting this variable to 0 means these axis will clip themselves and show variable bounds (legacy mode)

virtual void vtkCubeAxesActor2D::SetCornerOffset ( double ) [virtual]

Specify an offset value to "pull back" the axes from the corner at which they are joined to avoid overlap of axes labels. The "CornerOffset" is the fraction of the axis length to pull back.

virtual double vtkCubeAxesActor2D::GetCornerOffset ( ) [virtual]

Specify an offset value to "pull back" the axes from the corner at which they are joined to avoid overlap of axes labels. The "CornerOffset" is the fraction of the axis length to pull back.

void vtkCubeAxesActor2D::ReleaseGraphicsResources ( vtkWindow * ) [virtual]

Release any graphics resources that are being consumed by this actor. The parameter window could be used to determine which graphic resources to release.

Reimplemented from vtkActor2D.

virtual void vtkCubeAxesActor2D::SetXAxisVisibility ( int ) [virtual]
