vtkFeatureEdges Class Reference

#include <vtkFeatureEdges.h>

Inheritance diagram for vtkFeatureEdges:

Inheritance graph
[legend]

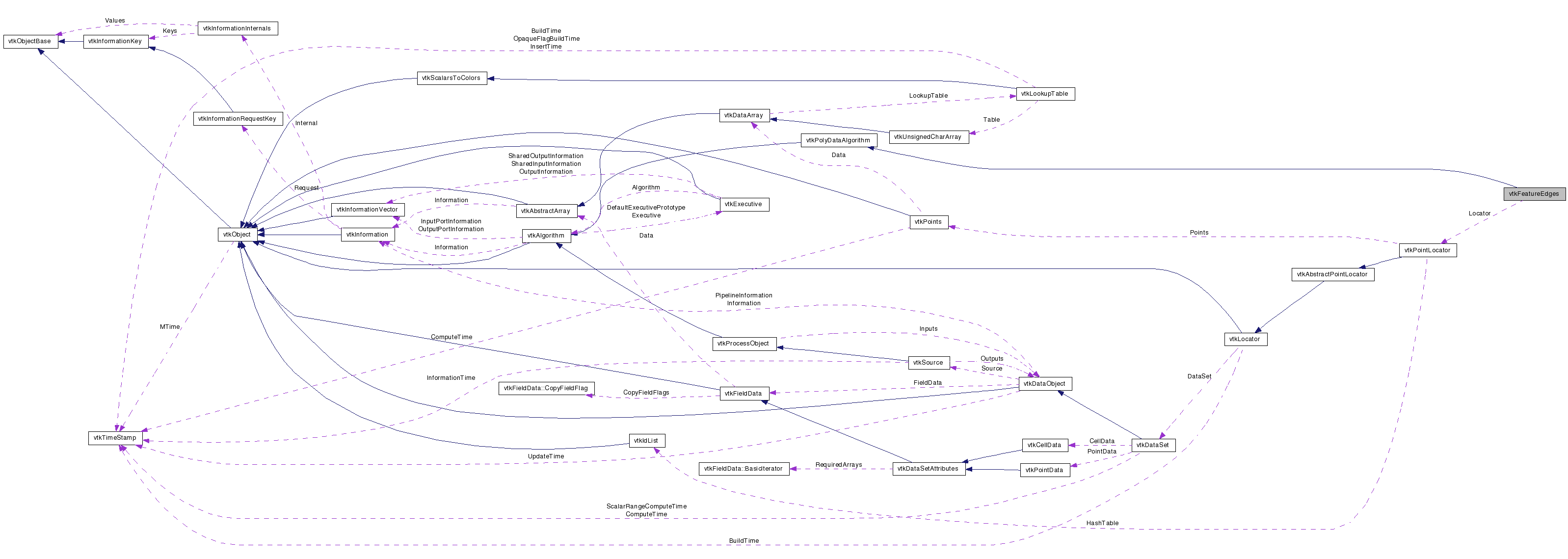

Collaboration diagram for vtkFeatureEdges:

Collaboration graph
[legend]

List of all members.


Detailed Description

extract boundary, non-manifold, and/or sharp edges from polygonal data

vtkFeatureEdges is a filter to extract special types of edges from input polygonal data. These edges are either 1) boundary (used by one polygon) or a line cell; 2) non-manifold (used by three or more polygons); 3) feature edges (edges used by two triangles and whose dihedral angle > FeatureAngle); or 4) manifold edges (edges used by exactly two polygons). These edges may be extracted in any combination. Edges may also be "colored" (i.e., scalar values assigned) based on edge type. The cell coloring is assigned to the cell data of the extracted edges.

Warning:
To see the coloring of the liens you may have to set the ScalarMode instance variable of the mapper to SetScalarModeToUseCellData(). (This is only a problem if there are point data scalars.)
See also:
vtkExtractEdges
Tests:
vtkFeatureEdges (Tests)

Definition at line 47 of file vtkFeatureEdges.h.


Public Types

typedef vtkPolyDataAlgorithm Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
void CreateDefaultLocator ()
unsigned long GetMTime ()
virtual void SetBoundaryEdges (int)
virtual int GetBoundaryEdges ()
virtual void BoundaryEdgesOn ()
virtual void BoundaryEdgesOff ()
virtual void SetFeatureEdges (int)
virtual int GetFeatureEdges ()
virtual void FeatureEdgesOn ()
virtual void FeatureEdgesOff ()
virtual void SetFeatureAngle (double)
virtual double GetFeatureAngle ()
virtual void SetNonManifoldEdges (int)
virtual int GetNonManifoldEdges ()
virtual void NonManifoldEdgesOn ()
virtual void NonManifoldEdgesOff ()
virtual void SetManifoldEdges (int)
virtual int GetManifoldEdges ()
virtual void ManifoldEdgesOn ()
virtual void ManifoldEdgesOff ()
virtual void SetColoring (int)
virtual int GetColoring ()
virtual void ColoringOn ()
virtual void ColoringOff ()
void SetLocator (vtkPointLocator *locator)
virtual vtkPointLocatorGetLocator ()

Static Public Member Functions

static int IsTypeOf (const char *type)
static vtkFeatureEdgesSafeDownCast (vtkObject *o)
static vtkFeatureEdgesNew ()

Protected Member Functions

 vtkFeatureEdges ()
 ~vtkFeatureEdges ()
int RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
int RequestUpdateExtent (vtkInformation *, vtkInformationVector **, vtkInformationVector *)

Protected Attributes

double FeatureAngle
int BoundaryEdges
int FeatureEdges
int NonManifoldEdges
int ManifoldEdges
int Coloring
vtkPointLocatorLocator

Member Typedef Documentation

Reimplemented from vtkPolyDataAlgorithm.

Definition at line 50 of file vtkFeatureEdges.h.


Constructor & Destructor Documentation

vtkFeatureEdges::vtkFeatureEdges (  )  [protected]

vtkFeatureEdges::~vtkFeatureEdges (  )  [protected]


Member Function Documentation

virtual const char* vtkFeatureEdges::GetClassName (  )  [virtual]

Reimplemented from vtkPolyDataAlgorithm.

static int vtkFeatureEdges::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataAlgorithm.

virtual int vtkFeatureEdges::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataAlgorithm.

static vtkFeatureEdges* vtkFeatureEdges::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkPolyDataAlgorithm.

void vtkFeatureEdges::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkPolyDataAlgorithm.

static vtkFeatureEdges* vtkFeatureEdges::New (  )  [static]

Construct object with feature angle = 30; all types of edges extracted and colored.

Reimplemented from vtkPolyDataAlgorithm.

virtual void vtkFeatureEdges::SetBoundaryEdges ( int   )  [virtual]

Turn on/off the extraction of boundary edges.

virtual int vtkFeatureEdges::GetBoundaryEdges (  )  [virtual]

Turn on/off the extraction of boundary edges.

virtual void vtkFeatureEdges::BoundaryEdgesOn (  )  [virtual]

Turn on/off the extraction of boundary edges.

virtual void vtkFeatureEdges::BoundaryEdgesOff (  )  [virtual]

Turn on/off the extraction of boundary edges.

virtual void vtkFeatureEdges::SetFeatureEdges ( int   )  [virtual]

Turn on/off the extraction of feature edges.

virtual int vtkFeatureEdges::GetFeatureEdges (  )  [virtual]

Turn on/off the extraction of feature edges.

virtual void vtkFeatureEdges::FeatureEdgesOn (  )  [virtual]

Turn on/off the extraction of feature edges.

virtual void vtkFeatureEdges::FeatureEdgesOff (  )  [virtual]

Turn on/off the extraction of feature edges.

virtual void vtkFeatureEdges::SetFeatureAngle ( double   )  [virtual]

Specify the feature angle for extracting feature edges.

virtual double vtkFeatureEdges::GetFeatureAngle (  )  [virtual]

Specify the feature angle for extracting feature edges.

virtual void vtkFeatureEdges::SetNonManifoldEdges ( int   )  [virtual]

Turn on/off the extraction of non-manifold edges.

virtual int vtkFeatureEdges::GetNonManifoldEdges (  )  [virtual]

Turn on/off the extraction of non-manifold edges.

virtual void vtkFeatureEdges::NonManifoldEdgesOn (  )  [virtual]

Turn on/off the extraction of non-manifold edges.

virtual void vtkFeatureEdges::NonManifoldEdgesOff (  )  [virtual]

Turn on/off the extraction of non-manifold edges.

virtual void vtkFeatureEdges::SetManifoldEdges ( int   )  [virtual]

Turn on/off the extraction of manifold edges.

virtual int vtkFeatureEdges::GetManifoldEdges (  )  [virtual]

Turn on/off the extraction of manifold edges.

virtual void vtkFeatureEdges::ManifoldEdgesOn (  )  [virtual]

Turn on/off the extraction of manifold edges.

virtual void vtkFeatureEdges::ManifoldEdgesOff (  )  [virtual]

Turn on/off the extraction of manifold edges.

virtual void vtkFeatureEdges::SetColoring ( int   )  [virtual]

Turn on/off the coloring of edges by type.

virtual int vtkFeatureEdges::GetColoring (  )  [virtual]

Turn on/off the coloring of edges by type.

virtual void vtkFeatureEdges::ColoringOn (  )  [virtual]

Turn on/off the coloring of edges by type.

virtual void vtkFeatureEdges::ColoringOff (  )  [virtual]

Turn on/off the coloring of edges by type.

void vtkFeatureEdges::SetLocator ( vtkPointLocator locator  )

Set / get a spatial locator for merging points. By default an instance of vtkMergePoints is used.

virtual vtkPointLocator* vtkFeatureEdges::GetLocator (  )  [virtual]

Set / get a spatial locator for merging points. By default an instance of vtkMergePoints is used.

void vtkFeatureEdges::CreateDefaultLocator (  )

Create default locator. Used to create one when none is specified.

unsigned long vtkFeatureEdges::GetMTime (  )  [virtual]

Return MTime also considering the locator.

Reimplemented from vtkObject.

int vtkFeatureEdges::RequestData ( vtkInformation request,
vtkInformationVector **  inputVector,
vtkInformationVector outputVector
) [protected, virtual]

This is called by the superclass. This is the method you should override.

Reimplemented from vtkPolyDataAlgorithm.

int vtkFeatureEdges::RequestUpdateExtent ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [protected, virtual]

This is called by the superclass. This is the method you should override.

Reimplemented from vtkPolyDataAlgorithm.


Member Data Documentation

double vtkFeatureEdges::FeatureAngle [protected]

Definition at line 119 of file vtkFeatureEdges.h.

Definition at line 120 of file vtkFeatureEdges.h.

Definition at line 121 of file vtkFeatureEdges.h.

Definition at line 122 of file vtkFeatureEdges.h.

Definition at line 123 of file vtkFeatureEdges.h.

int vtkFeatureEdges::Coloring [protected]

Definition at line 124 of file vtkFeatureEdges.h.

Definition at line 125 of file vtkFeatureEdges.h.


The documentation for this class was generated from the following file:
