vtkGenericMovieWriter Class Reference

#include <vtkGenericMovieWriter.h>

Inheritance diagram for vtkGenericMovieWriter:

Inheritance graph
[legend]

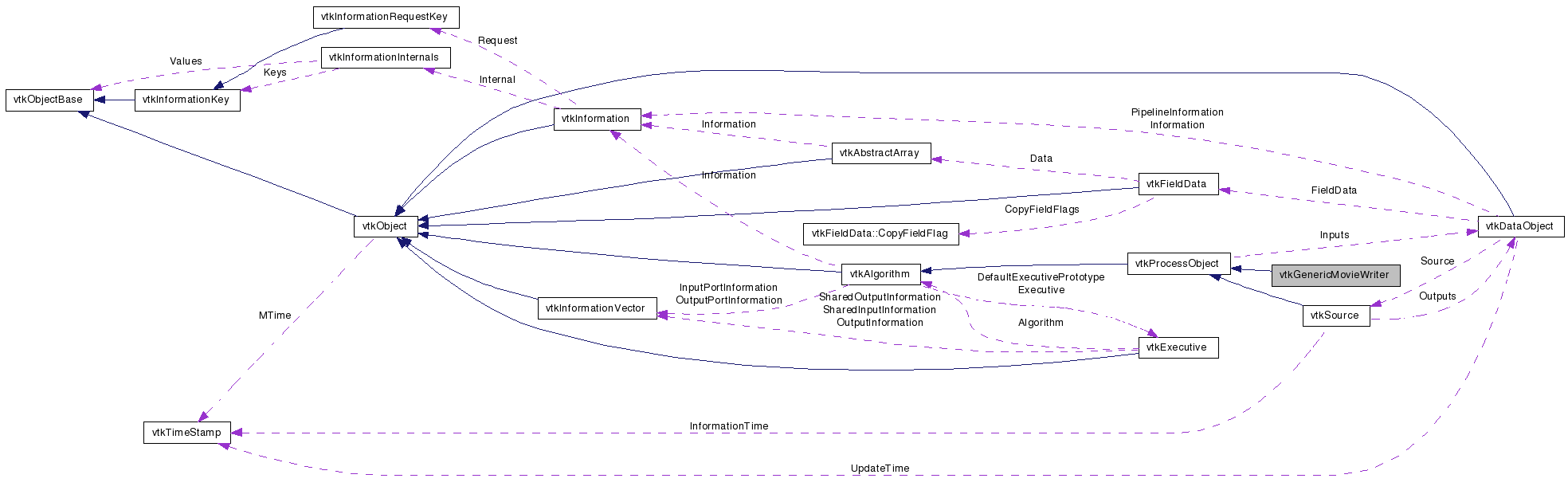

Collaboration diagram for vtkGenericMovieWriter:

Collaboration graph
[legend]

List of all members.


Detailed Description

an abstract movie writer class.

vtkGenericMovieWriter is the abstract base class for several movie writers. The input type is a vtkImageData. The Start() method will open and create the file, the Write() method will output a frame to the file (i.e. the contents of the vtkImageData), End() will finalize and close the file.

See also:
vtkAVIWriter vtkMPEG2Writer

Definition at line 34 of file vtkGenericMovieWriter.h.


Public Types

enum  MovieWriterErrorIds {
  UserError = 40000, InitError, NoInputError, CanNotCompress,
  CanNotFormat, ChangedResolutionError
}
typedef vtkProcessObject Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void SetInput (vtkImageData *input)
virtual vtkImageDataGetInput ()
virtual void SetFileName (const char *)
virtual char * GetFileName ()
virtual void Start ()=0
virtual void Write ()=0
virtual void End ()=0
virtual int GetError ()

Static Public Member Functions

static int IsTypeOf (const char *type)
static vtkGenericMovieWriterSafeDownCast (vtkObject *o)
static const char * GetStringFromErrorCode (unsigned long event)

Protected Member Functions

 vtkGenericMovieWriter ()
 ~vtkGenericMovieWriter ()

Protected Attributes

char * FileName
int Error

Member Typedef Documentation

Reimplemented from vtkProcessObject.

Reimplemented in vtkAVIWriter, vtkFFMPEGWriter, and vtkMPEG2Writer.

Definition at line 37 of file vtkGenericMovieWriter.h.


Member Enumeration Documentation

Enumerator:
UserError
InitError
NoInputError
CanNotCompress
CanNotFormat
ChangedResolutionError

Definition at line 69 of file vtkGenericMovieWriter.h.


Constructor & Destructor Documentation

vtkGenericMovieWriter::vtkGenericMovieWriter (  )  [protected]

vtkGenericMovieWriter::~vtkGenericMovieWriter (  )  [protected]


Member Function Documentation

virtual const char* vtkGenericMovieWriter::GetClassName (  )  [virtual]

Reimplemented from vtkProcessObject.

Reimplemented in vtkAVIWriter, vtkFFMPEGWriter, and vtkMPEG2Writer.

static int vtkGenericMovieWriter::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkProcessObject.

Reimplemented in vtkAVIWriter, vtkFFMPEGWriter, and vtkMPEG2Writer.

virtual int vtkGenericMovieWriter::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkProcessObject.

Reimplemented in vtkAVIWriter, vtkFFMPEGWriter, and vtkMPEG2Writer.

static vtkGenericMovieWriter* vtkGenericMovieWriter::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkProcessObject.

Reimplemented in vtkAVIWriter, vtkFFMPEGWriter, and vtkMPEG2Writer.

void vtkGenericMovieWriter::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkProcessObject.

Reimplemented in vtkAVIWriter, vtkFFMPEGWriter, and vtkMPEG2Writer.

virtual void vtkGenericMovieWriter::SetInput ( vtkImageData input  )  [virtual]

Set/Get the input object from the image pipeline.

virtual vtkImageData* vtkGenericMovieWriter::GetInput (  )  [virtual]

Set/Get the input object from the image pipeline.

virtual void vtkGenericMovieWriter::SetFileName ( const char *   )  [virtual]

Specify file name of avi file.

virtual char* vtkGenericMovieWriter::GetFileName (  )  [virtual]

Specify file name of avi file.

virtual void vtkGenericMovieWriter::Start (  )  [pure virtual]

These methods start writing an Movie file, write a frame to the file and then end the writing process.

Implemented in vtkAVIWriter, vtkFFMPEGWriter, and vtkMPEG2Writer.

virtual void vtkGenericMovieWriter::Write (  )  [pure virtual]

These methods start writing an Movie file, write a frame to the file and then end the writing process.

Implemented in vtkAVIWriter, vtkFFMPEGWriter, and vtkMPEG2Writer.

virtual void vtkGenericMovieWriter::End (  )  [pure virtual]

These methods start writing an Movie file, write a frame to the file and then end the writing process.

Implemented in vtkAVIWriter, vtkFFMPEGWriter, and vtkMPEG2Writer.

virtual int vtkGenericMovieWriter::GetError (  )  [virtual]

Was there an error on the last write performed?

static const char* vtkGenericMovieWriter::GetStringFromErrorCode ( unsigned long  event  )  [static]

Converts vtkErrorCodes and vtkGenericMovieWriter errors to strings.


Member Data Documentation

Definition at line 83 of file vtkGenericMovieWriter.h.

Definition at line 84 of file vtkGenericMovieWriter.h.


The documentation for this class was generated from the following file:

Generated on Wed Jun 3 19:04:28 2009 for VTK by  doxygen 1.5.6
