vtkGeoAlignedImageSource Class Reference

#include <vtkGeoAlignedImageSource.h>

Inheritance diagram for vtkGeoAlignedImageSource:

[legend]

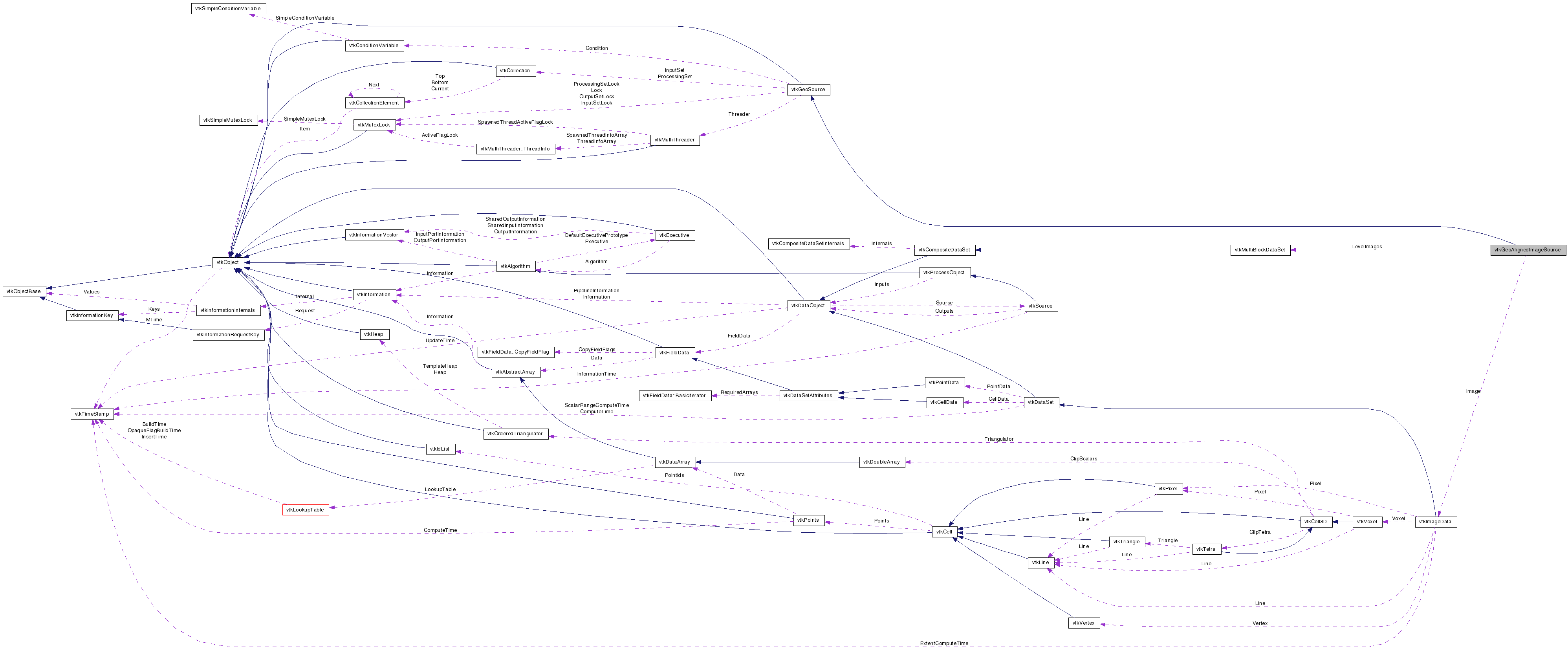

Collaboration diagram for vtkGeoAlignedImageSource:

[legend]

List of all members.

Detailed Description

Splits hi-res image into tiles.

vtkGeoAlignedImageSource uses a high resolution image to generate tiles at multiple resolutions in a hierarchy. It should be used as a source in vtkGeoAlignedImageRepresentation.

See also:: vtkGeoAlignedImageRepresentation vtkGeoView vtkGeoView2D

Events:: vtkCommand::ProgressEvent

Tests:: vtkGeoAlignedImageSource (Tests)

Definition at line 47 of file vtkGeoAlignedImageSource.h.


Public Types
typedef vtkGeoSource	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual bool	FetchRoot (vtkGeoTreeNode *node)
virtual bool	FetchChild (vtkGeoTreeNode parent, int index, vtkGeoTreeNode child)

virtual vtkImageData *	GetImage ()
virtual void	SetImage (vtkImageData *image)

virtual void	SetLatitudeRange (double, double)
void	SetLatitudeRange (double[2])
virtual double *	GetLatitudeRange ()
virtual void	GetLatitudeRange (double &, double &)
virtual void	GetLatitudeRange (double[2])
virtual void	SetLongitudeRange (double, double)
void	SetLongitudeRange (double[2])
virtual double *	GetLongitudeRange ()
virtual void	GetLongitudeRange (double &, double &)
virtual void	GetLongitudeRange (double[2])

virtual void	SetOverlap (double)
virtual double	GetOverlap ()

virtual void	SetPowerOfTwoSize (bool)
virtual bool	GetPowerOfTwoSize ()
virtual void	PowerOfTwoSizeOn ()
virtual void	PowerOfTwoSizeOff ()
Static Public Member Functions
static vtkGeoAlignedImageSource *	New ()
static int	IsTypeOf (const char *type)
static vtkGeoAlignedImageSource *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkGeoAlignedImageSource ()
	~vtkGeoAlignedImageSource ()
void	CropImageForNode (vtkGeoImageNode node, vtkImageData image)
int	PowerOfTwo (int val)
Protected Attributes
vtkImageData *	Image
vtkMultiBlockDataSet *	LevelImages
double	LatitudeRange [2]
double	LongitudeRange [2]
double	Overlap
bool	PowerOfTwoSize
vtkProgressObserver *	ProgressObserver

Member Typedef Documentation

typedef vtkGeoSource vtkGeoAlignedImageSource::Superclass

Reimplemented from vtkGeoSource.

Definition at line 51 of file vtkGeoAlignedImageSource.h.

Constructor & Destructor Documentation

vtkGeoAlignedImageSource::vtkGeoAlignedImageSource ( ) [protected]

vtkGeoAlignedImageSource::~vtkGeoAlignedImageSource ( ) [protected]

Member Function Documentation

static vtkGeoAlignedImageSource* vtkGeoAlignedImageSource::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

virtual const char* vtkGeoAlignedImageSource::GetClassName ( ) [virtual]

Reimplemented from vtkGeoSource.

static int vtkGeoAlignedImageSource::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkGeoSource.

virtual int vtkGeoAlignedImageSource::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkGeoSource.

static vtkGeoAlignedImageSource* vtkGeoAlignedImageSource::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkGeoSource.

void vtkGeoAlignedImageSource::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkObject.

virtual bool vtkGeoAlignedImageSource::FetchRoot ( vtkGeoTreeNode * node ) [virtual]

Fetch the root image.

Implements vtkGeoSource.

virtual bool vtkGeoAlignedImageSource::FetchChild	(	vtkGeoTreeNode *	parent,
		int	index,
		vtkGeoTreeNode *	child
	)			`[virtual]`

Fetch a child image.

Implements vtkGeoSource.

virtual vtkImageData* vtkGeoAlignedImageSource::GetImage ( ) [virtual]

The high-resolution image to be used to cover the globe.

virtual void vtkGeoAlignedImageSource::SetImage ( vtkImageData * image ) [virtual]

The high-resolution image to be used to cover the globe.

virtual void vtkGeoAlignedImageSource::SetLatitudeRange	(	double	,
		double
	)			`[virtual]`
