vtkGeoEdgeStrategy Class Reference

#include <vtkGeoEdgeStrategy.h>

Inheritance diagram for vtkGeoEdgeStrategy:

[legend]

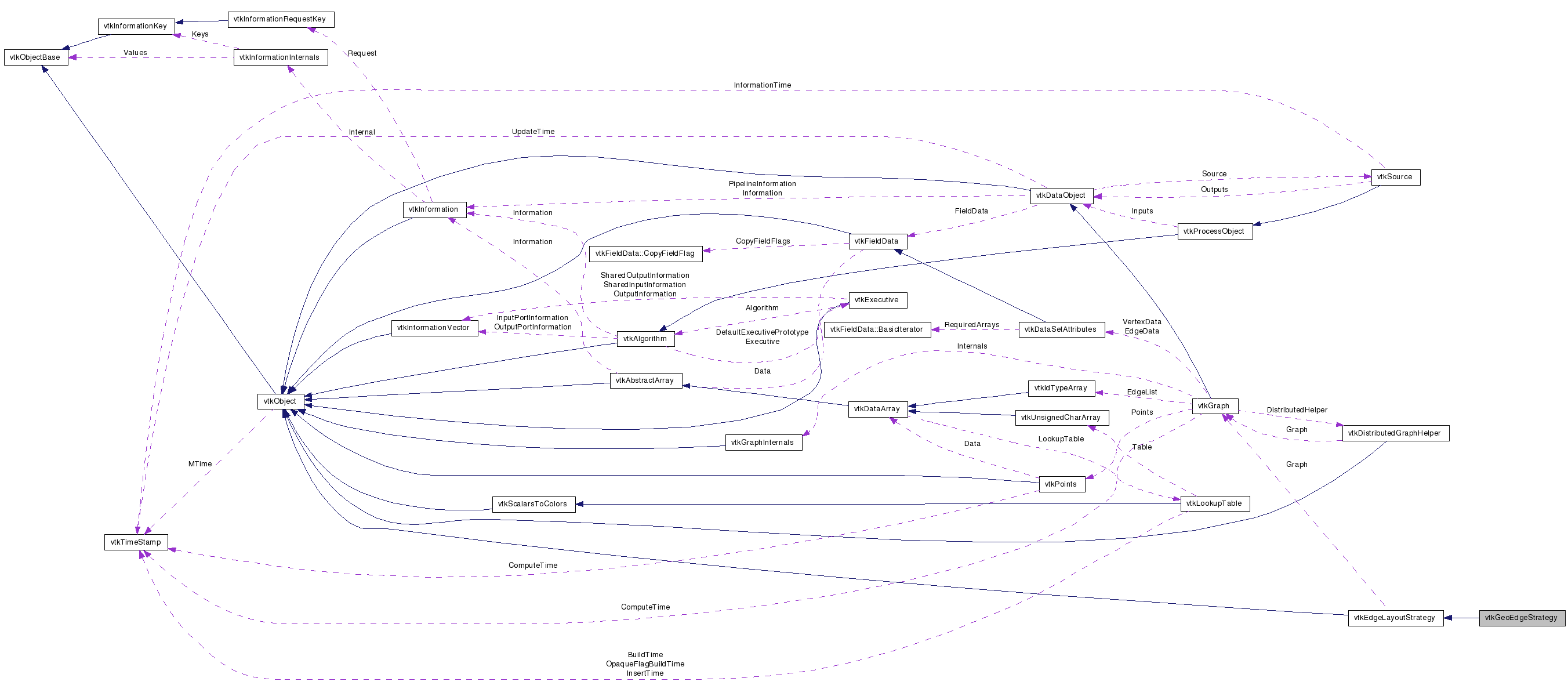

Collaboration diagram for vtkGeoEdgeStrategy:

[legend]

List of all members.

Detailed Description

Layout graph edges on a globe as arcs.

vtkGeoEdgeStrategy produces arcs for each edge in the input graph. This is useful for viewing lines on a sphere (e.g. the earth). The arcs may "jump" above the sphere's surface using ExplodeFactor.

Events:: vtkCommand::ProgressEvent

Definition at line 37 of file vtkGeoEdgeStrategy.h.


Public Types
typedef vtkEdgeLayoutStrategy	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	Layout ()

virtual void	SetGlobeRadius (double)
virtual double	GetGlobeRadius ()

virtual void	SetExplodeFactor (double)
virtual double	GetExplodeFactor ()

virtual void	SetNumberOfSubdivisions (int)
virtual int	GetNumberOfSubdivisions ()
Static Public Member Functions
static vtkGeoEdgeStrategy *	New ()
static int	IsTypeOf (const char *type)
static vtkGeoEdgeStrategy *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkGeoEdgeStrategy ()
	~vtkGeoEdgeStrategy ()
Protected Attributes
double	GlobeRadius
double	ExplodeFactor
int	NumberOfSubdivisions

Member Typedef Documentation

typedef vtkEdgeLayoutStrategy vtkGeoEdgeStrategy::Superclass

Reimplemented from vtkEdgeLayoutStrategy.

Definition at line 41 of file vtkGeoEdgeStrategy.h.

Constructor & Destructor Documentation

vtkGeoEdgeStrategy::vtkGeoEdgeStrategy ( ) [protected]

vtkGeoEdgeStrategy::~vtkGeoEdgeStrategy ( ) [inline, protected]

Definition at line 72 of file vtkGeoEdgeStrategy.h.

Member Function Documentation

static vtkGeoEdgeStrategy* vtkGeoEdgeStrategy::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

virtual const char* vtkGeoEdgeStrategy::GetClassName ( ) [virtual]

Reimplemented from vtkEdgeLayoutStrategy.

static int vtkGeoEdgeStrategy::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkEdgeLayoutStrategy.

virtual int vtkGeoEdgeStrategy::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkEdgeLayoutStrategy.

static vtkGeoEdgeStrategy* vtkGeoEdgeStrategy::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkEdgeLayoutStrategy.

void vtkGeoEdgeStrategy::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkEdgeLayoutStrategy.

virtual void vtkGeoEdgeStrategy::SetGlobeRadius ( double ) [virtual]

The base radius used to determine the earth's surface. Default is the earth's radius in meters. TODO: Change this to take in a vtkGeoTerrain to get altitude.

virtual double vtkGeoEdgeStrategy::GetGlobeRadius ( ) [virtual]

The base radius used to determine the earth's surface. Default is the earth's radius in meters. TODO: Change this to take in a vtkGeoTerrain to get altitude.

virtual void vtkGeoEdgeStrategy::SetExplodeFactor ( double ) [virtual]

Factor on which to "explode" the arcs away from the surface. A value of 0.0 keeps the values on the surface. Values larger than 0.0 push the arcs away from the surface by a distance proportional to the distance between the points. The default is 0.2.

virtual double vtkGeoEdgeStrategy::GetExplodeFactor ( ) [virtual]

Factor on which to "explode" the arcs away from the surface. A value of 0.0 keeps the values on the surface. Values larger than 0.0 push the arcs away from the surface by a distance proportional to the distance between the points. The default is 0.2.

virtual void vtkGeoEdgeStrategy::SetNumberOfSubdivisions ( int ) [virtual]

The number of subdivisions in the arc. The default is 20.

virtual int vtkGeoEdgeStrategy::GetNumberOfSubdivisions ( ) [virtual]

The number of subdivisions in the arc. The default is 20.

virtual void vtkGeoEdgeStrategy::Layout ( ) [virtual]

Perform the layout.

Implements vtkEdgeLayoutStrategy.
